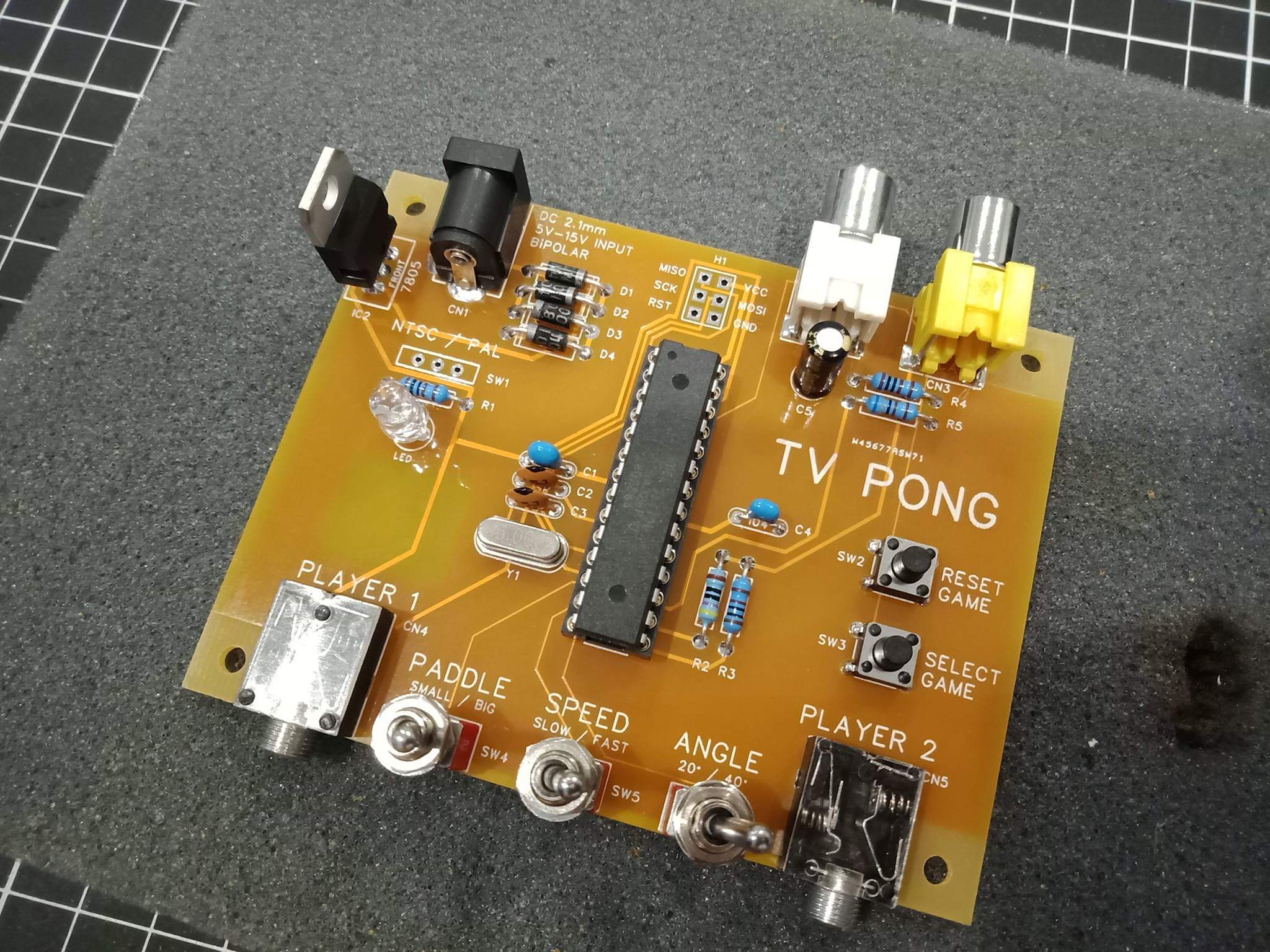

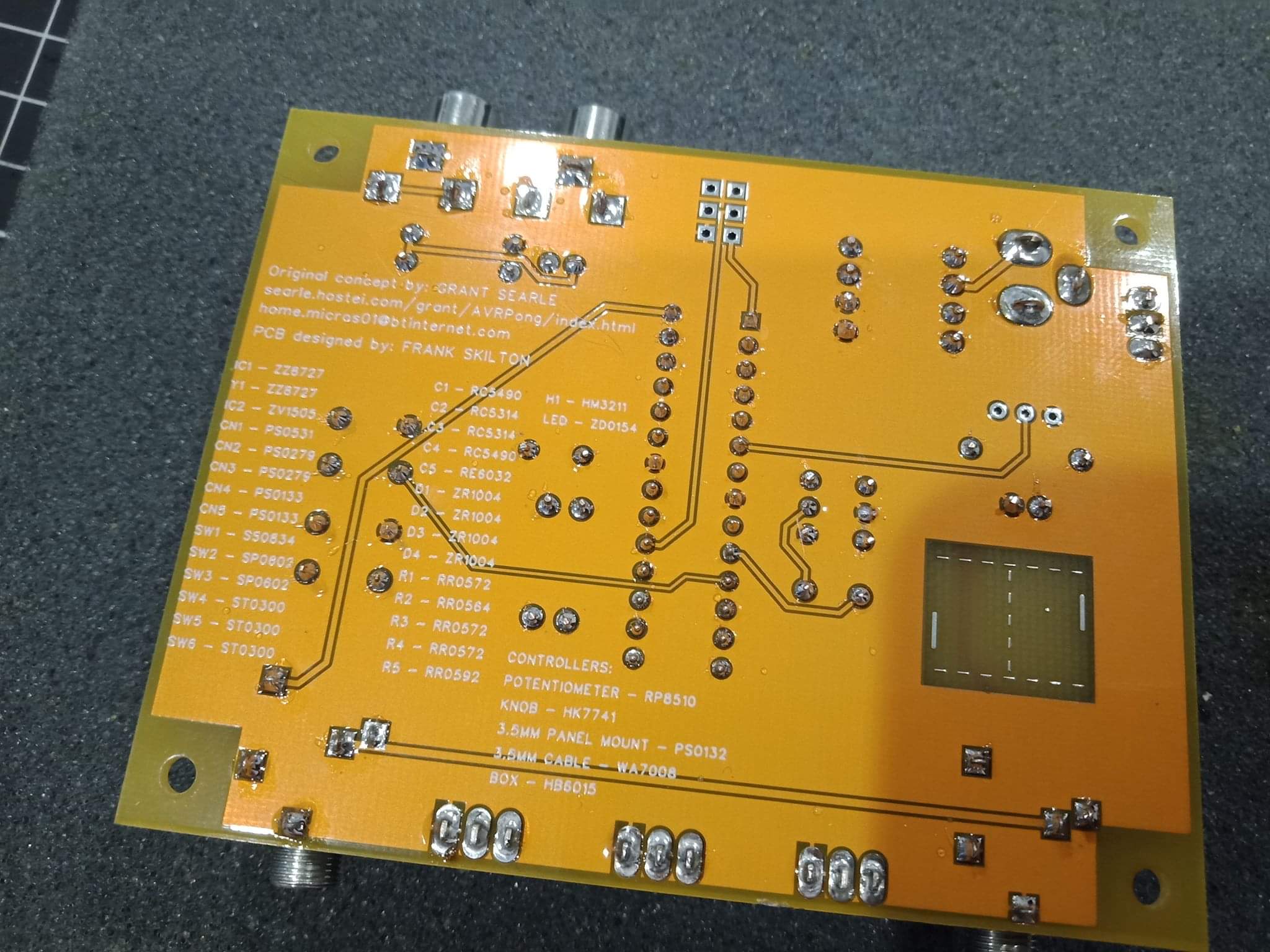

Designed this PCB which I received today. It's an emulated TV pong console running on an Atmega328.

Very happy with how it turned out.

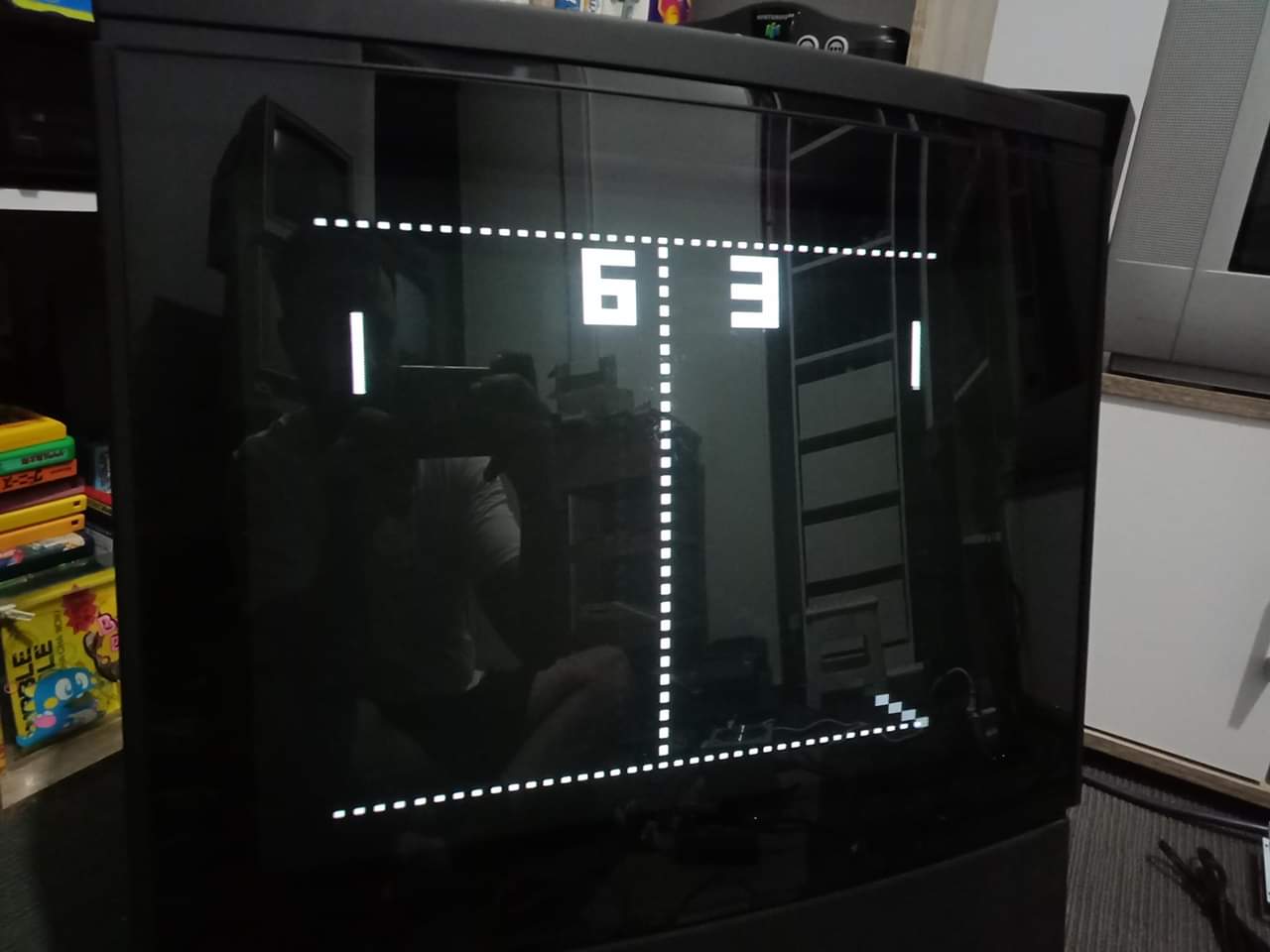

Will post some more screens of the game in action and the controllers later...


@suverman


Frank_fjs

Multi Boyz 4 Lyfe
Legendary
Multi Boyz
Joined
Mar 3, 2018
Messages
3,431
Reaction score
5,808
Location
Australia - Adelaide
Thanks!

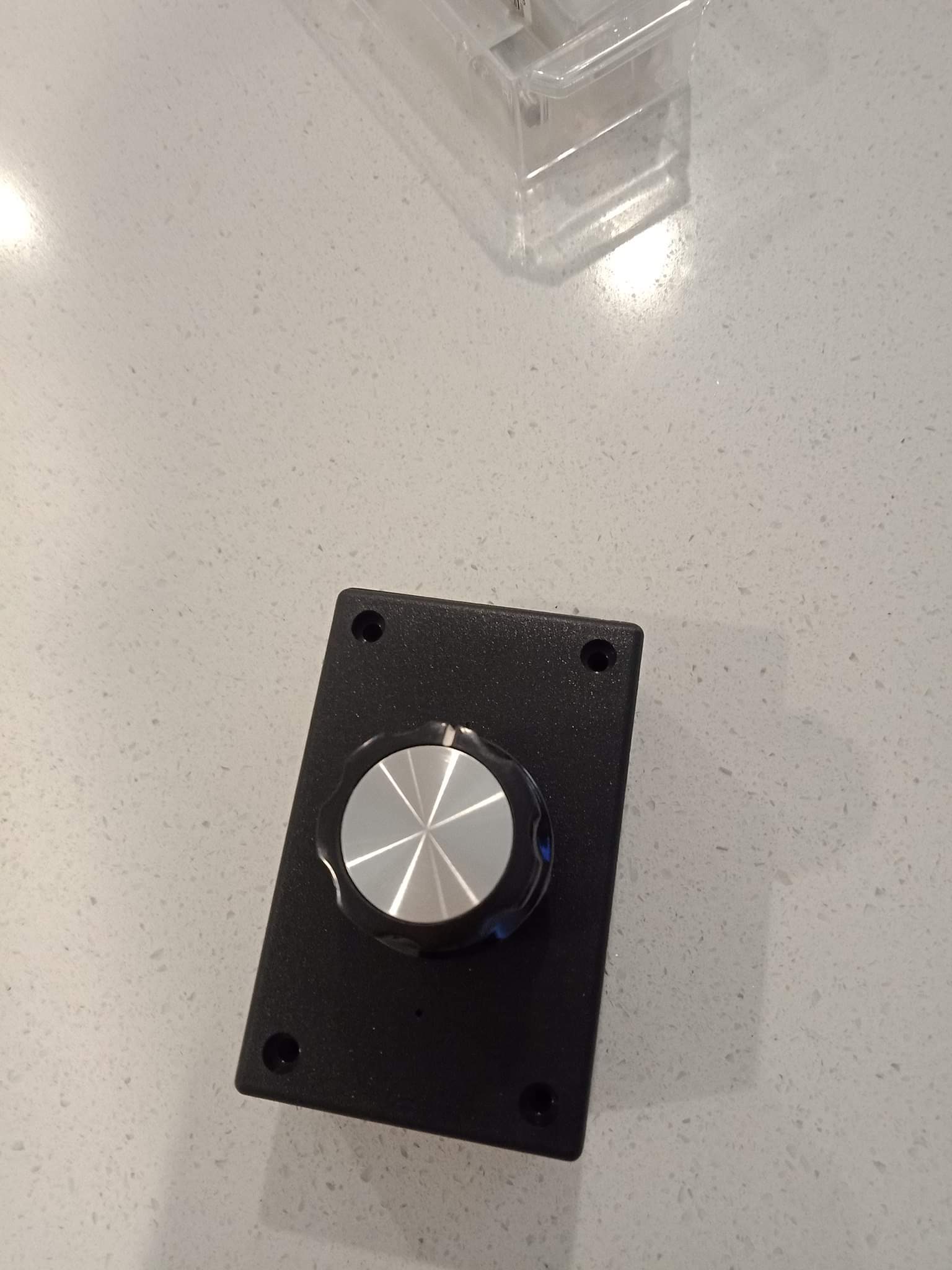

The controllers utilise 3.5mm audio cables for connecting from the controller box to the PCB. You use 10K linear pots which can be nicely housed in a pcb enclosure box, and finished off with a nice knob.
