Welp this is a continuation Of my Ideas Thread. (delete or archive old thread if needed)
"Wooden City" Candy cabinet idea

So uhhh Starting to make it now xD


Recap of important details:
Easy to rotate monitor
made of wood
sitdown
Designed mainly for Naomi
Vertical Slide out PCB mount

I'll sorta build it, And when its complete I'll Sorta get my stuff better documented in case anyone wants to replicate

Concept Art



Note clipping already fixed. just too lazy to make a new picture

Day 1 Stuff



Mikanbox

Student
Joined
Oct 28, 2016
Messages
27
Reaction score
33
Anyone know a good shop for a dustplate that goes onto a ls-56 (Shaft cover removed*)?


"The dust washer from a Sanwa JLF stick is the perfect size." (thanks nem!)

any idea where to find these for sale? the ones are usually on sale come with a shaft cover, and I assume that's too wide...

The sanwa jl pp1 dustwasher seems to be the correct one? but I can't seem to find any suppliers in the usa x.x




Also making little progress, can only work on sunny days :(

Decided to change more stuff in the design....
Made unit a tiny bit wider so 2 player won't be so cramped
Changed some cut angles to be easier to cut

side note... I should really get a table saw :S



nem

Enlightened
Joined
May 29, 2016
Messages
3,928
Reaction score
2,996
Location
Finland
any idea where to find these for sale? the ones are usually on sale come with a shaft cover, and I assume that's too wide...
The sanwa jl pp1 dustwasher seems to be the correct one? but I can't seem to find any suppliers in the usa x.x
That's right, the dust washer that is included with the shaft cover has a larger hole.

The JLF sticks come with two dust washers as new. One is supposed to be put under the panel, however, I don't think many actually do this, so I'm sure people have spares if you ask around.


kingau

Enthusiast
Joined
Jul 22, 2015
Messages
251
Reaction score
107
Location
nyc
wow amazing Mikanbox!!!

how much did the wood cost?

and what kind of saw do you use?


jassin000

Legendary
Multi Boyz
Joined
Jul 21, 2015
Messages
7,788
Reaction score
6,318
Location
Afterlife
Uh... Not trying to be a negative nancy over here, but... You used what appears to be plywood for the wall construction.
Woody cabs do contain plywood, commonly on things like the bottom panels or internal panels.
The sides/external pieces however are made from high density MDF, when you go to prime/paint this... You'll understand why.

Last edited:

Mitsurugi-w

Arcade Admini-Moderator
Staff member
Legendary
Joined
Jun 12, 2015
Messages
6,691
Reaction score
6,280
Location
New Bern, NC USA
There were plenty of plywood cabs made in the past but many had some type of laminate applied to the sides.


Mikanbox

Student
Joined
Oct 28, 2016
Messages
27
Reaction score
33
Uh... Not trying to be a negative nancy over here, but... You used what appears to be plywood for the wall construction.
Woody cabs do contain plywood, commonly on things like the bottom panels or internal panels.
The sides/external pieces however are made from high density MDF, when you go to prime/paint this... You'll understand why.
I've worked with wood, plywood and fiberboard for painting before, And got to know a good bit about all 3 of 'em

But for this project I wanted something a bit more water resistant and act as a strong support to "keep everything together", So I chose a higher quality plywood.

As per cons, I'll make sure to woodputty the edges then Seal it up before I do a nice paint job on it. (else maybe stain, Depends how I'm feeling when I get there)


Mikanbox

Student
Joined
Oct 28, 2016
Messages
27
Reaction score
33

KOarcade

Enthusiast
Joined
Aug 5, 2015
Messages
240
Reaction score
62
Location
Saginaw, MI
looks great what size screen you going with? Have you thought about trying to rig it to rotate easier? I've always wanted to design a better mount and rotational structure for cabinets.


kingau

Enthusiast
Joined
Jul 22, 2015
Messages
251
Reaction score
107
Location
nyc
wow amazing Mikanbox!!!

how much did the wood cost?

and what kind of saw do you use?
about 75$.
and I'm using these saws:
http://www.acehardware.com/product/index.jsp?productId=1290071
http://www.harborfreight.com/power-tools/jig-saws/32-amp-variable-speed-jig-saw-69436.html


even with the 1 hour of free time I got per day, Looks like its slowly coming together :3

Here's me test fitting the back panel (I'd give it a C-. Prob gonna re cut)
Thanks!!


Mikanbox

Student
Joined
Oct 28, 2016
Messages
27
Reaction score
33
Making good progress. Working full time and barely any sunny days.
Control panel is mostly cut out.
Monitor Holder is taking shape. (atm. 4 second Tate!)



Brettster

Enthusiast
Joined
Nov 20, 2016
Messages
194
Reaction score
134
Location
Leeds, UK
Liking the design of this, Made a few bar tops but a woody candy is cool


winteriscoming

Champion
Joined
Feb 16, 2016
Messages
1,399
Reaction score
1,094
Location
Indiana, US
This is awesome! I'm going to have to make something similar some day and put my underutilized CNC machine to work.


Mikanbox

Student
Joined
Oct 28, 2016
Messages
27
Reaction score
33
Finished the Monitor mounting system. Now the monitor just Drops in (vertical or horizontal) Right in to its correct angle and position almost immediately.

Got control panel stuff cut and fitted.

Gotta cut Wiring holes when i get time.... and I should get the sliding Pcb mount working next time.
(dry run soon!.... Maybe?)



Boing Boing


Mikanbox

Student
Joined
Oct 28, 2016
Messages
27
Reaction score
33
Woot, Dry run was a success, Had a great xmas party :3

I'll prob take a small break on woodworking. Gonna wait for better weather.....

Got all the stuff sorta placed where i sorta want em
got temp bezel made (gotta make a acrylic one later....)
Jamma and jvs Ready. (only jvs stuff pictured)

random issues:
My initial speaker selection was too stronk. So now i gotta redesign cuz imma switching to sheilded speakers :'3
While getting Jamma to work, I randomly increased 5v from 5.03v to 5.04v. Naomi totally didn't like this and had to change it back xD

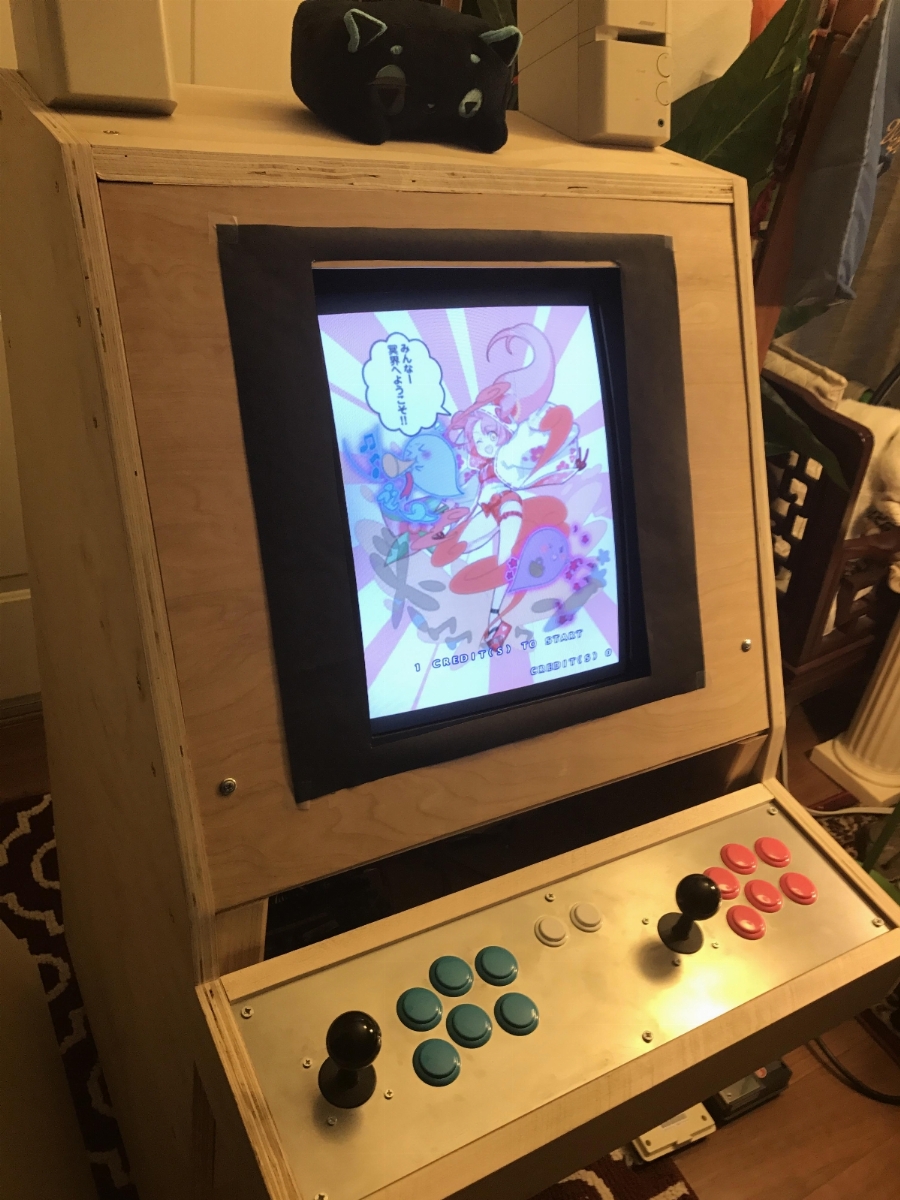

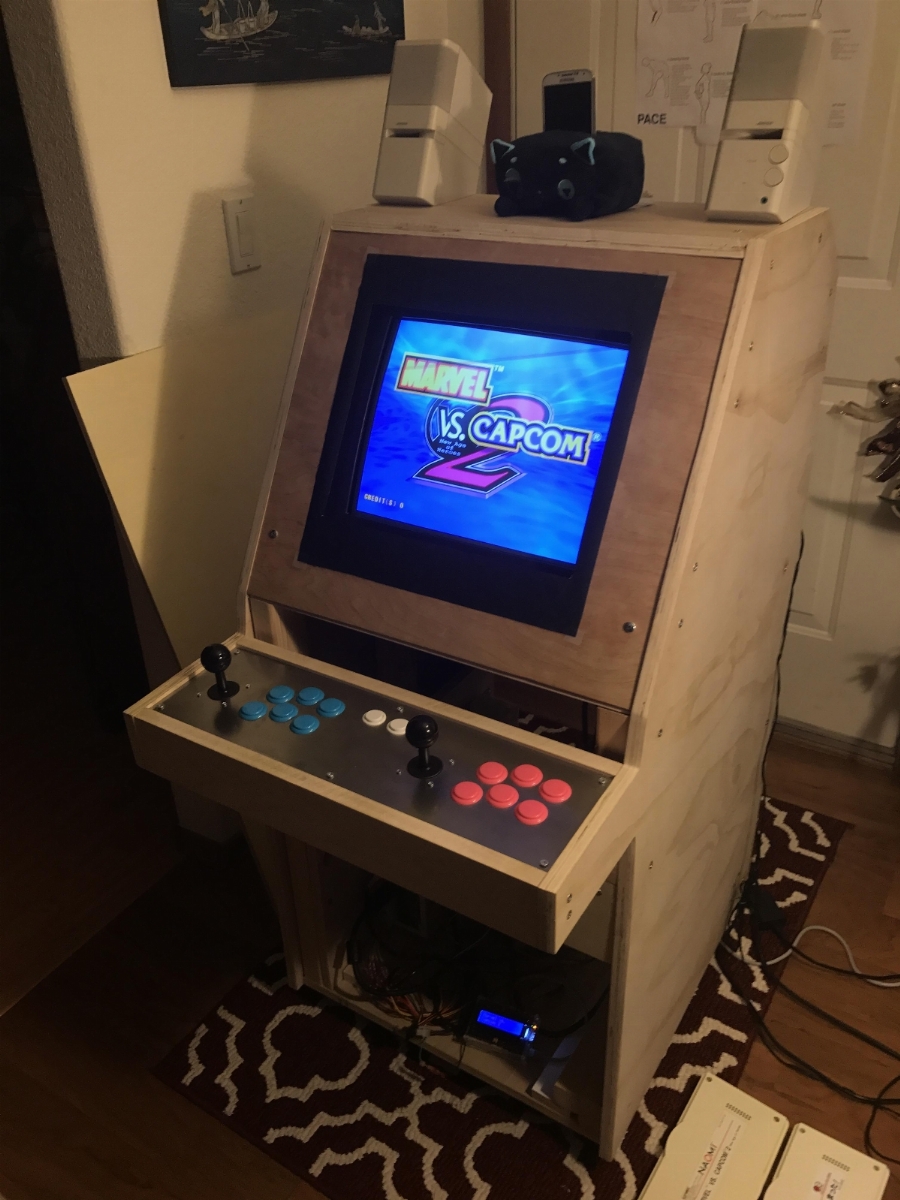

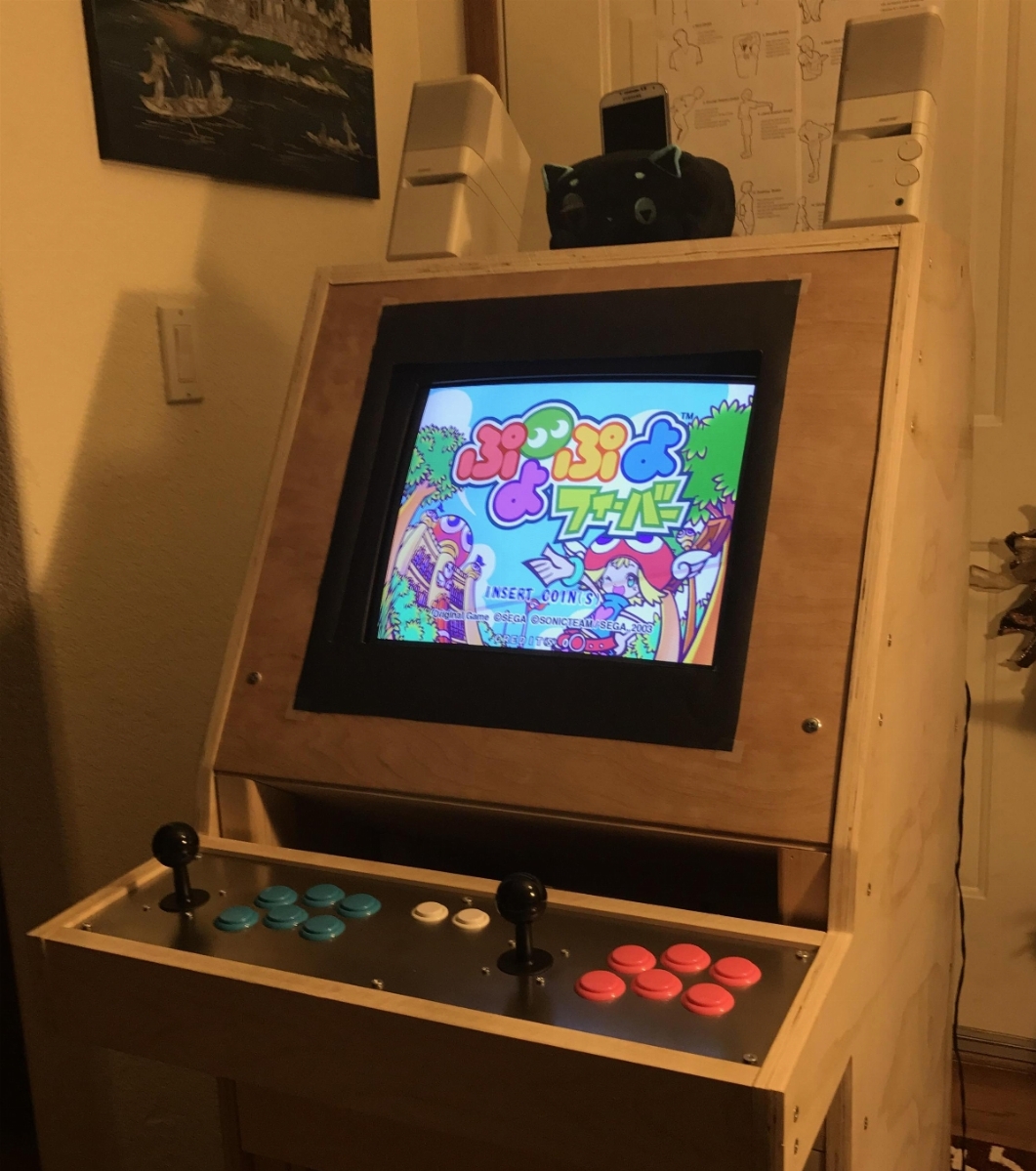

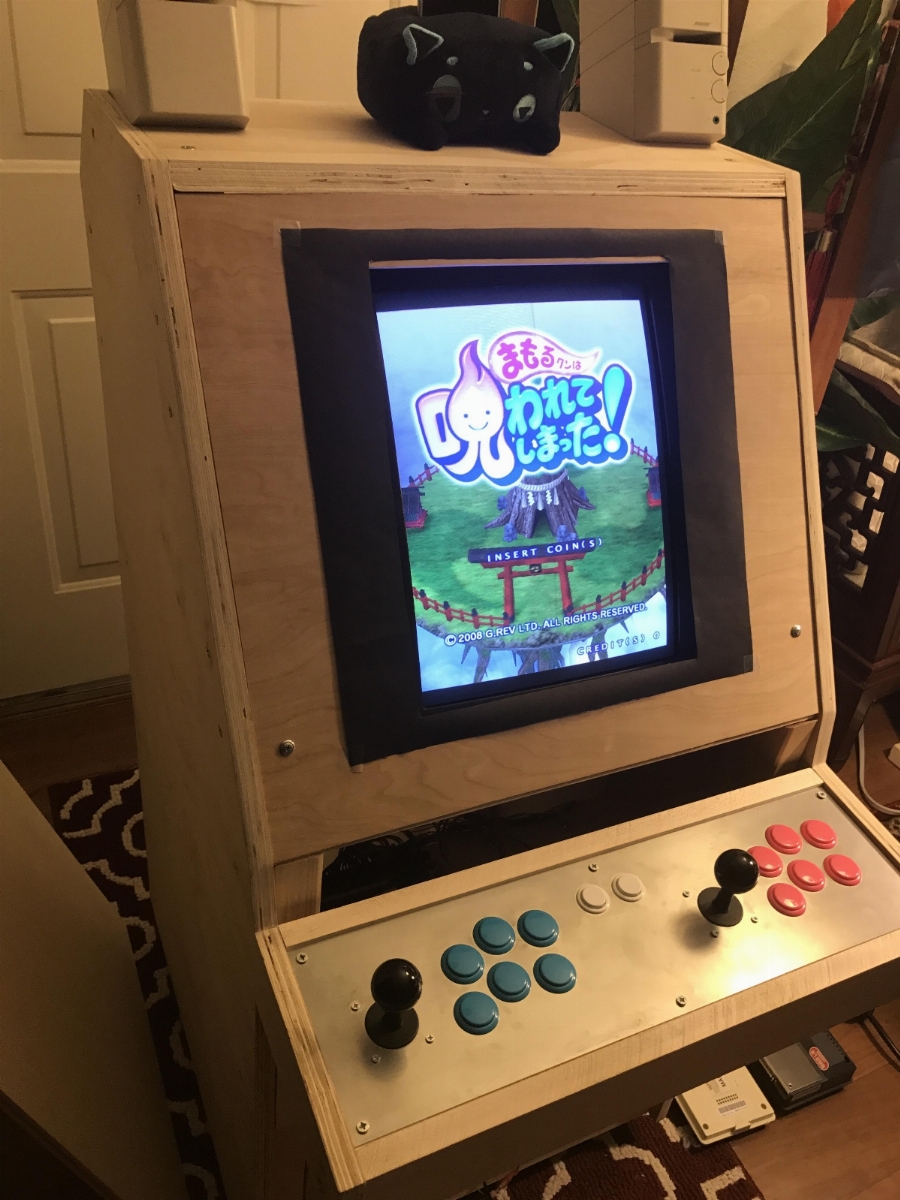

Heres some images =3=

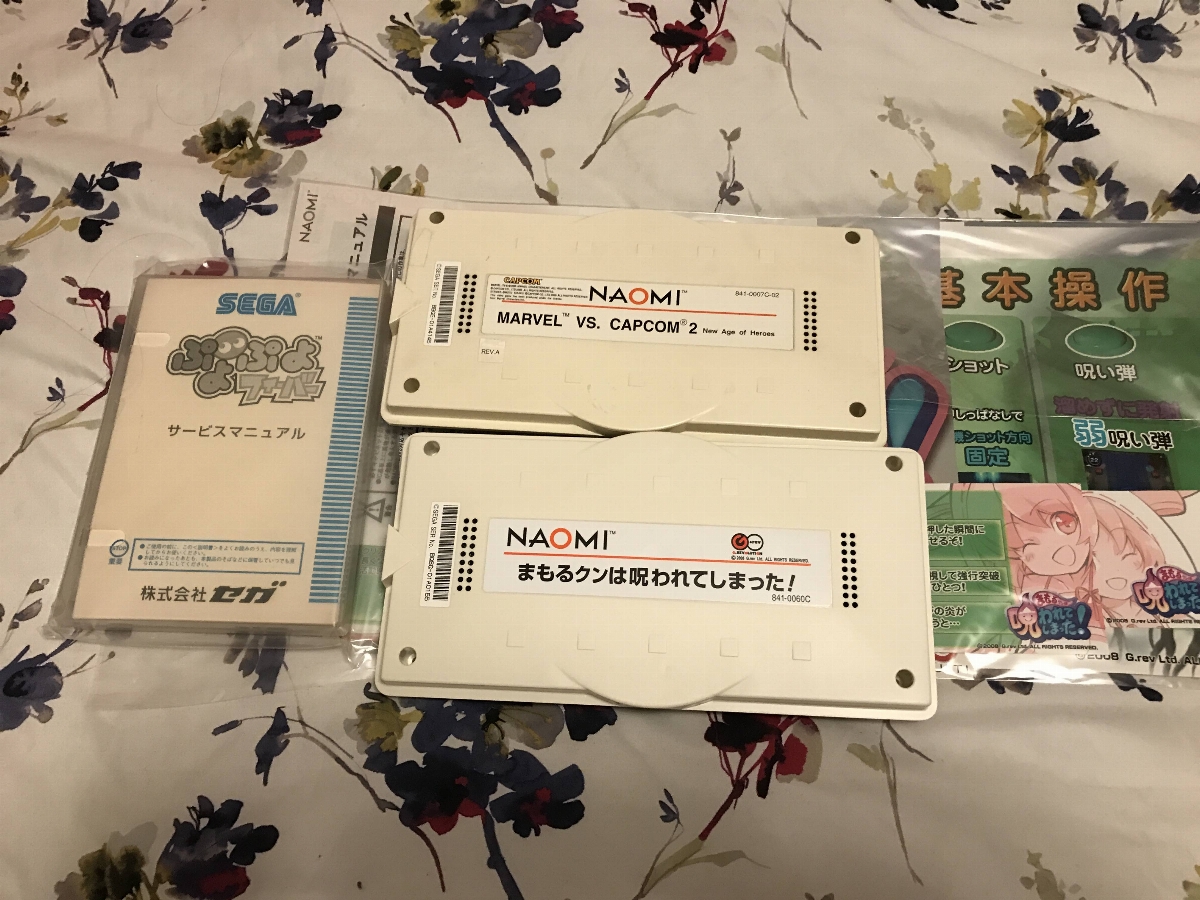

Games
