WTB WTB 2 Corner Sega gun IR boards 838-14703

Want To Buy
notsonic

notsonic

Champion
Joined
Oct 23, 2019
Messages
1,138
Reaction score
1,452
Location
NJ
Update: I got two regular IR boards and they work ok but I really would like to find two of the angled corner boards 838-14703. I see them listed in the manual for 2Spicy so I assume they're newer.
I'm looking for 2 Sega gun IR boards. 838-13145, 838-13145-02, or 838-14703.

I bought a listing of 8 thinking that was a full set, and it's not, so now I need 2 more.

Last edited:
Nice thanks. I'd be interested in the wiring too if you have spares but it's not a big deal.

Ok I've got a complete set of 838-13145-02's from a hotd2dx with extra harness(es?) from gun sense PCB forward including between the leds.what part of wiring did you need also?

Thanks to @PlatynumX I can get this project working but I'd really like to find two more corner boards, part number 838-14703.

What do you mean corner boards? I just checked the rest of the strand I pulled the 2 I sold you from, a set still mounted to the mounts and the set inside my hotd2 cab. All are 838-13145-02. Are you trying to assemble this for a newer game than any of the Naomi gun games?

Edit finally got a search result on that part number. Too spicy eh? That's odd there 2 dif sensor part #s. You might want to check what gun sense board you have. I can't recall part # but the newer boards only put out 5v for the LEDs and the 838-13145-02 need 12v.(iirc)

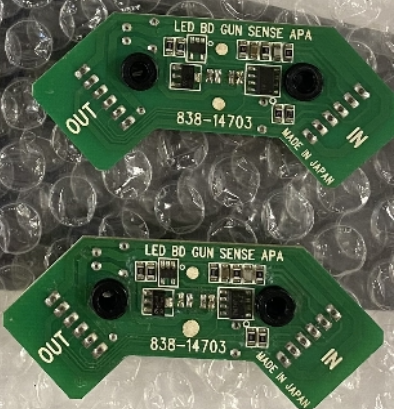

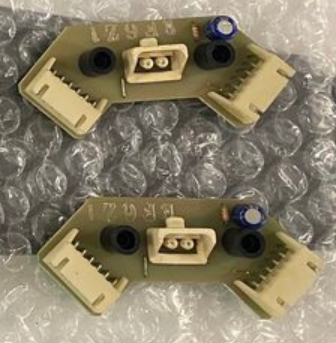

There's a board that came on I believe 2spicy that looks like this:
838-14703-rear.png 838-14703-front.png

I'm mounting these on the back of a Blast City bezel so the angled corners make the boards that go in the corners fit just that much better.
