The Egret 3 is wired for JAMMA and has the additional JVS power harness. In the Egret 3, the 3.3v is routed to the JST VL connectors for JVS power. The Egret 3 also has a JAMMA connector but it is missing the -5V. You could add in the 2 pins that are in the -5v position on the JAMMA harness then route those (2) -5v wires to the Molex connector on the Egret 3. You should see that factory Egret 3 Molex connector is also missing 2 pins. So you should be able to add 2 pins on the JAMMA side, a small bit of wire and 2 pins for the Molex side. Once that is done, moving the solder jumper to the -5v position should bring the -5V all the way to the JAMMA edge.
- Thread starter dewmansnk
- Start date
The Egret 3 is wired for JAMMA and has the additional JVS power harness. In the Egret 3, the 3.3v is routed to the JST VL connectors for JVS power. The Egret 3 also has a JAMMA connector but it is missing the -5V. You could add in the 2 pins that are in the -5v position on the JAMMA harness then route those (2) -5v wires to the Molex connector on the Egret 3. You should see that factory Egret 3 Molex connector is also missing 2 pins. So you should be able to add 2 pins on the JAMMA side, a small bit of wire and 2 pins for the Molex side. Once that is done, moving the solder jumper to the -5v position should bring the -5V all the way to the JAMMA edge.
J
jassin000
While I've yet to actually try it...
The Vewlix JVS power harness (yes even with it missing some pins/connections) should be 100% compatible with this design/PCB!
I've over-layer the pins from the harness with the PCB image for comparison...
Brown = 3.3v
Black = Ground
Red = 5v
Yellow = 12v
Can I finally ditch these horrible Wei Ya PSUs (and step-down transformer)?
The Vewlix JVS power harness (yes even with it missing some pins/connections) should be 100% compatible with this design/PCB!
I've over-layer the pins from the harness with the PCB image for comparison...
Brown = 3.3v
Black = Ground
Red = 5v
Yellow = 12v
Can I finally ditch these horrible Wei Ya PSUs (and step-down transformer)?
Last edited by a moderator:
What connector is used for B1?
Ah, do I need it connected to chasis ground if I connect to the DC ground?
J
jassin000
JVS PSU is fine/Earth'd correctly.
When you have separate DC power sources (JVS PSU + cab PSU) feeding into one system (in your case Naomi) you should tie (see the official B1 connector) the DC grounds together (failure to do this can be the cause of audio hums and/or video noise).
NEVER connect a earth ground to a DC ground.
I ordered some PCBs from OSH Park, Mini Fit Jr connectors (Molex 39-28-1103 & 39-28-1083) from TTI and finally the JST 5-pin from rando eBay person (that was kind of a bitch to locate for some reason).
I'll post some fully assembled shots (hopefully) in a few weeks time.
I'm going to skip the volt meter as I'm looking to simply replace the Wei Ya as-is/no additional functionality required.
Thank you @dewmansnk for creating/sharing this excellent project/device.
When you have separate DC power sources (JVS PSU + cab PSU) feeding into one system (in your case Naomi) you should tie (see the official B1 connector) the DC grounds together (failure to do this can be the cause of audio hums and/or video noise).
NEVER connect a earth ground to a DC ground.
I ordered some PCBs from OSH Park, Mini Fit Jr connectors (Molex 39-28-1103 & 39-28-1083) from TTI and finally the JST 5-pin from rando eBay person (that was kind of a bitch to locate for some reason).
I'll post some fully assembled shots (hopefully) in a few weeks time.
I'm going to skip the volt meter as I'm looking to simply replace the Wei Ya as-is/no additional functionality required.
Thank you @dewmansnk for creating/sharing this excellent project/device.
Last edited by a moderator:
Ok, thanks for the info.
Sent you a dm, thank you!
J
jassin000

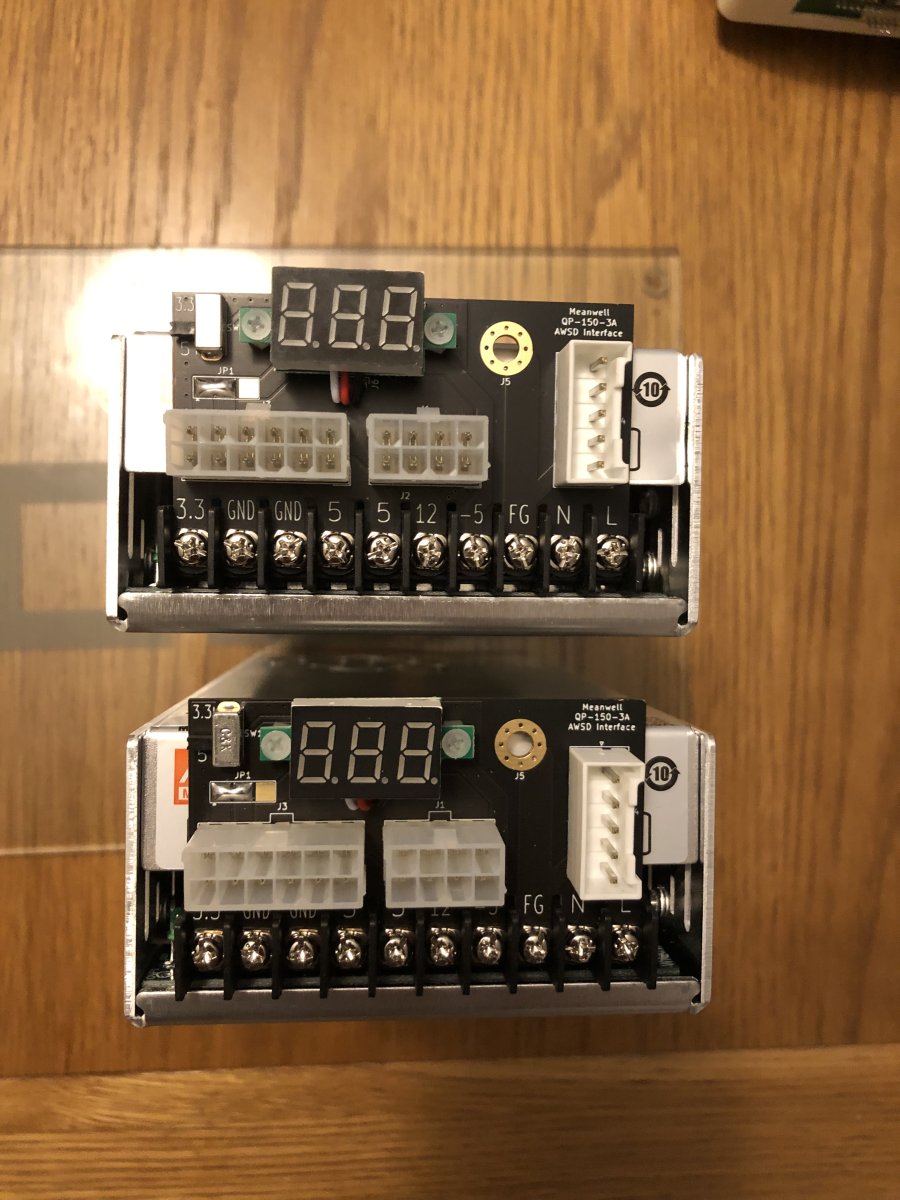

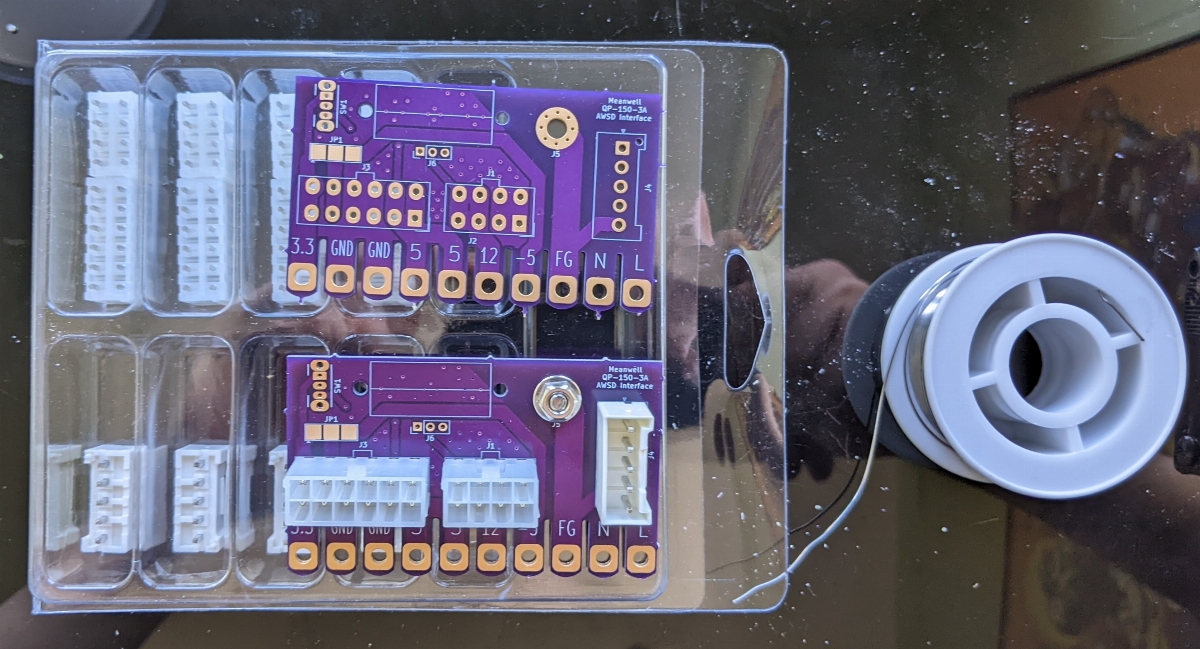

PCBs arrived from OSH Park today (I realized they were the older version 4 design, so I only built-out two and ordered 3 more ver 5s)...
Populating the boards.

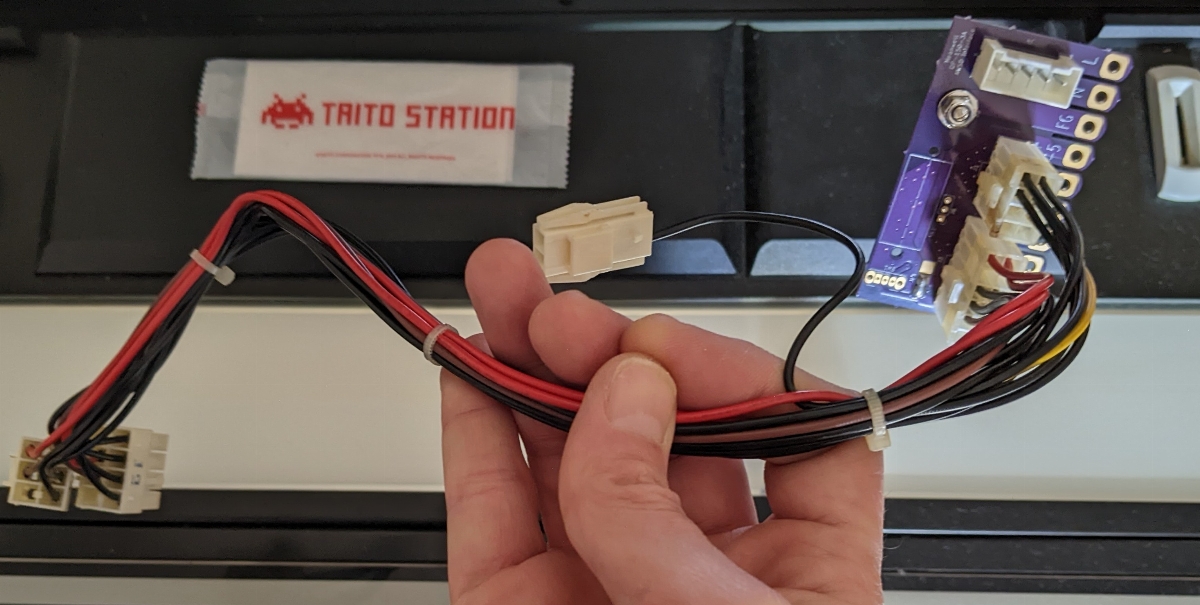

Connecting the Vewlix stock JVS harness.
Probed AOK (you can't see the 3.3v solder strap is closed in the image)!
Populating the boards.
Connecting the Vewlix stock JVS harness.
Probed AOK (you can't see the 3.3v solder strap is closed in the image)!
J
jassin000
Thanks man!
Going to order the actual Mean Well PSU this week (wanted to be sure my PCBs came out good first).
Looking forward to the new Ver 5 PCBs next weekend, got the thicker copper option on this batch as well.
Oh and some more ground loops to crimp-on my earth wires.
J
jassin000

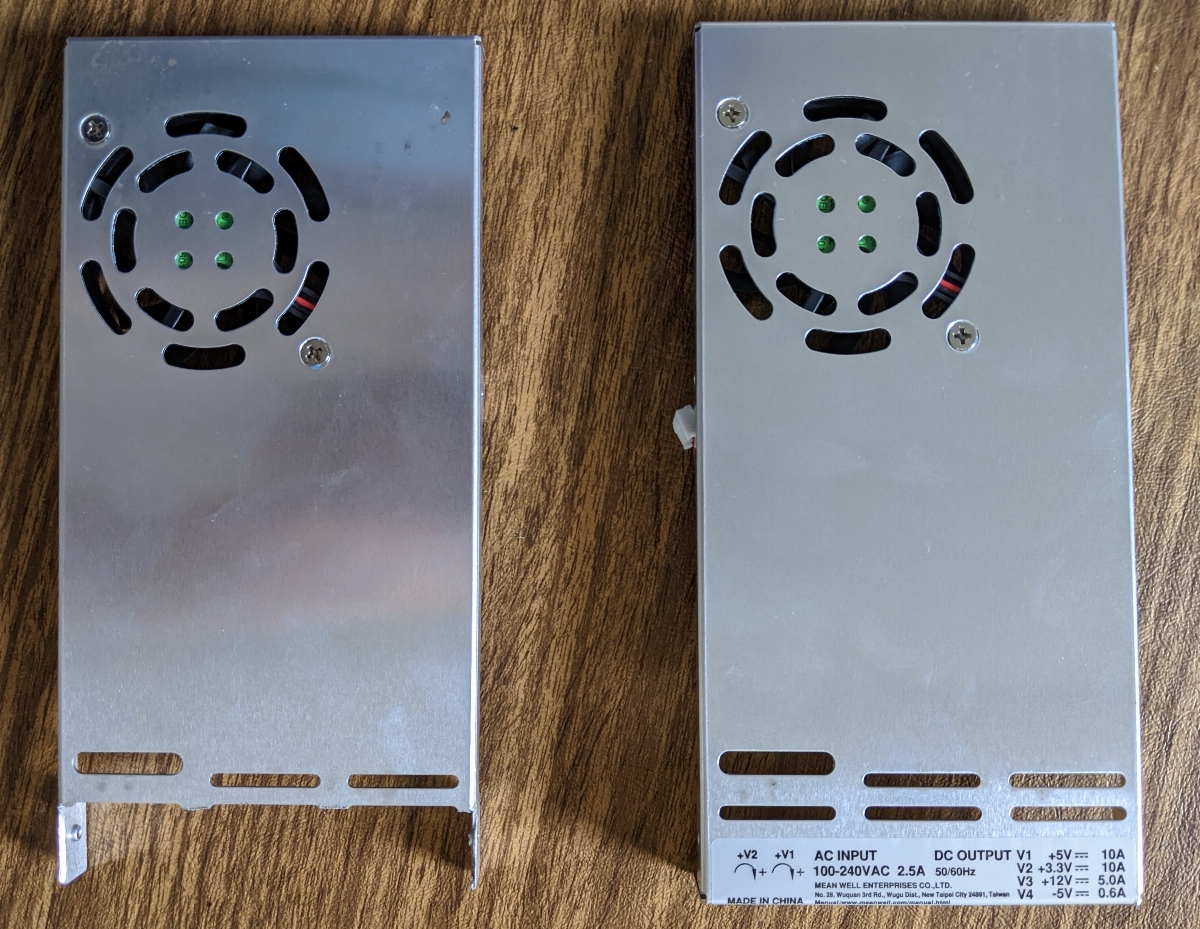

I didn't like the clearance between the PCB and the outer/shell case.
Being made of Al, this cut like butter with my Dremel.

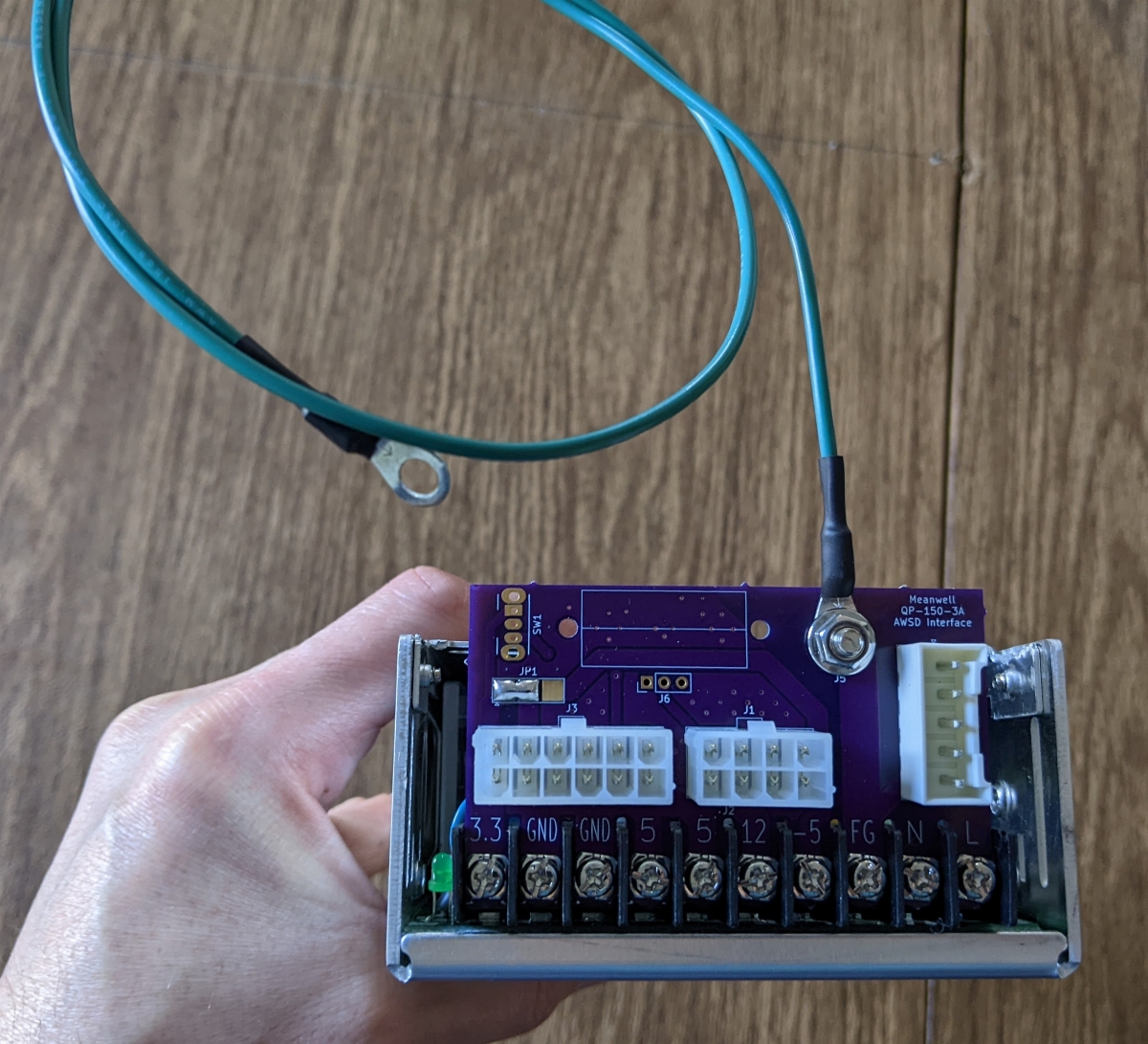

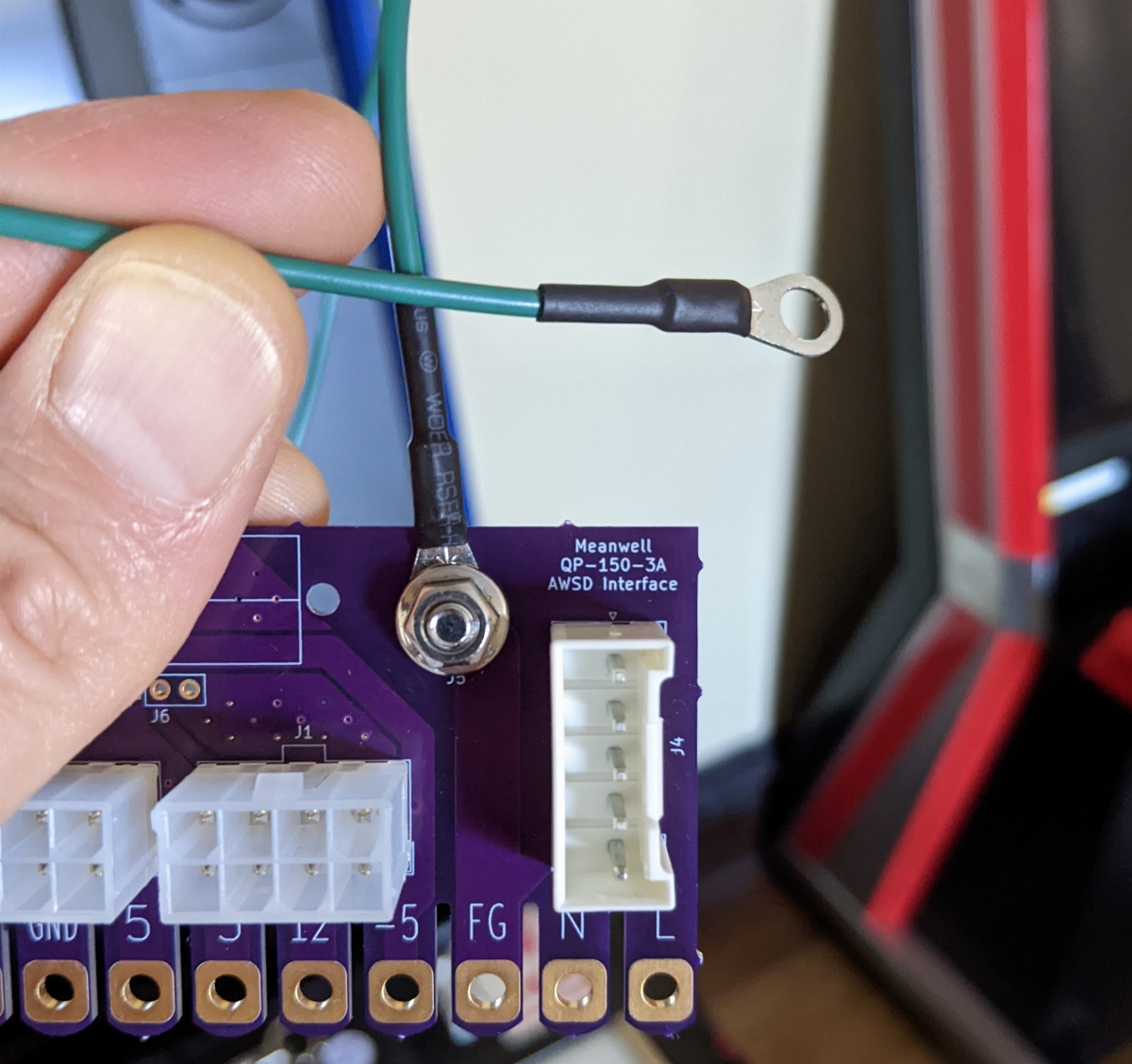

Got a nice/thick earth ground crimped up/attached...
Much better, tho I might cut the case a little more so I can easily access the adjustment pots.
100% ready for insertion/installation.
Being made of Al, this cut like butter with my Dremel.
Got a nice/thick earth ground crimped up/attached...
Much better, tho I might cut the case a little more so I can easily access the adjustment pots.
100% ready for insertion/installation.
Last edited by a moderator:
The nylon hardware that is used to hold the voltage display serves a second purpose of providing non conductive posts to prevent the backside of the PCB from contacting the metal case. Although your solution works as well, clearance for days with that approach.
The pics earlier in the thread show a single nylon nut on the backside of the PCB, I ended up using 2 nylon nuts with the production units - that provided near perfect height so the double nuts make nice contact with the metal power supply case and provide support when you plug in the connectors.
The PCBs I got from JLCPCB along with the pleasing black solder mask also have ENIG plating so the large exposed fingers do not get oxidized as easily.
The pics earlier in the thread show a single nylon nut on the backside of the PCB, I ended up using 2 nylon nuts with the production units - that provided near perfect height so the double nuts make nice contact with the metal power supply case and provide support when you plug in the connectors.
The PCBs I got from JLCPCB along with the pleasing black solder mask also have ENIG plating so the large exposed fingers do not get oxidized as easily.
J
jassin000
Right, I remembered reading that earlier in the thread.
I felt like this (mod) was fail proof.

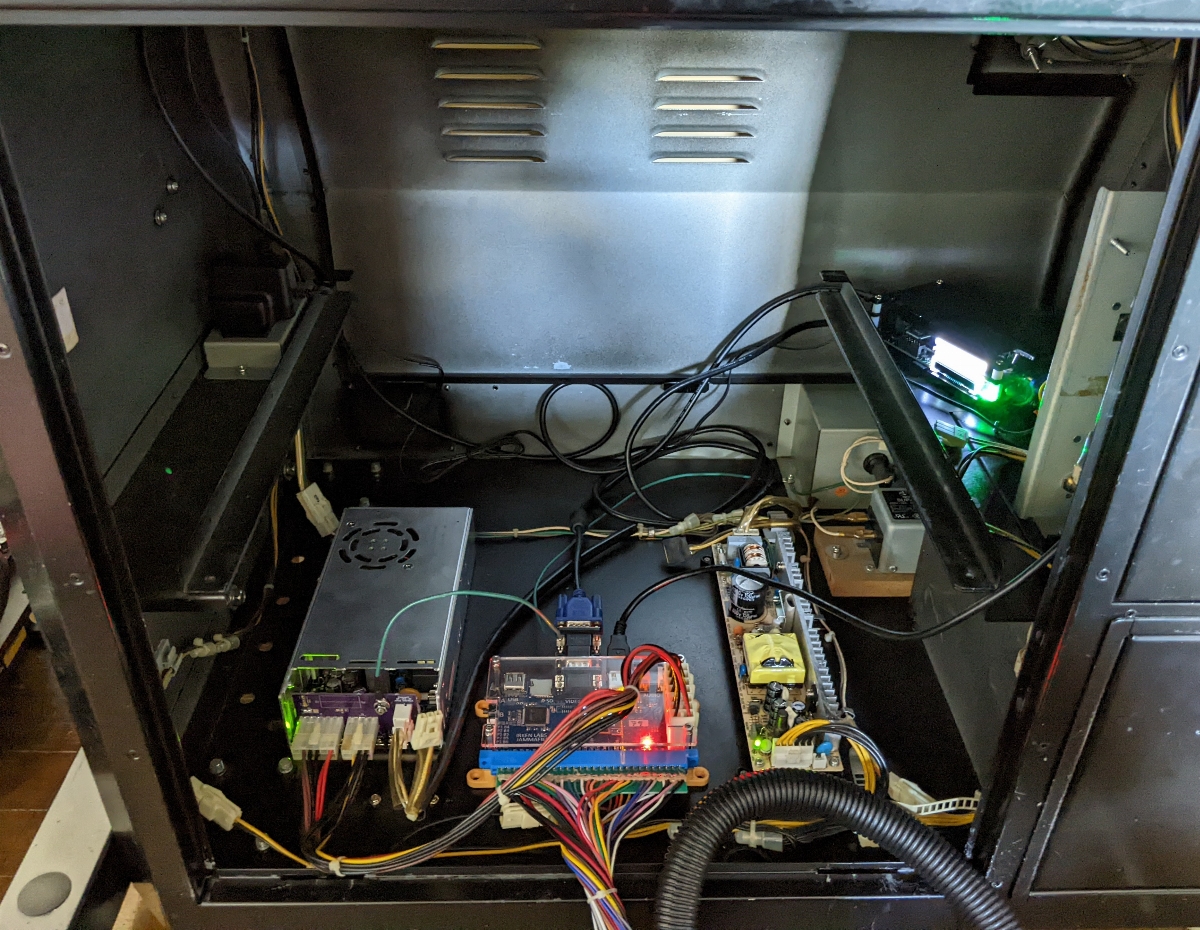

Anyway, installed/connected to the Jammafier+Tri-Sync Helper+OSSC for testing (notice JAMMA extender is also backwards, corrected in final shot/before connecting game PCB).
Everything looking good (don't worry I also checked the 3.3v line externally/multimeter).
The reason for the Try-Sync Helper, Taito F3 (won't work via OSSCs SCART port/must use VGA/RGBs)...
Last edited by a moderator:
