Bootleg MK1 PCB help

[Funny_Dyzieks]

Hello everyone!
I recently got a Bootleg mk1 PCB that suffers from graphical glitches

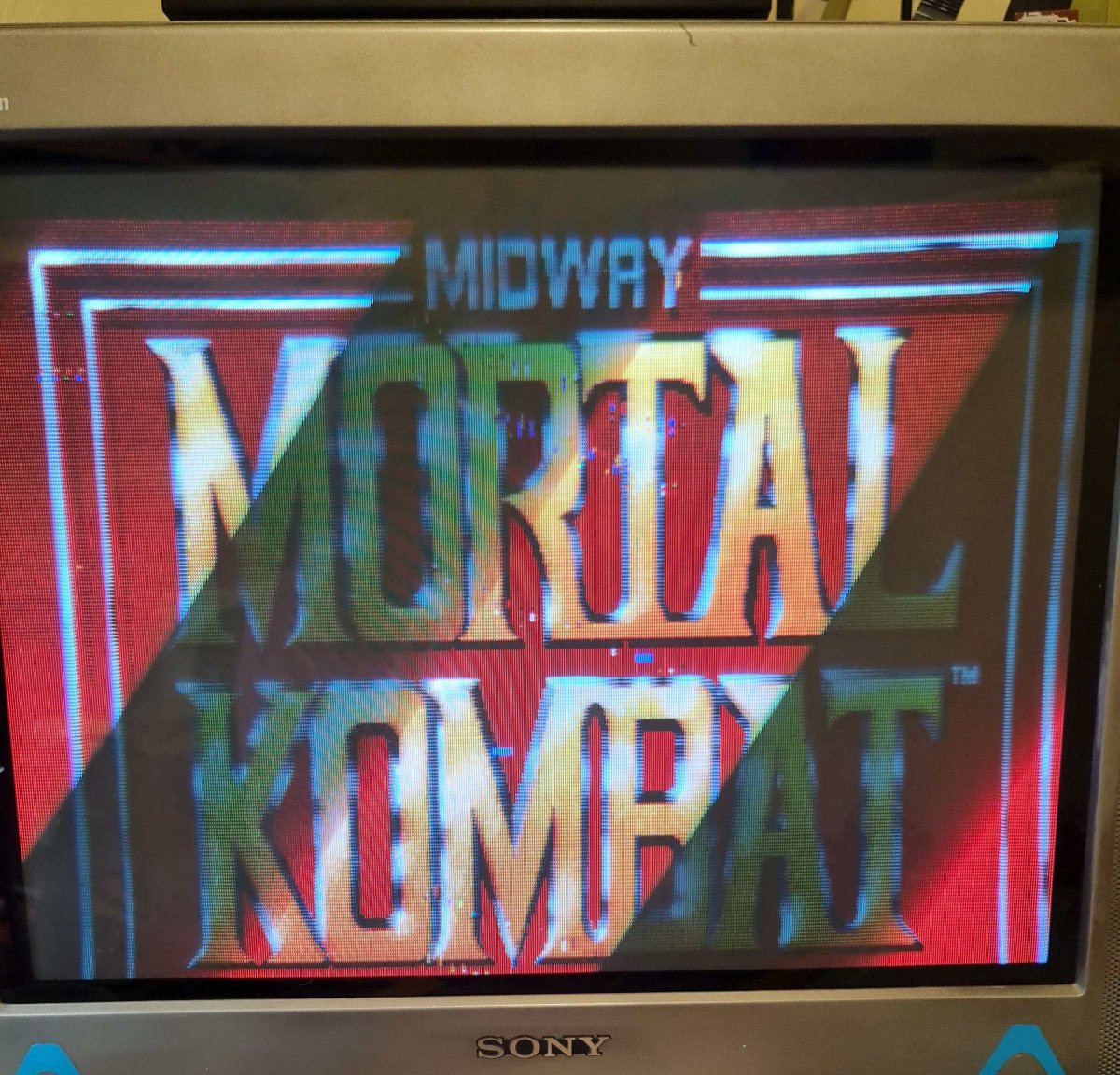

When i boot it up the mk splash screen and character portraits show fine, but the rest appears as a corrupted mess.

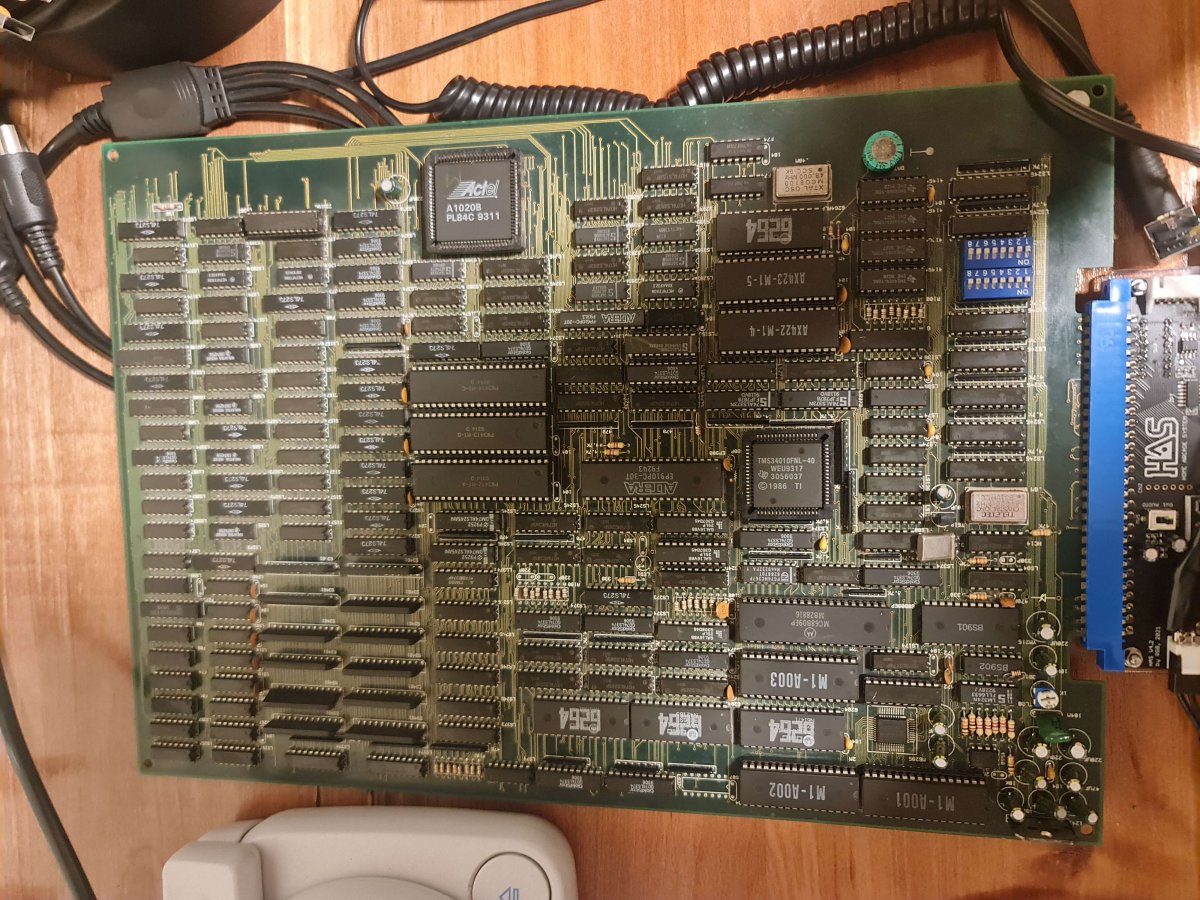

After checking the board i found that this plus153bn gets quite hot to the touch

My question is:
Is there any way i can try to ""dump"" this PLD (i have a top3000) or better yet. Does anybody have the "Dump" of it?
Thank you very much



[Hammy]

Hi!
This is MK Victor. Well worth saving!
I have one here but it's all soldered down so not easy to dump.

This board is totally not dumped i think , i see yours is all in socket... can you dump the ROM chips?
Mine is not in socket , including the roms. if you can dump them i can focus desoldering the PLD's instead



[caius]

Is there any way i can try to ""dump"" this PLD (i have a top3000) or better yet. Does anybody have the "Dump" of it?

The PLU153 seems to be the same of PLS153 so you may try to dump it as PLS153.Anyway, I dont think your TOP3000 programmer support this device.



[Funny_Dyzieks]

Hi!
This is MK Victor. Well worth saving!
I have one here but it's all soldered down so not easy to dump.

This board is totally not dumped i think , i see yours is all in socket... can you dump the ROM chips?
Mine is not in socket , including the roms. if you can dump them i can focus desoldering the PLD's instead

Hi!
Didn't know it wasn't dumped yet. recently i dumped the ROMS just in case.
They are untested right now, but when i fix the pcb, i'll make sure to test them.
some of the GAL and PAL chips are socketed too. I haven't messed a lot with that type of chip, so i'll try to dump them later too.

EDIT:link https://drive.google.com/file/d/1M-5DgetNWK8nq8V6mbIneQqay6mrvQVU/view?usp=sharing



[Hammy]

Nice! Seems the sound and program is 100% match of the original (explains why this bootleg runs well!)
The graphics will be combined somehow but it's nice to have this one verified, thanks

Getting the PLD's done will take a while but i'll make sure it gets done!



[Funny_Dyzieks]

Nice! Seems the sound and program is 100% match of the original (explains why this bootleg runs well!)
The graphics will be combined somehow but it's nice to have this one verified, thanks

Getting the PLD's done will take a while but i'll make sure it gets done!

Sure!
Thanks for your help!!
