Okay, I figured out how to set it to four players but doing a test run, I noticed that all the 3P and 4P controls are messed up, like all the directions are switched or one of them is an attack button and so forth. The Capcom IO is set to 4 players. Any advice or suggestions would be great.
- Thread starter lupinko
- Start date
Compare with CPS2:
Last edited:
skate323k137
Enlightened
Do not under any circumstances use the pinouts on that site. It IS the same as CPS2, I have emailed him but he does not respond. Wasted a day of my time and judging by the existence of this thread probably several other people's : (The Capcom I/O seems to use a reversed 3P/4P pinout v.s a normal CPS2 3P/4P, if this is to be believed:
https://solvalou.com/arcade/naomi

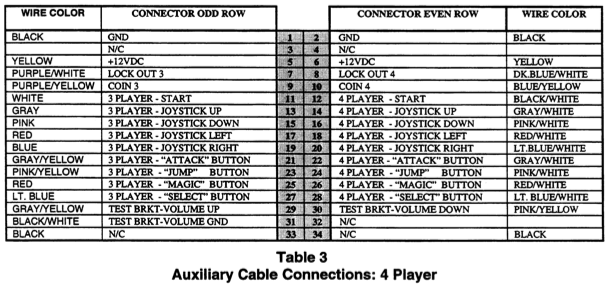

Compare with CPS2:
He's also dead wrong about powerstone2, it works fine in 4 player with 2 properly chained JVS IOs.
This. I suspect it's plugged in the other way round on the HAS' end. The earlier 3P4P harnesses I sold didn't have the polarisation key, usually just a mark or a sticker that indicated the top side of the connector.
Edit: It should be connected as shown on the third page - https://homearcadesystem.files.wordpress.com/2019/09/has_modules_assembly.pdf
Last edited:
