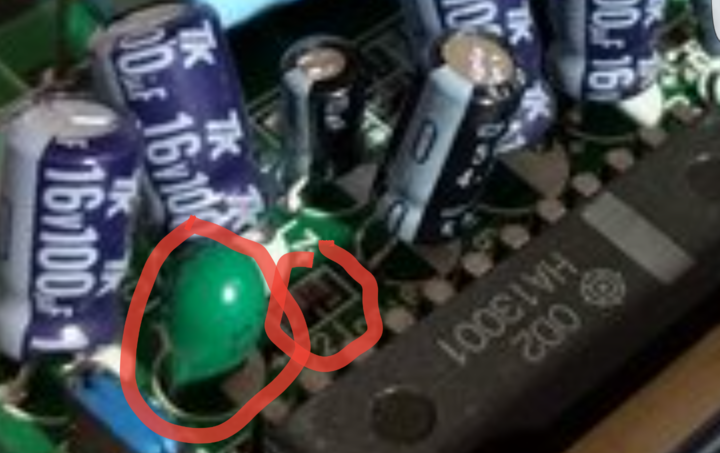

Can some one help me identify these parts on my CPS1. My A board works but seems to be missing these. Theres also a small capacitor circled. If someone can tell me the value and where i can find replacements. Thanks
i know I'm a noob☻

Anyone? The green conponent looks to be a tantalum capacitor but unsure and don't know the value. The blue ones are Ferrite Beads? I wish someone could tell me. Thanks

The last time I searched for matching ferrite beads for another another project I didn't find anything. The product number didn't come up anywhere, and there was no explanation which specs were required.

If you can desolder the capacitor you can use something like this (random ebay and aliexpress matches):
https://www.ebay.co.uk/itm/LCR-T4-L...apacitance-ESR-Meter-MOS-PNP-NPN/274664300490
https://www.aliexpress.com/item/32859039738.html
(These things should be cheap, without a case they should be around $3.)
EEVBlog video

Though personally I wouldn't change a working board.

Jammarcade.net has schematics. The "old" a board is the long board that pre-dated sf2. The "new" a boards are the shorter ones, including 10mhz and 12mhz versions.
