We improved our highly popular Shogun supergun and released the Ultra version.
Shogun Ultra is an advanced supergun which can be used with commonly found JAMMA based arcade boards and contemporary Chinese boards.
- Impedance matching, amplified RGB video output by using the renowned THS7374 video amplifier chip...
- Individual potentiometers for calibrating the RGB color levels
- Includes a low-pass filter that can be enabled or disabled.
- Euro Scart connector for audio/video output.
- Kick Harness connector
- Dipswitch for enabling the Buttons 4,5 and 6 from the Jamma or Kick Harness.
- 2 types of Sync mode is selectable with a jumper: attenuated and buffered by THS7374 or Scmitt trigger
- Built-in audio attenuator.
- Line level audio input from terminal jack or 3.5mm Headphone jack
- Stereo audio output, selectable audio source, attenuated MVS or Line In
- MVS/Mono switch
- 2x Neo Geo (DB15) controller ports with all 6 buttons wired (can be used with CPS, Atomiswave and Chamma boards like Pandora).
- LCD Voltmeter for the 5v input.
- Test, Service and Coin1 push-buttons.
- Blue power led.
- OSSC safe.

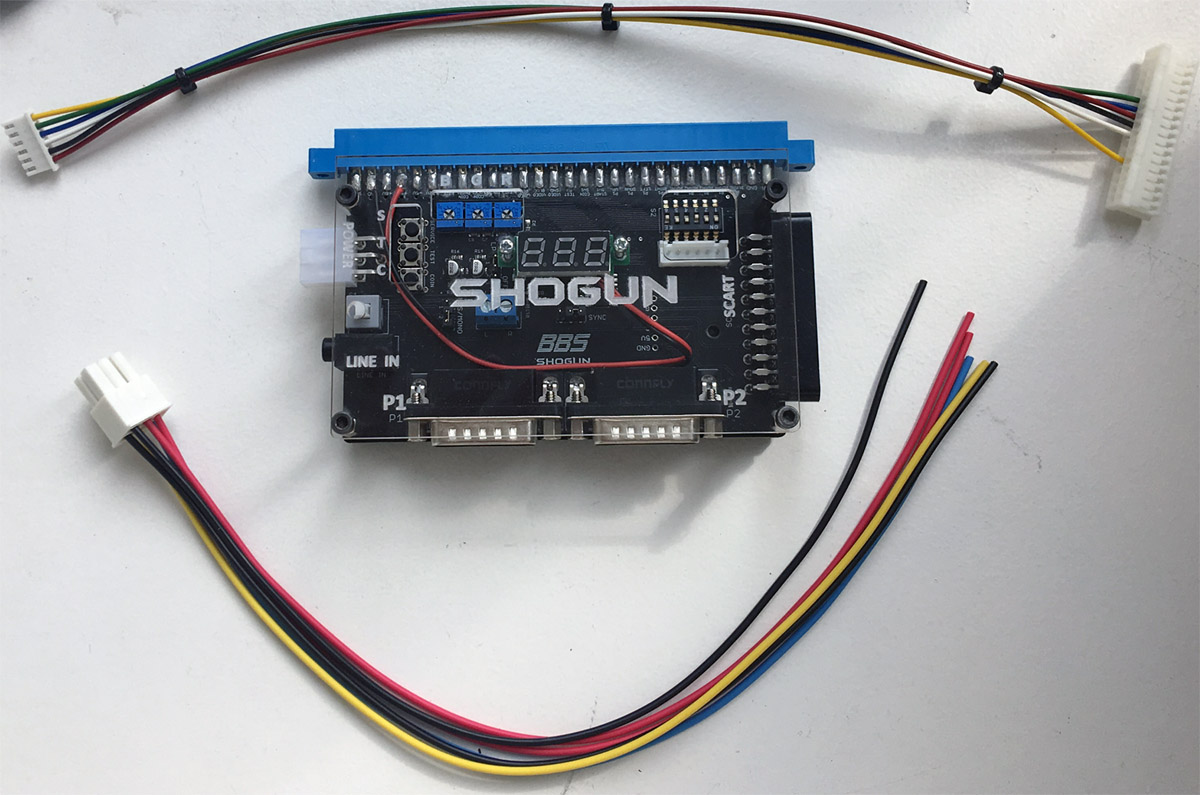

Package includes
1. a high quality custom power cable with 6 pin Mini Fit Jr. connector (2xGND, 2x5V, 1x12v, 1x-5V)
2. a custom made Kick Harness for the CPS2/CPS3 boards.
3. a custom designed, transparent, 3mm, laser etched, plexiglass shell.
available on beharbros.com
Price: $85
Shogun Ultra is an advanced supergun which can be used with commonly found JAMMA based arcade boards and contemporary Chinese boards.
- Impedance matching, amplified RGB video output by using the renowned THS7374 video amplifier chip...
- Individual potentiometers for calibrating the RGB color levels
- Includes a low-pass filter that can be enabled or disabled.
- Euro Scart connector for audio/video output.
- Kick Harness connector
- Dipswitch for enabling the Buttons 4,5 and 6 from the Jamma or Kick Harness.
- 2 types of Sync mode is selectable with a jumper: attenuated and buffered by THS7374 or Scmitt trigger
- Built-in audio attenuator.
- Line level audio input from terminal jack or 3.5mm Headphone jack
- Stereo audio output, selectable audio source, attenuated MVS or Line In
- MVS/Mono switch
- 2x Neo Geo (DB15) controller ports with all 6 buttons wired (can be used with CPS, Atomiswave and Chamma boards like Pandora).
- LCD Voltmeter for the 5v input.
- Test, Service and Coin1 push-buttons.
- Blue power led.
- OSSC safe.
Package includes
1. a high quality custom power cable with 6 pin Mini Fit Jr. connector (2xGND, 2x5V, 1x12v, 1x-5V)
2. a custom made Kick Harness for the CPS2/CPS3 boards.
3. a custom designed, transparent, 3mm, laser etched, plexiglass shell.
available on beharbros.com
Price: $85
