4 Player IGS PGM adapter (cable replacement)

[Barth0lin0]

Hi guy.

I'm a proud new owner of a V14 IGS PGM board.

Looking for an easy way to plug a 3rd and 4th player for all the beat em up greatness!

I find the OEM cable unpractical to play with a supergun so i dont want to spend on it ( I use V1.7 minugun supergun)

Ordered a bunch of 34 pins connector and DB15 neogeo connectors to make a custom cable.

Also found that RGB is selling his adaptor for the HAS and this http://projects.trurip.org/?page_id=37 with a custom pcb .

Is there any open source PCB project in the universe? If not maybe someday I could try to design one...i'm no expert....but this looks like basic routing!

gimme your input!

thx

Simon



[Frank_fjs]

I'm in the process of designing a 4 player adapter for the Minigun...



[Barth0lin0]

I'm in the process of designing a 4 player adapter for the Minigun...

yes man!!! Super news ! I'll let the real professionals do the job! Will buy one from you day 1!

thx!



[Frank_fjs]

I'll be posting some details soon, probably within the week. Should be ready for production and testing soon.



[Neo-Alec]

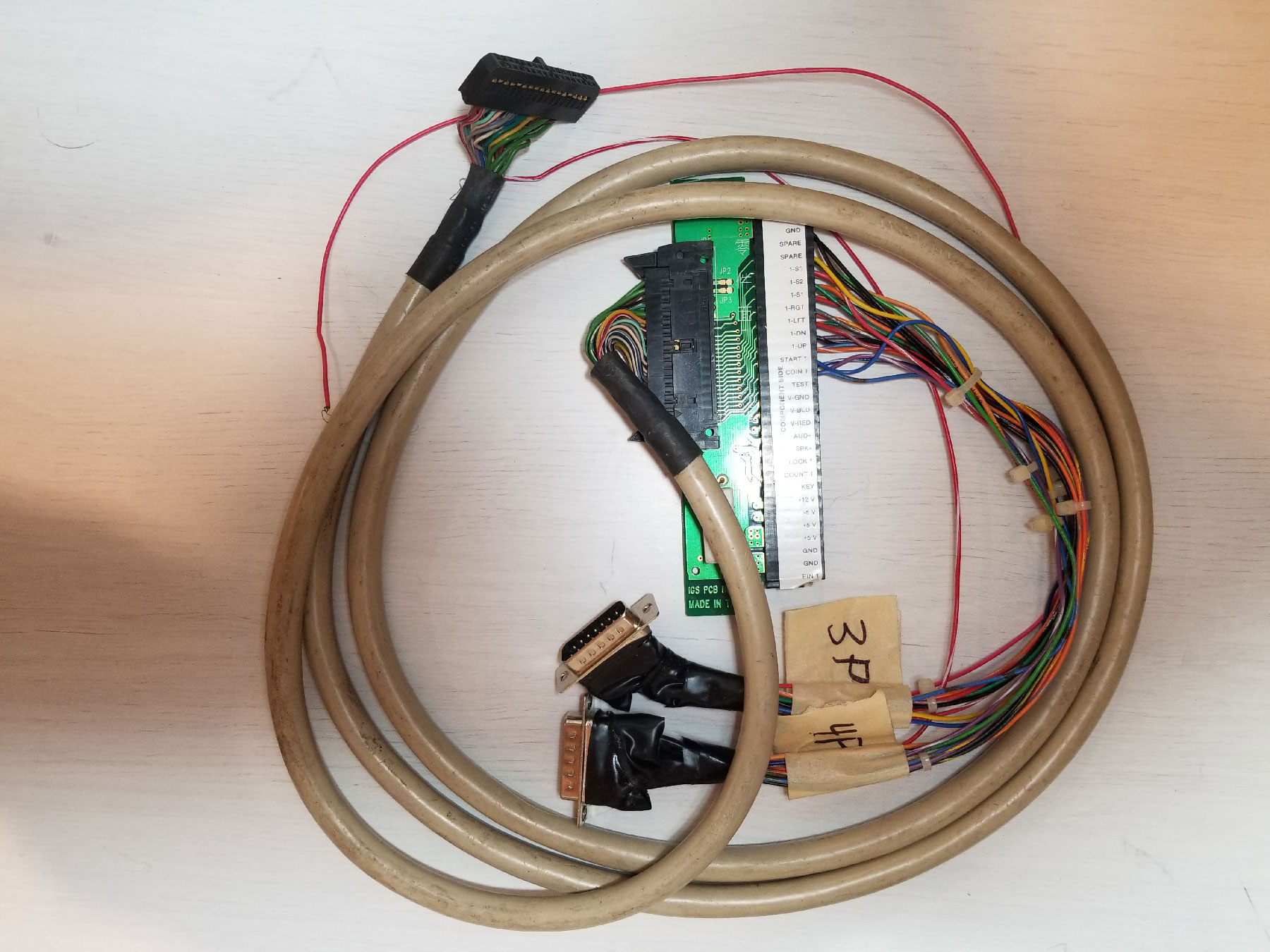

Here's what my 4-player cable looks like. You just need a spare jamma harness and some DB15 connectors. It's really nbd.



[JoeAwesome]

I bought a pcb someone made just for this about 3 years ago... and sold it a year ago. I would’ve thought it’d be more massed produced after RGB came out with his.



[Barth0lin0]

Decided to make a custom one with a IDE 34 pin connector and 2 DB-15 connector. A lot of small soldering but easy project!



[BroadwayJose]

Is there a pinout available for this connector? I want to build a 3p and 4p DB15 plug, similar to what @Barth0lin0 made.

Also looks like someone else did this here:
https://www.ebay.com/itm/IGS-PGM-Mo...922603?hash=item4b6af3feeb:g:tSUAAOSwUKddftOs



[djsheep]

Here's what you're after:
http://junkerhq.net/xrgb/index.php?title=PolyGame_Master



[Barth0lin0]

Is there a pinout available for this connector? I want to build a 3p and 4p DB15 plug, similar to what @Barth0lin0 made.

Also looks like someone else did this here:
https://www.ebay.com/itm/IGS-PGM-Mo...922603?hash=item4b6af3feeb:g:tSUAAOSwUKddftOs

mine looks similar to the one in this ebay listing. Followed the same source that @djsheep just posted



[Frank_fjs]

Don't follow that pinout, it's backwards re pin numbering.



[BroadwayJose]

Don't follow that pinout, it's backwards re pin numbering.

Not sure I understand. Are you saying pin 1 starts on the right side of the connector vs the left or something else?



[Frank_fjs]

I'll have to dig through my notes but it was something along the lines of pin 1 is labelled as pin 34 and vice versa.



[Flinnster]

I've been looking to make up a cable to link 2x cabs up for some 4 player fun also.
The official cable seems crazy expensive, I'm sure I found the pinout online for it. The only question mark is the white component on the player 3/4 machine's fingerboard. A voltage regulator perhaps?



[thegreathopper]

I've been looking to make up a cable to link 2x cabs up for some 4 player fun also.
The official cable seems crazy expensive, I'm sure I found the pinout online for it. The only question mark is the white component on the player 3/4 machine's fingerboard. A voltage regulator perhaps?

it’s a big resistor to put some load on player 2 cab.



[Fluffy]

Here's what you're after:
http://junkerhq.net/xrgb/index.php?title=PolyGame_Master

Don't follow that pinout, it's backwards re pin numbering.

Does anyone know if this was fixed since that post?

Does anyone have the _definite_ pinout? All Google searches end up either at junkerhq or arcadeotaku:

http://junkerhq.net/xrgb/index.php?title=PolyGame_Master
and
https://wiki.arcadeotaku.com/w/IGS_PolyGame_Master

Edit:
Based on the drawing pin 1 should be top right if the notch is at the top:
https://multimedia.3m.com/mws/media/22448O/3m-four-wall-header-3000-series-100-x-100-ts-0772.pdf

So the junkerhq pinout should be mirrored horizontally:

Top row	Pin	Pin	Bottom row
GND	33	34	Speaker +
GND	31	32	Speaker +
Blue	29	30	Green
Red	27	28	GND
GND	25	26	Sync
Coin counter 1	23	24	Coin counter 2
Test	21	22	Service
Player 3 Button D	19	20	Player 4 Button D
Player 3 Button C	17	18	Player 4 Button C
Player 3 Button B	15	16	Player 4 Button B
Player 3 Button A	13	14	Player 4 Button A
Player 3 Right	11	12	Player 4 Right
Player 3 Left	9	10	Player 4 Left
Player 3 Down	7	8	Player 4 Down
Player 3 Up	5	6	Player 4 Up
Player 3 Start	3	4	Player 4 Start
Player 3 Coin	1	2	Player 4 Coin

The part used on the motherboard seems to be this:
https://www.digikey.co.uk/product-detail/en/3m/N3431-5302RB/MHR34N-ND/2183060

(Edit: This pinout seems to work.)



[Fluffy]

Here's what my 4-player cable looks like. You just need a spare jamma harness and some DB15 connectors. It's really nbd.

Can you do me a favour and check which pins Speaker- from the Jamma edge is connected to?



[Neo-Alec]

Here's what my 4-player cable looks like. You just need a spare jamma harness and some DB15 connectors. It's really nbd.

Can you do me a favour and check which pins Speaker- from the Jamma edge is connected to?

Speaker - on the jamma side is connected to all of the ground pins on the system side of the cable.



[titchgamer]

I'll be posting some details soon, probably within the week. Should be ready for production and testing soon.

Just wondering if you ever made a adapter for P3&P4?
If so I would love to purchase one!
I tried to make one with a old floppy drive cable which sort of works but the wires break far to easily!



[Flinnster]

I used 3D printing ribbon cable for my link loom, it's pretty robust. My link loom was just standard jamma for players 1 & 2 across two cabs mind, I've not attempted to make a PGM 3 & 4 player one just as yet.
