With the Monkey Ball Panel completed, I had a spare stick from the set to give a shot at Afterburner Climax.

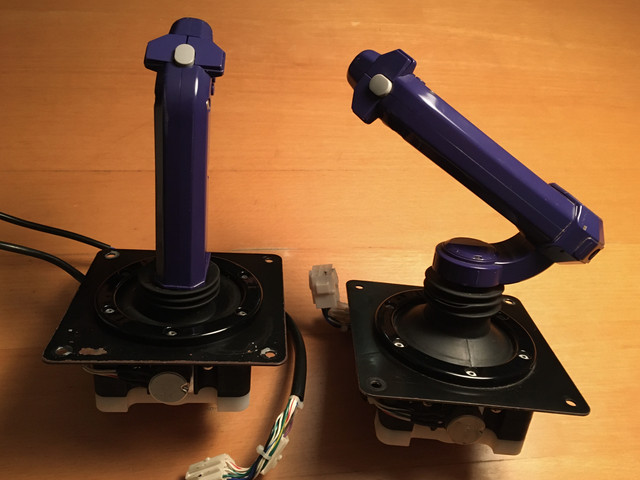

The sticks I got off YAJ are angled. By removing the middle section, I was able to mount the stick correctly. Due to the hole alignment, it sits a bit lower but is still works fine

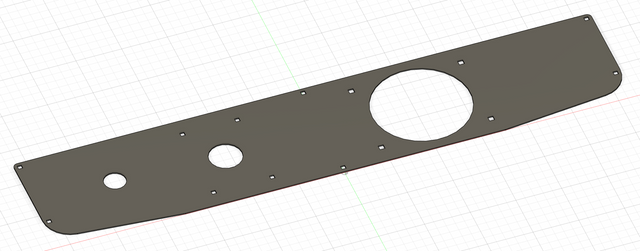

Another panel was needed, so back to Fusion to design a panel that will take a sega analogue stick as the thrust lever

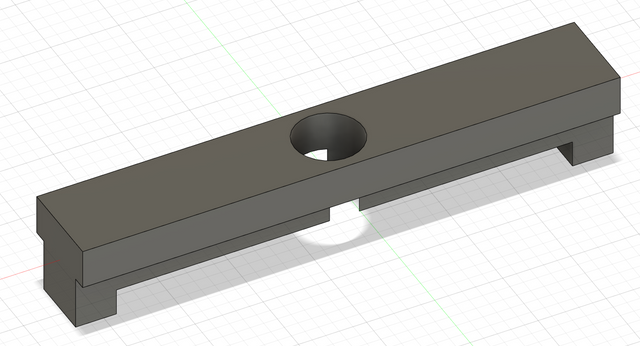

As I did not want any left/right movement on the thrust lever, I came up with a locking bar that would prevent the stick from moving left and right


After a couple of prints to get the correct fitment I had this

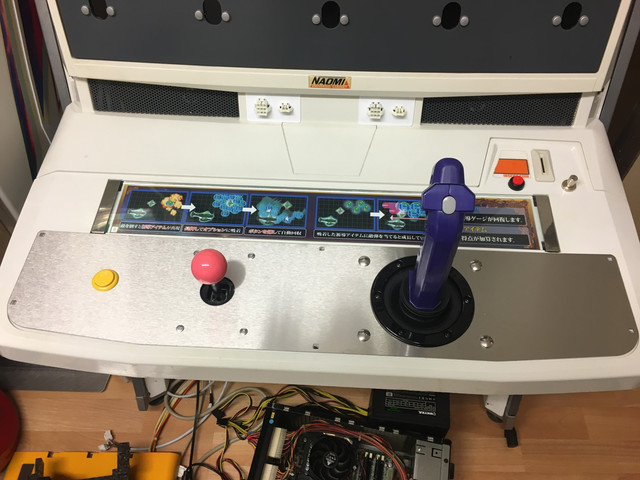

The panel came in and it was time to do a test install

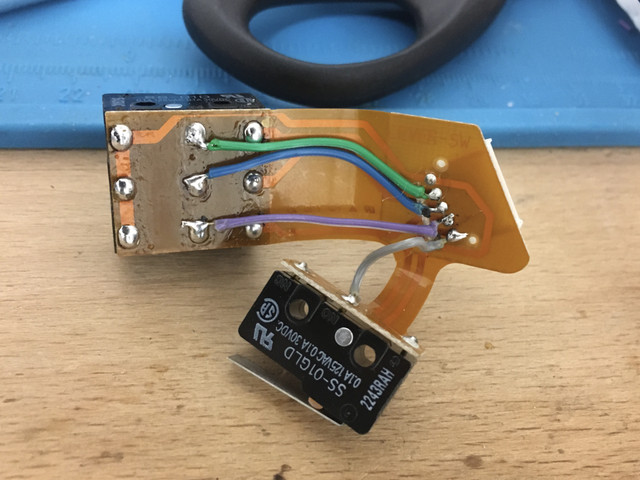

Once I booted up Afterburner Climax I had some strange behaviour with stuck buttons and the test menu was not accessible. That was really strange and went away when I unpluged the stick. I suspected the I/O board and got a type 3. No luck there unfortunately, still the same issues. Then I noticed that all the buttons on the stick measured as 'pressed'. So the behaviour of the buttons was wrong for my setup. I was able to fix it by routing the signal from the opposite side of the micro switches

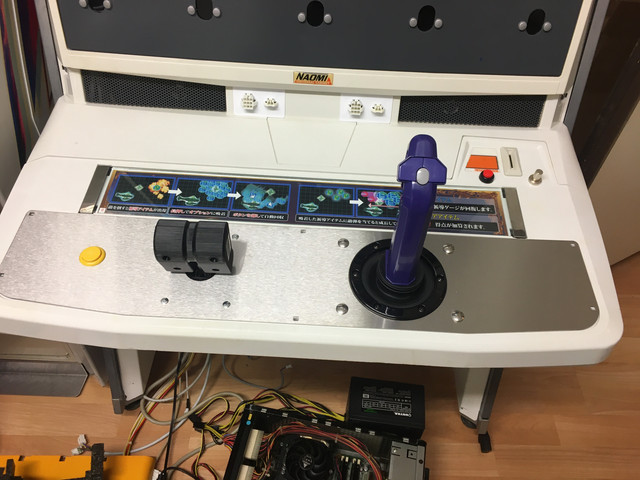

That fixed the basic controls but I was not happy with the thrust lever. Back to Fusion we go

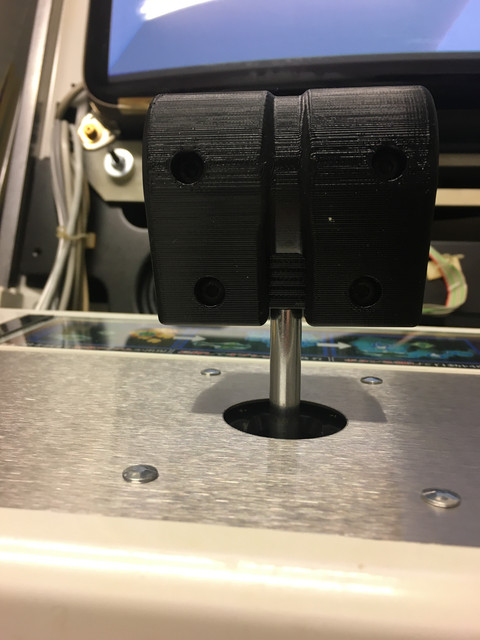

Did a couple of iterations to get the height and fitment correct


You can still turn the lever a bit but it plays quite well with this setup


The stick itself is quite nice as it has 4 separate buttons. I used the trigger for the machine gun, the blue buttons left/right for thte missiles and the grey button in the middle for the climax mode, as I was not able to replicate the original thrust lever where climax is triggered when you push it all the way forward.


Psyko-M1

Champion
Joined
Jun 10, 2018
Messages
1,123
Reaction score
1,674
Location
Chicago
If you ever would sell one of these, let me know.
ive been looking to buy a galaxy force pcb and play it on my blast.


Aurich

Champion
Joined
Jan 28, 2016
Messages
1,131
Reaction score
1,500
Location
SoCal
Very nice work.

I avoided getting a 3D printer for years, thinking they were more effort than they were worth, and that I wouldn't have enough use for them.

Then once I got one I discovered what an indispensable tool it is. I'm starting to wonder if a resin printer will prove to be a similar thing ...


nnap

Enthusiast
Joined
Aug 28, 2018
Messages
199
Reaction score
192
Location
Switzerland
If you ever would sell one of these, let me know.
ive been looking to buy a galaxy force pcb and play it on my blast.
I am not familiar with the galaxy force stick. If it is your standard pot based analogue stick you should be able to use the gundam stick for that. Finding the Galaxy Force PCB is probably even harder than finding one of these sticks.


nnap

Enthusiast
Joined
Aug 28, 2018
Messages
199
Reaction score
192
Location
Switzerland
Very nice work.

I avoided getting a 3D printer for years, thinking they were more effort than they were worth, and that I wouldn't have enough use for them.

Then once I got one I discovered what an indispensable tool it is. I'm starting to wonder if a resin printer will prove to be a similar thing ...
I was also sceptical about 3D printers. When I started this project I had zero experience in 3D modeling. It was fun learning the tools. There is something about designing something and then holding it in your hands a couple of hours later.


Fredo

Student
Joined
May 3, 2018
Messages
20
Reaction score
48
Location
France
If I remember correcty, the thrust lever had a notch, or a click to activate the Climax mode, how does it work with your panel ?


nnap

Enthusiast
Joined
Aug 28, 2018
Messages
199
Reaction score
192
Location
Switzerland
yes, the original panel has a switch at full throttle. On my panel you just hit the little grey button on the stick.


Zebra

Professional
Joined
Nov 5, 2018
Messages
501
Reaction score
131
Location
New York
Does Afterburner Climax use that kind of analog stick?

The controls on that game felt weird to me when I tried to use my regular analog stick. I couldn't aim at all.

I then tried playing it with one of my positional guns and it seemed to work properly. I know they both use pots for the X and Y axis but the guns don't snap back to center. The X axis is a rotary type like on those Microsoft sidewinder flight sticks. It makes aiming or hold your position easier.

I kept meaning to ask someone what the original cab used because I've never seen one in the wild.


nnap

Enthusiast
Joined
Aug 28, 2018
Messages
199
Reaction score
192
Location
Switzerland
The stick base should be the same from what I can see in the manual and the sticks that are on sale. The cab uses the same Opt Amp that is used in Monkeyball but I don't think it is required. When you calibrate the stick correctly it works fine. Same with Monkeyball.
What analogue stick did you use?


Zebra

Professional
Joined
Nov 5, 2018
Messages
501
Reaction score
131
Location
New York
The stick base should be the same from what I can see in the manual and the sticks that are on sale. The cab uses the same Opt Amp that is used in Monkeyball but I don't think it is required. When you calibrate the stick correctly it works fine. Same with Monkeyball.
What analogue stick did you use?
I used this one from a Panzer Elite Action cab:



It's a regular 2 axis analog stick.

I guess I just don't like the game if it's not a wrong controls issue. It's the same with the first After Burner arcade. I always found it to have an insanely high difficulty level so my coin didn't last long enough to have any fun.

Maybe I should check out the service menu and see if there's an option to make the controls a little more functional and less all over the place.
