A list of arcade games that support an optional, unique second screen (not a doubled output):

[Games that can played with joysticks and buttons]
Backfire!
Cyberball
Dunk Dream '95 / Hoops '96 (pinout in post 7) (pics of game running in post 10)
Hard Dunk
Lode Runner: The Dig Fight (pic of official link harness here) (pinout in post 7)
Quiz de Idol! Hot Debut
Run And Gun 2
Rushing Heroes
Stadium Cross
Title Fight
Touch And Go
VersusNet Soccer
World Rally 2

[Games that need special controllers]
Cool Riders (handlebar controller)
OutRunners (steering wheel)
Taisen Hot Gimmick (mahjong controller)
Taisen Hot Gimmick Kairakuten (mahjong controller)
Taisen Hot Gimmick 3 Digital Surfing (mahjong controller)
Taisen Hot Gimmick 4 Ever (mahjong controller)
Taisen Hot Gimmick Integral (mahjong controller)
Taisen Idol-Mahjong Final Romance 2 (mahjong controller)
Taisen Mahjong Final Romance R (mahjong controller)
Taisen Mahjong Final Romance 4 (mahjong controller)

EDIT: cleaned up OP and added a ton of games. Thanks guys!
EDIT 2: removed a ton of games. Sorry!

Last edited:

Frank_fjs

Multi Boyz 4 Lyfe
Legendary
Multi Boyz
Joined
Mar 3, 2018
Messages
3,431
Reaction score
5,808
Location
Australia - Adelaide
Doesn't IGS PGM allow for something like this?

I have the official 4 player harness that I believe allows one to use two motherboards and split it across two cabs for some of the 4 player games such as KOV. Never tried it though.


thegreathopper

Student
Joined
Sep 25, 2016
Messages
203
Reaction score
65
Location
London England
I have a couple of the 4 player harnesses for PGM, the kits would come with them.

But they were designed to use one motherboard and split the video to two Jamma connectors.


JoeAwesome

Professional
Joined
Feb 28, 2019
Messages
489
Reaction score
262
Location
BCS/Houston, Texas
With the PGM, much like Dunk Dream 95/96, I believe, you can either make an adapter to have 3p and 4p through the harness for same screen action, or have a harness wired to JAMMA which the second cab piggy backs off of.


nem

Enlightened
Joined
May 29, 2016
Messages
4,162
Reaction score
3,339
Location
Finland
All of those output the same video signal through different connectors. The ones in the OP should output two different video signals. Like in Dunk Dream '95 I guess it would show 1P and 2P stats on monitor 1 and 3P and 4P stats on monitor 2.

Dig Fight actually works in Mame and shows both outputs. It's pretty neat. I have to get that going. Could someone fill me in on the pinout, please? The manual is useless.


nem

Enlightened
Joined
May 29, 2016
Messages
4,162
Reaction score
3,339
Location
Finland
Didn't feel like doing any real work today, so I decided to tackle this. Armed with some very basic knowledge of what parts are responsible for what things and a multimeter, I figured out some of the pinout for the two games.


Lode Runner: The Dig Fight

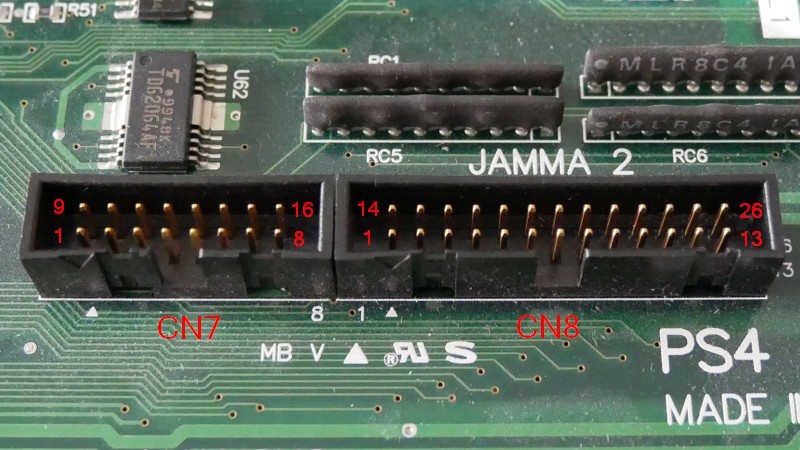

CN7:

19
210
311
SPK-412SPK+
513
VIDEO GREEN614VIDEO RED
VIDEO SYNC715VIDEO BLUE
GND816(VIDEO) GND


CN8:

114
215
316
P4 START417P3 START
P4 UP518P3 UP
P4 DOWN619P3 DOWN
P4 LEFT720P3 LEFT
P4 RIGHT821P3 RIGHT
P4 BTN1922P3 BTN1
P4 BTN21023P3 BTN2
P4 BTN31124P3 BTN3
GND1225GND
GND1326GND


Note that there is no simultaneous 4-player mode in Dig Fight! What a fucking disappointment. What it does give you is:

* In the 'Together' game mode you can have have two standalone games that can be played cooperatively (1P&2P, 3P&4P). Basically as if you had two game boards.
* In the 'Fight' game mode you can have two standalone 1P single player games (1P, 3P) and the ability to challenge the other player to a versus match.

Versus match is actually pretty fun. Technically you don't need to wire the game up to two screens, just wire up the 3P controls to your regular 2P side. Then do the following: press 3P start twice, press 1P start, choose 'VS Play', and press 3P BTN1 or wait 10 seconds. Everything happens on the same screen, there's no benefit to having two screens.

Bonus thing, you can change the region to World and turn this game into English by cutting the link between the 4th solder pad on JP4 (thank you, Mame driver).


Dunk Dream '95 / Hoops '96

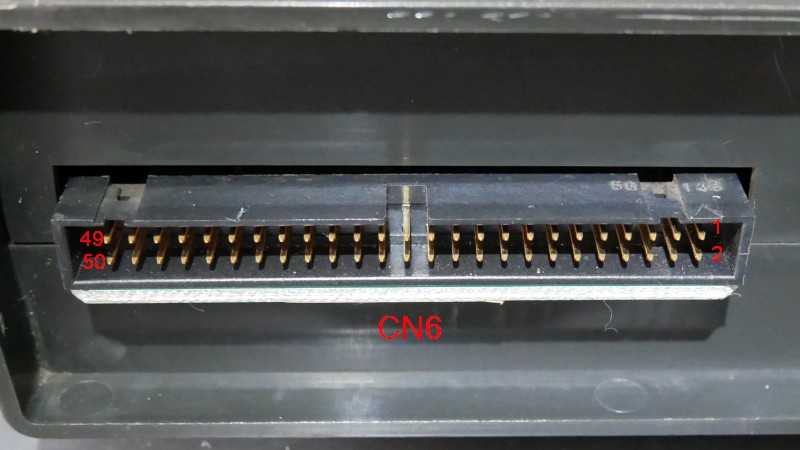

CN6:

+5V12+5V
343P UP
563P DOWN
783P LEFT
9103P RIGHT
11123P BTN1
13143P BTN2
VIDEO RED15163P BTN3
VIDEO BLUE1718
VIDEO GREEN1920
VIDEO SYNC2122
(VIDEO) GND23243P START
SERVICE SW #225264P UP
27284P DOWN
COIN SW #329304P LEFT
COIN SW #431324P RIGHT
SPK+33344P BTN1
SPK-35364P BTN2
37384P BTN3
3940
4142
4344
45464P START
GND4748GND
GND4950GND


Bonus thing, program roms are eproms. For instance I originally had a Dunk Dream '95, but with two 27C240 roms (sz00-0.2a & sz01-0.2B) I converted mine to Hoops '96. Hoops is an updated version of the game (faster gameplay, new intro graphics), the year isn't just there for show.

Last edited:

Hammy

Champion
Joined
Feb 3, 2018
Messages
1,126
Reaction score
2,153
Location
U.K
Other twin monitor VS games on a single board:
World rally 2, touch n go by galeco
Some konami gx titles such as rushing hero's, run and gun 2 etc.

Sega drivers:
outrunners and other system 32 based and obviously cool riders ;)


nem

Enlightened
Joined
May 29, 2016
Messages
4,162
Reaction score
3,339
Location
Finland
Cyberball by Atari can output to two screens as well apparently.

Anyway, Hoops two screen is seriously impressive. It's the kind of implementation I thought Dig Fight would have. Basically it's like two boards linked together. You can have standalone games on both screens at the same time or you can challenge the other players on the other screen.

Some pics:

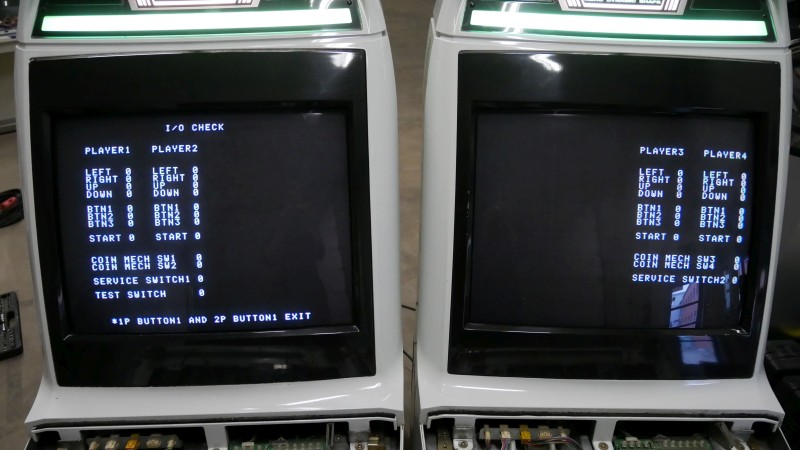

IO check on both monitors.


Single player on left screen, attract demo running on right screen.

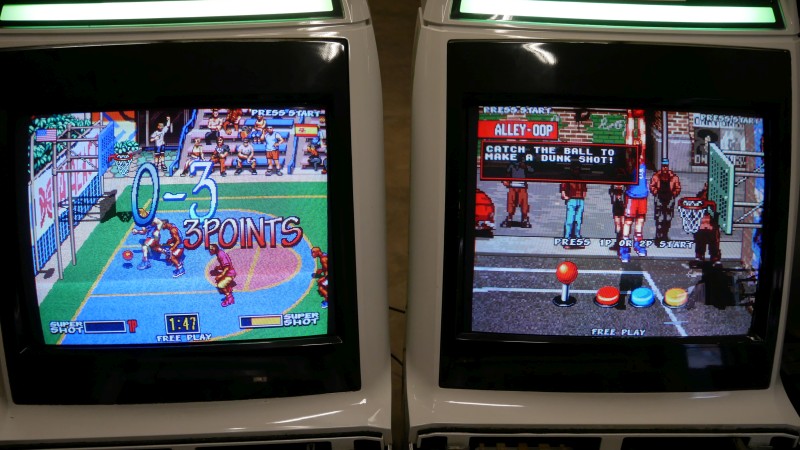

Single player on right screen, left screen deciding on challenging right screen.

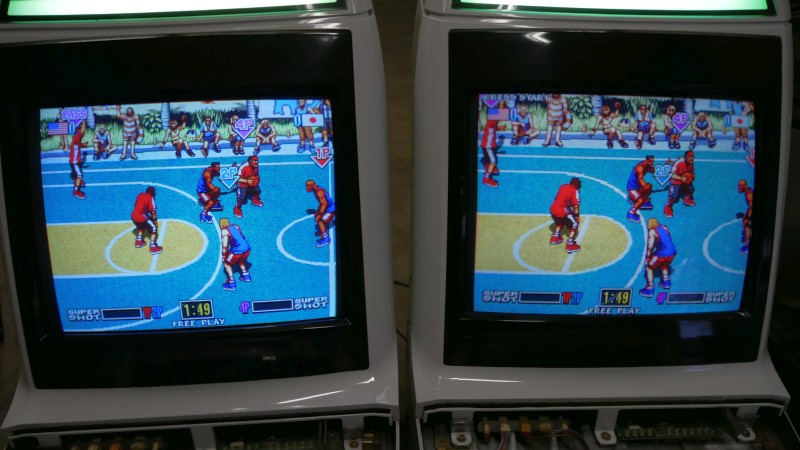

Left and right screen in the same 3-player game. 1P and 2P on left, 4P on right.

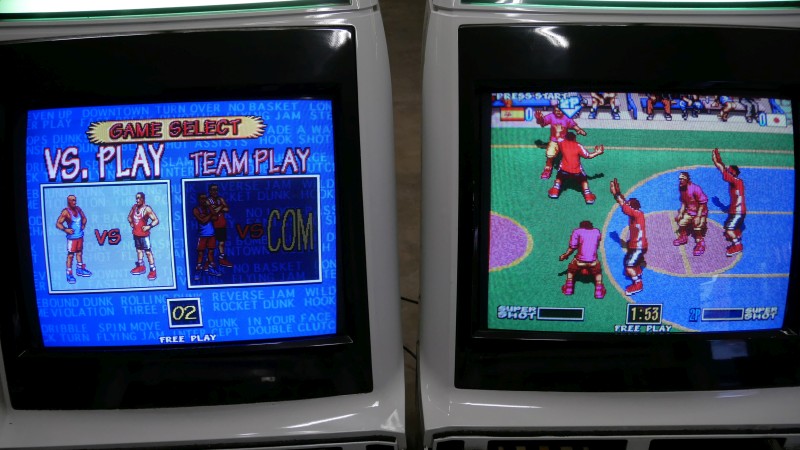

Single player on right screen. Left screen started new game, chose not to challenge, choosing now either to play standalone 2-player versus or team play.

Very cool.

Last edited:

twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,225
Reaction score
9,743
Location
NH, USA
Konami Vs Net Soccer supports 2 independent screens.
https://flyers.arcade-museum.com/?page=flyer&db=videodb&id=3681&image=2

I know you have Rushing Heros on the list already but the flyer shows off the mode:
https://flyers.arcade-museum.com/?page=flyer&db=videodb&id=927&image=2

------------

Some other games that support multiple screens but not in the way I think you intended:
X-Men 6-player
Darius
Darius II / Sagaia
Ninja Warriors
Tecmo Bowl


Also a kind of honorable mention is Tetris Plus on Jaleco Mega System 32. it only supports 1 screen but it splits it vertically and lets player 1 and player 2 play independent games in completely different game modes or challenge each other.

Note that there is no simultaneous 4-player mode in Dig Fight! What a fucking disappointment. What it does give you is:


* In the 'Together' game mode you can have have two standalone games that can be played cooperatively (1P&2P, 3P&4P). Basically as if you had two game boards.
* In the 'Fight' game mode you have two standalone 1P single player games (1P, 3P) and the ability to challenge the other player to a versus match.
That is a huge disappointment, I've had one of these PCBs for a while and I'd been meaning to build a 4P harness to try out those modes. was looking forward to some interesting 4P battle game play :-/


nem

Enlightened
Joined
May 29, 2016
Messages
4,162
Reaction score
3,339
Location
Finland
Cleaned out the pinouts to make them more legible. If someone wants to figure out the missing things from Dig Fight (coin switches, etc), I'm happy to add them in.

That is a huge disappointment, I've had one of these PCBs for a while and I'd been meaning to build a 4P harness to try out those modes. was looking forward to some interesting 4P battle game play :-/
No kidding. I thought it would be like Battle Lode Runner on the PC-Engine. Nope.

Even sillier is locking out versus behind the two screen mode. Why? The action takes place on the same goddamn screen:


?(


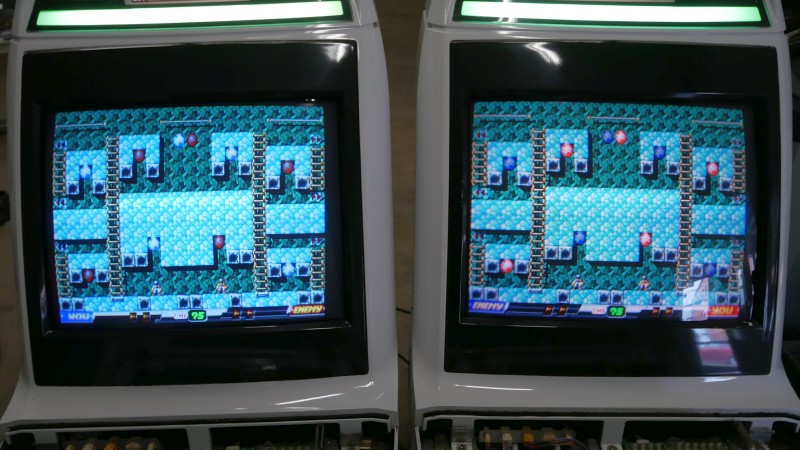

twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,225
Reaction score
9,743
Location
NH, USA
If you're interested in Listing the Psikyo Mahjong games that support 2-screens, they're:

Taisen Hot Gimmick
Taisen Hot Gimmick Kairakuten
Taisen Hot Gimmick 3: Digital Surfing
Taisen Hot Gimmick 4 Ever
Mahjong Hot Gimmick Integral

The series was continued on Taito Type X, though I'm not sure if the TTX games supported 2-screens:
Taisen Hot Gimmick 5
Taisen Hot Gimmick Mix Party

it's worth noting that Mix Party is basically Hot Gimmick 1-4, so I think there's be a good chance the feature is available.

I believe the Video System's Taisen Mahjong series also supports 2-screens, they feature a similar link cable system to the Psikyo Mahjong games. though I'm not super familiar with the hardware or the specific games that have support.

EDIT: these games support it:
Taisen Idol-Mahjong Final Romance 2
Taisen Mahjong Final Romance R
Taisen Mahjong Final Romance 4

the later games in the series after 4 are "Network Taisen" and the first game is just "Idol-Mahjong Final Romance" without the Taisen, so I believe it doesn't support multiple screens either.

Last edited:
  • Like
Reactions: nem

twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,225
Reaction score
9,743
Location
NH, USA
Searching around here are more games that support a unique second screen:

Sega Multi System 32 games:
-Hard Dunk
-OutRunners
-Stadium Cross
-Title Fight

The Keyboardmania Series:
-Keyboardmania
-Keyboardmania 2nd Mix
-Keyboardmania 3rd Mix

and these two:
-Backfire!
-Tokimeki Mahjong Paradise: Dear My Love

Also I'm not sure Touch and Go belongs on the list, it looks more like the game supports 2-monitors the way X-men 6P does, where it's just used to extend the screen horizontally.


nem

Enlightened
Joined
May 29, 2016
Messages
4,162
Reaction score
3,339
Location
Finland
The Hot Gimmick games I took off because they use a mahjong panel. Maybe there's merit to listing them all, just under different categories?

Is Backfire! the Data East isometric rally game? That's cool! That and World Rally 2 definitely interest me.


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,225
Reaction score
9,743
Location
NH, USA
I think it's definitely worth separating them by control interface type.

EDIT: I just noticed you add the extended screen games.
you can add Warrior Blade - Rastan Saga Episode III to that list.

Also there are game that extend the screen vertically:
Arm Wrestling
Punch-Out!
The 'Vs.' Series of games (Vs. BaseBall, Vs. Ice Climber, etc)
Super Punch-Out!
Hang Pilot
Jong Tou Ki
Rock'n MegaSession


and games that have a secondary screen for some kind of alternate function:
Silent Scope
Silent Scope 2
Teraburst
Primeval Hunt


JoeAwesome

Professional
Joined
Feb 28, 2019
Messages
489
Reaction score
262
Location
BCS/Houston, Texas
nem, how did you wire the Hoops harness? Do you know the AUX connector so I can make my own (or ask to be made ;) )?

Top
