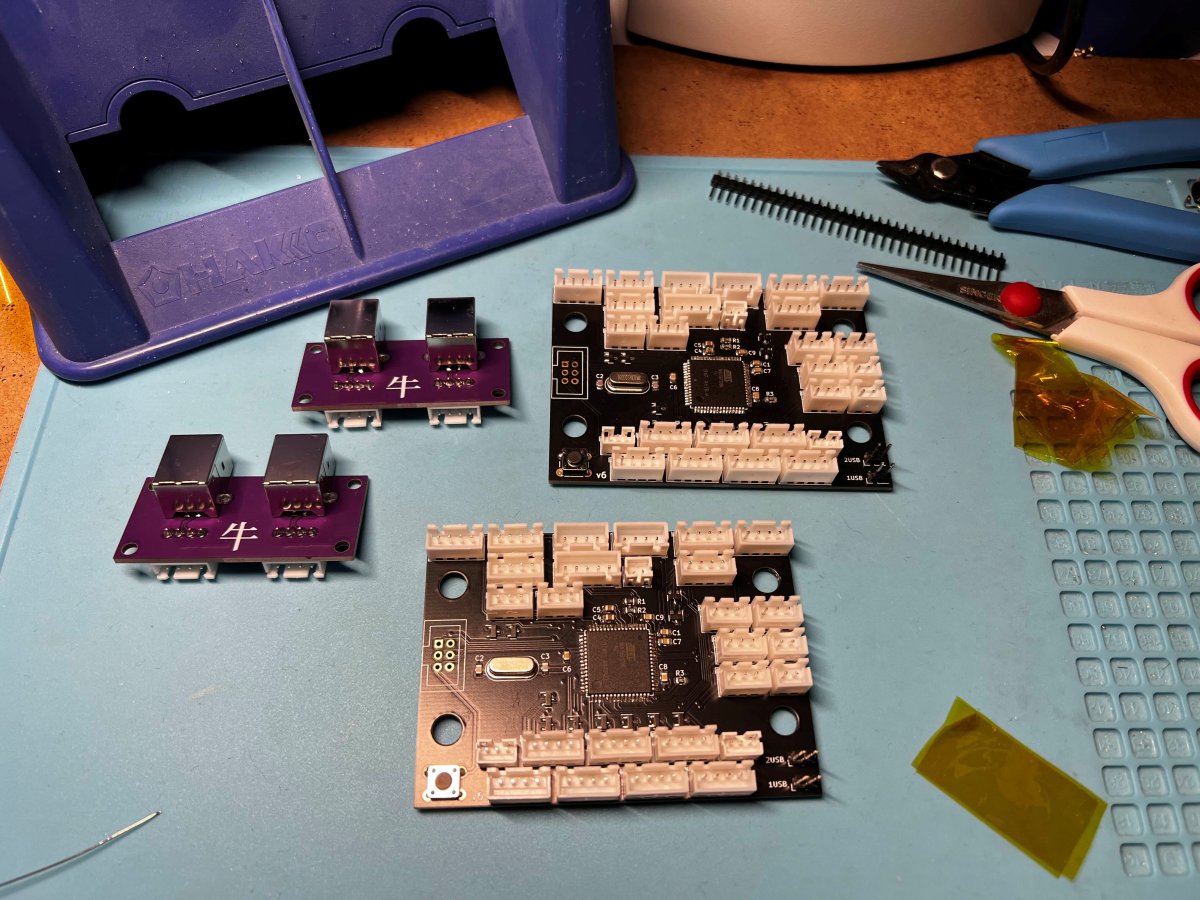

Made this last year after I got fed up with the shitty PCB that came with my phoenixwan.

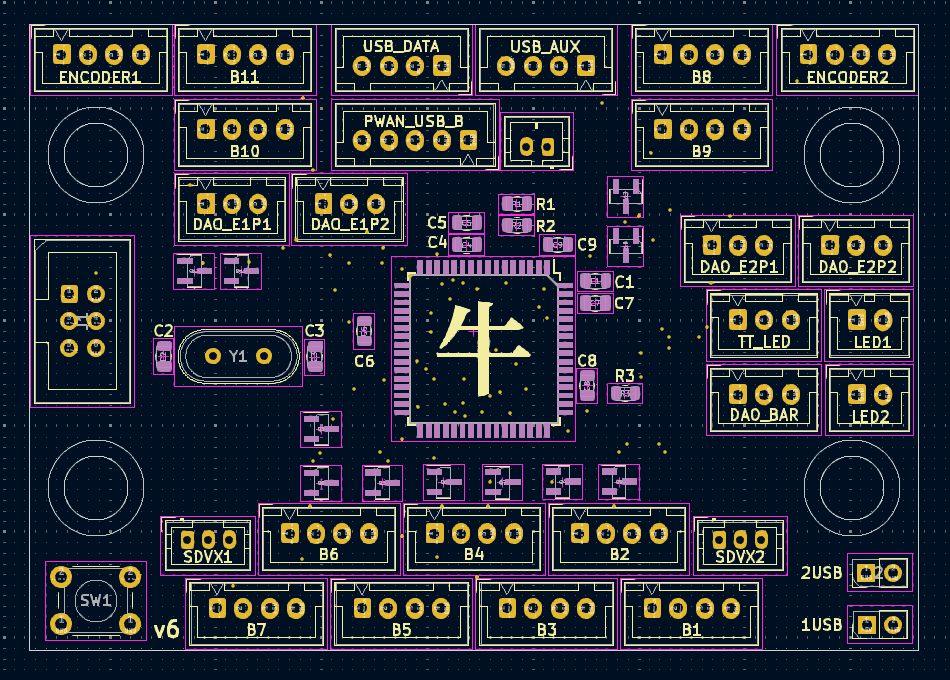

The headers at the top serve as a USB breakout to connect to a separate USB PCB which can be seen below:
- Support for IIDX, Sound Voltex, and Pop'n Music.
- Drop-in replacement for many DAO controllers using existing wiring such as phoenixwan, popoller etc.
- Can operate using either 1 or 2 USB cables depending on current limits of your PC.
- Lighting effects and FW can be configured from the web, FW updates can also be flashed from the web.
- Supports arcade style SDVX encoders as well as encoders used in home controllers.
- Supports bemani online games such as IIDX Infinitas and SDVX Konasute
- Supports both analog and digital turntable.
- PCB design and firmware are fully open source.
The headers at the top serve as a USB breakout to connect to a separate USB PCB which can be seen below:
