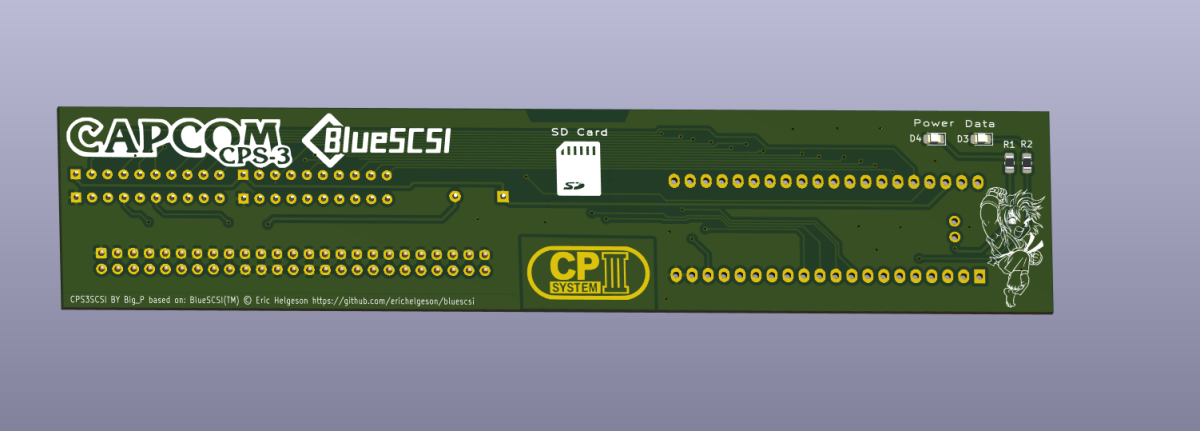

I have been absent from the forums for a while for personal reasons, but I recently was working on adapting the BlueSCSI V1.1 to fit nicely with a CPS3. This is not a new idea, I have seen it done before (maybe here), but the gerbers were not freely available to anyone wanting to build one. I have had 5 prototype PCBs made up and they look ok but they remain untested as I am still waiting on a few parts to arrive. The parts remain the same (minus a few options). I terminated it as last in the chain and removed the option to chain and I removed the add power and data activity LED header and included 2 x 0805 LEDs and resistors on the back of the board. Gerbers attached, and I will update on my progress over the next few weeks as I get one of the prototypes finished and tested.
the header to connect to the CPS3 is not the standard male in the BlueSCSI BOM but this female header: https://www.digikey.com.au/en/produ...nector-solutions/SFH11-PBPC-D25-ST-BK/1990094
the header to connect to the CPS3 is not the standard male in the BlueSCSI BOM but this female header: https://www.digikey.com.au/en/produ...nector-solutions/SFH11-PBPC-D25-ST-BK/1990094
