FS BlueSCSI shaped for CPS3

[Rom1]

Hi !

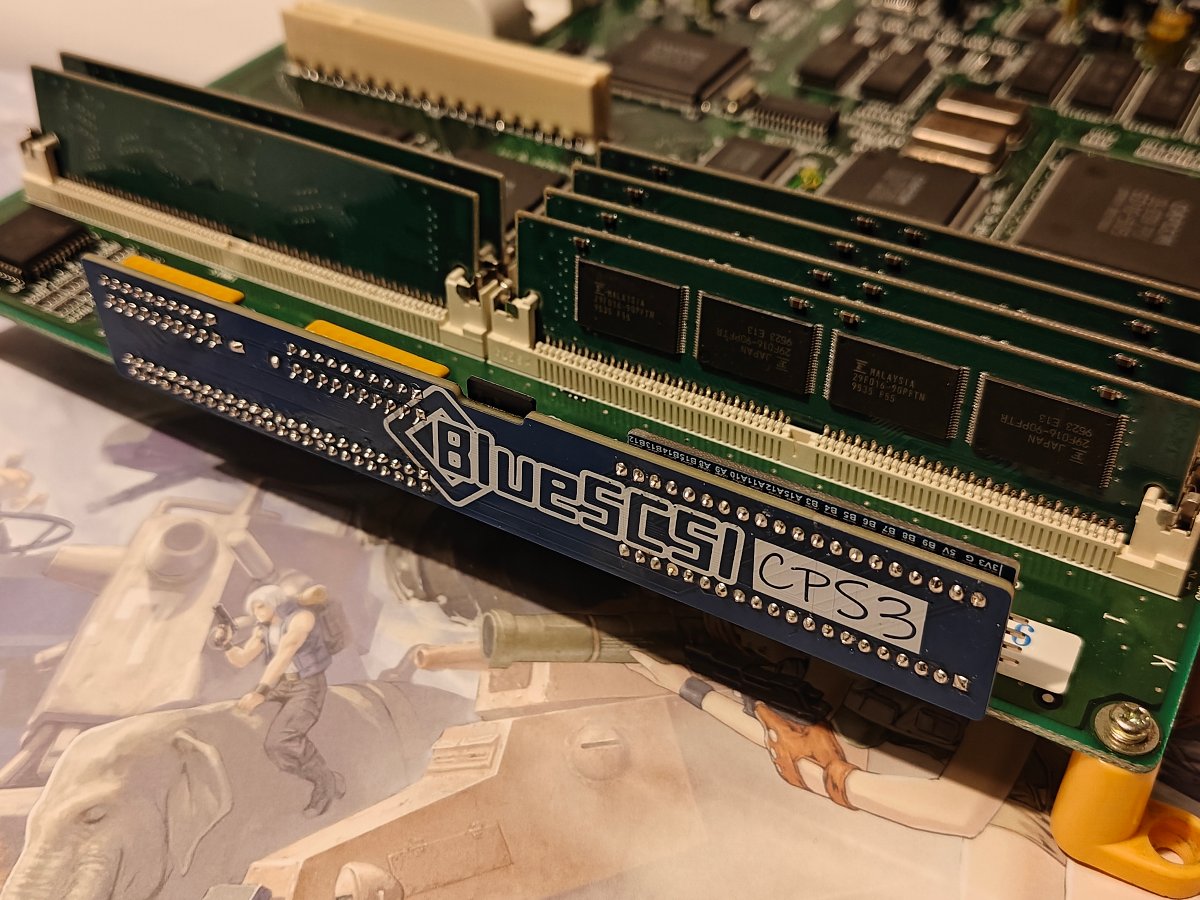

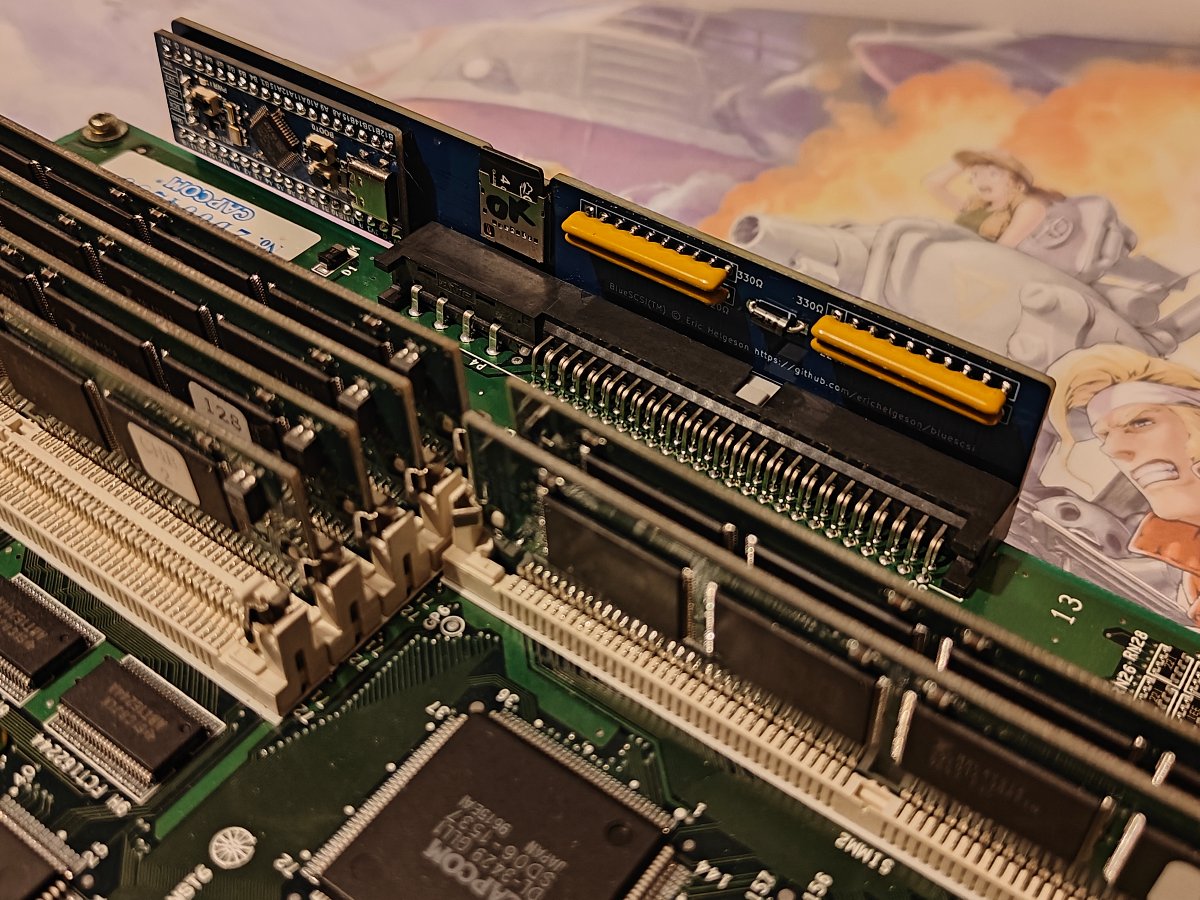

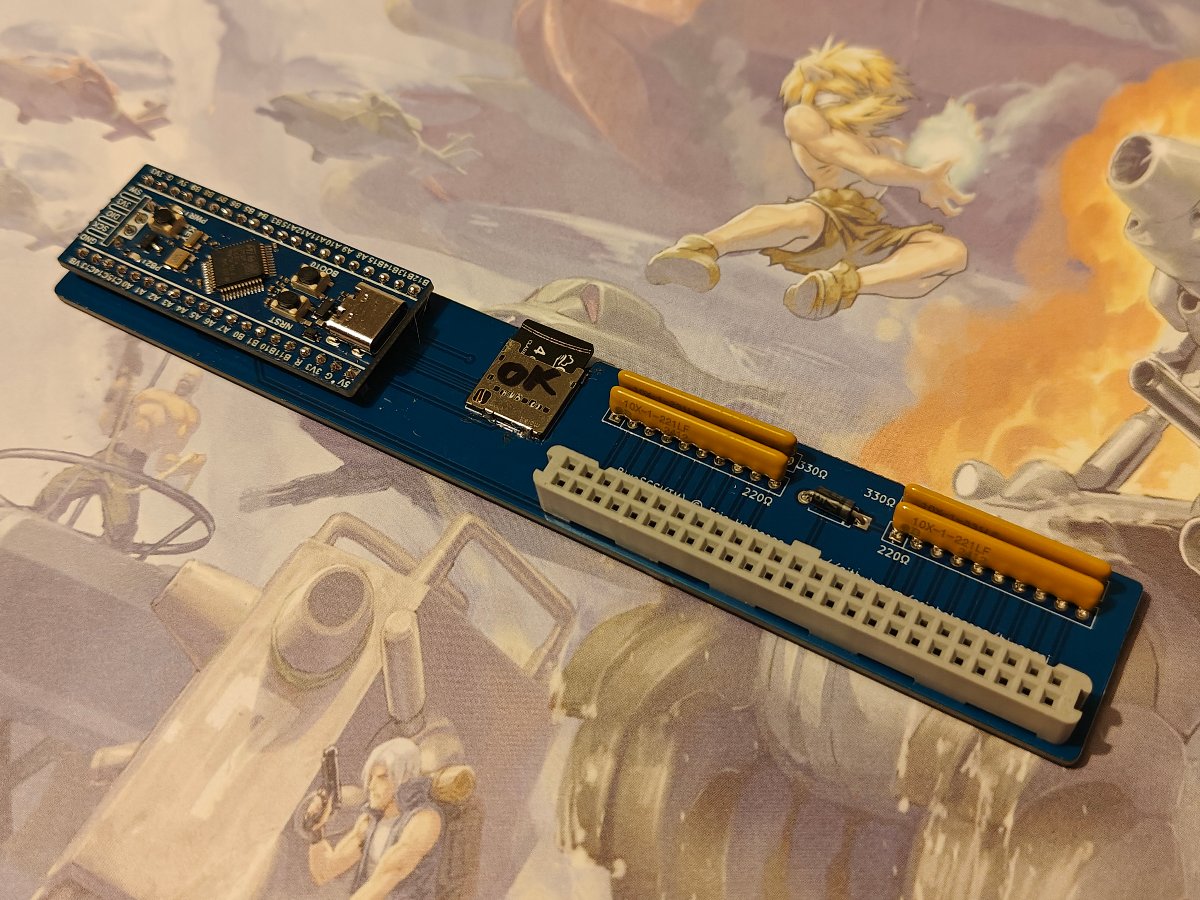

I’ve adapted Eric Helgeson’s BlueSCSI board to snap directly onto the back of a CPS3 mainboard - no ribbon cable needed.
This fully replaces the original CD-ROM reader and can be used to flash games, boot games, etc., just like the original drive. The SD card stores the ISO images, and there is no complex configuration.



I made a bunch of them, they are tested with a CPS3 Darksoft cart and the SD card is setup and included: it's plug'n'play.
60€ (shipping excluded)
Shipping to:
- France is 5€
- most European countries is between 5€ and 12€
- UK is 19€
- USA is 35€
- Canada is 35€




Why this mod ?

• Cleaner install: custom shape matches the CPS3 PCB, so it clips right on.
• Better reliability: eliminates loose cables.
• BlueSCSI firmware compatible: microSD-based “drives” and firmware updates via USB-C.
• No need for jumper configuration, its preconfigured for CPS3.

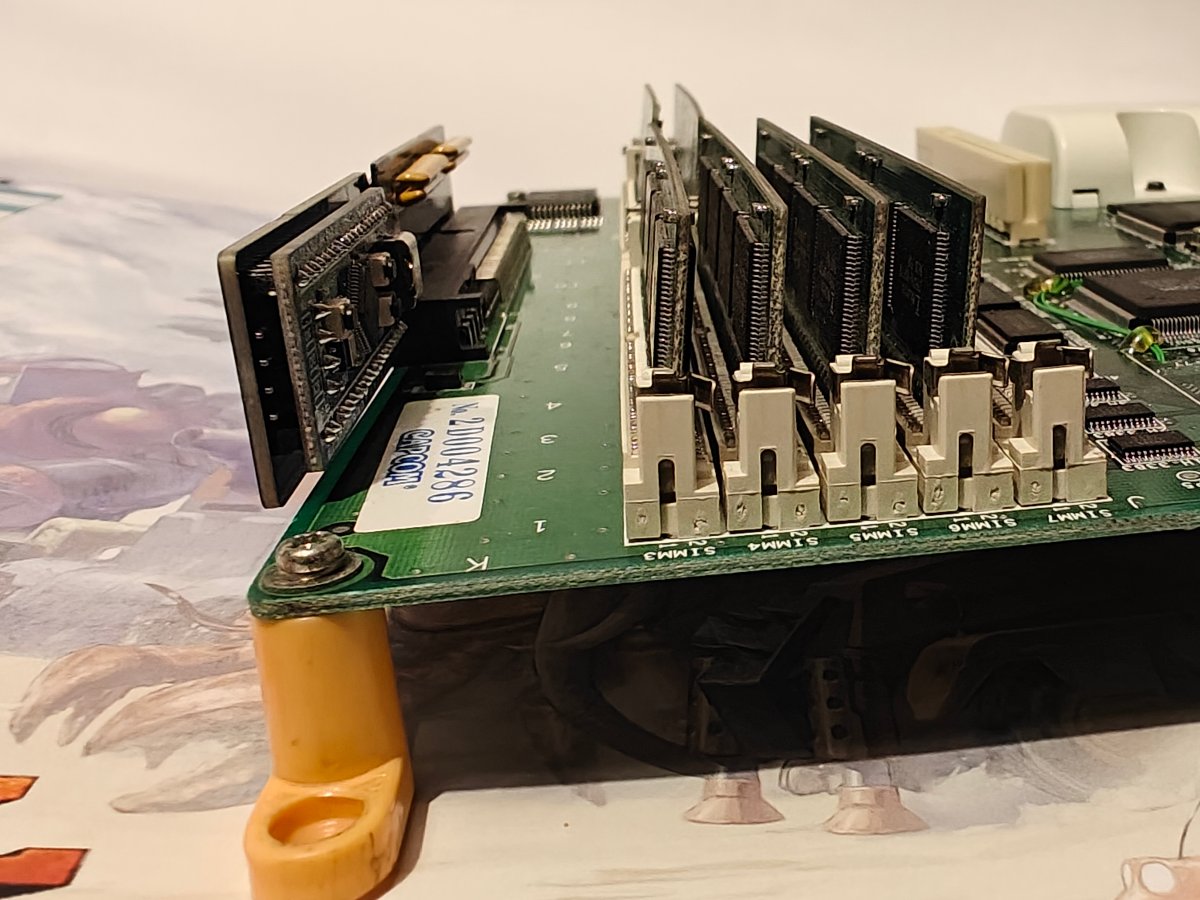

• Slim enough to go within plexi/metal cases, it's lower than the SIMMS memories.
• It's available ! BlueSCSI are quite complicated to get at a reasonable price, at least in Europe.

External links

• The wonderful BlueSCSI project : https://github.com/erichelgeson/BlueSCSI
• An old thhead about BlueSCSI: https://www.arcade-projects.com/threads/bluescsi-scsi2sd-alternative.18121/
• The initial "project thread": https://www.arcade-projects.com/threads/bluescsi-shaped-for-cps3.33895/



[bigrussel]

Cool! I'll take one. Do you ship to US?



[Rom1]

Cool! I'll take one. Do you ship to US?

Yes, but it's kind of expensive (and you'll be taxed ...).
It's like 35€ for 1 to 10 boards.



[msamiullah]

lovely design, I will be intrested in few if shipping to Canada is reasonable.



[imbord3rlin3]

this is fantastic! if they r still available in a couple weeks, ill take 4



[ForestOfDreams]

If anyone is importing them to usa and wants to sell me just 1...dang tariffs.



[RoseCity__]

I'm interested in two if you're shipping to the US



[coll83]

Hi !

I’ve adapted Eric Helgeson’s BlueSCSI board to snap directly onto the back of a CPS3 mainboard - no ribbon cable needed.
This fully replaces the original CD-ROM reader and can be used to flash games, boot games, etc., just like the original drive. The SD card stores the ISO images, and there is no complex configuration.



I made a bunch of them, they are tested with a CPS3 Darksoft cart and the SD card is setup and included: it's plug'n'play.
60€ (shipping excluded)




Why this mod ?

• Cleaner install: custom shape matches the CPS3 PCB, so it clips right on.
• Better reliability: eliminates loose cables.
• BlueSCSI firmware compatible: microSD-based “drives” and firmware updates via USB-C.
• No need for jumper configuration, its preconfigured for CPS3.
• Slim enough to go within plexi/metal cases, it's lower than the SIMMS memories.
• It's available ! BlueSCSI are quite complicated to get at a reasonable price, at least in Europe.

External links

• The wonderful BlueSCSI project : https://github.com/erichelgeson/BlueSCSI
• An old thhead about BlueSCSI: https://www.arcade-projects.com/threads/bluescsi-scsi2sd-alternative.18121/
• The initial "project thread": https://www.arcade-projects.com/threads/bluescsi-shaped-for-cps3.33895/

Can I take one - UK please



[Cheuboh]

Hi !
Ill take one if possible
Im from France
Thanks



[Rom1]

Shipping to:
- France is 5€
- most European countries is between 5€ and 12€
- UK is 19€
- USA is 35€
- Canada is 35€



[JohnRambo'sKnife]

Curious if this will fit inside the USA metal case that originally came with some boards.



[plasticfactory]

Ill definitely pick one up!



[Viku]

Amazing



[kazuo]

Curious if this will fit inside the USA metal case that originally came with some boards.

Seems unllikely that it would, given that the SCSI & Molex connectors sit all the way flush with the outer edge of the case. There's no way to mount anything connected there inside.



[Rom1]

Someone share me a picture and I confirm this won't fit.
Maybe I'll create a special version for it, who knows.



[kazuo]

I don't have access to mine and I can't find a photo, but the design of the factory case is the exact opposite of the Jasen case. Jasen's case is designed for use with an ODE to be mounted inside the case and leaves a tiny bit of space between the PCB edge and the inside of the case, while the factory case expects you to use an external drive. The connectors on the factory case are flush with the outer edge of the case, there is no way to use this internally. I imagine external might be dodgy as well since it will probably short to the case unless you use something to isolate the BlueSCSI board.



[Rom1]

You're right. It works great with Jasen's. It doesn't work with capcom box.

I'll build a version for those box later



[shadowblind]

Love to grab one of these, too, if any are still available! I'm also in the US.

Thanks,
Mike



[tika]

I can confirm this device works/fits well within the Jasen CPS3 case.
