Does the cbox pictured have -5v?

I have not seen one that takes 12v that also converts to -5v.


Bigblue709

Student
Joined
Feb 6, 2022
Messages
92
Reaction score
60
Location
Canada

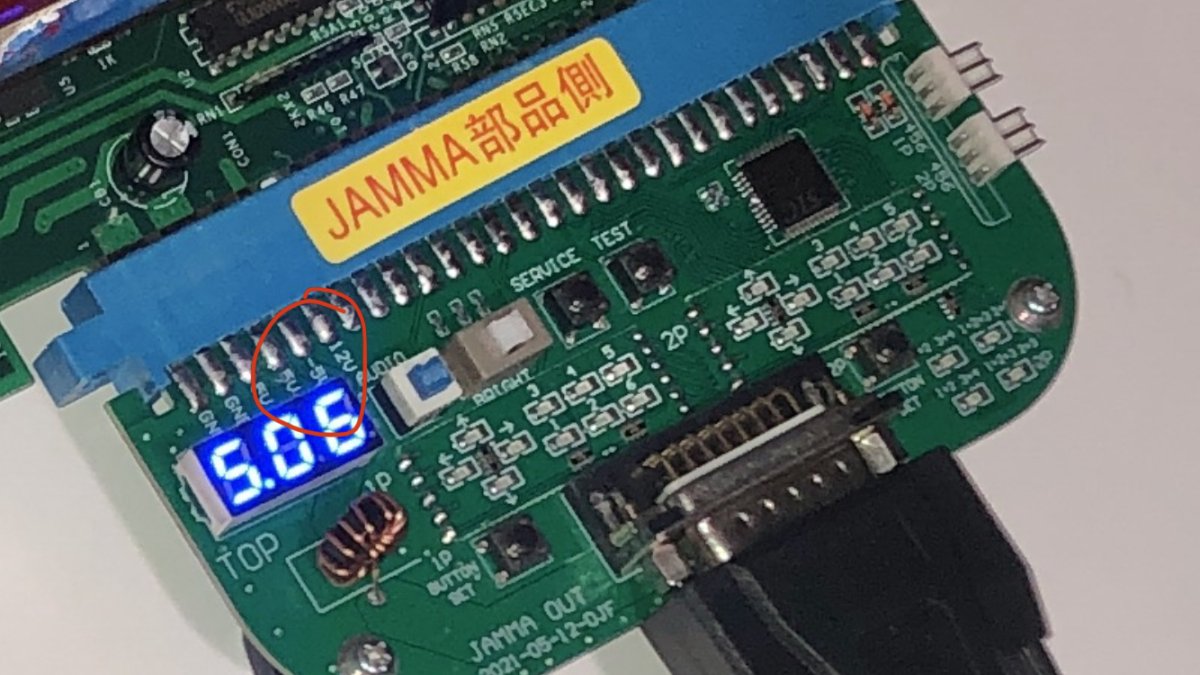

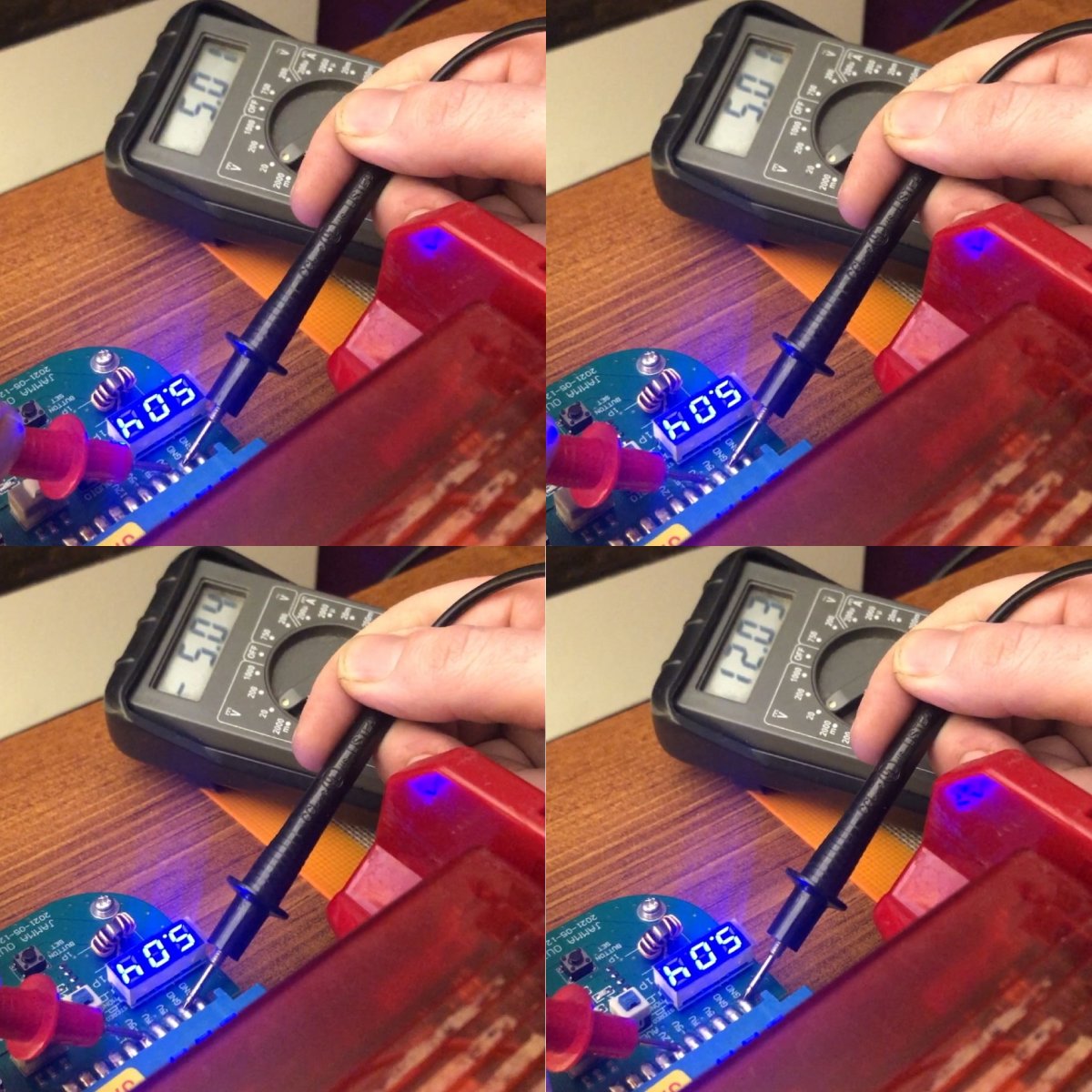

Mine appears to. I’ll check it with a multimeter if I think of it when I get home.



JonathanGene

Beginner
Joined
May 19, 2022
Messages
20
Reaction score
15
Location
San Francisco, California
it seems random
everyones box in the thread has slightly different internals
i was the unluckiest, but what else is new? lmao


GeorgeSpinner

Professional
Joined
Oct 20, 2020
Messages
382
Reaction score
310
Location
Piscataway NJ USA
Mine appears to. I’ll check it with a multimeter if I think of it when I get home.

Thanks but the cbox pictured in the OP is a big red PCB that looks nothing like yours. Unless that's some type of attachment I'm unaware of?

Thanks again.


Bigblue709

Student
Joined
Feb 6, 2022
Messages
92
Reaction score
60
Location
Canada

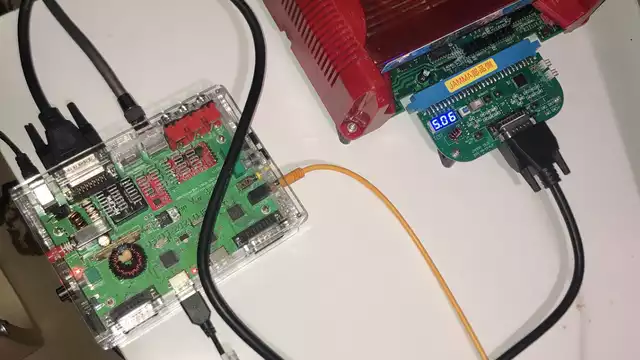

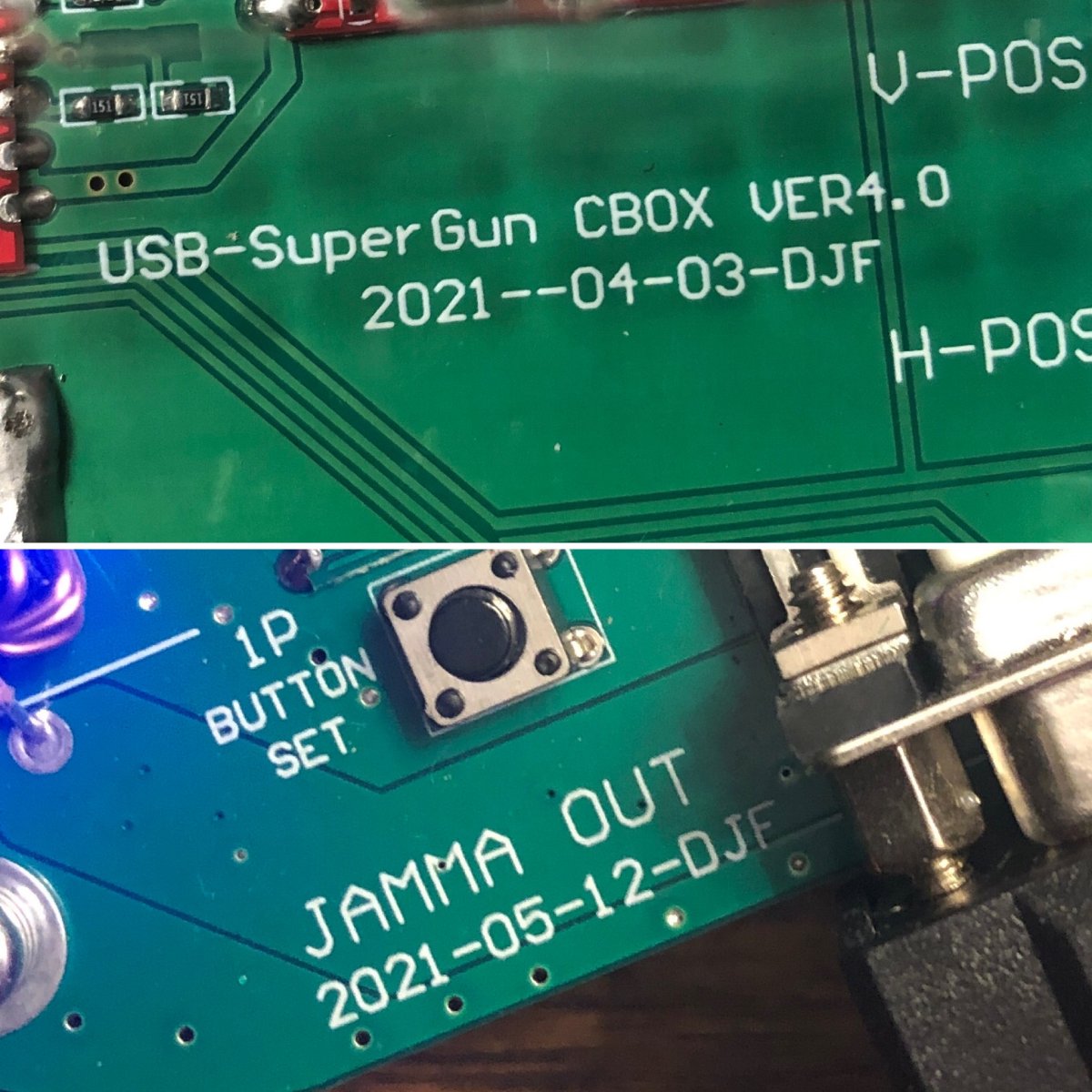

They broke out the JAMMA blade in later models. More pics below including board revs. Pretty sure this is the same maker? Could be wrong




Bigblue709

Student
Joined
Feb 6, 2022
Messages
92
Reaction score
60
Location
Canada
I recorded some video to get an idea of the input lag with this unit.

Equipment: DualShock4, Magic-NS adapter (Xinput), Super CBOX 4.0, PGM, JVC AV-27020. Video recorded at 240fps on iPhone 8 w/ tripod; still frames taken from Adobe Premiere.

Total time from the button press to the change appearing onscreen: about 33.33ms, or two frames of video (= 8 frames at 240fps)

1: The button is pressed
2: The LED lights up
3: The test menu registers the press

I’ll try wiring a button to the SNK connectors later.



djsheep

Multi Boyz Overlord
Immortal
Multi Boyz
Joined
May 20, 2016
Messages
6,733
Reaction score
11,175
Location
Brisbane, Australia
Unsure about power alongside all the other connections traveling down the wires of that cable to the extension PCB.

That’s the main issue people face with cheap JAMMA harnesses (using thin wires for power).

Worth noting for sure.


JonathanGene

Beginner
Joined
May 19, 2022
Messages
20
Reaction score
15
Location
San Francisco, California
maybe retest also with a normal wired db15 controller instead of all that signal chain too just for comparisons sake

i dont really have a way to run 240p test suit over the jamma edge (but thats an informal test anyway)


Bigblue709

Student
Joined
Feb 6, 2022
Messages
92
Reaction score
60
Location
Canada
Unsure about power alongside all the other connections traveling down the wires of that cable to the extension PCB.

That’s the main issue people face with cheap JAMMA harnesses (using thin wires for power).

Worth noting for sure.
Great point. What sort of problems might stem from this? Maybe I’m experiencing them already. I’m not very well-versed on all this stuff yet.


djsheep

Multi Boyz Overlord
Immortal
Multi Boyz
Joined
May 20, 2016
Messages
6,733
Reaction score
11,175
Location
Brisbane, Australia
Power should travel on higher gauge (thicker) wires. The wires bundled in that connector are most likely very thin.

In an ideal situation all the wires in that cable should be individually shielded to protect from crosstalk/interference, the power and ground wires should be a thicker gauge and separately shielded, then the entire cable should be shielded and protected from interference. I doubt that’s the case.

Voltage drop and fluctuations, video noise, heat and other weird stuff might happen. Then again. It might not, just throwing it out there.


Bigblue709

Student
Joined
Feb 6, 2022
Messages
92
Reaction score
60
Location
Canada
Makes sense.

The cable contains 24ga wires and is about 2.5-3 feet long. The main unit gets a bit warm around the power regulators, but that’s about it so far. I’ll keep a close eye on it; I don’t plan on connecting anything rare or expensive to it.

I’m trying to round up a few more CRTs for testing — I’m hesitant to judge the picture quality based on one tube.


GeorgeSpinner

Professional
Joined
Oct 20, 2020
Messages
382
Reaction score
310
Location
Piscataway NJ USA
I decided to order one of these Chinese cboxes.

While it does output -5v, no PCB that uses -5v actually works with this cbox; none of them have working sound.

Anyone have an idea why that would be?

Edit: there is some sound on -5v PCBs but it's very distorted and very very very (that's right, 3x very) faint.

I'm guessing there's not enough amperage on the -5v line. I order a new multi meter. I'll test it out when it arrives.

If that's the case, I'll try to remedy it somehow.

Last edited:

GeorgeSpinner

Professional
Joined
Oct 20, 2020
Messages
382
Reaction score
310
Location
Piscataway NJ USA
I got to the bottom of the Chinese cbox no/low/extremely distorted sound issue on some PCBs.

The issue seemed like it was related to PCBs that require -5v but other PCBs had the same issue as well.

The Chinese cbox has JAMMA PIN 11 connected to ground. I did not bother to check the solder side equivalent (M).

Filtering out pin 11 (and M) with a passthrough PCB resolved the issue.


kinooshi823

Beginner
Joined
Mar 8, 2018
Messages
11
Reaction score
2
Location
New York

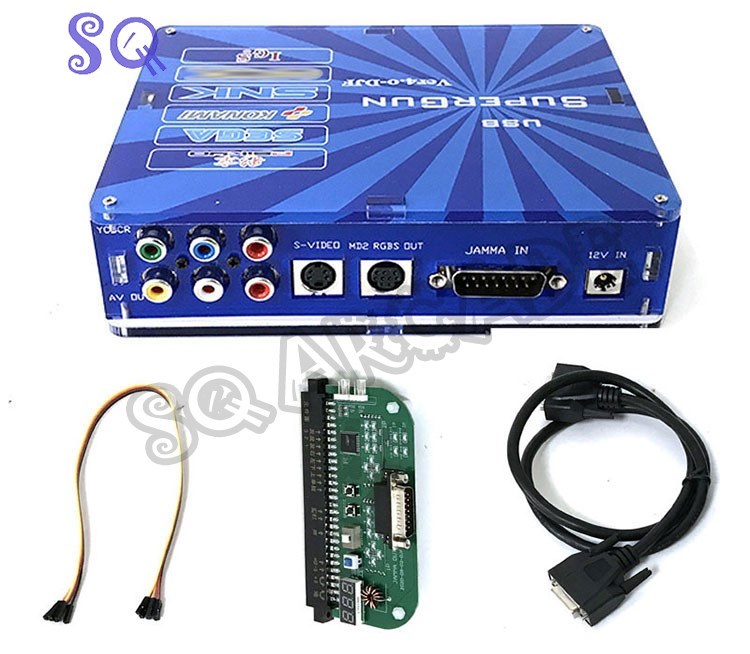

I just purchased this supergun pictured. So from what I read here, I would need a much better 12v power supply right? I also have a retroelectronik supergun but scart doesn't seem to work, and I can't find an NTSC encoder anywhere on the net. I had one built 10 years ago with a JROK encoder and my mom threw it out :(


Attachments

  • supergun.jpg
    108.8 KB · Views: 6

GeorgeSpinner

Professional
Joined
Oct 20, 2020
Messages
382
Reaction score
310
Location
Piscataway NJ USA
I just purchased this supergun pictured. So from what I read here, I would need a much better 12v power supply right? I also have a retroelectronik supergun but scart doesn't seem to work, and I can't find an NTSC encoder anywhere on the net. I had one built 10 years ago with a JROK encoder and my mom threw it out :(
I'm using the power supply that came with it. Works with everything so far.

Everything = cps, MVS, taito F3, Double Dragon II, Rastan, Final Blow, Vigilante, hit the ice, super volleyball, and more.


kinooshi823

Beginner
Joined
Mar 8, 2018
Messages
11
Reaction score
2
Location
New York
Cool.

Just make sure you read my post about pin 11/M.

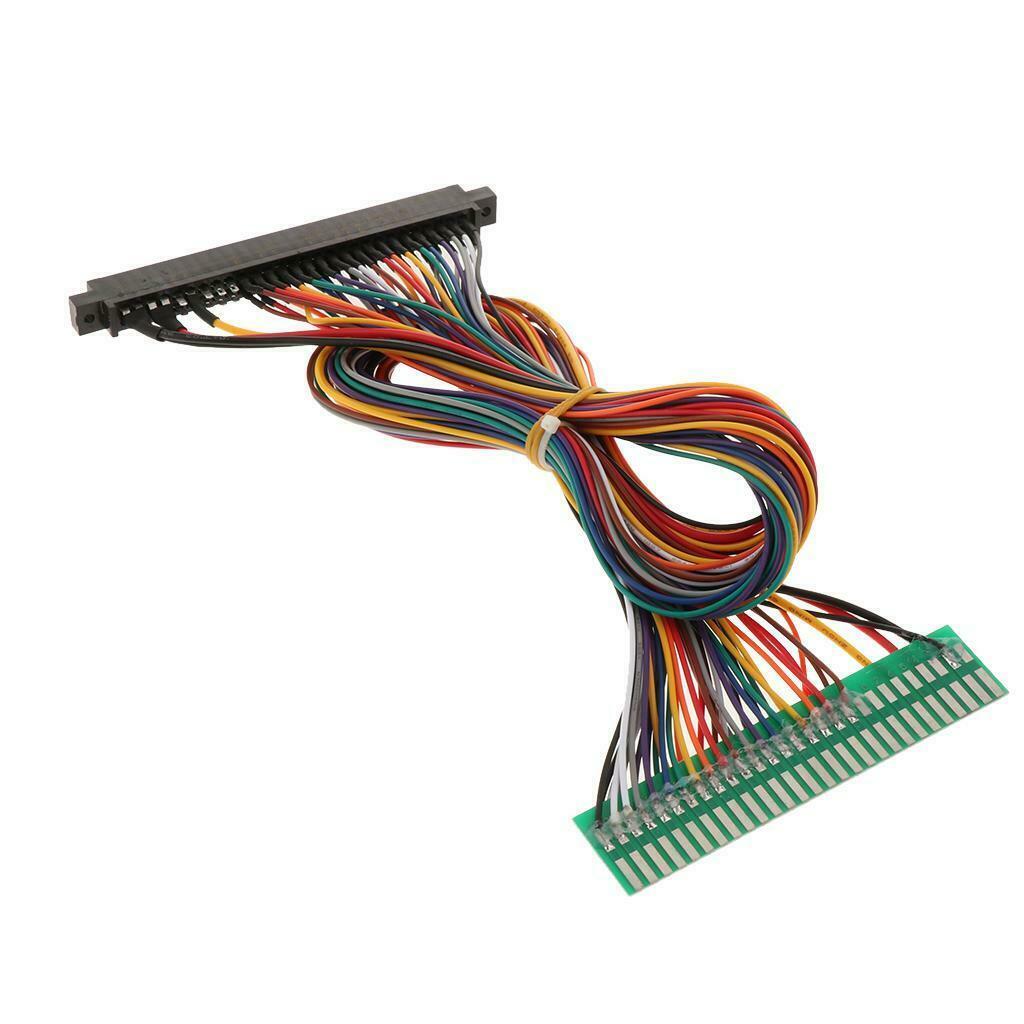

I have this pictured below. Would that work? or can you send me a pic of the PCB passthrough. Also, would soldering off 11/M work as well?


Attachments

  • extender jamma.jpg
    extender jamma.jpg
    65.3 KB · Views: 1
