This is an updated first post reflecting the current status of the project.

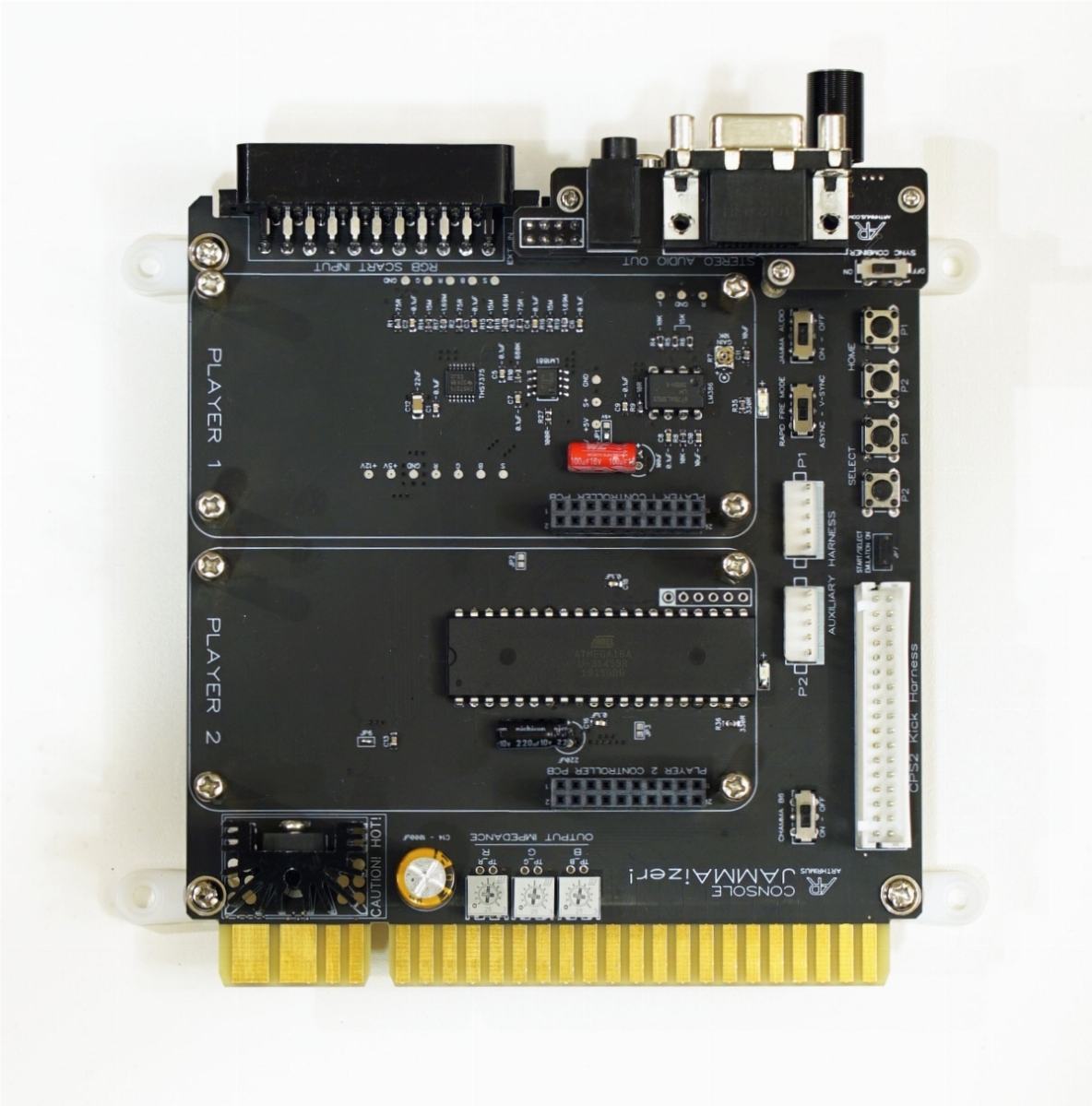

Console JAMMAizer! The Console JAMMAizer is a device that allows you to connect RGB scart game consoles to your arcade cabinets! Base model priced at $150.

Sold Out.




Product Overview Video:


Console JAMMAizer User Manual.

Main PCB Features:

  • SCART Input Connector for video and audio.
  • Fully amplified RGB video and mono audio to the JAMMA edge.
  • Sync Stripping for Composite video or Luma sync cables/consoles.
  • Stereo audio out through RCAs for stereo amplified cabinets.
  • Onboard volume control for JAMMA speaker out.
  • RGB impedance control for fine tuning with your monitor.
  • Controls are handled through 2x 20 Pin headers compatible with Brook Retro boards, UFB, PS360+, or any future PCB with a matching 20 pin header,
  • Buttons 4-6 available on the JAMMA edge as well as through a CPS2 kick harness plug.
  • Button 6 on the JAMMA edge can be toggled on or off by switch. Only use with cabinets wired for CHAMMA.
  • Player 1/2 Home and Select buttons available through on board buttons.
  • Auxiliary button harness connectors for player 1 and 2. Adds Home, Select, B7 and B8.
  • Home and Select button emulation via button combo for cabinets that lack extra buttons.
  • External A/V input header for future input options. Example: VGA Hat.
  • Hard Gold plated, beveled and chamfered JAMMA edge.
Upgrade Options:
  • Button Remapping and Rapid Fire IC: Designed by "RGB" creator of the HAS supergun and RECO PCB. Allows full remapping and rapid fire programming of buttons 1-6 for player 1 and 2. Rapid fire modes can be toggled between different speeds and can be toggled between V-Sync locked timing and asynchronous timing depending on your needs. Frankly this upgrade is a must. Upgrade priced at $25

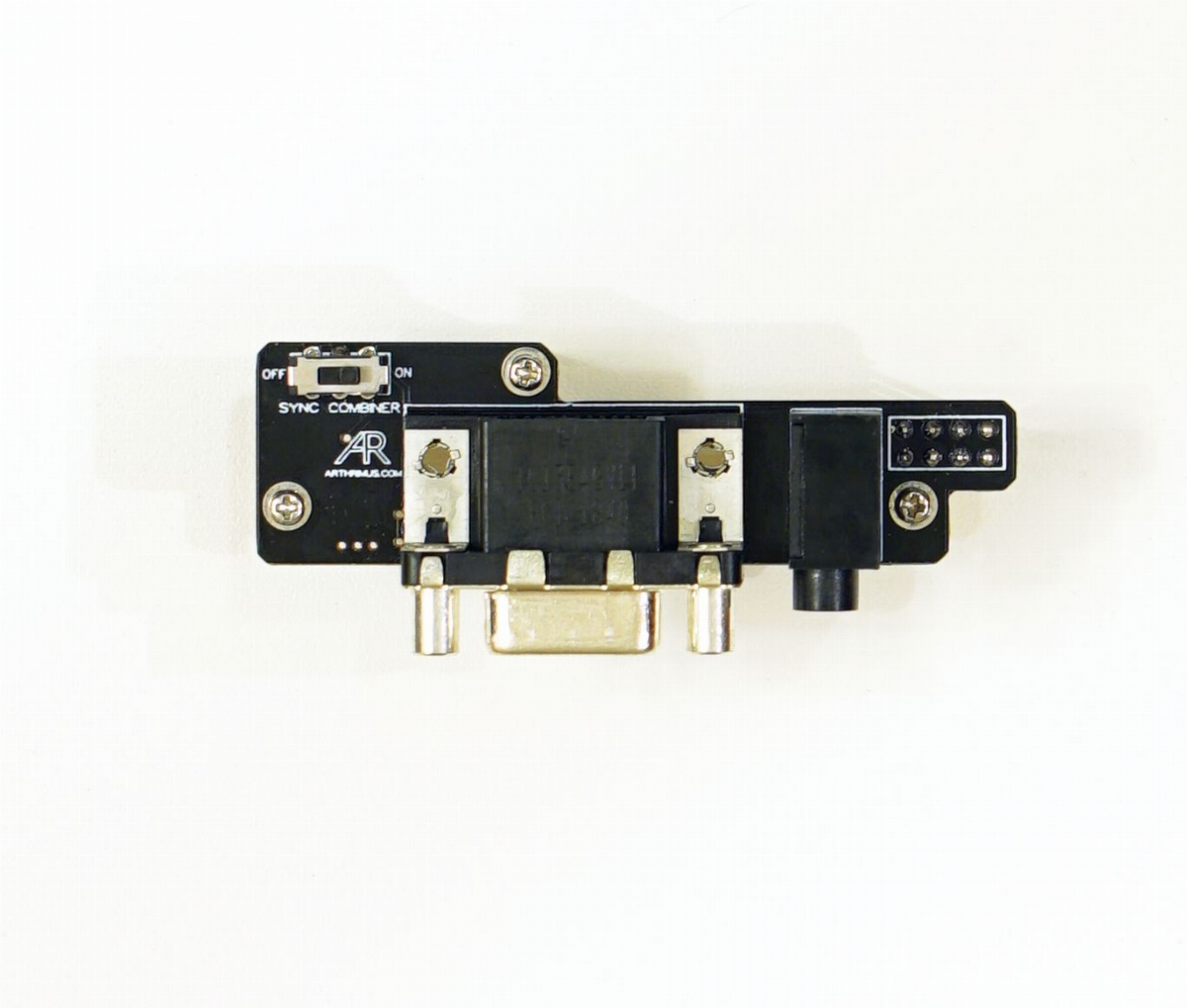

  • VGA Input Hat: This accessory will connect to the EXT_IN port of the man Console JAMMAizer PCB and provide VGA and 3.5mm audio input. The VGA hat has a sync combiner that can be toggled on or off depending on the needs of the VGA source. This adapter works for MAME in both 15khz and 31khz modes and VGA capable consoles like the Dreamcast and Xbox 360. 31khz sources will only work with 31khz capable monitors. Upgrade priced at $20



  • MC Cthulhu EZ PCB: This accessory is a redesigned PCB for the popular MC Cthulhu multi console controller PCB. This redesign makes the MC Cthulhu compatible with the Console JAMMAizer's 20 pin connector and controller PCB footprint. You can swap the chip from your existing MC Cthulhu PCB onto this one, or you can purchase just the MC Cthulhu chip from Paradise Arcade. This part of the project is available now, priced at $20.






Prototype in action!

Original Post
Since I recently took delivery of a New Net City I've been in need of games to play on it. The only arcade PCBs I currently have are CPS2 titles, Including one Multi kit. The CPS2 is great and all, but I want to play some 3D fighters, and I'm not ready to invest in a NAOMI setup yet. Therefore I have put together a PCB to help me connect my Saturn, PS1/2 and Dreamcast to my NNC. The JAMMAizer! (not to be confused with the JAMMAfier)



This board takes RGB SCART input and passes it to the JAMMA edge, audio is output through 2 RCAs which can be connected to the cabinet's amplifier, and controls are meant to be handled by a pair of Brook Retro Boards connected via 20 Pin Harness. Kicks are output to a CPS2 style kick harness connector. This first version is fully passive, It doesn't amplify the video or audio meaning that it will only work properly with a Tri-Sync monitor and a stereo cabinet with a dedicated audio amp. I hope to evolve this into an active design that amplifies the audio and video so it can be used on 15khz only monitors and Mono cabinets. This is just the first step to get it running on my personal setup. I will be using this with my NNC through @invzim's JAMMAfier.

Here is a link to OshPark where you can download the gerbers if you want to have this manufactured. I do have a small batch in production right now which should be delivered some time next week if anybody wants one.

Thanks for checking out my project!

Last edited:

KalessinDB

Grand Master
Joined
Jul 22, 2015
Messages
1,208
Reaction score
829
Location
Rochester, New York
Seen a couple variants (I've got eTim's version myself, though I hardly use it and should probably sell it), but you're the first person I've seen generous enough to drop oshpark links :) Looks good man, thanks for the share!


Arthrimus

Grand Master
Joined
May 18, 2018
Messages
420
Reaction score
1,264
Location
Arkansas
I've made some headway on the active version of this design. I've implemented a THS7375 video amp/buffer which has 15db of gain to bring the voltage up to arcade monitor territory. I also added an LM1881 sync stripper to deal with sync on luma, sync on composite consoles like the PS1/PS2. For sound I have added a stereo summing circuit with an LM386 mono amplifier and a potentiometer for volume control. I still have to breadboard these amp circuits to make sure I haven't screwed anything up so this version isn't production ready yet. Hopefully I can have everything tested sometime next week.


Last edited:

opt2not

Multi Boyz Pixeler
Enlightened
Multi Boyz
Joined
Nov 10, 2015
Messages
1,816
Reaction score
2,614
Location
California
This is looking super promising!

Count me in for 1!

Last edited:

Arthrimus

Grand Master
Joined
May 18, 2018
Messages
420
Reaction score
1,264
Location
Arkansas
Thanks for the compliments guys.

I have done some more work on the board layout, changing out some components due to poor availability/obsolescence. I also added a switch to send audio either to the JAMMA edge or to the RCA jacks rather than having both connected all of the time.

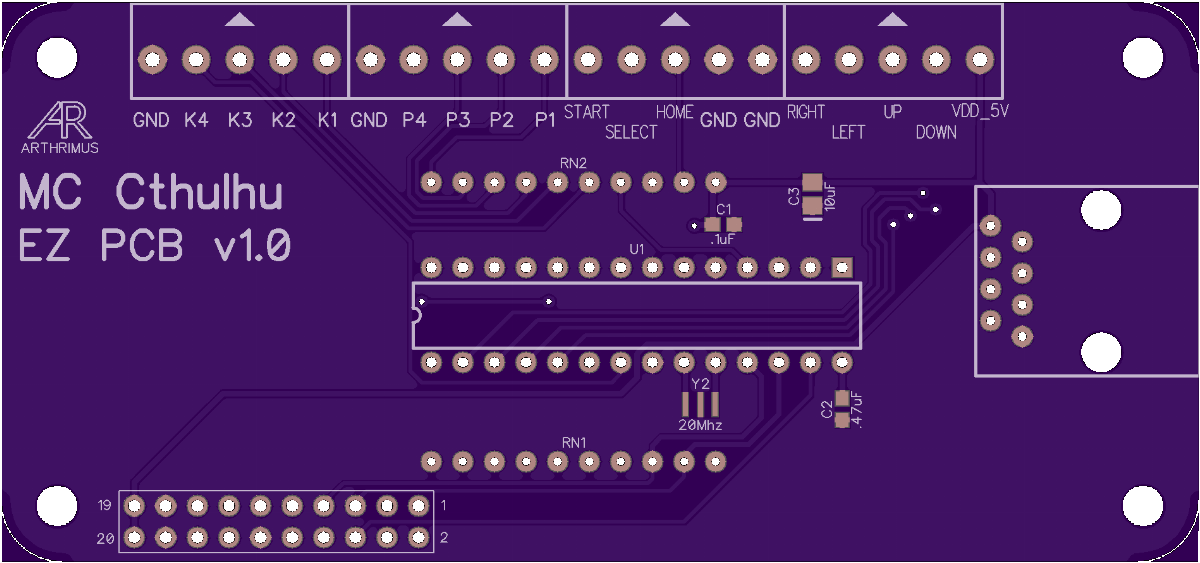

As a companion to this project I also put together an MC Cthulhu replacement PCB that matches the Brook/PS360 layout. Here is the OSHPark link.

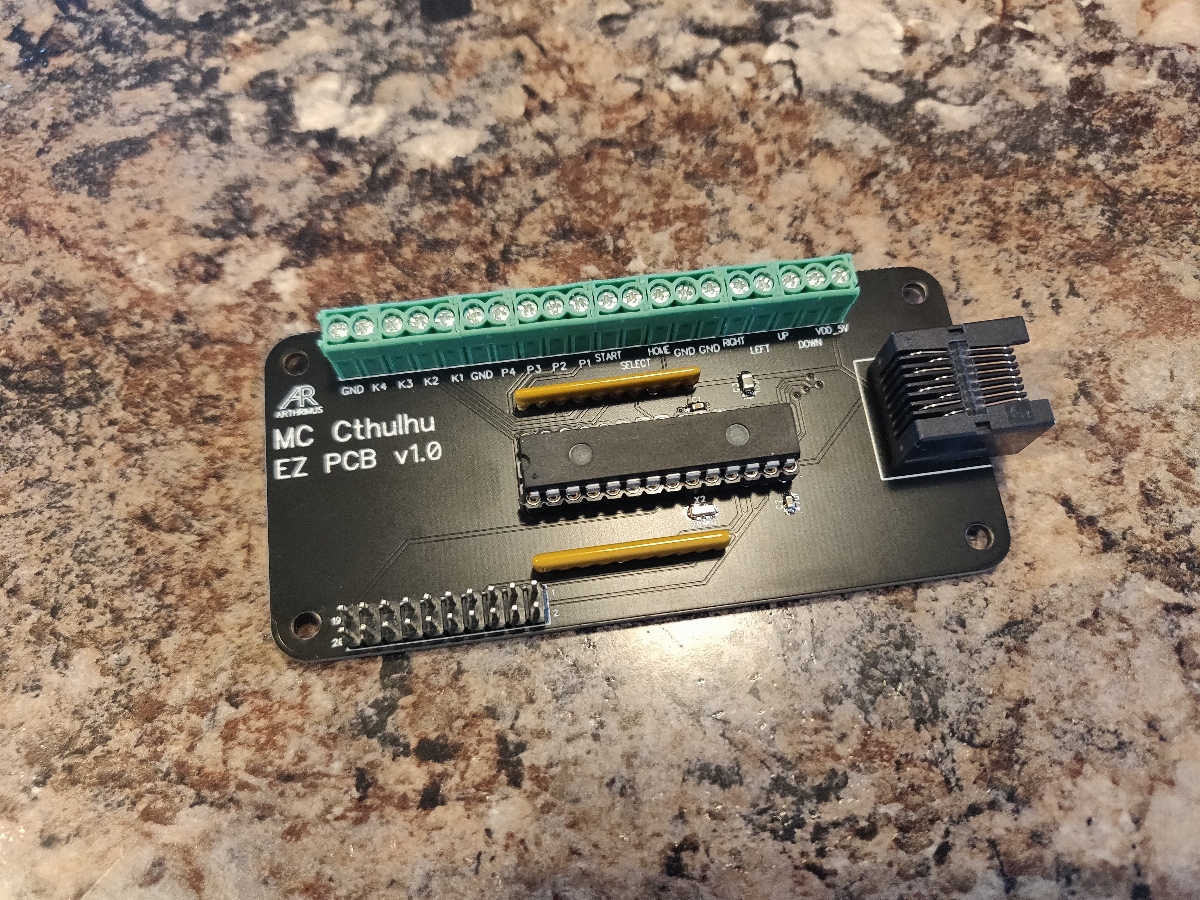

And here is the first prototype PCBs that I received yesterday.




Last edited:

XtraSmiley

Champion
Joined
Sep 18, 2016
Messages
2,773
Reaction score
1,620
Location
St Louis, IL
Great work man. I don't know if it makes sense, but maybe on that audio switch, have it as a 3 way switch, either, or as a third option, both. I don't know if this would be a needed feature, but perhaps there is a situation where someone would want it going to the cab and also coming off the board to be captured for some reason.


nam9

Grand Master
Joined
Aug 24, 2015
Messages
815
Reaction score
616
Location
Norway
Not to overload features, but how about a MVS mode for use is Neo Geo cabs?


opt2not

Multi Boyz Pixeler
Enlightened
Multi Boyz
Joined
Nov 10, 2015
Messages
1,816
Reaction score
2,614
Location
California
Good call on the MC Cthulhu! Still a very popular board.


RealMFnG

Legendary
Joined
Mar 27, 2016
Messages
4,391
Reaction score
3,308
Location
Northern California
Excellent, excellent work brutha. Been ramping up my non-existant PCB design skills so that I can get to this point. But looks like I can divert those energies elsewhere, because what you are doing is what I've been trying to work towards for a long time.

Absolutely, love that you realize that leveraging MC console PCB's to handle controls is the way to go. I think with other efforts, the engineers saw controls as something their skills could be leveraged to solve. Such a wasted effort and an additional expense for the potential user market IMO. MC PCB vendors specialize in this and do it exceedingly well. No point in wasting their talents to solve for controls. Also,procuring an MC PCB still allows you to use them in fight stick applications. It is a complete win to use MC PCB's for this application.

Couple of things for your consideration:
  1. JAMMA audio needs to be amped mono before outputting to the edge connector
    • Let's discuss this further
  2. DC coupling the RGB output is required to be compatible with all arcade monitors
    • The THS-Series amps are capable of doing this
    • 15khz RGB video from consoles is AC-coupled
  3. Adding a VGA video input would allow this to be used with MAME, replacing and improving on the J-PAC
    1. This is a nice-to-have but if implemented would allow for use with for MAME at the same time as for use with consoles
    2. This would also necessitate audio input and an onboard amp
All in all, I love this! Would love to volunteer to QA it. Thanks!


Solodus

Student
Joined
Jun 3, 2017
Messages
49
Reaction score
29
Location
Maxton
Dude this is so cool! When you finish with the design, I'd love to purchase some to sell on my website!


Arthrimus

Grand Master
Joined
May 18, 2018
Messages
420
Reaction score
1,264
Location
Arkansas
Excellent, excellent work brutha. Been ramping up my non-existant PCB design skills so that I can get to this point. But looks like I can divert those energies elsewhere, because what you are doing is what I've been trying to work towards for a long time.

Absolutely, love that you realize that leveraging MC console PCB's to handle controls is the way to go. I think with other efforts, the engineers saw controls as something their skills could be leveraged to solve. Such a wasted effort and an additional expense for the potential user market IMO. MC PCB vendors specialize in this and do it exceedingly well. No point in wasting their talents to solve for controls. Also,procuring an MC PCB still allows you to use them in fight stick applications. It is a complete win to use MC PCB's for this application.

Couple of things for your consideration:
  1. JAMMA audio needs to be amped mono before outputting to the edge connector
    • Let's discuss this further
  2. DC coupling the RGB output is required to be compatible with all arcade monitors
    • The THS-Series amps are capable of doing this
    • 15khz RGB video from consoles is AC-coupled
  3. Adding a VGA video input would allow this to be used with MAME, replacing and improving on the J-PAC
    1. This is a nice-to-have but if implemented would allow for use with for MAME at the same time as for use with consoles
    2. This would also necessitate audio input and an onboard amp
All in all, I love this! Would love to volunteer to QA it. Thanks!
Thanks, I actually looked at your thread early on when I was doing research for this project.

As for your list of considerations:
  1. I am currently using an LM386 audio amp for the mono audio output to the JAMMA edge.
  2. I am using a THS7375 amp for dc coupling and amplification.
  3. That is probably outside of the scope of this project at the moment.
Good call on the MC Cthulhu! Still a very popular board.
I know, I have 4 of them, probably will have more in the future as I do more projects like this. The nice thing about my custom MC Cthulhu board is that if you build it the only special part you need the PS3 Cthulhu to MC Cthulhu upgrade chip from Paradise Arcade Shop.

Last edited:

opt2not

Multi Boyz Pixeler
Enlightened
Multi Boyz
Joined
Nov 10, 2015
Messages
1,816
Reaction score
2,614
Location
California
I know, I have 4 of them, probably will have more in the future as I do more projects like this. The nice thing about my custom MC Cthulhu board is that if you build it the only special part you need the PS3 Cthulhu to MC Cthulhu upgrade chip from Paradise Arcade Shop.
That's fantastic. And really, I'd love to use this to replace my old MC Cthulhu's in my fightsticks now since it can be directly mounted on top of a Brook UFB. I have one of my sticks with the Jasen Customs EZ board he put out a while ago with the USB problems (which is why he discontinued it), but I only use the RJ45 function in parallel to my UFB.

Kinda hard to tell, but it's under my UFB here:


Dual ports:


Could your EZ board work the same way, as a standalone MC Cthulhu in a fightstick? Or is it specifically for the Jammaizer?

In either case I'd be happy with it. :)


Arthrimus

Grand Master
Joined
May 18, 2018
Messages
420
Reaction score
1,264
Location
Arkansas
It definitely works like a normal Mc Cthulhu. Part of the reason for designing this board was to make it easy to interface with a Panzer Fight Stick that I'm having Jasen make for me. I already have one of these wired up in one of my arcade sticks. If you want some I have extra blank PCBs made right now.


Arthrimus

Grand Master
Joined
May 18, 2018
Messages
420
Reaction score
1,264
Location
Arkansas
For anyone who is interested in purchasing the MC Cthulhu EZ PCB please PM me for details.

I have been able to do some prototyping for the RGB amp circuit and this is where it sits currently.



This is tested and working great through the 15Khz input of my Toshiba PF monitor in my New Net City. The THS7375 ups the ~.7v SCART video input to ~3.5v which is enough that it looks great on my monitor. I actually had to add some resistance on the output side because it was actually overdriving the RGB input of my monitor resulting in oversaturated colors. I accomplished this by adding 1K potentiometers in series with the RGB output from the amp that can be adjusted to suit your monitor's needs. Mine looks best with 475Ohms of output resistance, your mileage may vary.

Unlike the amp circuit in @acblunden2's thread, I could not get this working properly without adding .1uF capacitors to the input of the THS7375. Without capacitors I got brightness fluctuations depending on the overall brightness of each scene. With the capacitors in place the brightness is rock solid. I suspect this may be down to a difference between our monitors, but after reading through the THS7375 datasheet I believe my circuit is correct for this application.

Next I need to prototype the sync stripper and audio amp portions of the design. Once those and the PCB are finalized I think I will be ready to do a small run of the finished design.


RealMFnG

Legendary
Joined
Mar 27, 2016
Messages
4,391
Reaction score
3,308
Location
Northern California
Your circuit is likely correct and mine is wrong. I haven’t had success with my PCB. But it has worked sans PCB in the past. In all honesty, I have not touched my PCB project in a while. Soooo many other projects ahead of it. Interstingly enough, will get some work on it tonight for MAME. But if your’s proves correct, I’ll implement it in mine. I’ll probably stop investing time in my project after that since what you are doing literally achieves what I’ve beed hoping for for 2+ years now. My project likely will exist from then on for quick and dirty MAME conversions for gutted cabs.


ekorz

Multi Boyz 4 Pi
Legendary
Multi Boyz
Joined
Aug 21, 2016
Messages
3,926
Reaction score
4,280
Location
Boston, MA
That Cthulhu board deserves its own thread!! Nice work! I was a fan of @JasenHicks design a while back, but he had some issues with them so they were discontinued. Glad to have an alternative surface!

Maybe @Darksoft or @brizzo can get you a section in the User Created Products part of the forum too, especially if you have more cool stuff up your sleeves. (And guys maybe @invzim should get one too just sayin)
