Hi all, I am new here :)

I want to show my naomi 1/2 consolized. I call it naomi 1/2 because all the consolization is made in the lower case, so I can change between naomi 1/2 boards without touch nothing more.

I have spent many...manytime, many money, many nights without sleep...

I started with the naomi 1, in his case, but I changed all the consolization to the naomi 2 case. Both boards includes multibios.

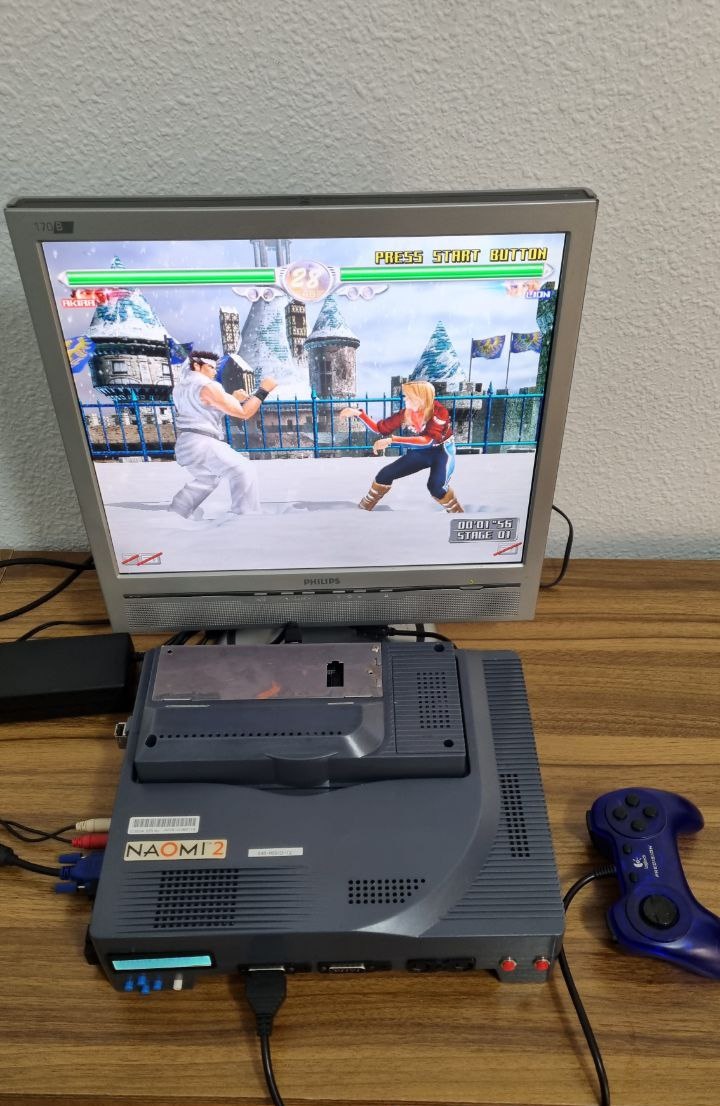

I will upload pics soon, to start I will do a summary of what includes my consolization:

1x Pico PSU ATX 160W + 12V10A power supply
2x Noctua fans 5V CPU and GPU
1x Gelid Silent 6 fan in the side replacing the original.
1x Sega I/o JVS Board 837-13551 . I start with a JVS to Jamma 2 years ago, but isnt compatible with Initial D games, so I have changed Jamma by Sega i/o.

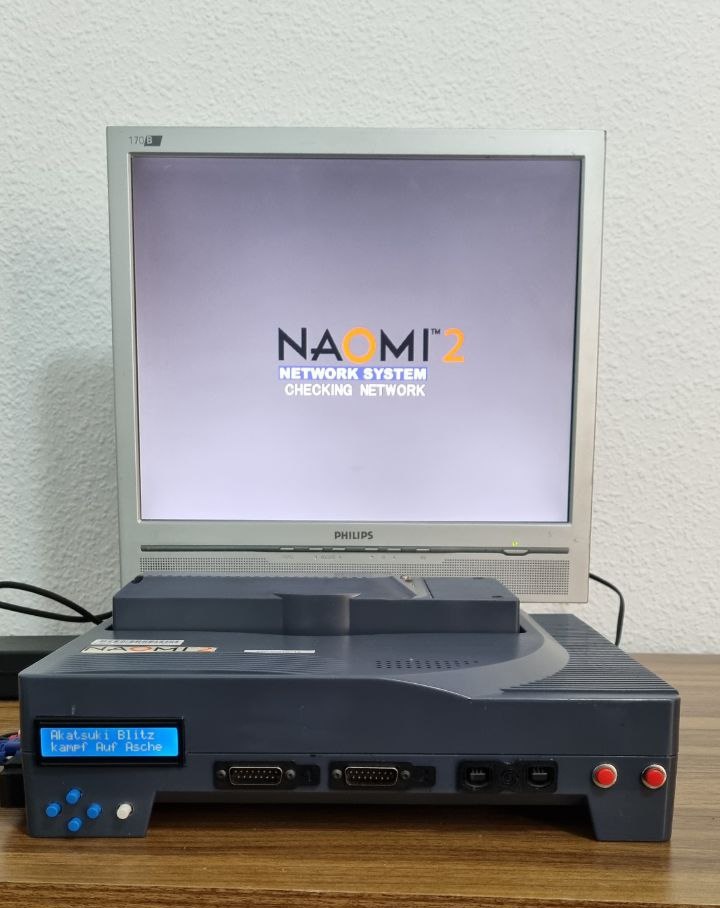

2x DB15 ports (compatible with neo geo aes/cd controllers, this is because I consolize MVS boards too, but I think everbody uses the same pinout).
2x Dreamcast ports

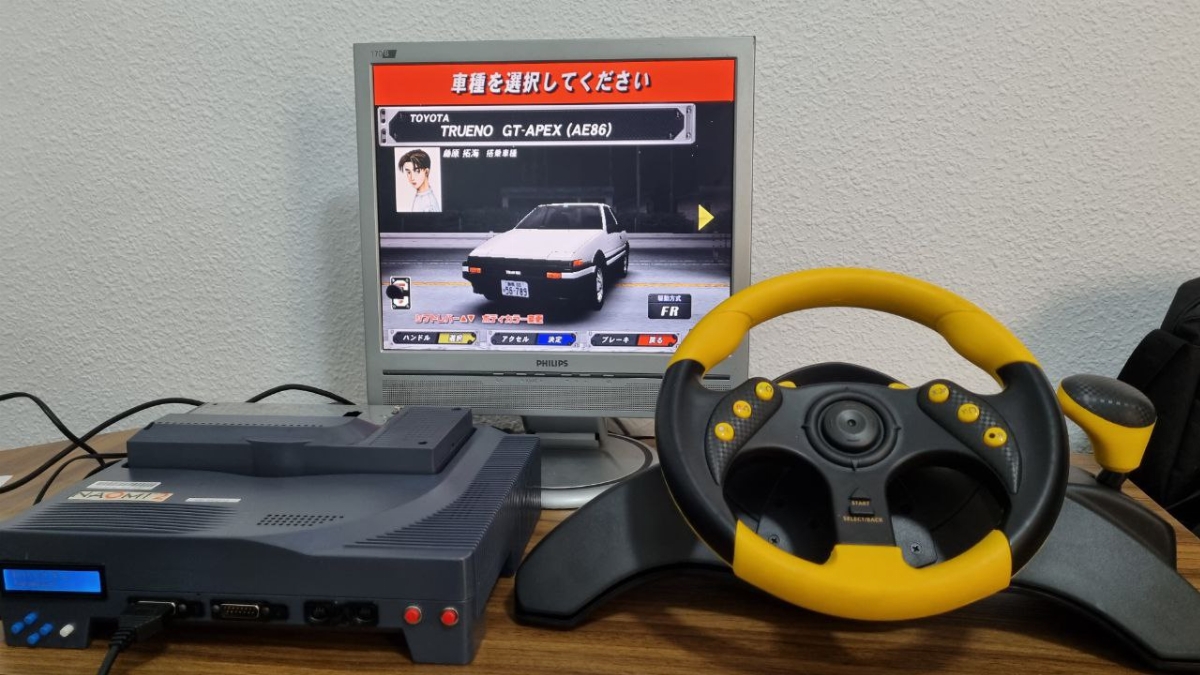

1x analog port (I am finishing a mazcatz wheel, its tested and working, but not finished).

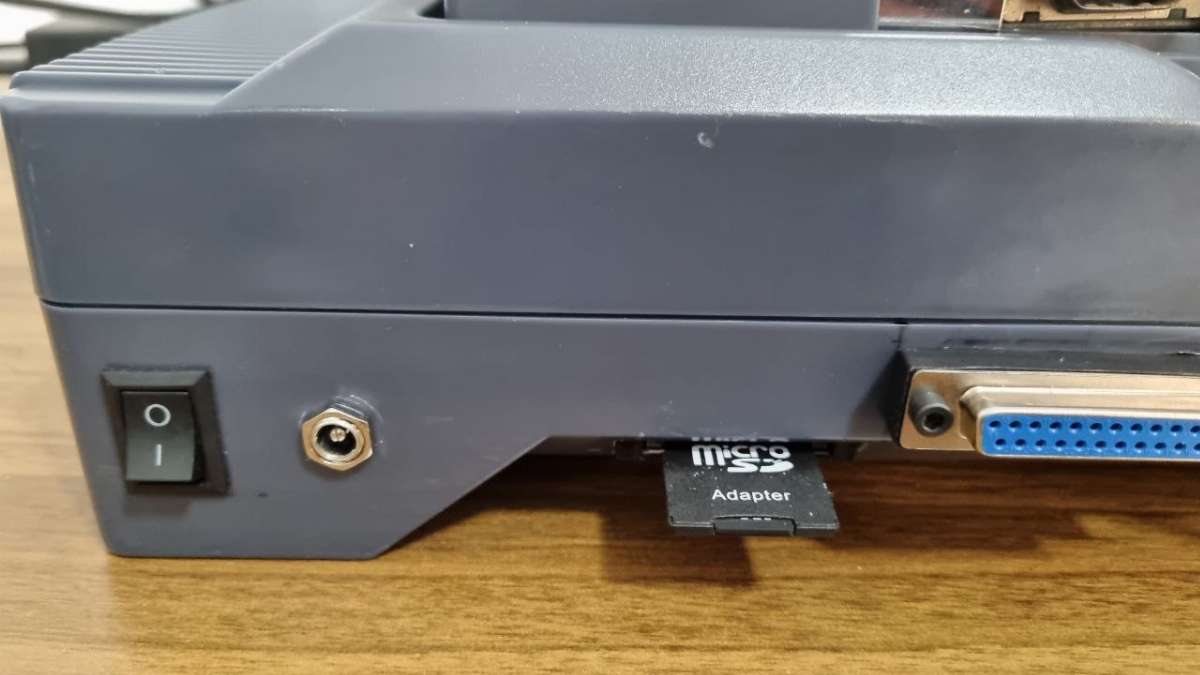

1x raspberry pi 3 + 32gb micro sd + adafruit lcd.
1x netboot updated to 512mb
Test and service buttons in the front

I have used 3D printed parts, because i am not good doing holes :( , do not expect a wonderful naomi aesthetically.

Thanks to read me, I will update.







Last edited:

defor

Professional
Joined
Sep 25, 2015
Messages
574
Reaction score
398
Location
Washington, DC
If you’re using the two DB15 connectors for standardized Neogeo pad input, how are you using the same connector for games that require analog like your screenshot of initial D? Or is this what the DB 25 on the other side is for?


InitialNik

Beginner
Joined
Oct 23, 2016
Messages
8
Reaction score
26
Location
Spain
Hi @defor

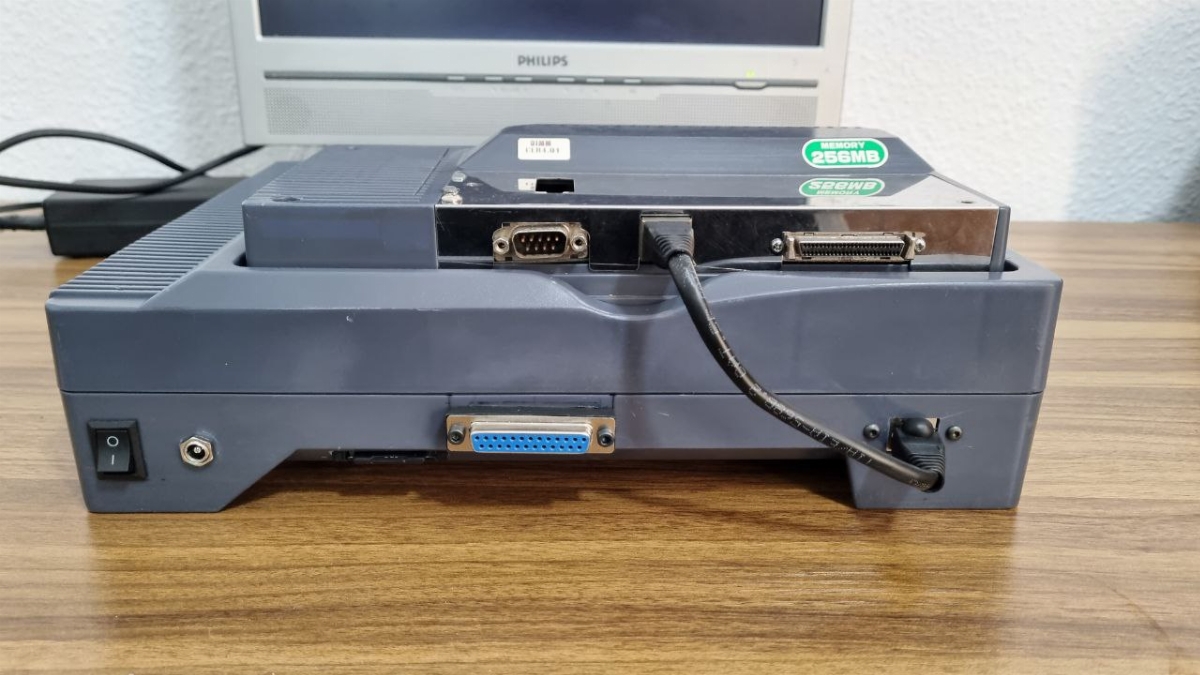

Db15 conectors are only for standard controllers (neo geo or custom). Db25 in the back side is the analog conector i will use with initial D and rest of compatible games.

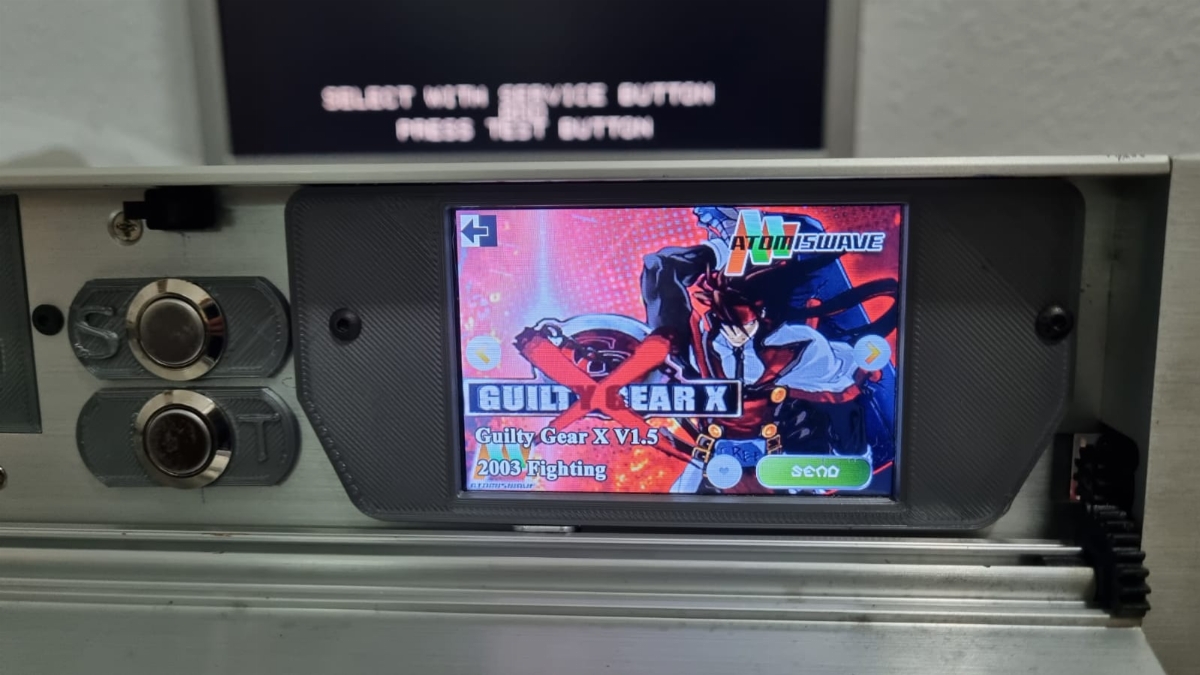

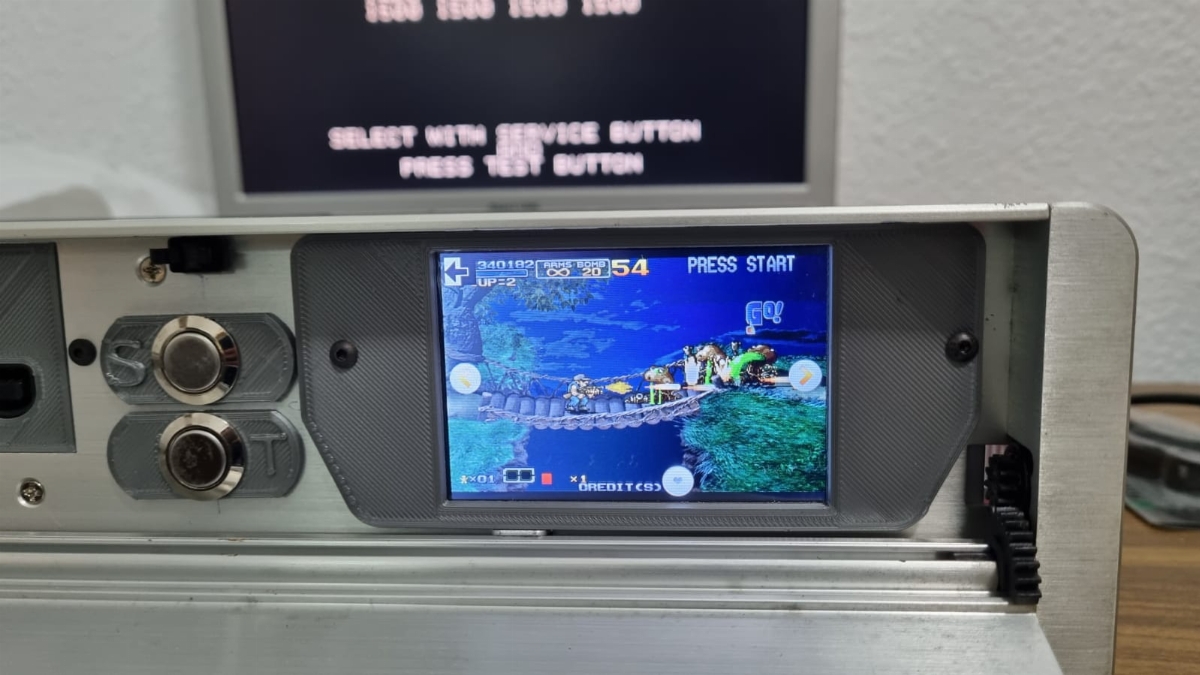

For now I have unmade all, i am consolizing it again (this is the 3rd time i do it) in a computer case. I have it finished about 90%,this time i have added 2 sega saturn controller ports and I have changed piforce tools by pidimboot with touch screen.

Regards.
