Correct Capcom Q25 Lock Tangs?

[DRAGONKZ]

Would someone please be able to post some pics of the correct lock tangs/orientation for a Capcom Q25 cabinet?

I'm swapping the locks on my Q25 to P5001 and have a few types of tangs, but not 100% sure if the tangs are right, and if so, the correct way they should go.

Thanks



[imbord3rlin3]

Would someone please be able to post some pics of the correct lock tangs/orientation for a Capcom Q25 cabinet?

I'm swapping the locks on my Q25 to P5001 and have a few types of tangs, but not 100% sure if the tangs are right, and if so, the correct way they should go.

Thanks

all of them?



[DRAGONKZ]

I’ve got 4 of 6 installed, but would still like to sanity check those are right.

The 2 not yet installed are the coin mech panel and the coin drawer.

Thanks



[imbord3rlin3]

I’ve got 4 of 6 installed, but would still like to sanity check those are right.

The 2 not yet installed are the coin mech panel and the coin drawer.

Thanks

i got u. ill do it tonight when i get to the arcade



[imbord3rlin3]



[DRAGONKZ]

Thanks!

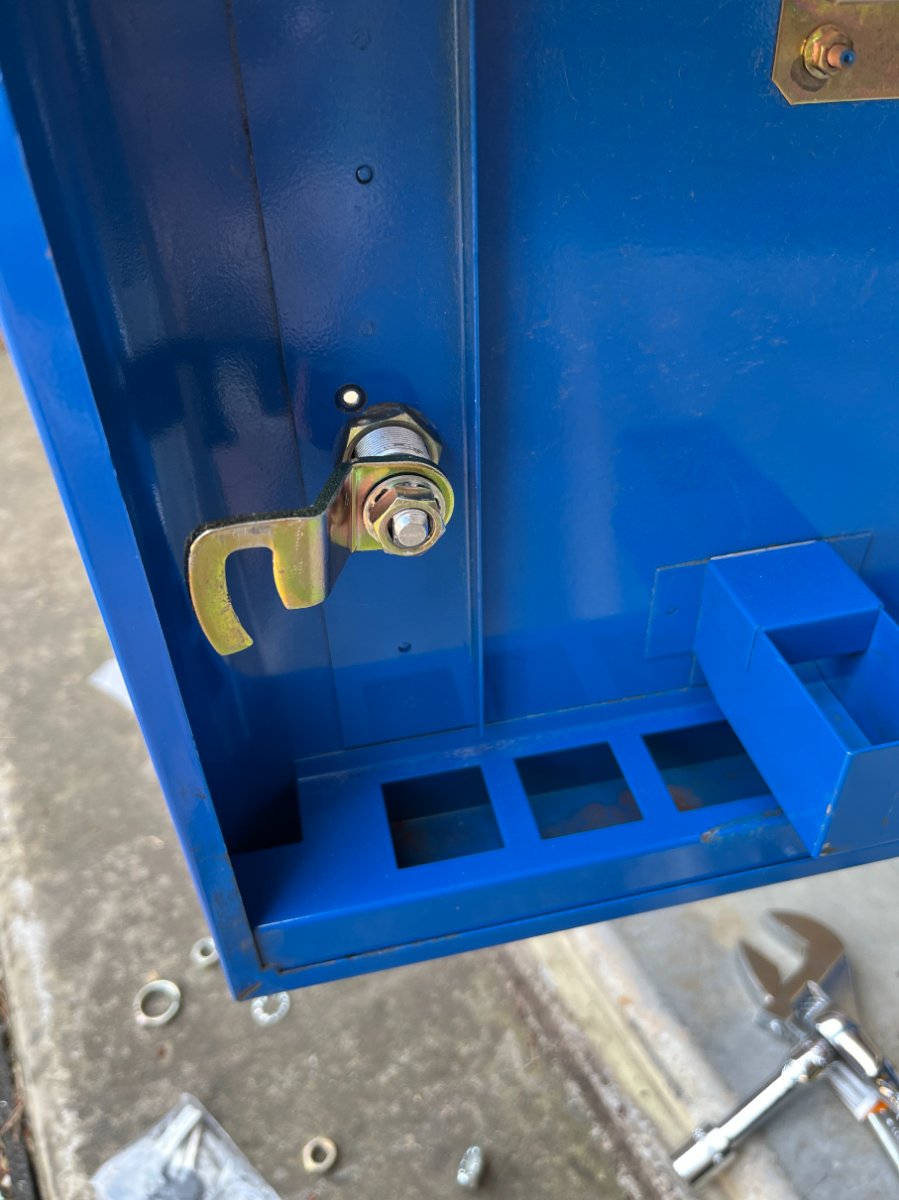

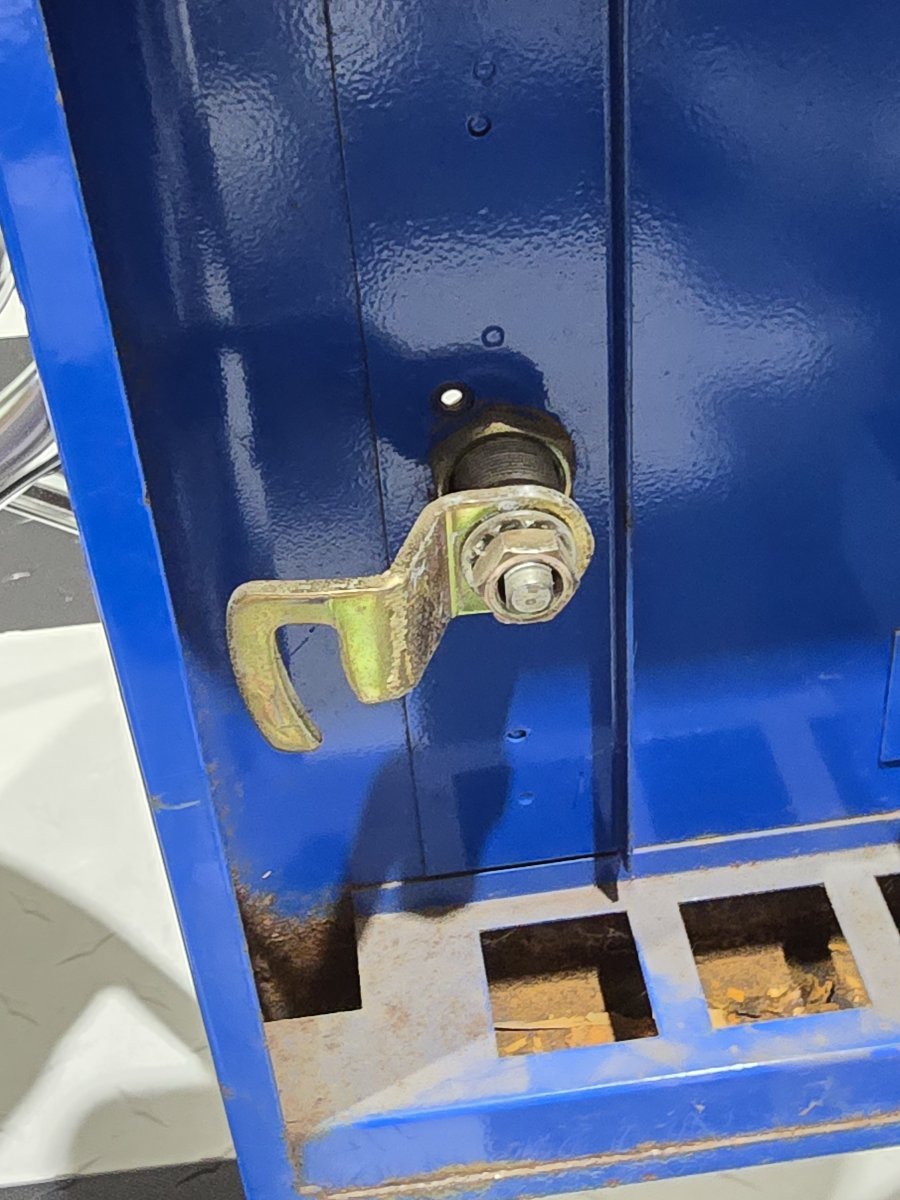

The main blue door lock I have is as your pic above.

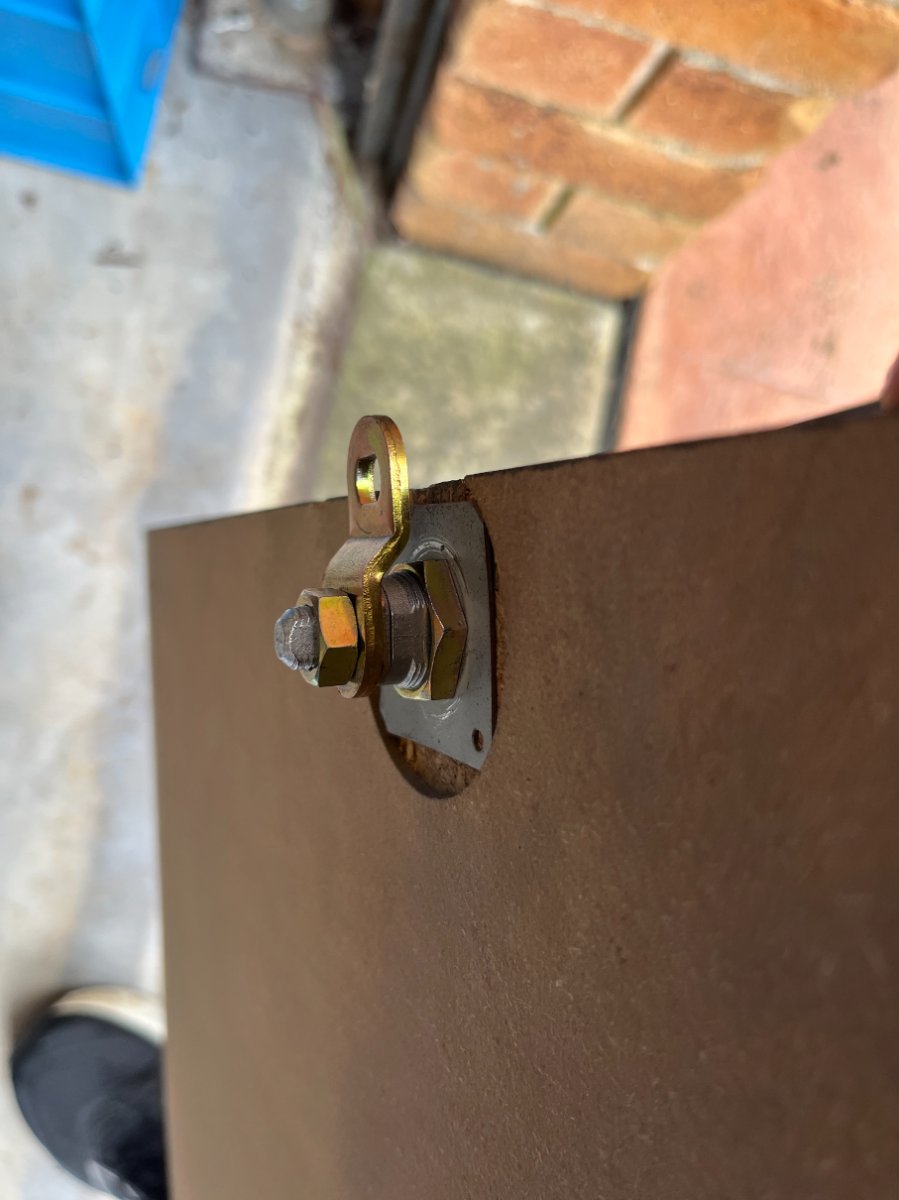

My back door is as below

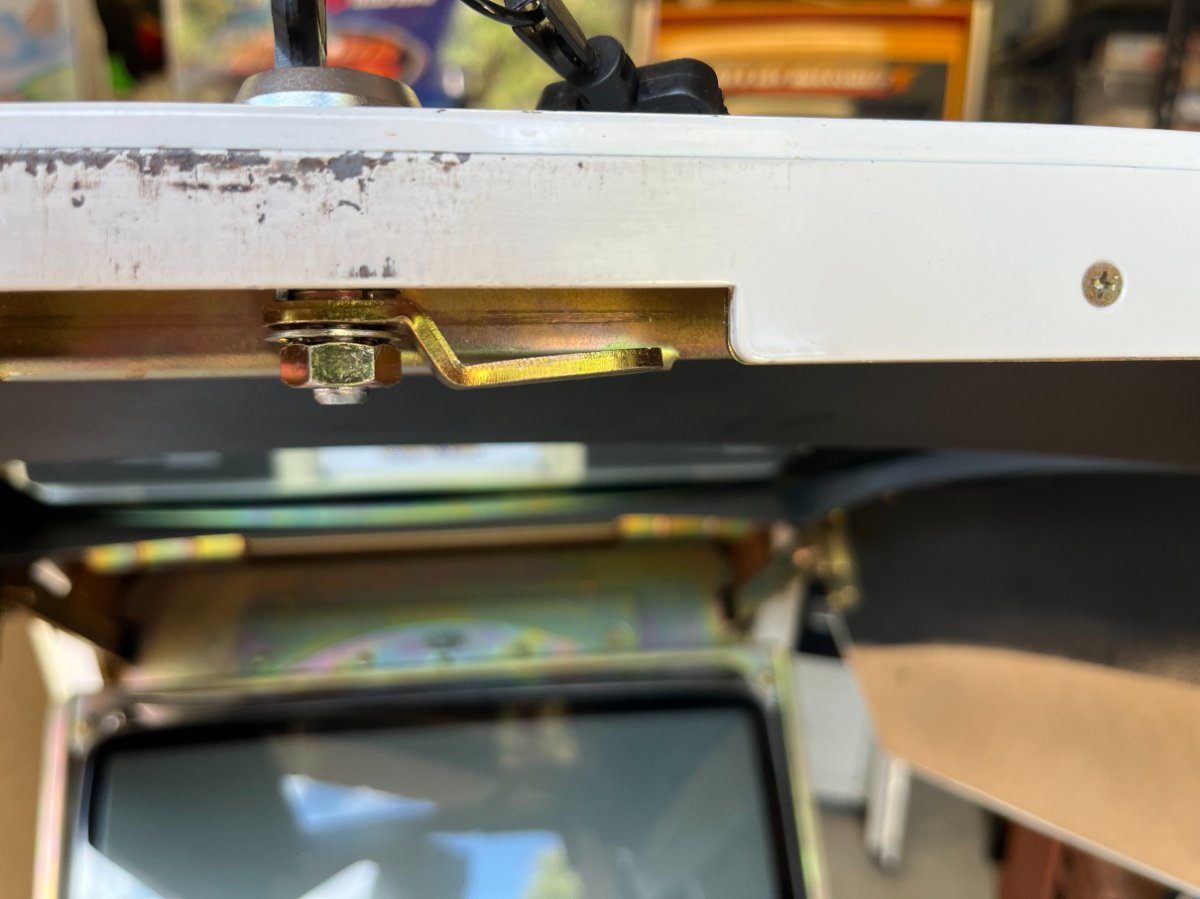

My monitor hood panel is as below

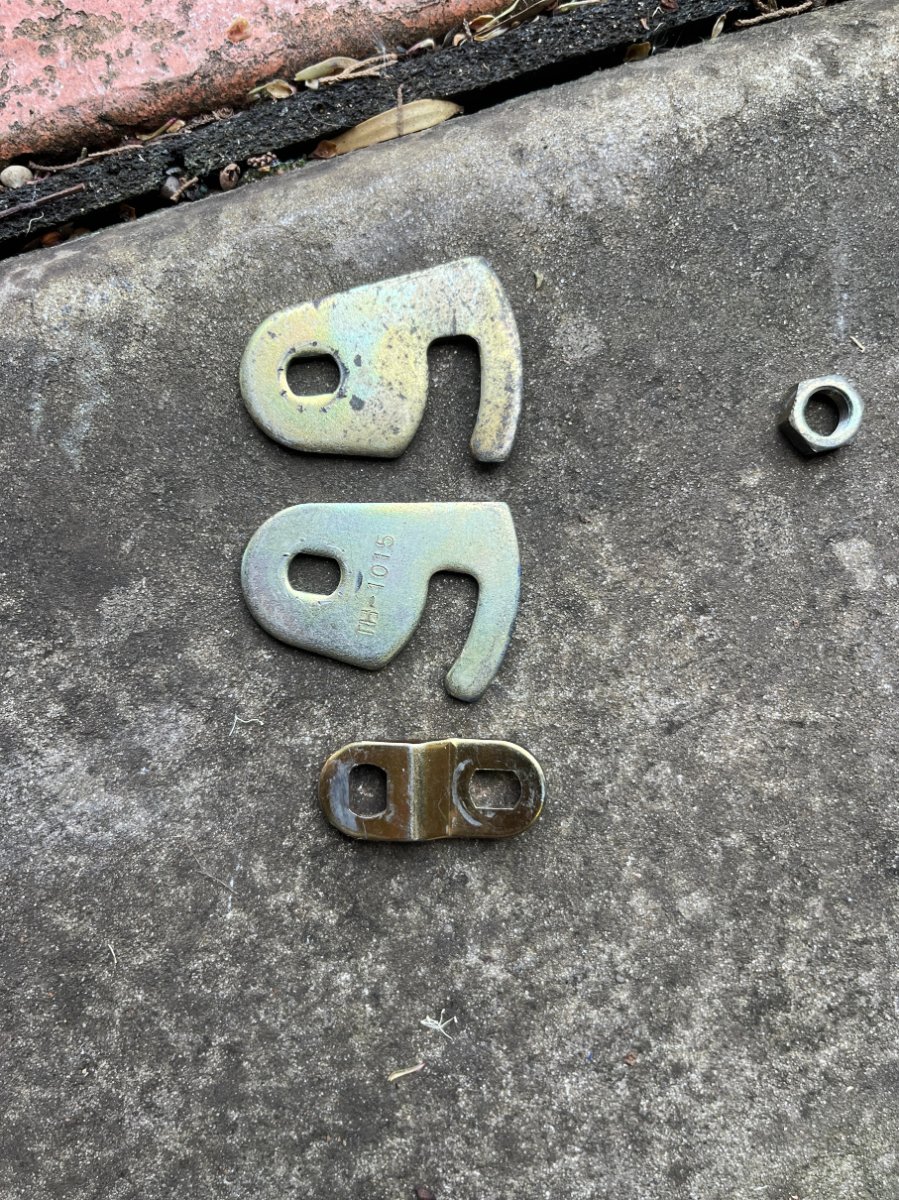

I've got these spare to use for the coin mech panel and the coin box drawer

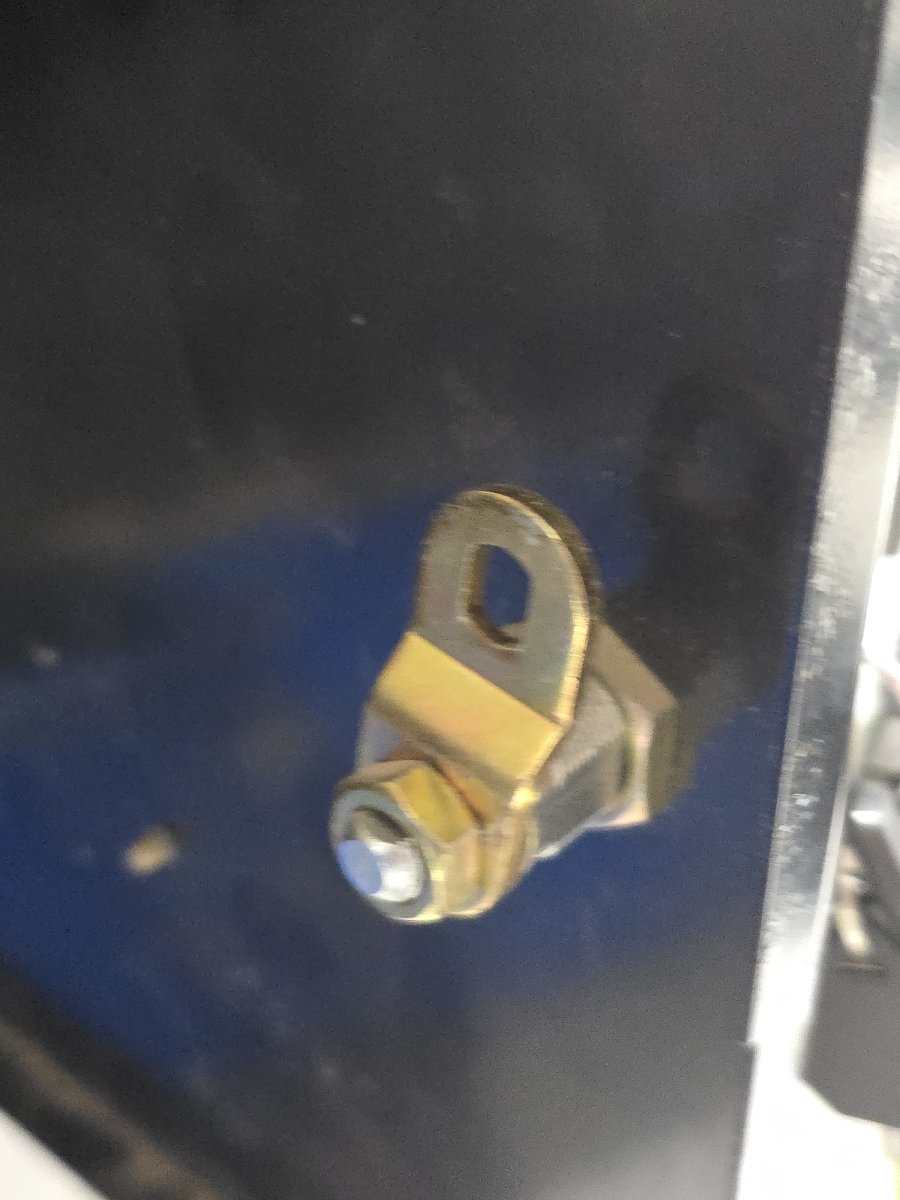

The bottom one I'll now use for the coin mech panel like your picture.

I'm assuming the TH-1015 is used for the coin box drawer? I did try to use these earlier but couldn't get them to latch in to the cutout section, perhaps there is a specific way they have to go?

Thanks



[imbord3rlin3]

U might just have to do a little bending to get it in place right



[DRAGONKZ]

Does the coin box drawer latch lay left or right when unlocked?

The cutout/hole for the latch to lock in didn’t feel centered? It feel like there was more to the right to allow the latch to lay right when opened and give enough room for it to swing around when locked?
