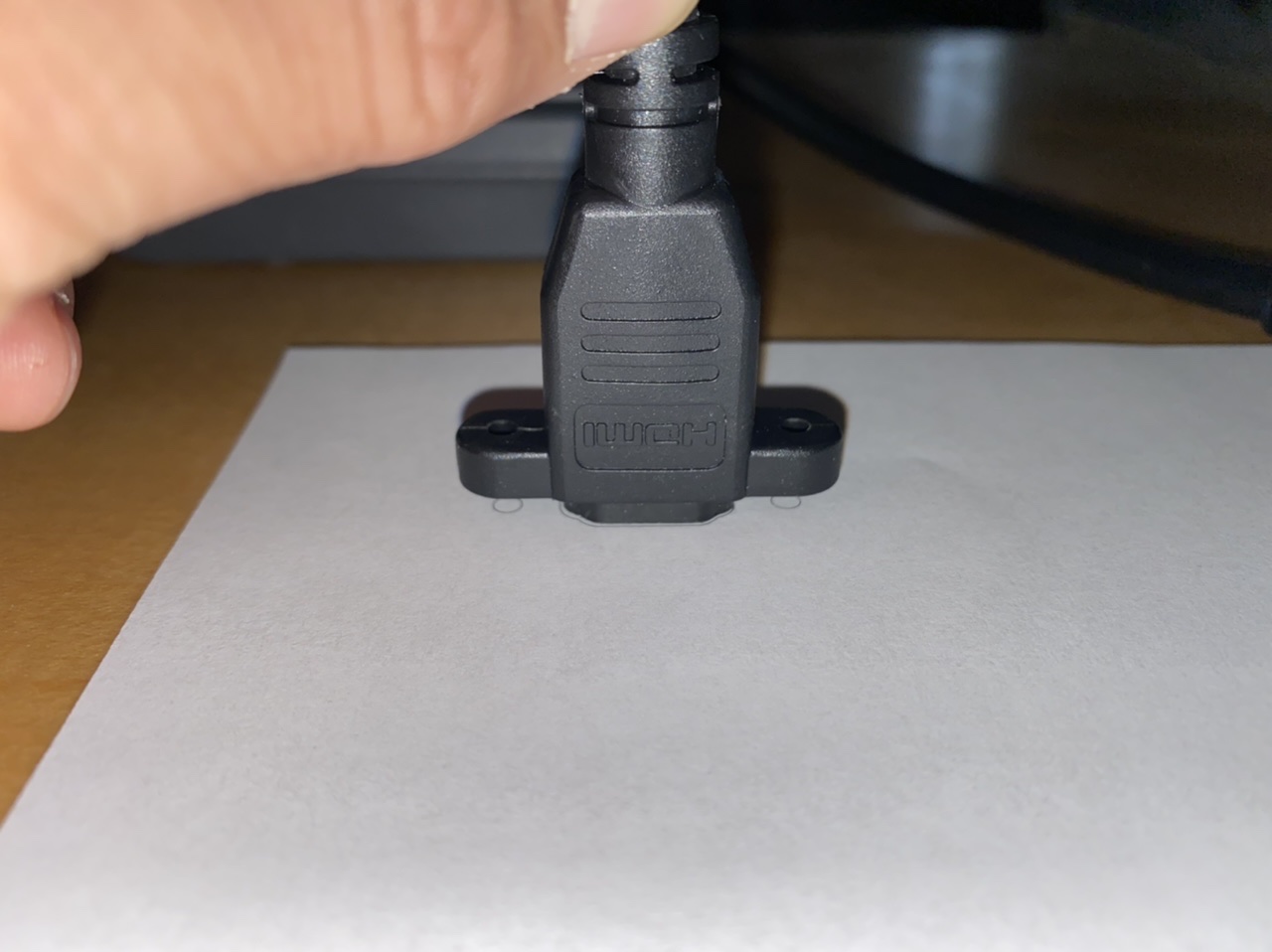

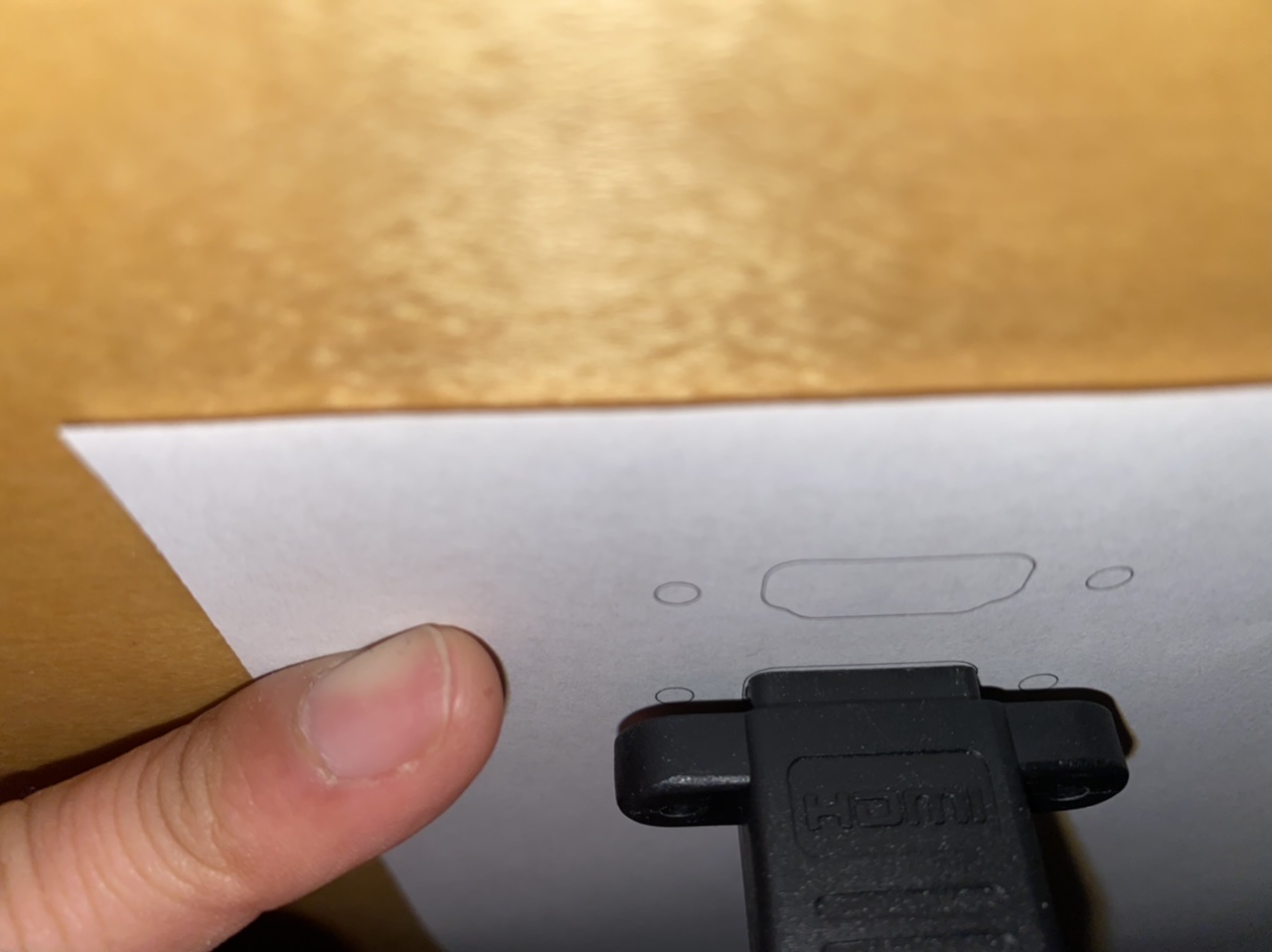

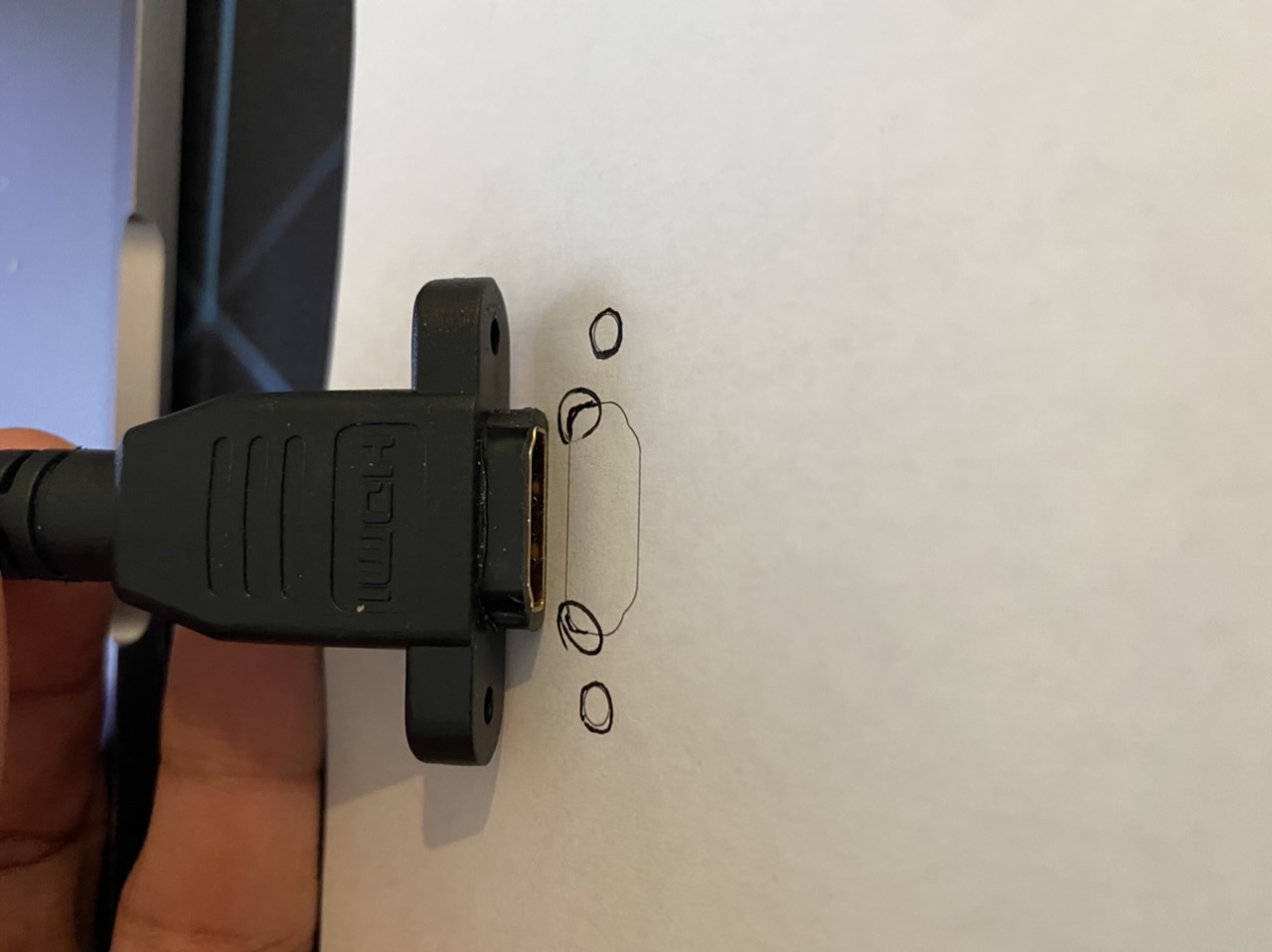

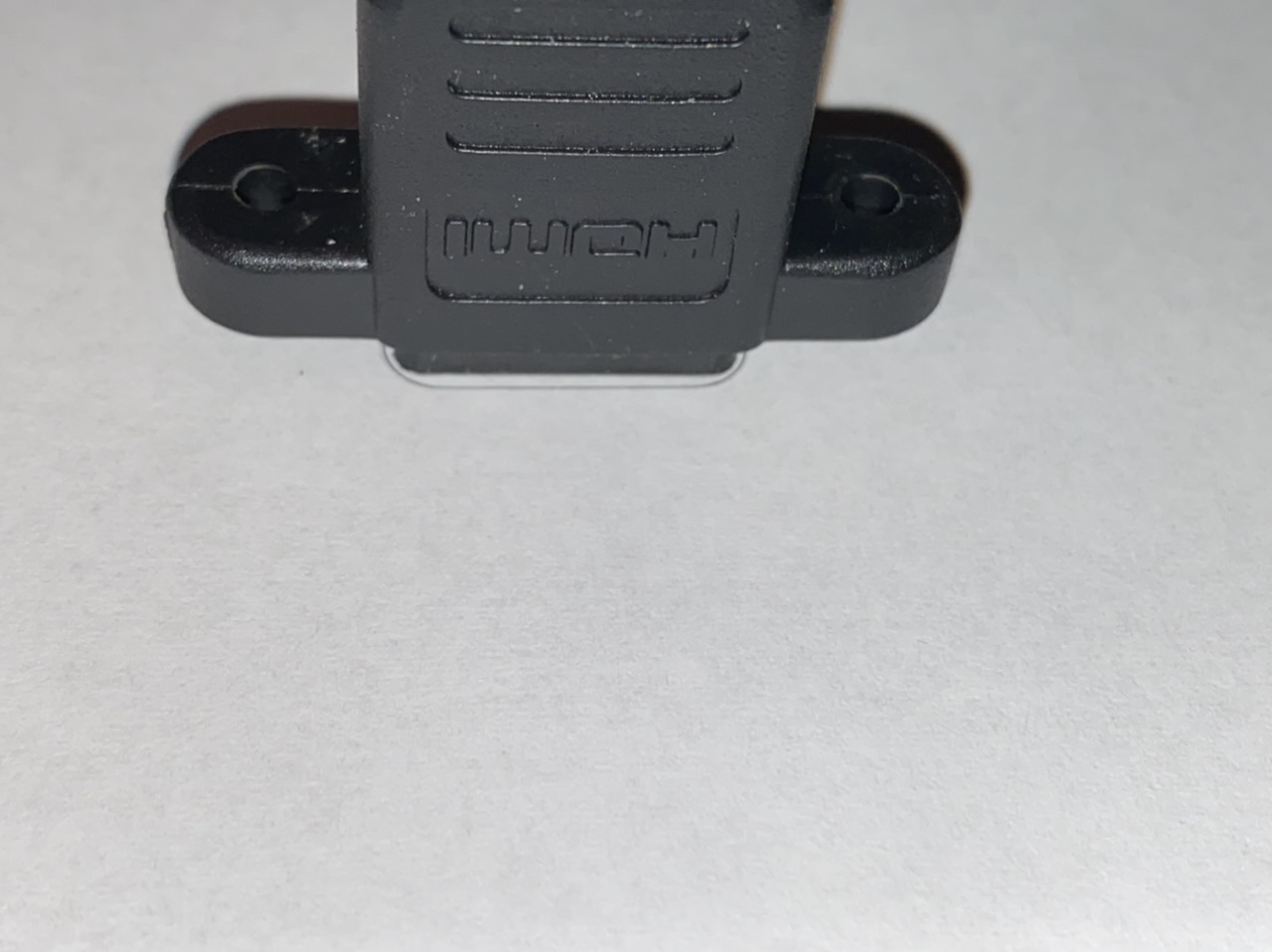

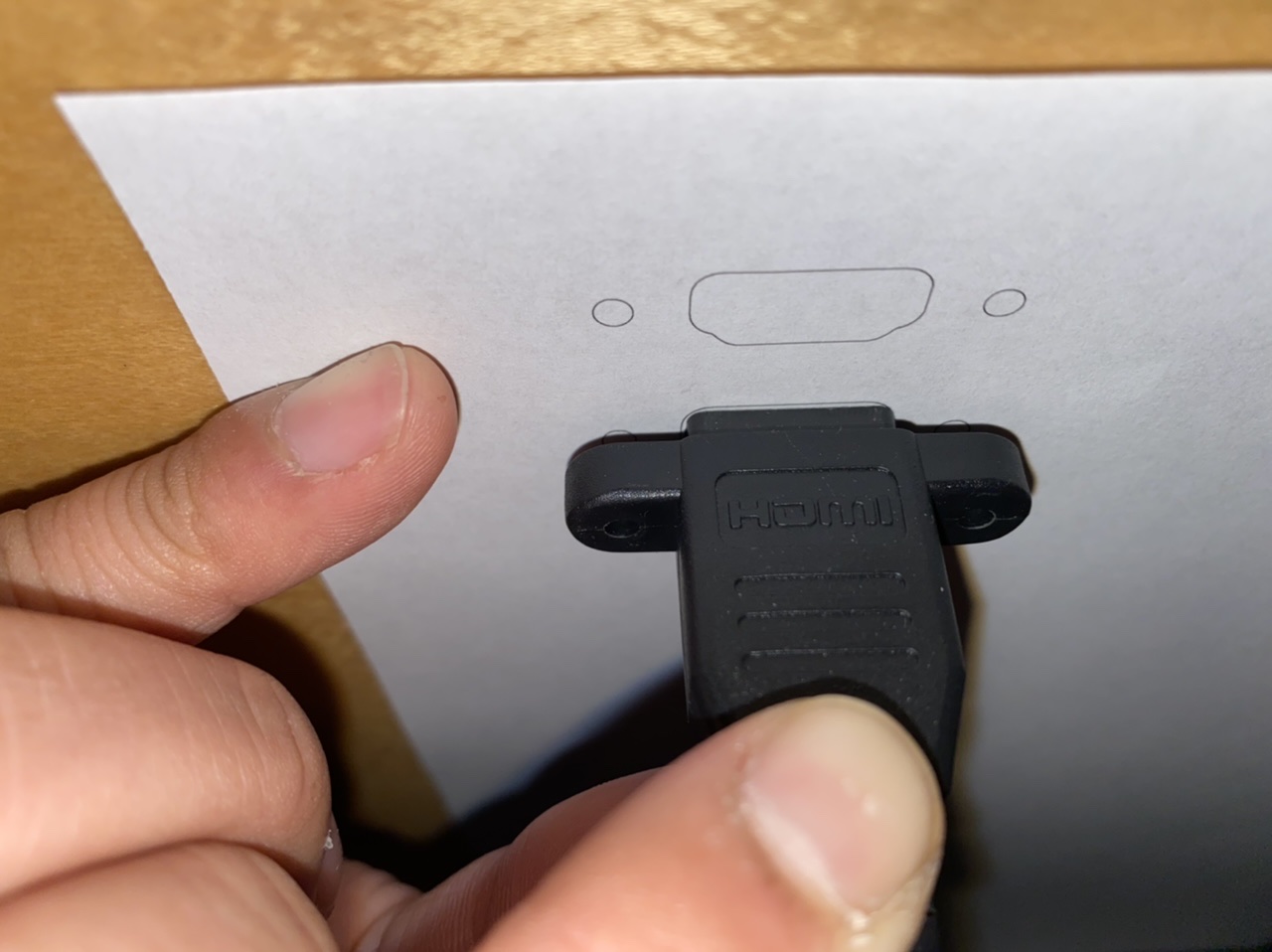

@hursit, I printed out your CAD drawing to scale on my laser printer. The bottom one is a better fit.

My recommendations:

-Enlarge the mount holes slightly to accommodate variance. Centers are OK

-HDMI hole might be too tight. Top circled corner radius needs to be enlarged (see pictures)

-Maybe also enlarge HDMI hole slightly?


Attachments

  • 3D913338-BB4F-4C28-B167-68438B7DDFDA.jpeg
    135.1 KB · Views: 62
  • 8A9DAF18-C2DB-42BE-8EFA-04B4D9965BBB.jpeg
    165.8 KB · Views: 61
  • 39A8E75B-EB66-4B70-9BA8-3DCFA89170C9.jpeg
    167.3 KB · Views: 61
  • EF2491A3-5C4F-46A8-9A1C-A9CCF9453C93.jpeg
    148.2 KB · Views: 56
  • FAF0EC06-31C2-4E58-8330-AC322BC42CDB.jpeg
    180.8 KB · Views: 58

Epyc

Enthusiast
Joined
Apr 10, 2018
Messages
197
Reaction score
141
Location
CA, USA

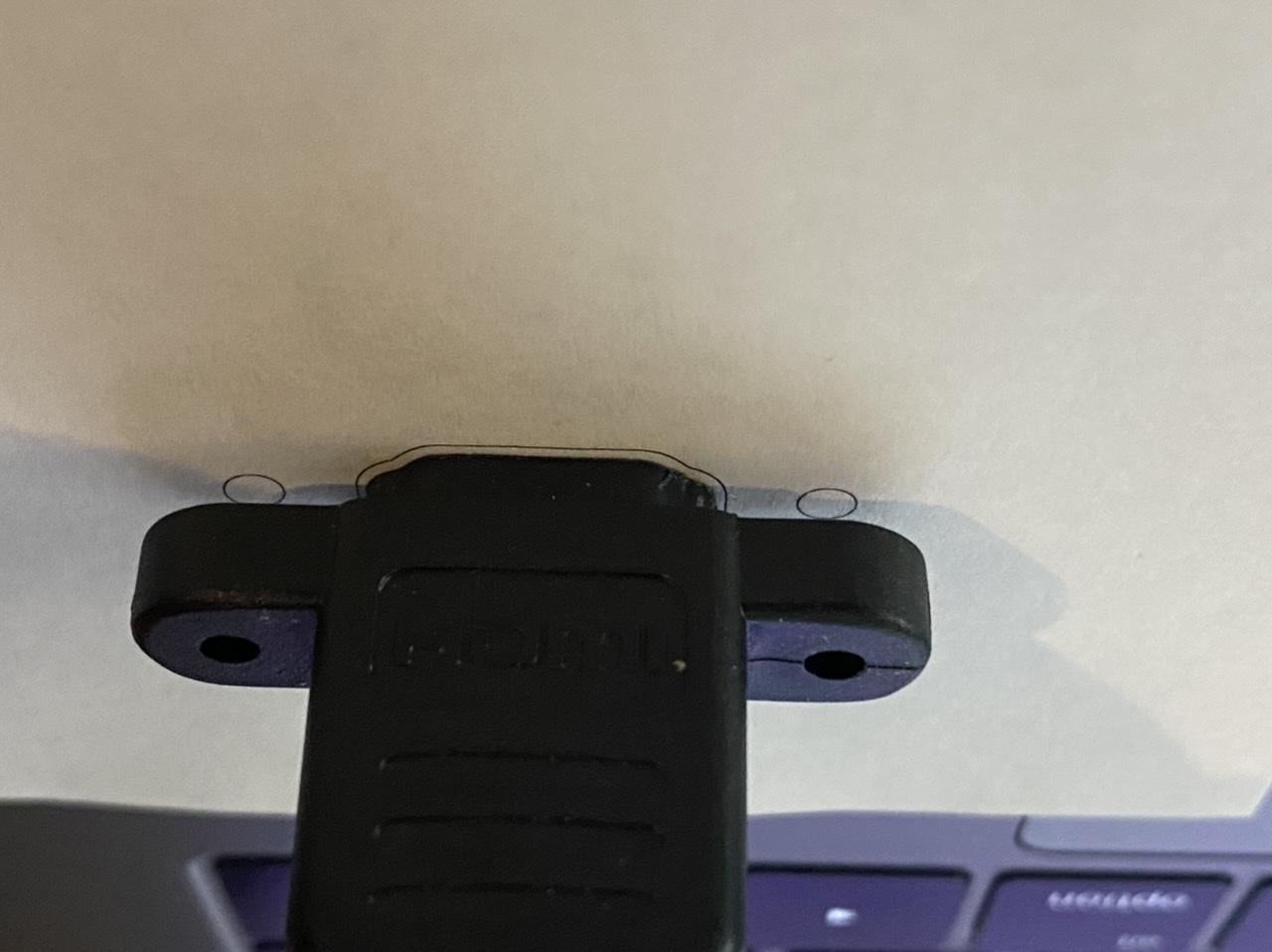

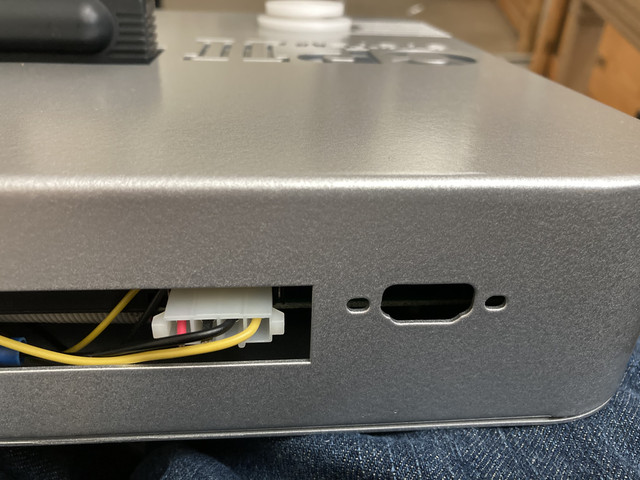

@hursit 2nd revision looks good. That should leave enough tolerance for variances.


Attachments

  • C2DCFFBD-B7B8-46B8-A138-4472C145AEDB.jpeg
    164.2 KB · Views: 62
  • 4D223893-0331-4419-AF6C-26FF21A4A786.jpeg
    189.2 KB · Views: 60

Epyc

Enthusiast
Joined
Apr 10, 2018
Messages
197
Reaction score
141
Location
CA, USA

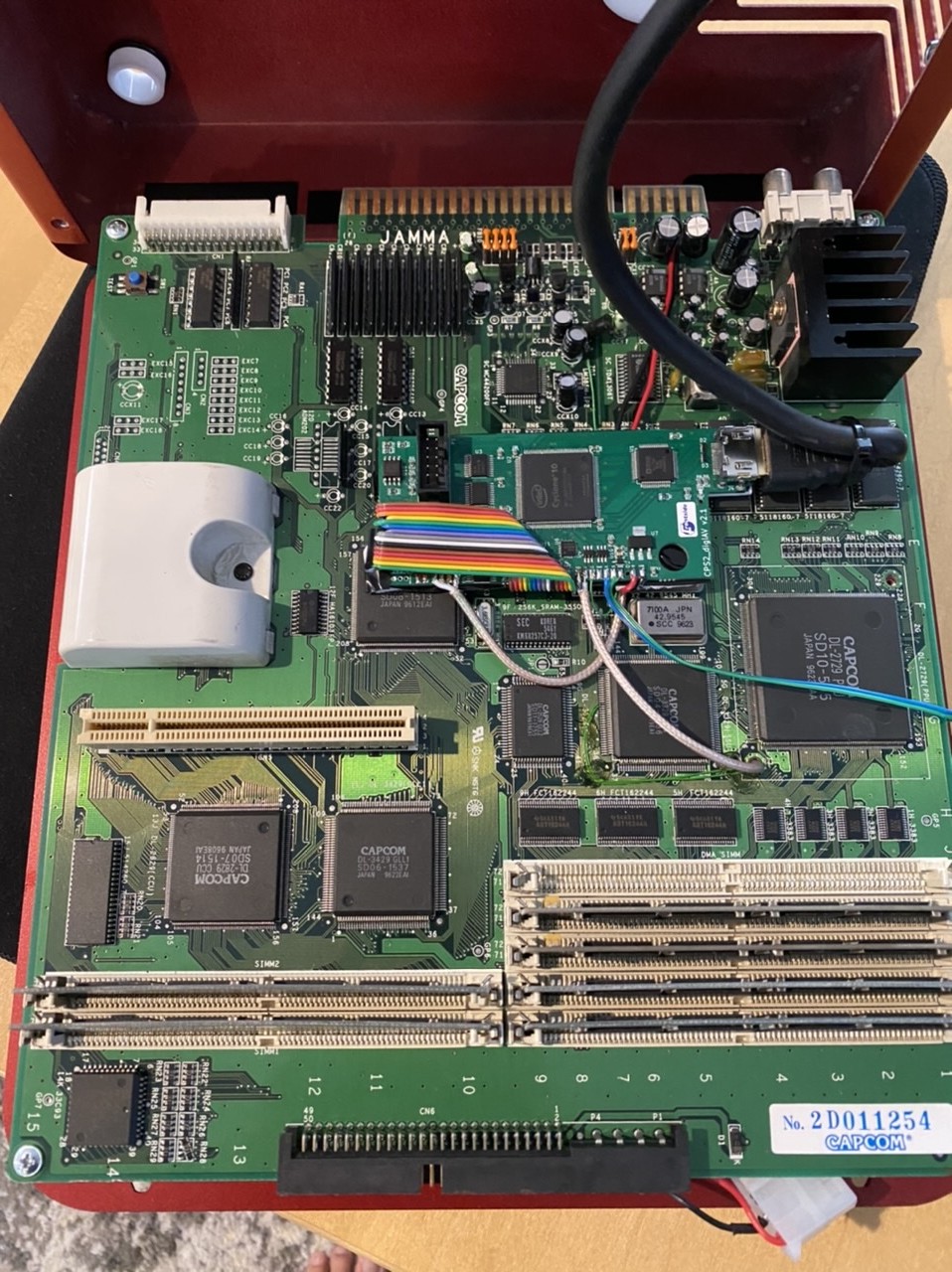

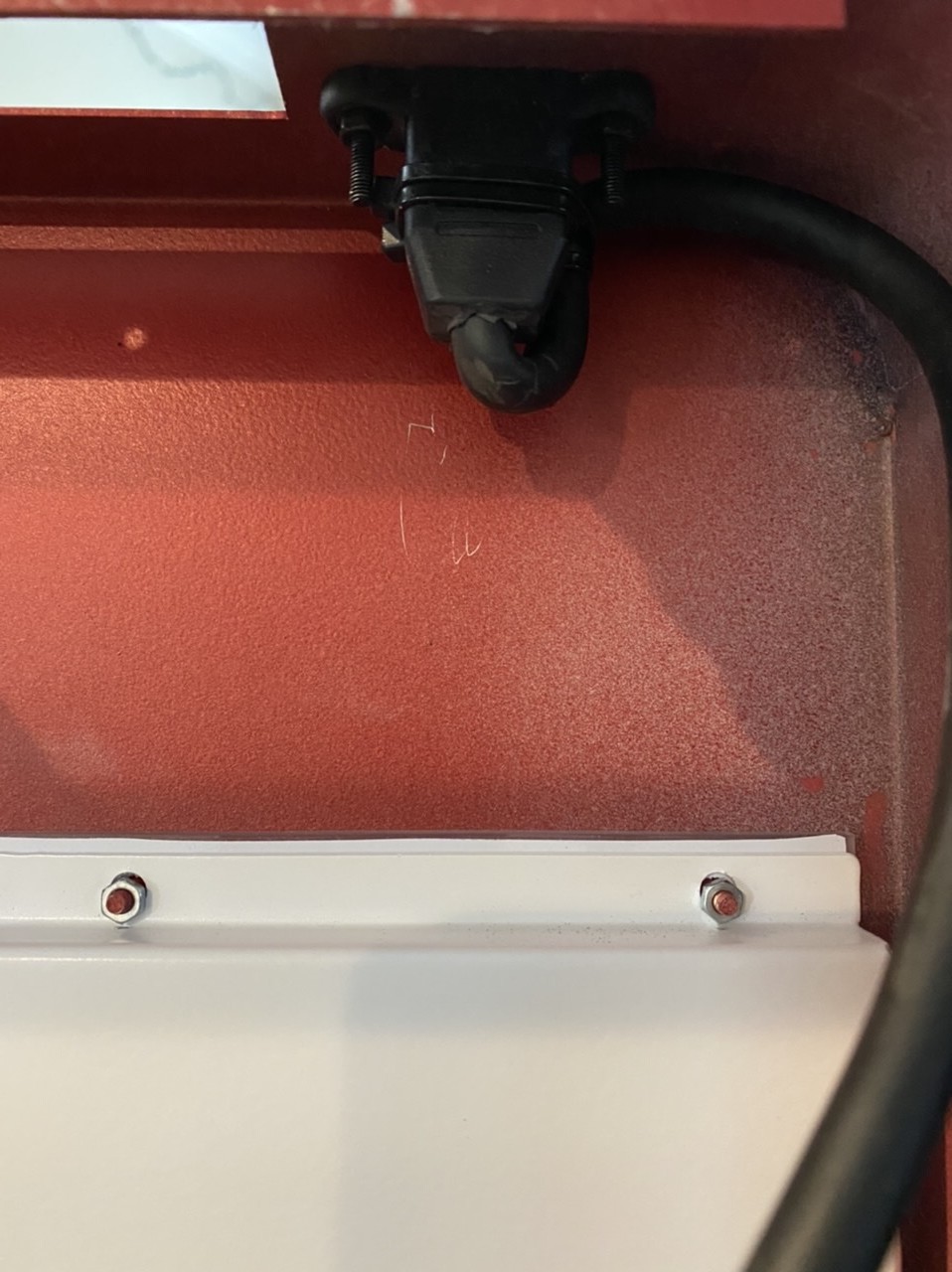

Heads up for people wanting to do this mod. The HDMI extender a bit bulky and will put pressure on the rear-most SIMM.

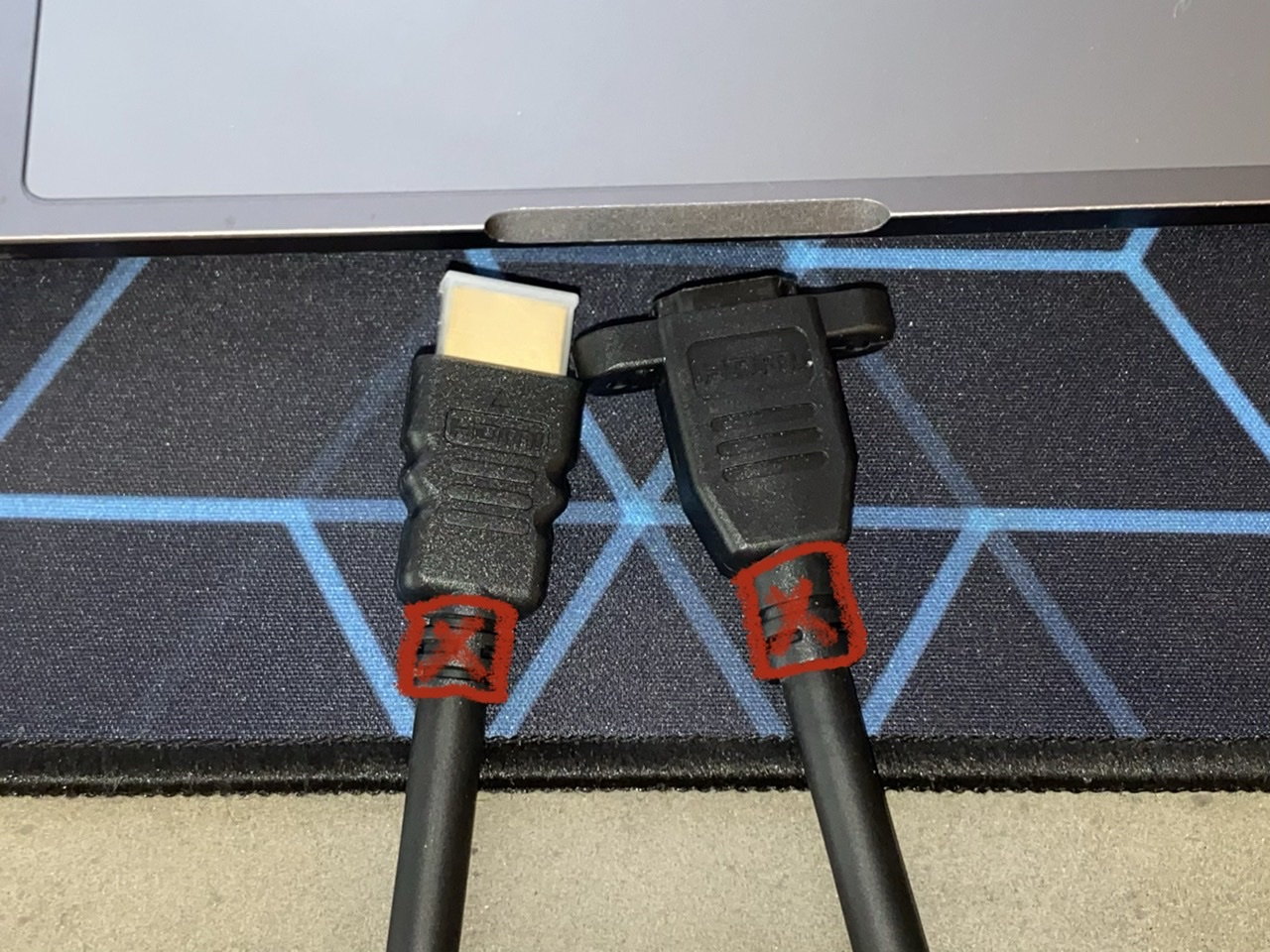

To alleviate this, I trimmed away the outer plastic of the HDMI connector (marked red) and zip-tied it on to itself so there was no pressure on the SIMMs. I did this for both sides of the HDMI extender.

See pictures below to see how I did it.


Attachments

  • 0DF41285-33B4-4AA7-8D62-9A9D99E6D108.jpeg
    193.4 KB · Views: 89
  • D4D99E71-BB70-4A58-9F07-611CD4A83375.jpeg
    276.7 KB · Views: 94
  • 934B94C0-35F1-4E82-9C21-698C750ED8F2.jpeg
    353.5 KB · Views: 93
  • F25C60CB-45FC-4862-8075-E12D1B29810F.jpeg
    416.9 KB · Views: 72

mecno

Beginner
Joined
Sep 17, 2020
Messages
3
Reaction score
3
Location
Seattle, WA
I just put in an order on the site! Super super excited.


Joko3

Grand Master
Joined
Sep 6, 2016
Messages
768
Reaction score
533
Location
Yokohama, Japan

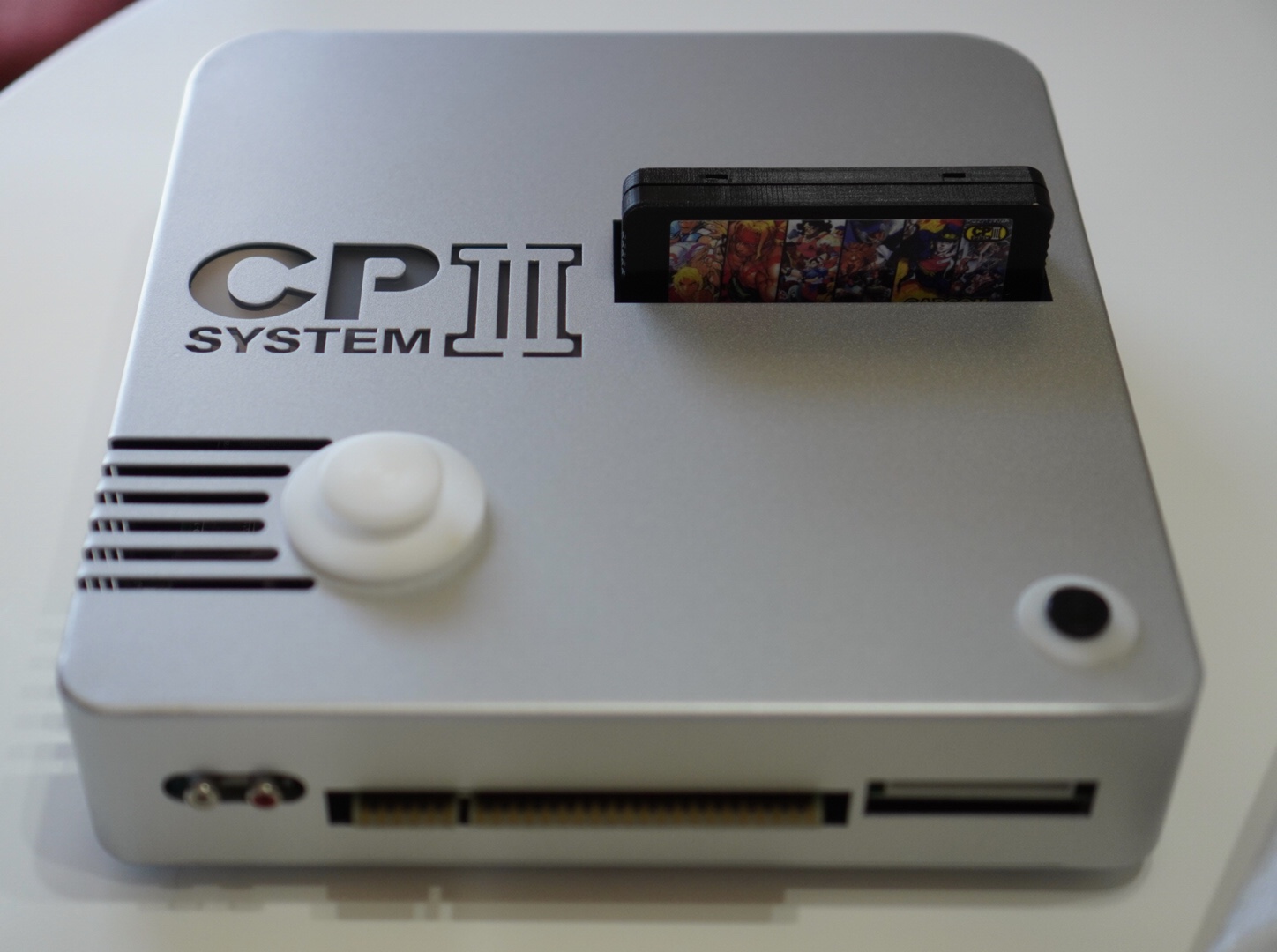

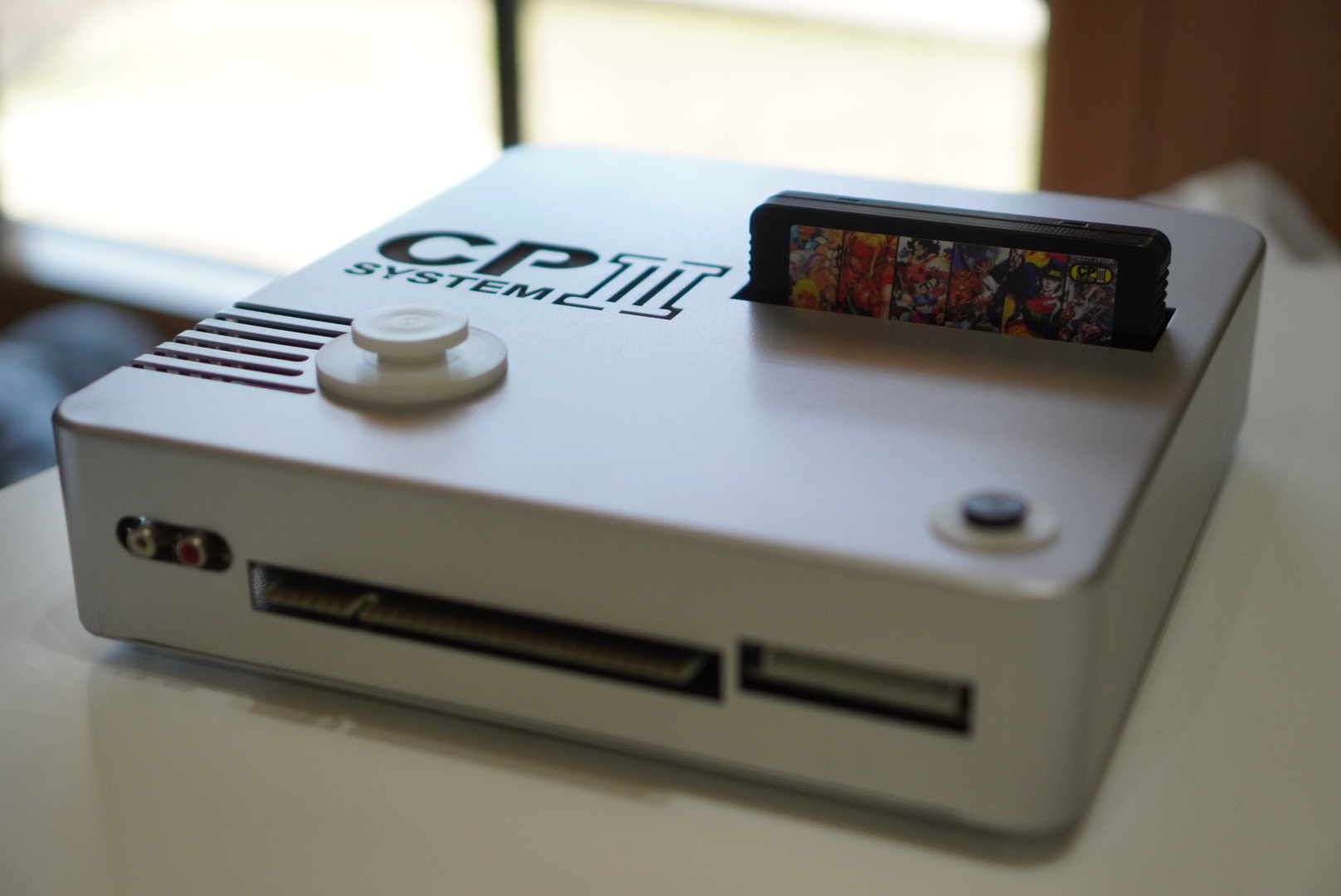

I’m down for one next time they are available. I had a plexi case when I owned a CPS3 in the past, but for my next one I think this will be the way to go. I only wish it was offered in green to match my CPS2 shell : D

Edit: after looking at it a bit longer, I'm actually really wanting the red one!
