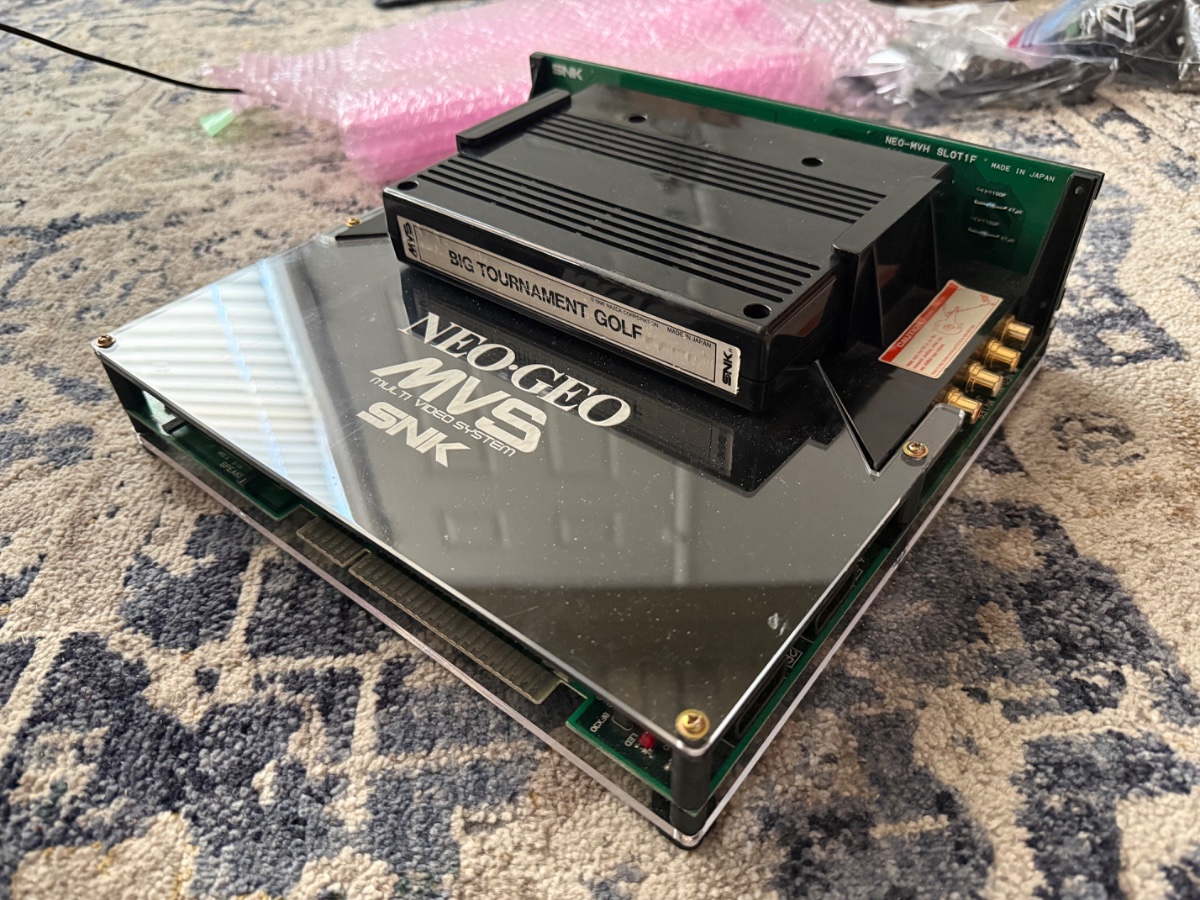

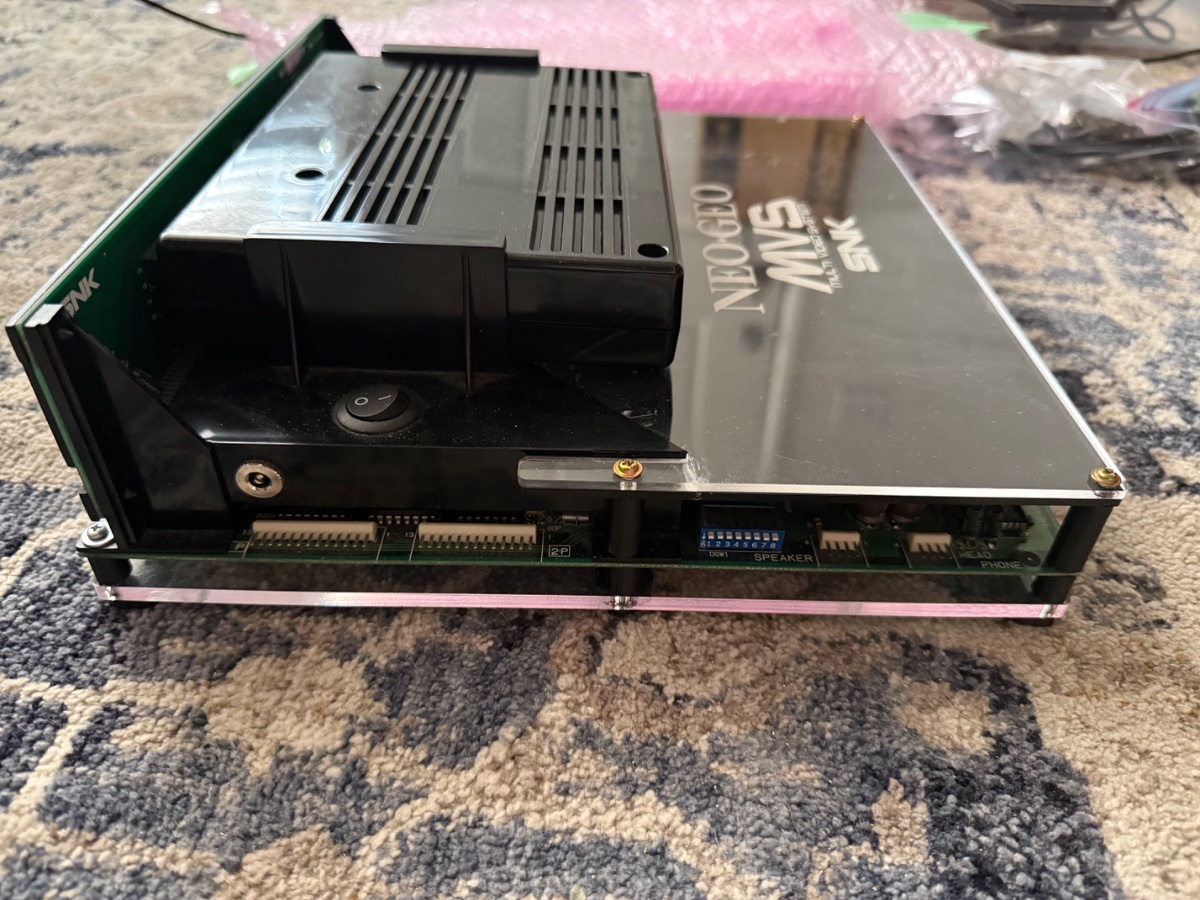

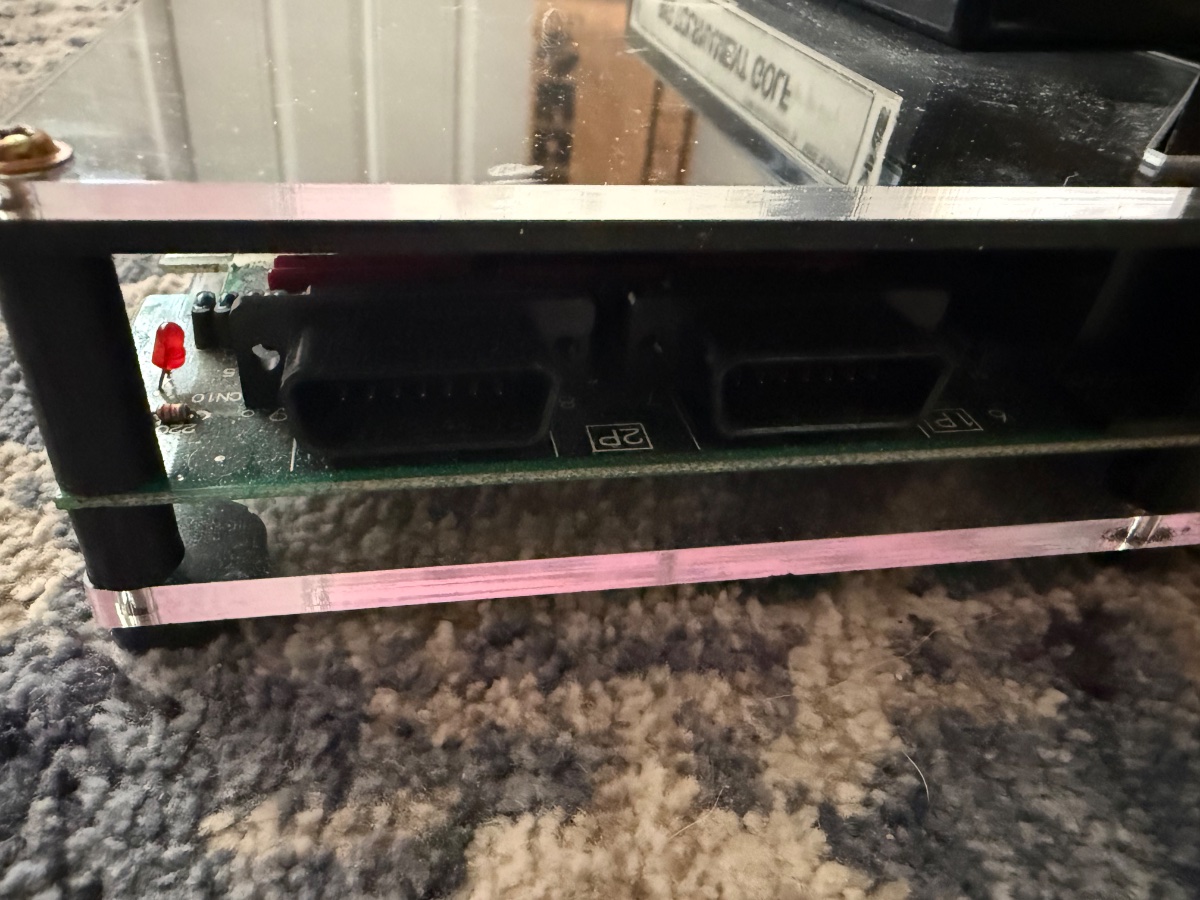

Consolized MVS pics (will take apart and take more detailed board pics upon request). Big Tournament Golf not included lol.

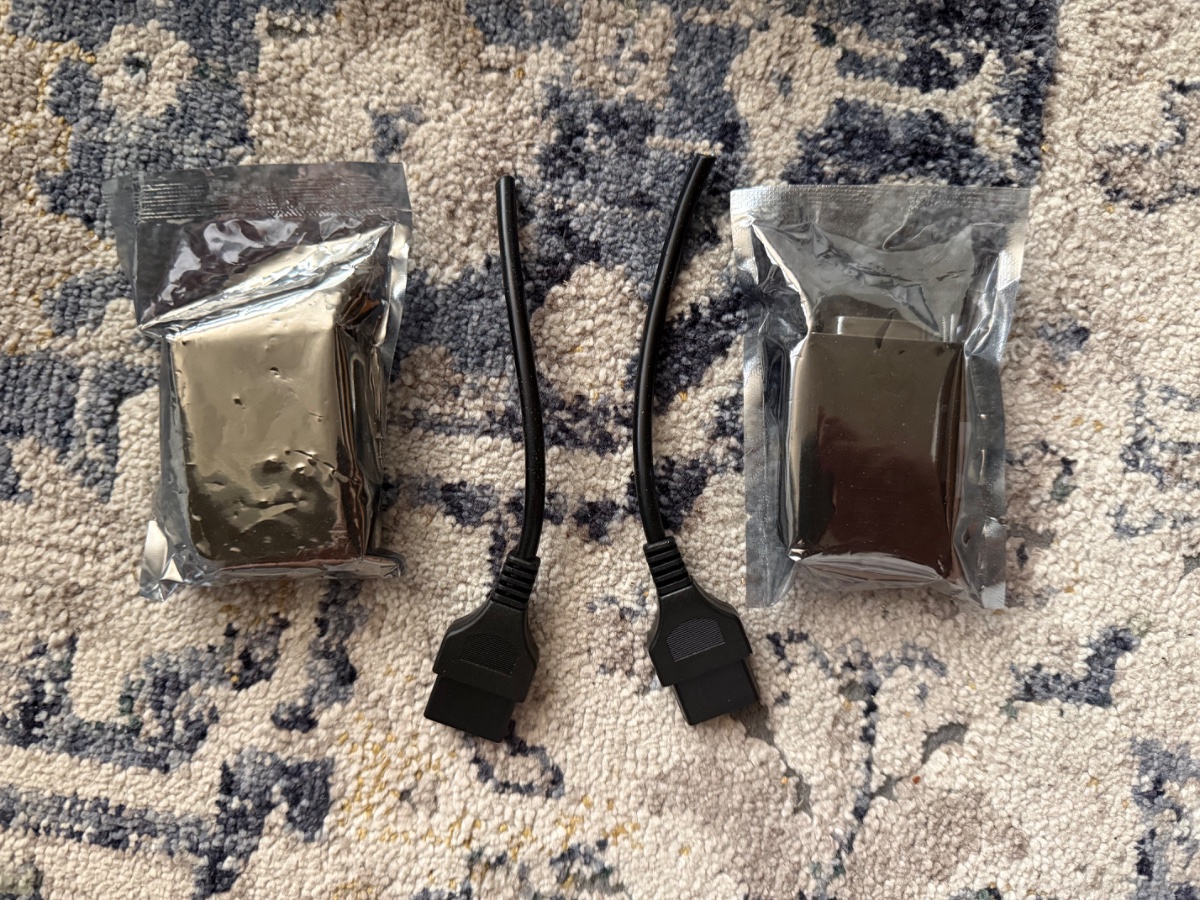

I’m including two long socket Neo cables with DB15 breakouts to make your own controller adapters if you want to use the ones on the board itself. All you need is some wire strippers and a screwdriver, no soldering required. If you want to just use regular ole’ DB15 cables you can do that too with the BBS board (simply connect the BBS board to the JAMMA edge and plug in a regular DB15 cable).

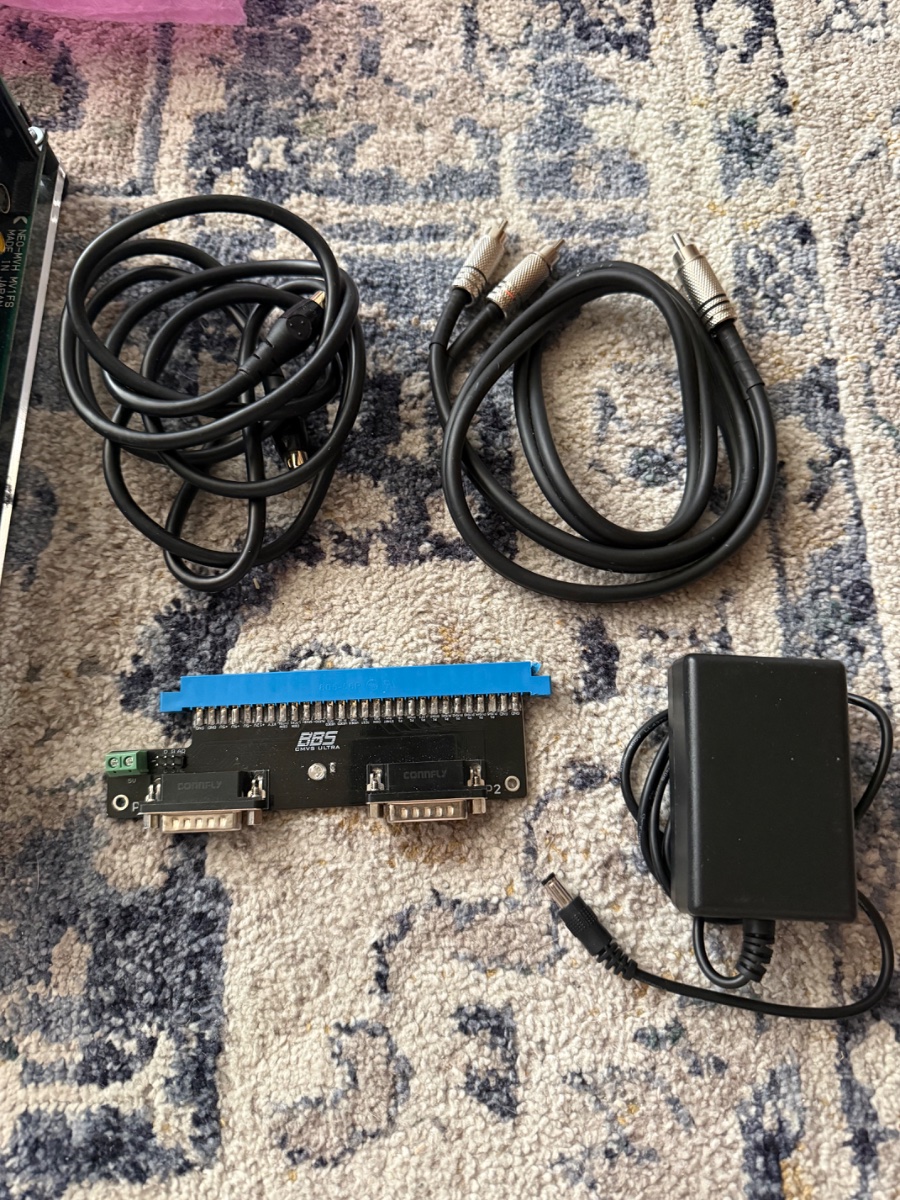

This setup will do composite or S-Video, I am including S video cables, stereo cables, and a power adapter. You can still get RGB through JAMMA as well, but the S-Video looks damn good.
MB was professionally recapped in 2025.
