Coming soon...
Will post more once I get my CPS1 multi and have tested the Rpi image

I have attached the gerber files

Here is a list of parts needed:

DescriptionQuantityPCB LocationDigikey Part No.Comment
GPIO Header for RPi11528-1969-NDthis mounts on the bottom of the pcb
Cap Cer 0.1uf 25V2C1,C2BC1154CT-ND
Res 220 OHM 1/4W 5%4R1,R2,R3,R4220QBK-ND
Switch Tactile SPST-NO 0.05A3EG1829-NDblack switches for up, down and select
Conn Rcpt USB2.0 TypeR 4POS1UE27AC54100-ND
Conn Header 14POS 2.54mm1

2057-PH2-14-UA-ND
connects to the CPS1 multi where the LCD panel connects - make sure pin 1 matches
OLED 128x641Amazon URL:
https://www.amazon.ca/Display-Modul...0.96+inch+oled+128x64&qid=1647185028&sprefix=
0+96+inch+oled+128x64%2Caps%2C52&sr=8-5

I recommend using a Raspberry Zero W



This is the case I am using for it:



You will also need a 8GB microSD card (I recommend Sandisk)

Here is the Raspberry Pi image you will need to load to the RPi. Just unzip it and load the img file using Win32DiskImager

CPS1-Pi Raspberry Pi Image ***** THIS LINK DOES NOT WORK YET

Note: If the link for the image does not work, copy the link and paste in a new window

The pi user is: pi
The pi password is: cps1multi

NOTE: The pcb connects directly to the 40pin GPIO pins on the RPi - make sure to match up pin 1
Connect a USB to microUSB cable from the multi selector to your RPi in order to power everything from one place

The first time you load it up, it will default to a hotspot with the name CPS1-Pi
Hotspot password is: cps1multi
Connect to the hotspot and then go to your browser on your phone and go to any web address (eg: gg.com)
The web interface should appear and you should see the games listed

You can also go to the Tools and select Wifi Configuration to join it to your home wifi network instead of using a hotspot.
You will be asked to select your wifi network and enter your password. You then need to click Apply and Reboot
This will reboot the RPi and it will connect to your home wifi if your credentials are correct.


Attachments

  • CPS1-selector.zip
    20.6 KB · Views: 45
Last edited:

USHIMATA

Student
Joined
May 17, 2020
Messages
88
Reaction score
22
Location
Springfield
Pure genius...
There is obviously also a lot of people who can't tolerate electromagnetic waves developped by wifi's system, and not everyone necessarily has a fashion-forward phone, an amplified desk telephone...
First generation phone user : me, for instance.


mthngn

Student
Joined
Oct 13, 2019
Messages
125
Reaction score
86
Location
France
Hi

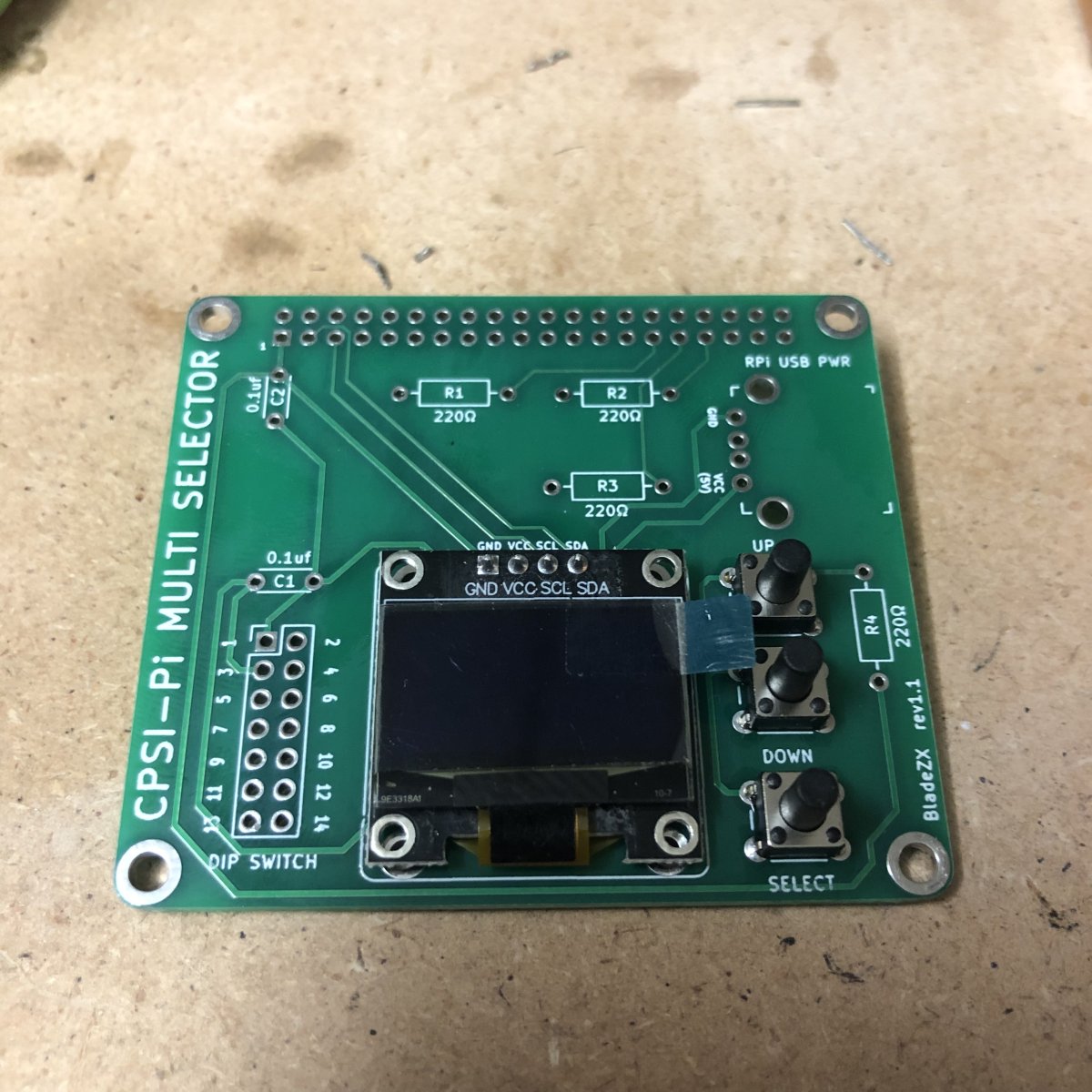

I begin to build oled selector for my multi. Cps1 multi rpi image will be ready?

Regards


Attachments

  • FAB227AB-DE73-4657-993F-7D6BECDA091D.jpeg
    212.2 KB · Views: 34

XtraSmiley

Enlightened
Joined
Sep 18, 2016
Messages
3,496
Reaction score
2,636
Location
Washington, DC
Pure genius...
There is obviously also a lot of people who can't tolerate electromagnetic waves developped by wifi's system, and not everyone necessarily has a fashion-forward phone, an amplified desk telephone...
First generation phone user : me, for instance.
Wow, we're a retro arcade community and all, but 1st gen phone?!?! That's pretty baller!



BladeZX

Grand Master
Joined
Jul 11, 2019
Messages
762
Reaction score
653
Location
Canada
There is a firmware update for the cps2 and cps1 that I need in order to continue testing
@Darksoft said he will let me know when it is ready
I am close but need to fix one issue that hopefully the firmware update will address


mthngn

Student
Joined
Oct 13, 2019
Messages
125
Reaction score
86
Location
France
Great,

I order composants to finish my oled multi selector and Waiting for updates.
Regards


mthngn

Student
Joined
Oct 13, 2019
Messages
125
Reaction score
86
Location
France
I progress. Pi zéro are out of stock everywhere 😔

Some news from @Darksoft , @BladeZX ?


Attachments

  • ACB869B1-CAB0-4FEE-8E9A-CC148D9FC8E8.jpeg
    251.9 KB · Views: 19

BladeZX

Grand Master
Joined
Jul 11, 2019
Messages
762
Reaction score
653
Location
Canada
I am stuck right now until the new LCD firmware is released
Darksoft is a busy guy - he said he would message me when he releases it
I can then finish up my testing and get this released
