FS Custom / DIY BKM-10R Controller for Sony BVM CRT Monitors (D/E/F/G/H Series) - 5 Available! - $30 USD

[shangzhuang]

Hey CRT enthusiasts!

I am selling 5 units of my custom-built BKM-10R replacement controllers.

If you are looking for a highly practical, reliable, and affordable alternative to the original Sony BKM-10R, this is it.

Compatibility List:
This controller is fully compatible with the following Sony BVM and HDM models:

• BVM-20F1J, 14F1J, 20E1J, 14E1J, 20G1J, 14G1J
• BVM-D24E1WJ, D20F1J, D14H1J, D9H1J
• HDM-20E1J, 14E1J
• BVM-20F1U, 20F1E, 20E1U, 20E1E, 20G1U, 20G1E, 20G1A, 14F1U, 14F1E, 14E1U, 14E1E, 14G1U, 14G1E, 14G1A
• BVM-D24E1WU, D24E1WE, D24E1WA, D20F1U, D20F1E, D20F1A, D14H1U, D14H1E, D14H1A, D9H1U, D9H1E, D9H1A
• HDM-20E1U, 14E1U

Features & Build Quality:

• Smart LED Status Indicators (Auto-Sync): Features dedicated status LEDs for Shift, Phase, Chroma, Bright, and Contrast. The best part? It automatically syncs the LED status directly from the BVM! Whenever you connect it and press 'Menu' (or any key that triggers status feedback from the monitor), the LEDs will instantly sync to the monitor's current state. No more guessing what parameter you are adjusting!
• Button-Based Precision Control: It uses 8 dedicated "+/-" buttons to control the four main adjustment axes, allowing for precise digital stepping.
• Long-Press Auto-Repeat: Holding down the "+/-", "Up", or "Down" buttons will continuously send commands, making fast adjustments a breeze.

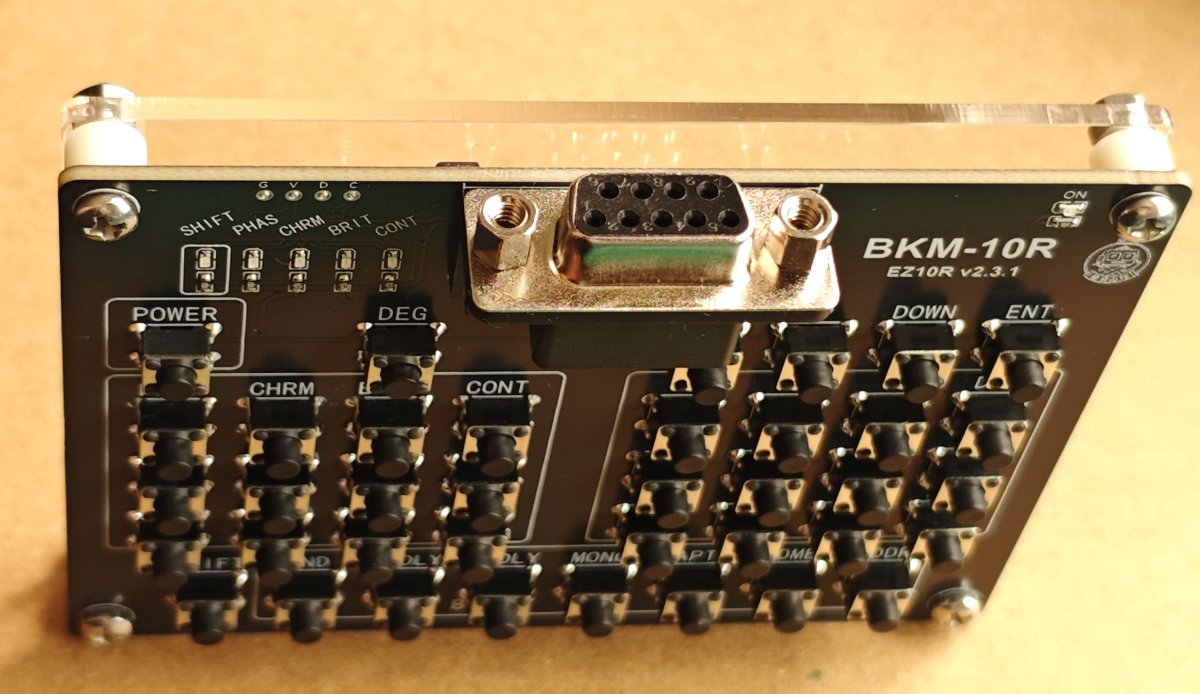

• Wired Serial Compatibility: Features a wired serial port with the exact same pinout as the original BKM-10R. Your original BKM-10R extension cables are 100% interchangeable and compatible with this controller.

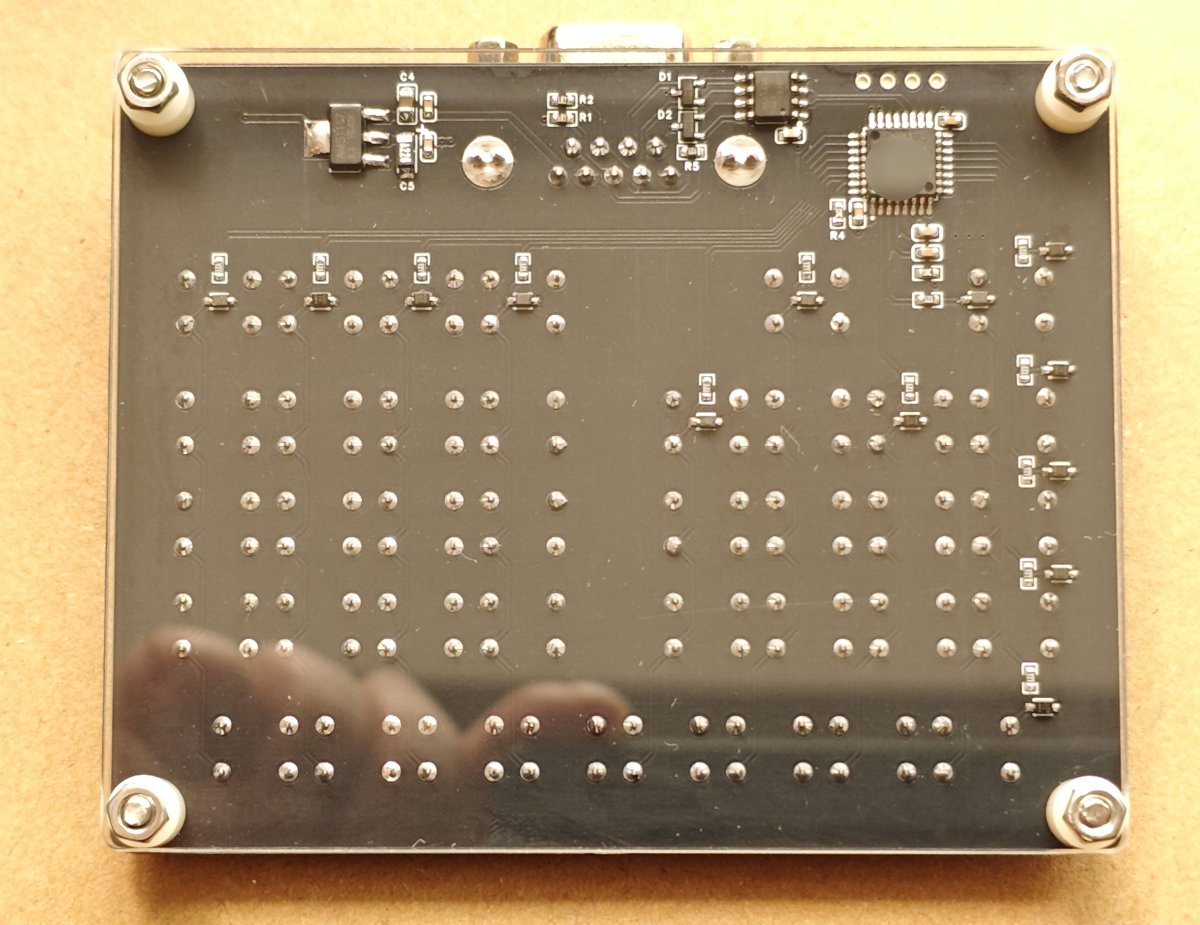

• Premium Acrylic Build: The PCB is securely mounted on a custom, durable acrylic bottom plate, giving it a clean, modern, and sturdy feel.

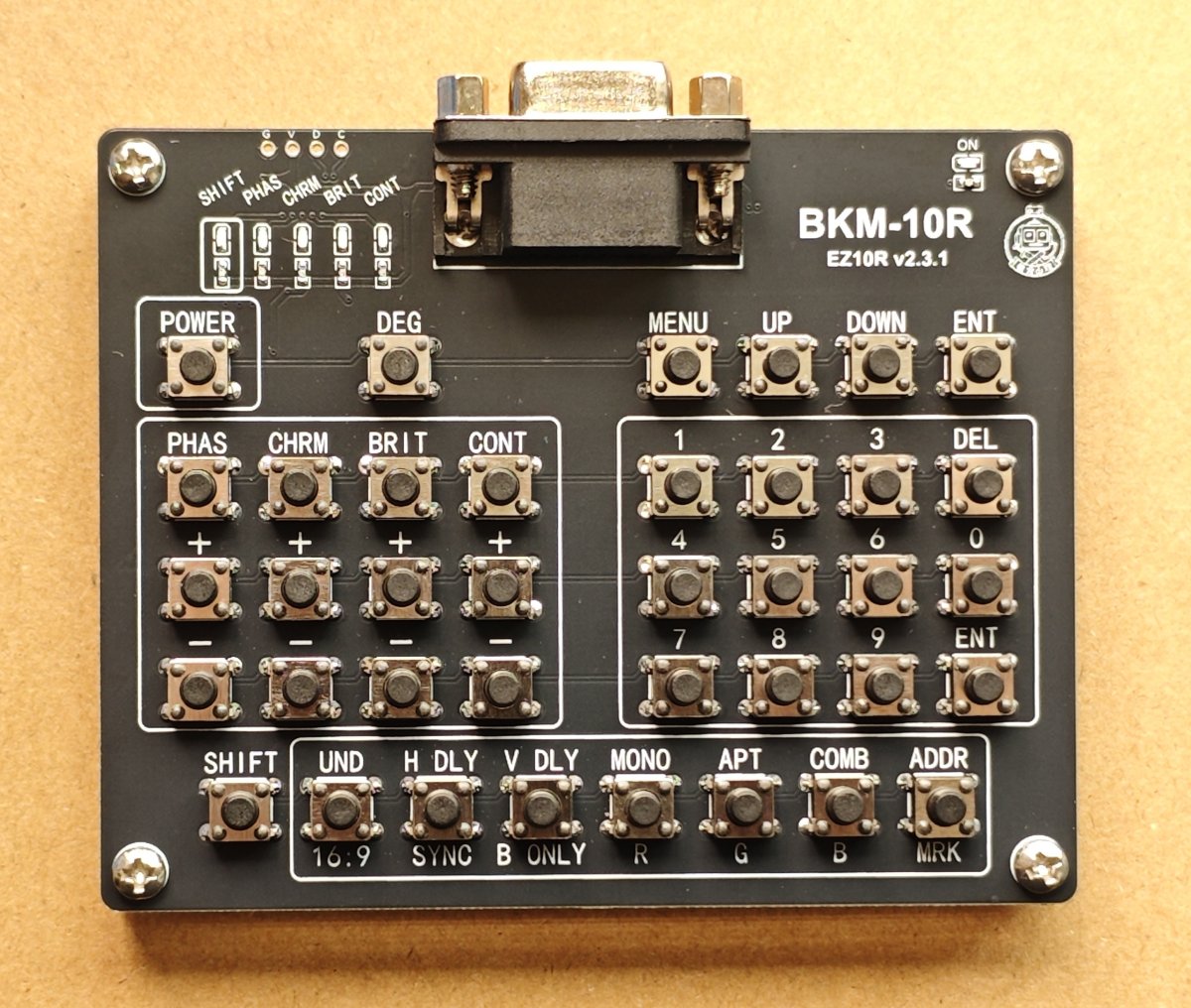

• Streamlined Button Layout: To keep the design clean and focused on essential adjustments, it includes all standard buttons except F1/F2 and F3/F4. All other core functions are fully present and working perfectly.
• Memory Card is NOT supported!

Price & Availability:

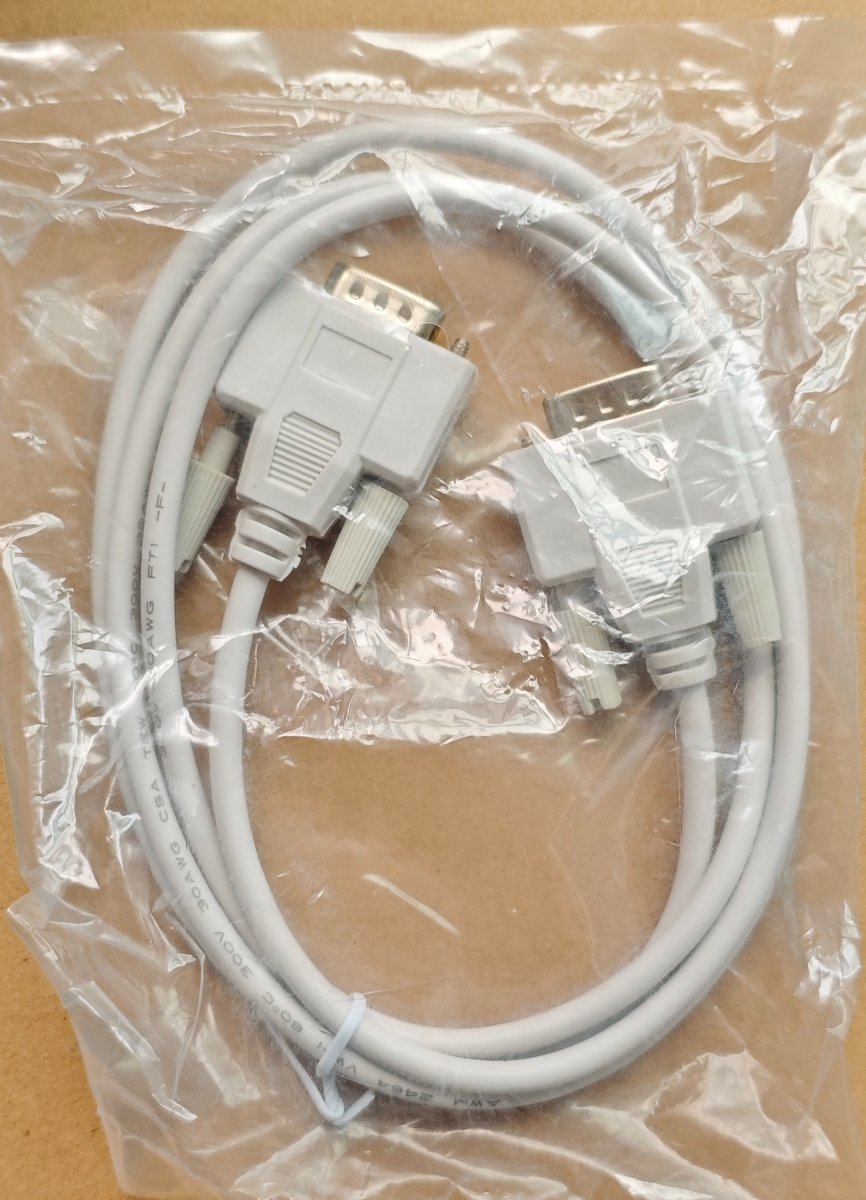

• Price: $30 USD per unit (a cable is included).
• Quantity: 5 units currently available.

Shipping:

• Location: Ships worldwide from China.
• Shipping Cost: Shipping is NOT included in the $30 price. The shipping cost will be calculated based on your exact address/country.
• Note: Please PM me your Country and Zip/Postal code so I can calculate the exact shipping fee for you.

Payment:

• ERC20 USDT0 Payment on the low cost EVM chains (Arbitrum, Avalanche, etc)

How to Buy:

• If you want to grab one, please send me a PM (or email to: [email protected] ) with:
• The quantity you want.
• Your Shipping Address (Country + Zip code) so I can quote you the shipping cost.

Thanks for looking! Feel free to ask any questions.

Spoiler: Images

Video:
