Daytona USA 2 Cabinet Mystery Wiring

[Aaronr33]

Does anyone know what this wire harness is used for? Daytona usa 2.

12 pin amp connectors and the other end is a 12 pin header that is tucked behind the start/lamp button location on my cabinet.

Start/lamp is a seperate cable attached to the pcb so is not used for that.

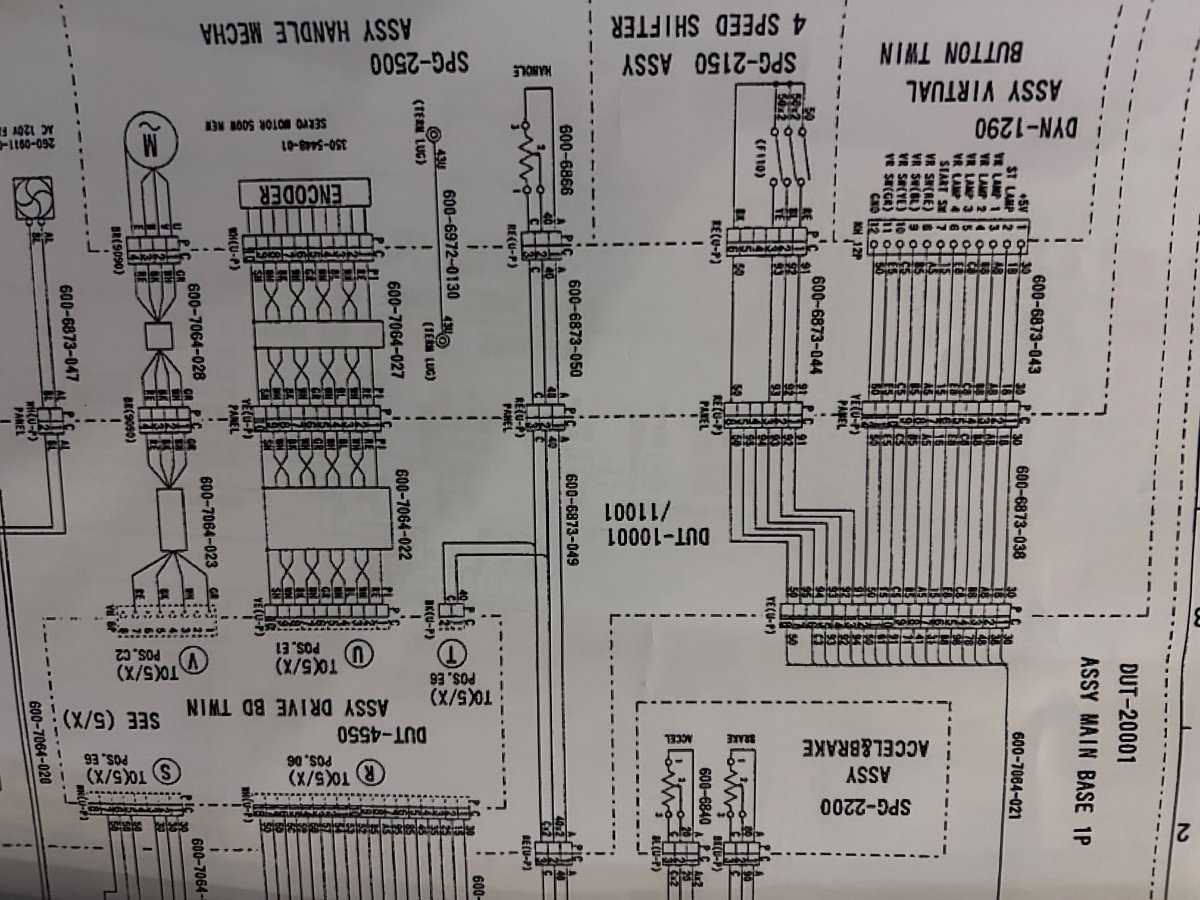

I dont see it on the drawing either.



[trashedcabs]

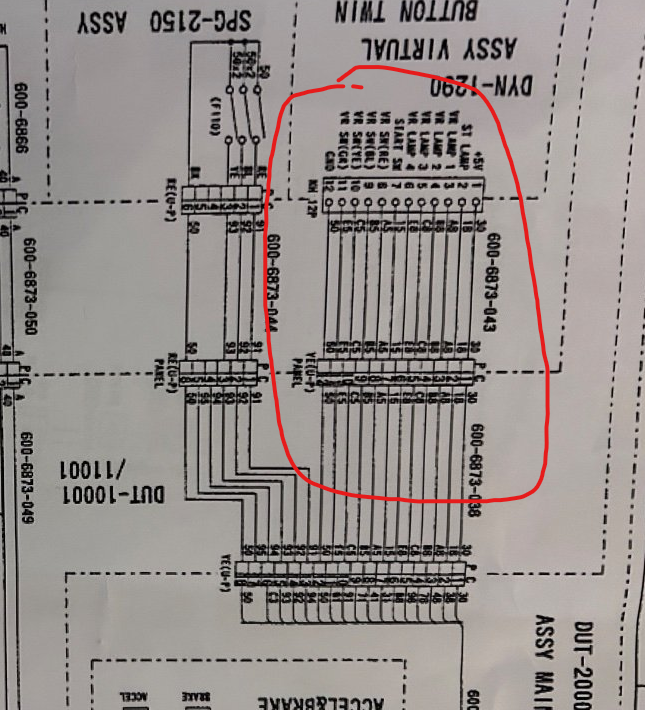

Huh? That is definitely the start/VR button cable., it even says so on the wiring diagram. Maybe you have an extra one for some reason?



[nem]

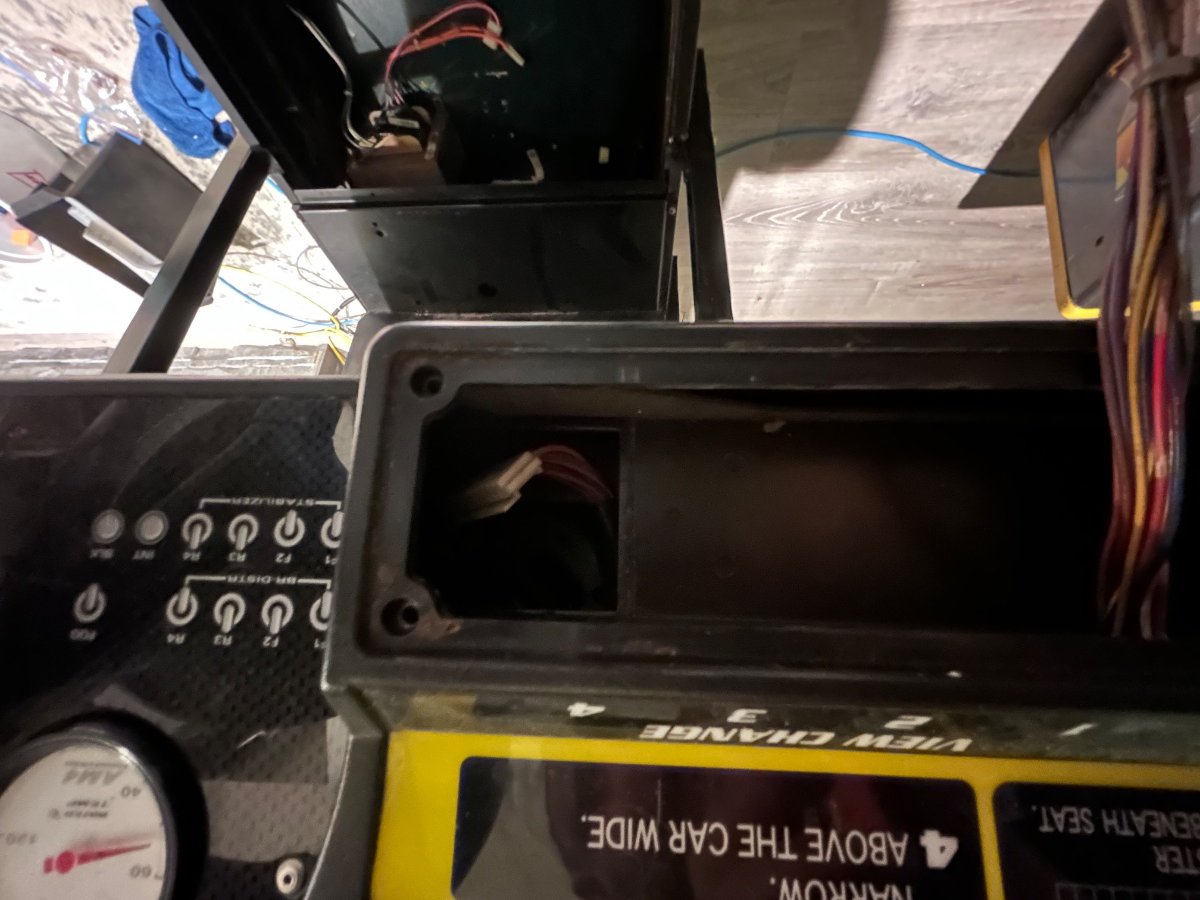

The receptacle for it should be behind the control panel.

Start/lamp is a seperate cable attached to the pcb so is not used for that.

Not normally, no.



[Aaronr33]

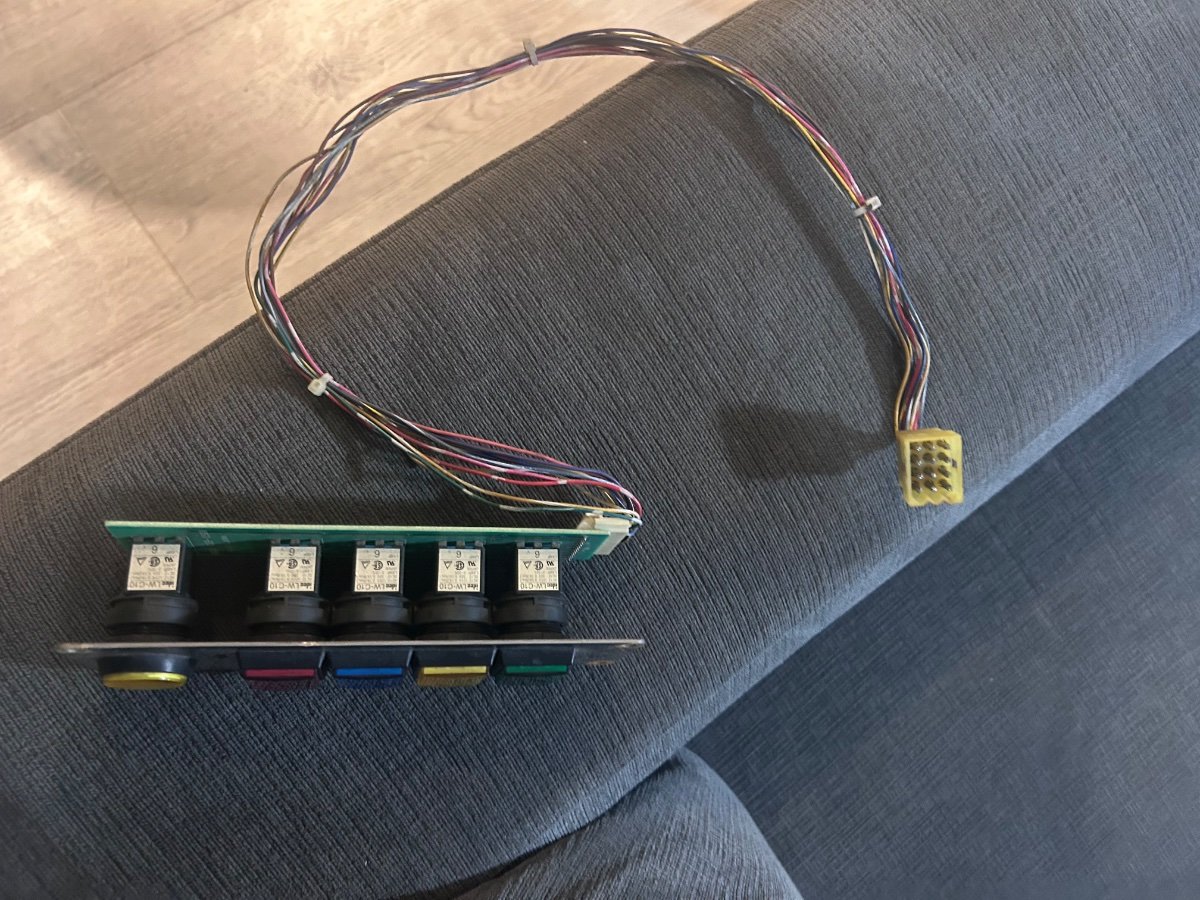

You can see the harness connected to start board on far side of first picture, other end is a 12 pin molex connector. Looks like it has a redundant harness.



[Aaronr33]

Here is the harness connected to start/view board.



[nem]

I see. That's the American wiring harness. The one you in your opening post is the Japanese / European one.

The dash has probably been replaced?



[Aaronr33]

I am in Canada so would be North American cabinet.

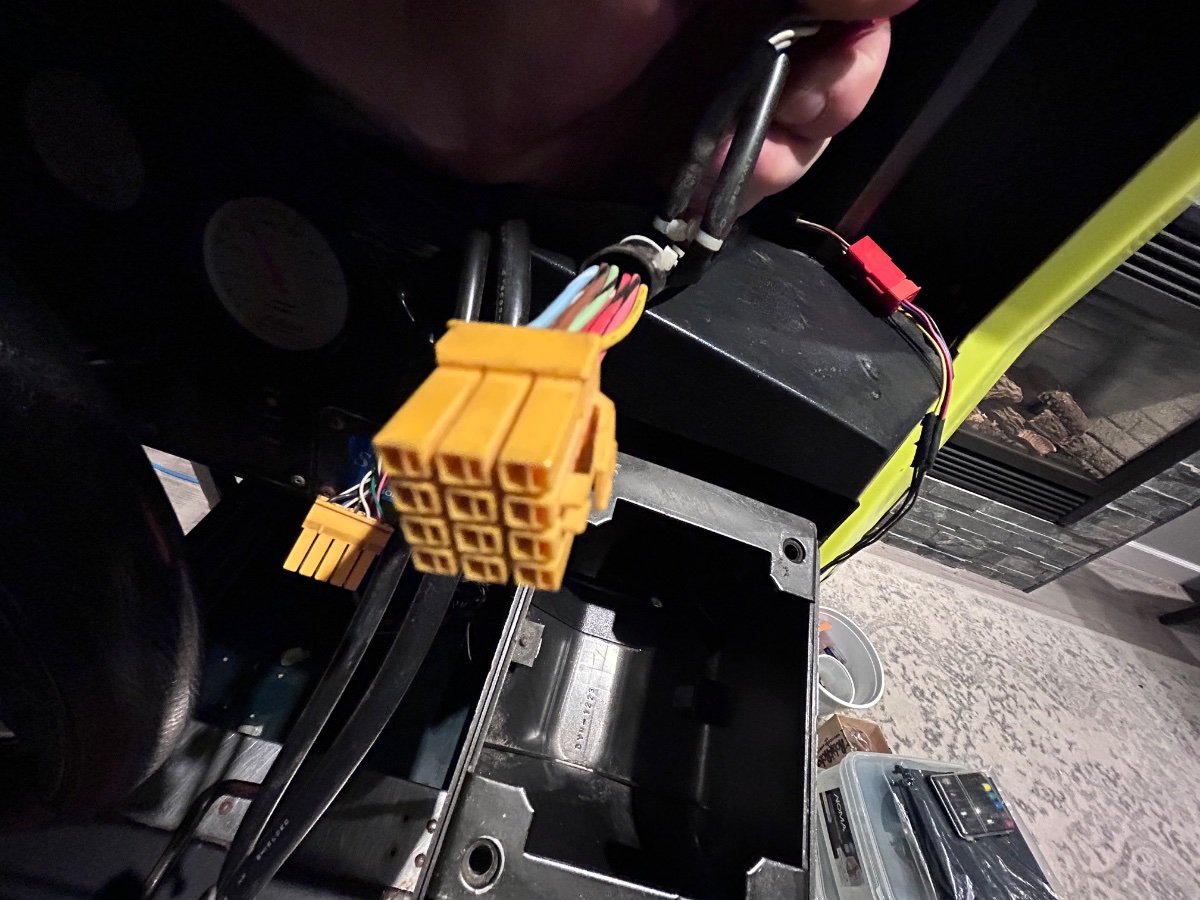

I picked up a spare steering assembly today which has the middle harness included and it has the larger 12 pin female molex connector, not the yellow amp connector.
