Hi all,

I'm looking for some help with a custom arcade cabinet I'm trying to build.


Some background info:

The MegaKiosk DS-18 by Will Gentry has inspired me to build an Arcade Cabinet for my Sega Genesis.
(Yes, a Flashcart would be less work, less money and offer more games but below is the route I wan to take.)

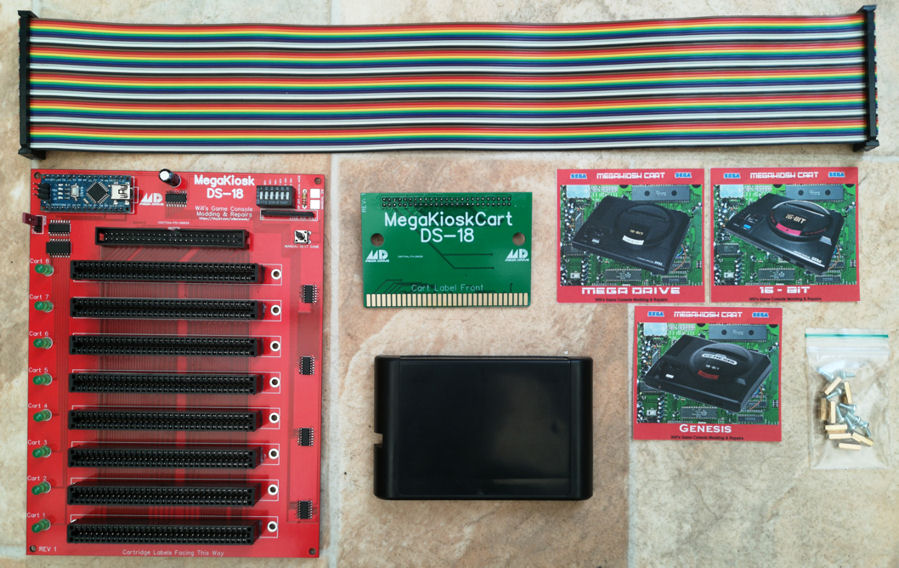

MegaKiosk DS-18



The MegaKiosk DS-18 offers two features that I think make this project really cool.

1) You can cycle between 8 original game cartridges.
2) The hardware identifies the active slot with an LED (the LED is to the left of the cart slots in the photo above).

So (in theory) I can build an Arcade Cabinet with a button to cycle to the next game and I can have an EL Panel that lights up to match the currently selected game.

This would operate just like a Neo Geo MVS 4-slot/6-slot.


But my skills are very much in the realm of hobbyist. I've replaced capacitors, batteries and repaired my Neo Geo 4-slot EL Panel to give you an idea of what I can do.

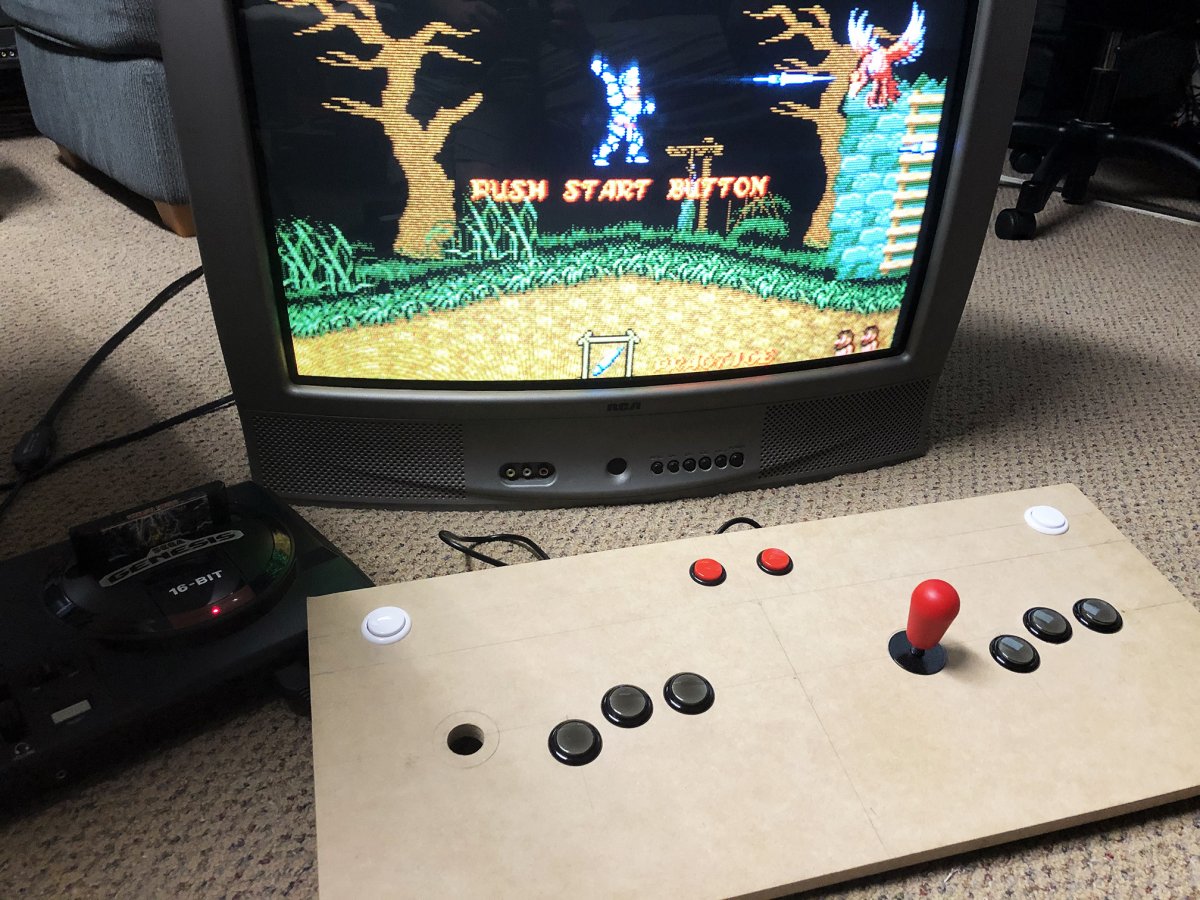

I started by building a control panel that will work with a Sega Genesis. It works great and by far the hardest part was the wood working.

The two small red buttons are not in use yet. They are intended to be a Reset for the Genesis and Cycle to the next game on the MegaKiosk DS-18.




I'm currently looking into what to buy for my 8 Mini Marquees.

So far, I think this will work:

Eight A6 electro-luminescent panel with leads and connector ($10 USD each)
https://glowhut.com/a6-electro-lumin...and-connector/


I believe the inverter below can power eight A6 sized EL Panels all at the same time.

Electroluminescent inverter for A3 size EL panel AC 100-240V ($30 USD)
https://glowhut.com/electroluminescent-inverter-for-a3-size-el-panel-dc-12-volt/
*I may only need to power one at a time.
**I'm not sure when someone would want AC vs DC for what I'm planning.


I asked Will Gentry how to tap into the LEDs that indicate the active slot. This was his answer:

"You can simply remove the LED and solder some wires where the LED was to a new LED"
*But, EL Panels are not LEDs.

Now for my Question:

How should I run power to each EL Panel and how do they connect to the MegaKiosk DS-18 slot LEDs?

The EL panels should only be getting power from the Inverter.

I was thinking about wiring all the EL Panels to the Inverter such they all light up when the inverter it switched on.
Then find a way to break the circuit unless there is a signal coming from the MegaKiosk DS-18 active slot.

What do you guys think? Any engineers out there have an idea on how to do this?

THANKS!

Last edited:

nam9

Grand Master
Joined
Aug 24, 2015
Messages
794
Reaction score
587
Location
Norway
Remove all the leds, run connect the led +vs to the 8 input pins and inverter to Vcc.

Someone much smarter than me will explain why this is an extremely dangerous idea, but I think that’s the basics... Will all come down to your choice of relays...

Last edited:

SegaDude

Beginner
Joined
Jan 29, 2021
Messages
6
Reaction score
2
Location
Canada
Thanks guys!

Extremely dangerous? I was surprised to hear this. I'm guessing this means if not done correctly there a chance I'll damage some of the electronics involved?
Or is the risk more physical like shocking myself or causing a fire?

I watched these videos to give myself the basics of a relay:

View: https://www.youtube.com/watch?v=n9renPKEtUc


View: https://www.youtube.com/watch?v=n594CkrP6xE


I feel I understand the principles but I know I'm still over my head in practice when it comes to identifying what actual components to purchase and how they are wired together.

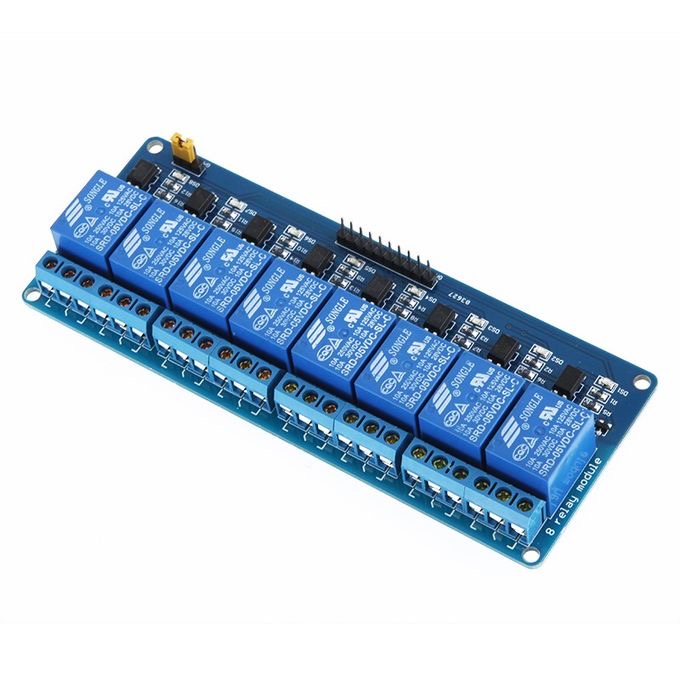

But knowing an 8 channel relay is what I need is a great start. I'm going to do some reading.


nam9

Grand Master
Joined
Aug 24, 2015
Messages
794
Reaction score
587
Location
Norway
I don’t see any resistors on the led lines, so they could be on 3.3v? You should test that voltage. You will want a 3.3v relay of that is the case. I don’t know what voltage the inverter deals with, but should be fine if the relays are rated for mains voltage...


SegaDude

Beginner
Joined
Jan 29, 2021
Messages
6
Reaction score
2
Location
Canada

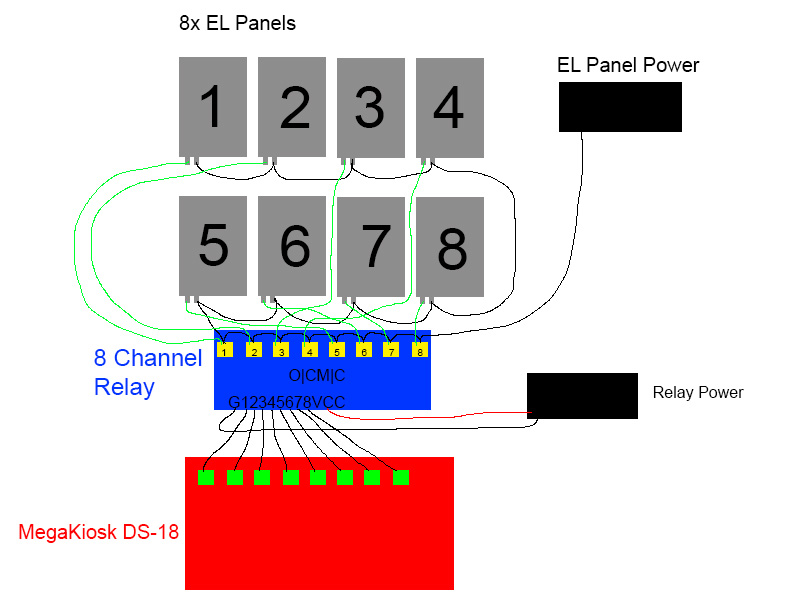

So here's my first attempt at mapping out how to connect all these components. I'm not at all confident that it's correct. I'd love to hear your advice.

MegaKiosk 8 Channel Relay Wiring 01.jpg


nam9

Grand Master
Joined
Aug 24, 2015
Messages
794
Reaction score
587
Location
Norway
Relay power and EL panel power are the same unit...

Last edited:

nam9

Grand Master
Joined
Aug 24, 2015
Messages
794
Reaction score
587
Location
Norway
The 8 input signals from the MegaKisok are switching the EL Power to the corresponding panel.


SegaDude

Beginner
Joined
Jan 29, 2021
Messages
6
Reaction score
2
Location
Canada
Thank you Nam9!

I wasn't sure if the amount of power powering the LEDs on the MegaKiosk would be enough to power the Relay.

In that case what am I wiring to the G and VCC pins on the Relay? Are they needed?

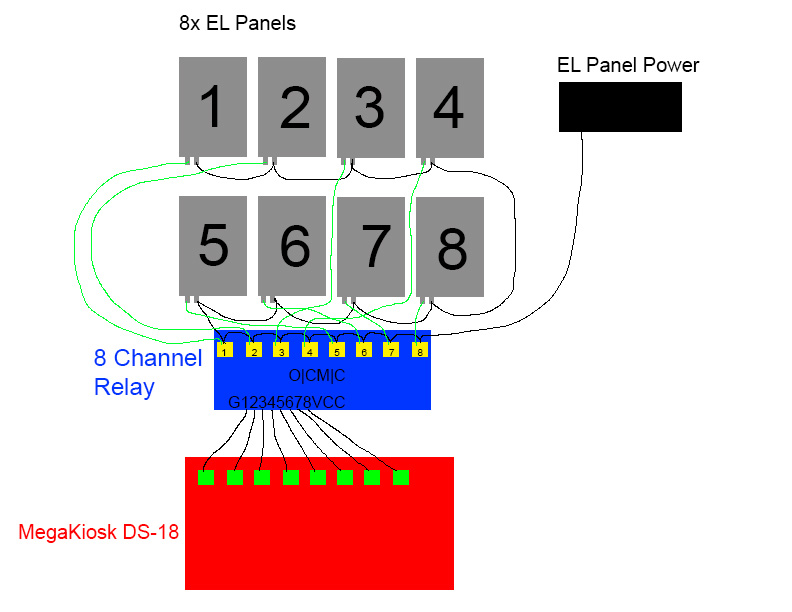

Update (Removed Relay Power):

MegaKiosk 8 Channel Relay Wiring 02.jpg


nam9

Grand Master
Joined
Aug 24, 2015
Messages
794
Reaction score
587
Location
Norway
Ok, no. I’ve made a mistake in my thinking here...

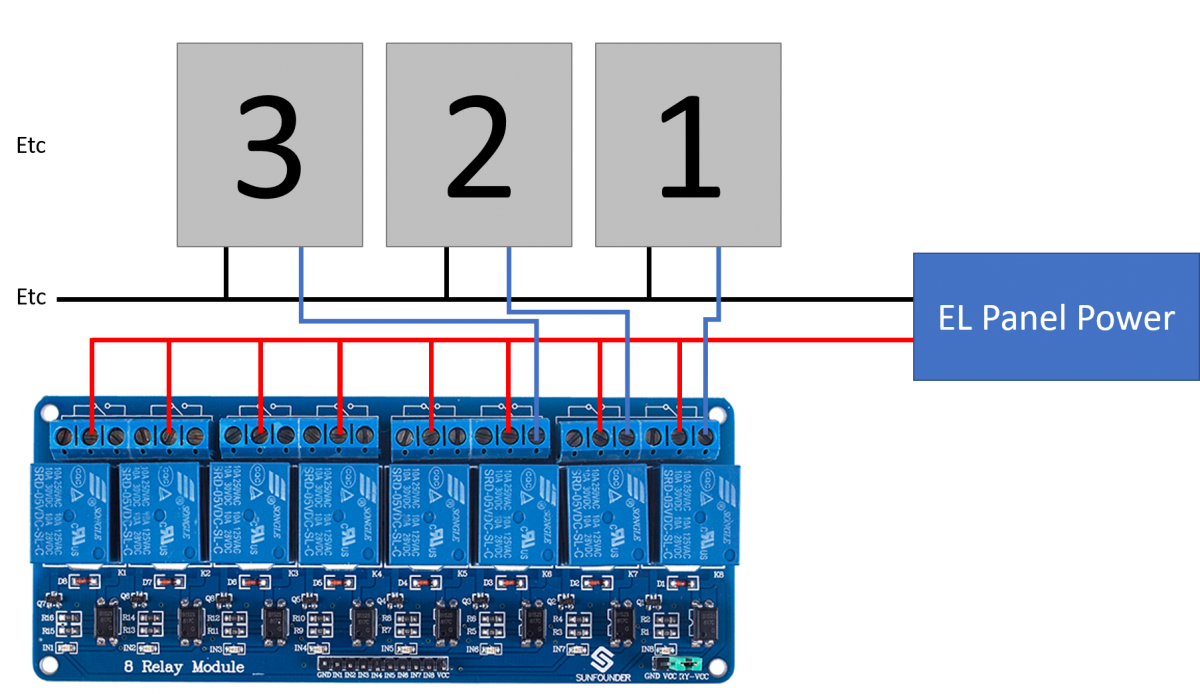

The EL power supply has positive and negative terminals. Daisy chain one side to the EL panels directly. Daisy chain the other side to the relay COM (your yellow boxes). To complete the switching circuits, place 8 wires from the NO (Normally open) terminals on each of the relays (yellow) to their corresponding panel.

I am not sure if you would choose the positive terminal or ground terminal to chain through the relays or if it would matter (but there is probably a best practice here).
Edit: The panels are AC, so guess it doesn't matter!

I am also not sure if you would need to connect Vcc on the input side of the relay to a power source if the led lines are supplying sufficient power to trigger the relays (you will still need to connect Gnd to your MegaKiosk). You could always tap a Vcc from the MK if needed.

Last edited:

SegaDude

Beginner
Joined
Jan 29, 2021
Messages
6
Reaction score
2
Location
Canada
Hey Nam9,
This is so great. Thank you for taking the time to create this diagram.

I do have a question and I'm going to feel silly asking.

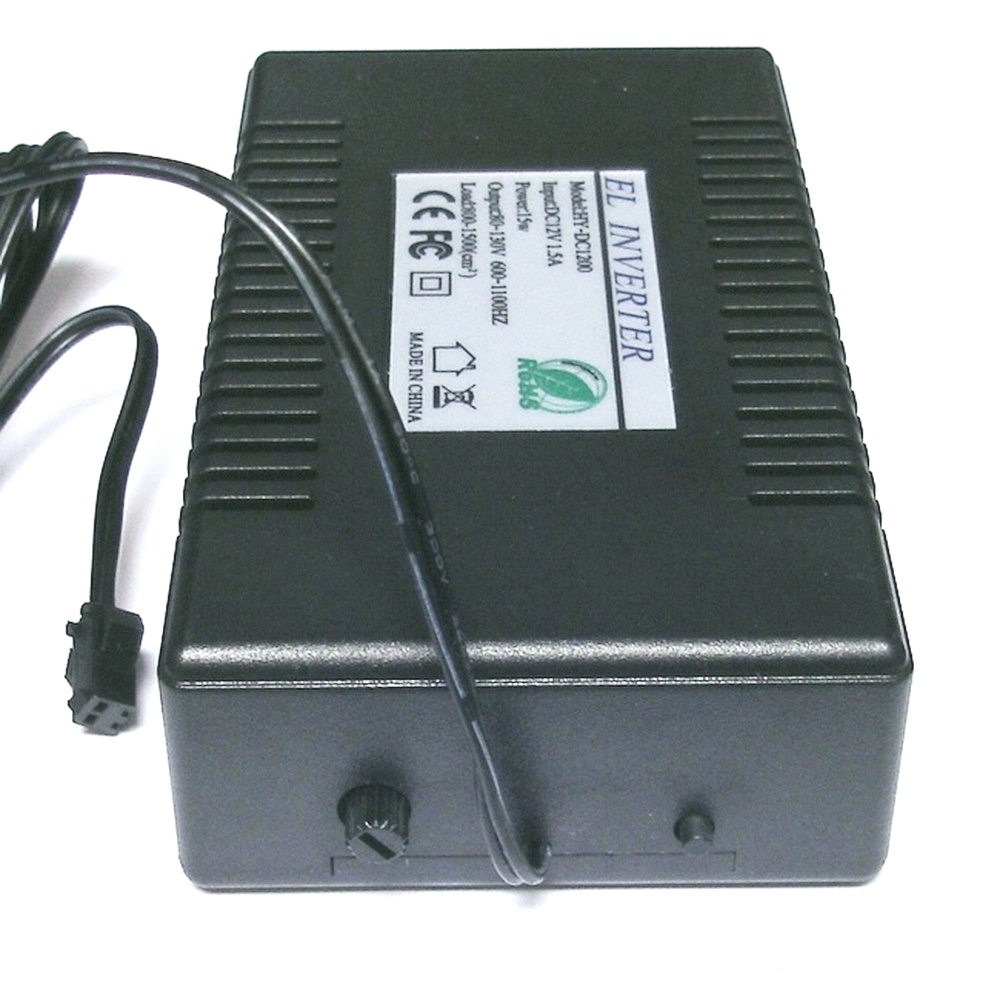

At some point I'm going to buy an EL Inverter and it will have two wires coming out of it.

Does one of these wires daisy chain to each EL Panel and does the other wire daisy chain to each channel on the Relay?



nam9

Grand Master
Joined
Aug 24, 2015
Messages
794
Reaction score
587
Location
Norway
Hey @SegaDude ,
We’re doing a few things at once here.
If you wanted to power one panel, then you would plug that one panel into your inverter (some caveats aside). That would be that.

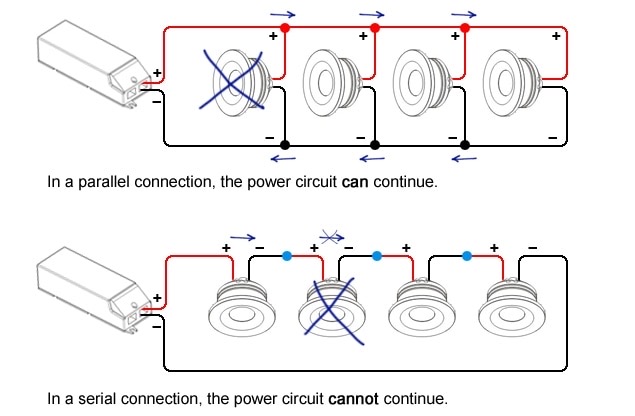

If you want to run more than panel from the inverter, you could either connect them in parallel or series:



(The blue crosses and arrows shows what happens to each circuit if one of the bulbs fails).

If you wanted to light everything at the same time this is what you would do.
What you want to do however, is to add a power switch to each bulb (or el-panel).
You then want each switch to switch itself on or off depending on the MegaKiosk game in play. That is the purpose of the relay. There are 8 of them acting as on/off switches for each panel. In my sketch, the overall circuit is identical to the parallel circuit in the diagram above, except the bank of relays sit between the inverter on one side and the panels on the other side.


SegaDude

Beginner
Joined
Jan 29, 2021
Messages
6
Reaction score
2
Location
Canada

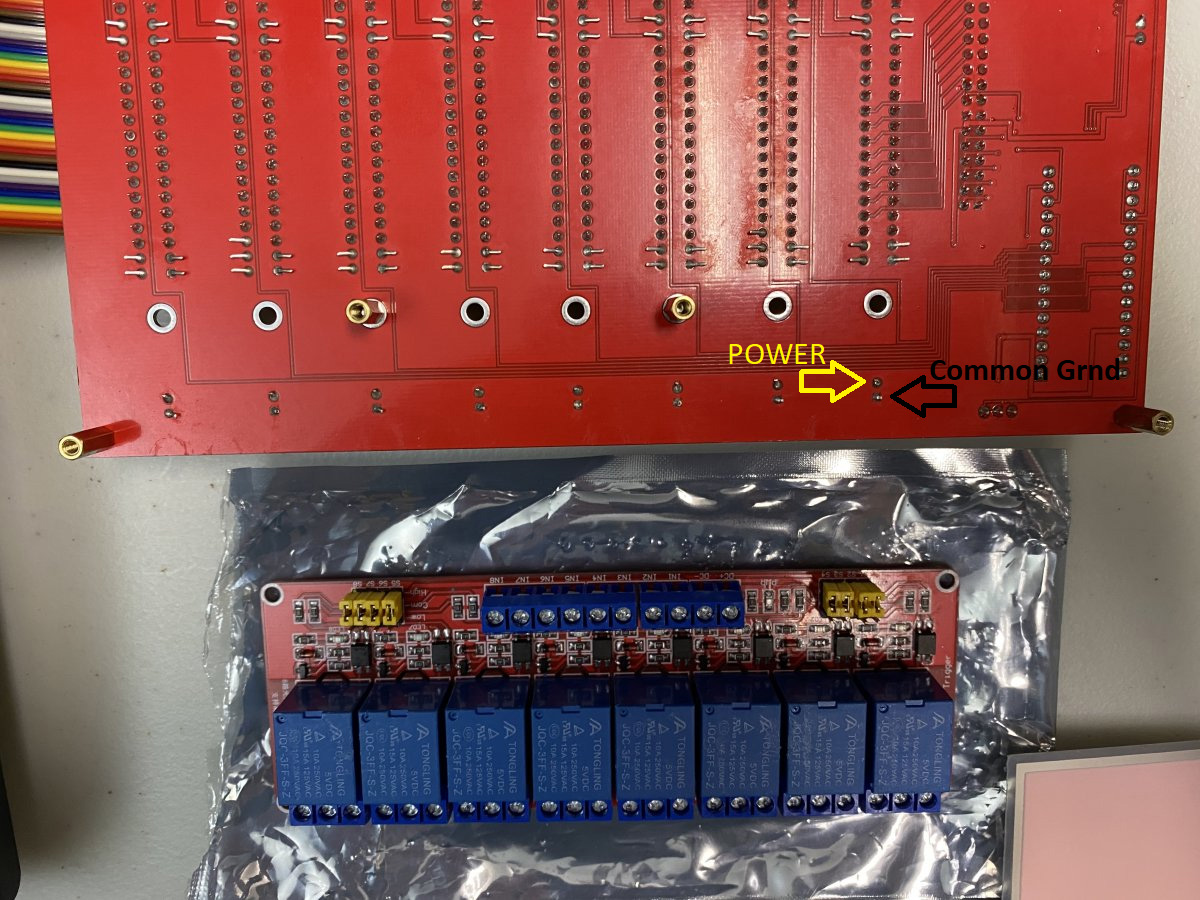

A while ago now I ordered an 8 Channel Relay, 8 EL Panel's and an inverter to power the EL Panels.

@nam9 you've given me a lot of help. Thank you!

I'm looking forward to being able to try this out.

No doubt when I have all the parts I'll be back with a few more questions :)
