Help me with figuring out how to wire stereo audio from CPS2/3 for New Versus City

[Mimiq]

Good evening!

Another thread in the list of issues and questions that I cannot seem to find the answers to myself:

As I understand it, jamma standard sends mono audio through the harness. For stereo audio, I would need separate connection going into the cabcoming from the RCAs on the CPS2/3 boards, and I (believe) these come in at line level for these 2 boards specifically.

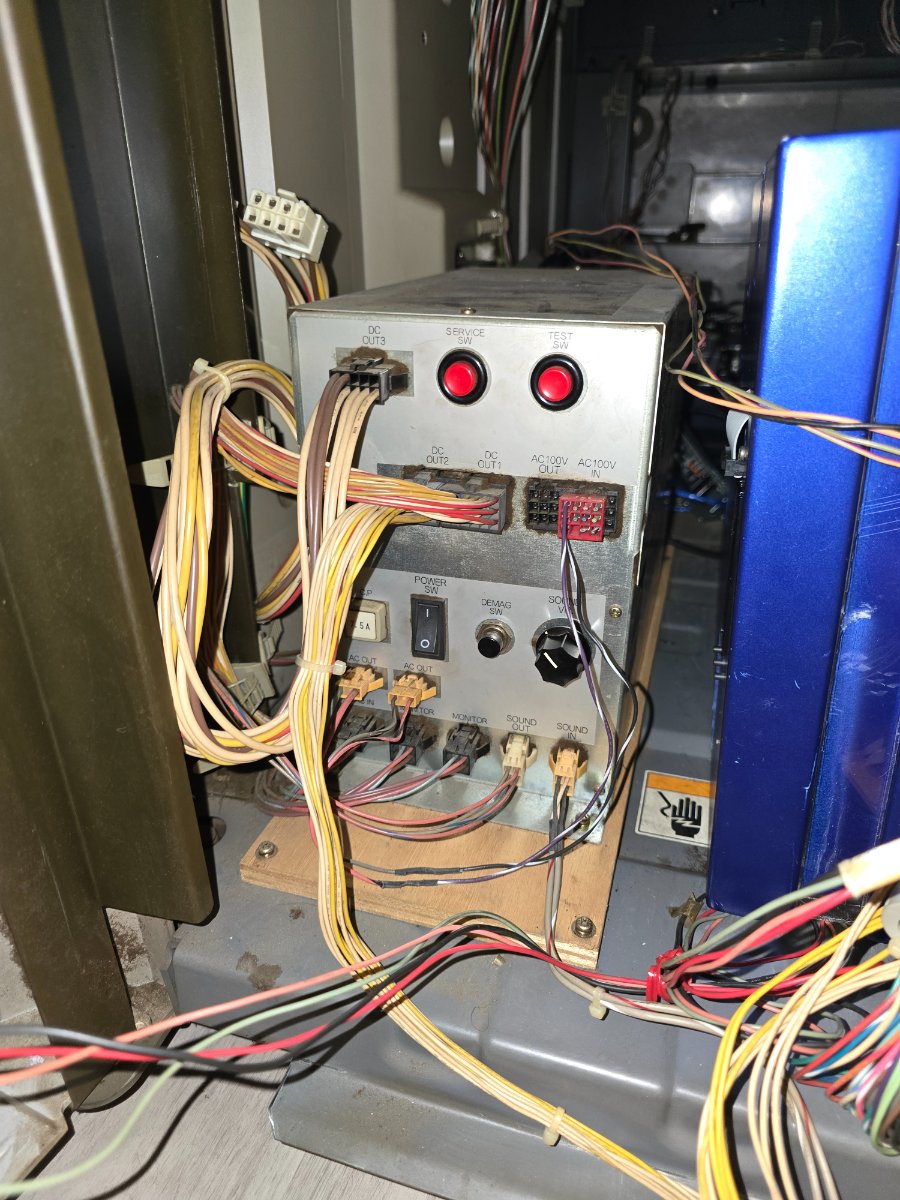

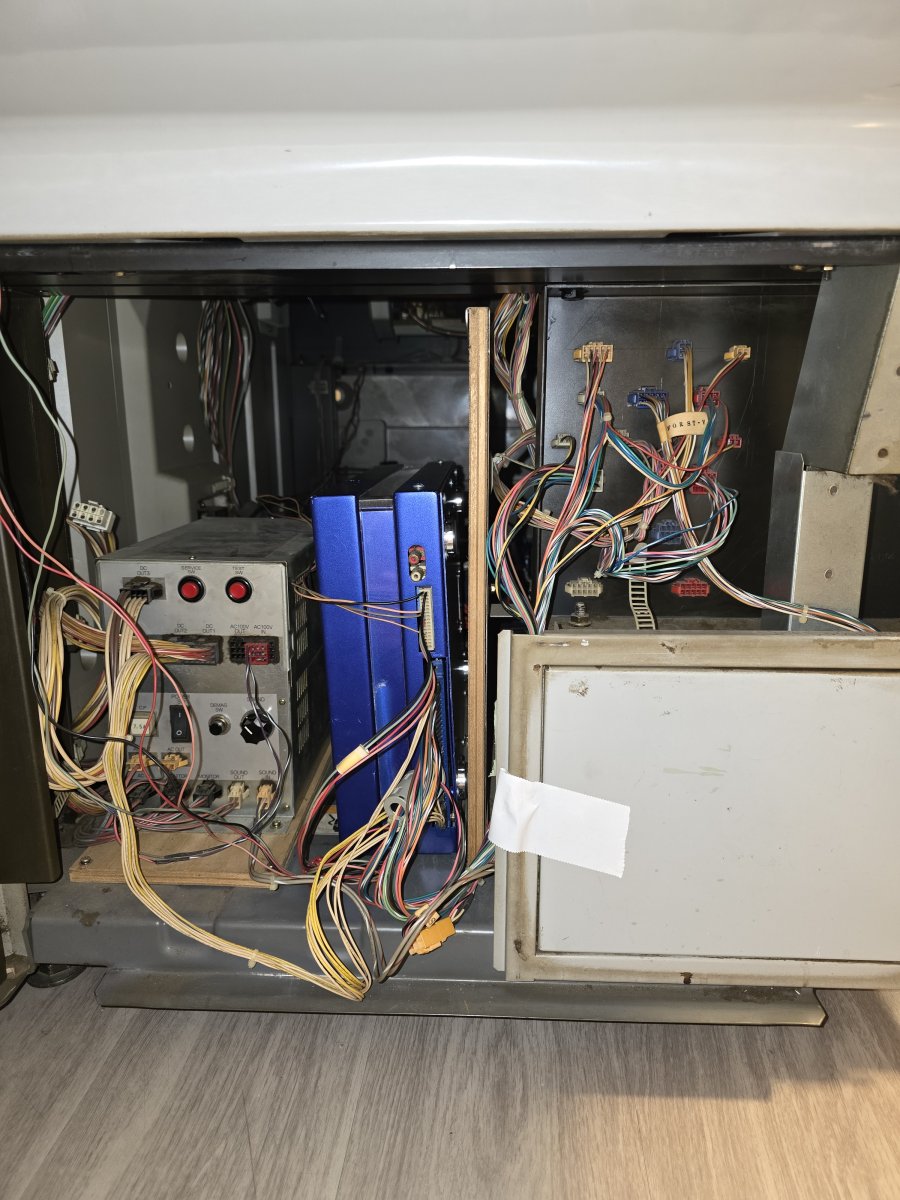

Attached are some pictures of the current wiring within my cab (messy, I know, still a WIP) can anyone tell me what I would need to get true stereo audio coming from the cab? From what I can find, I am almost positive the new versus cities are setup for stereo already.



[nipple]

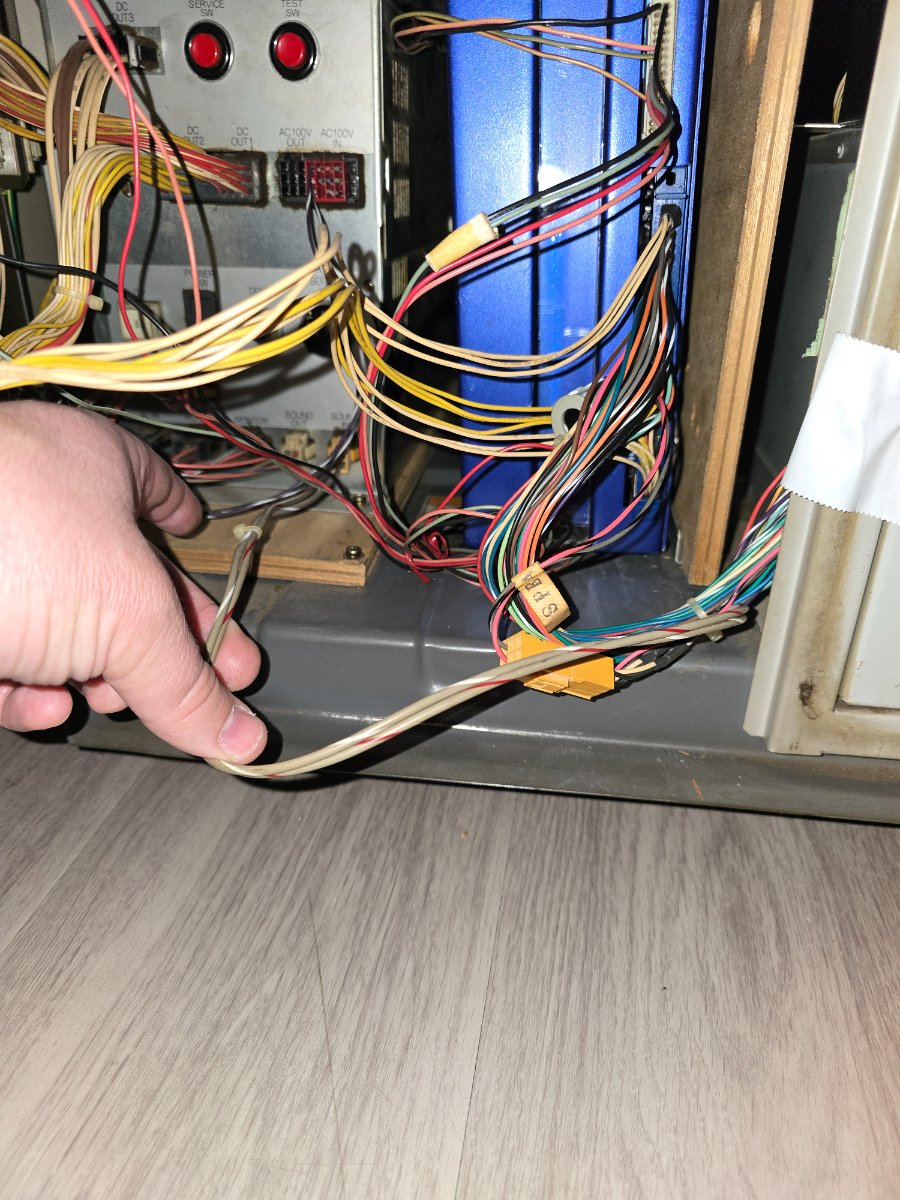

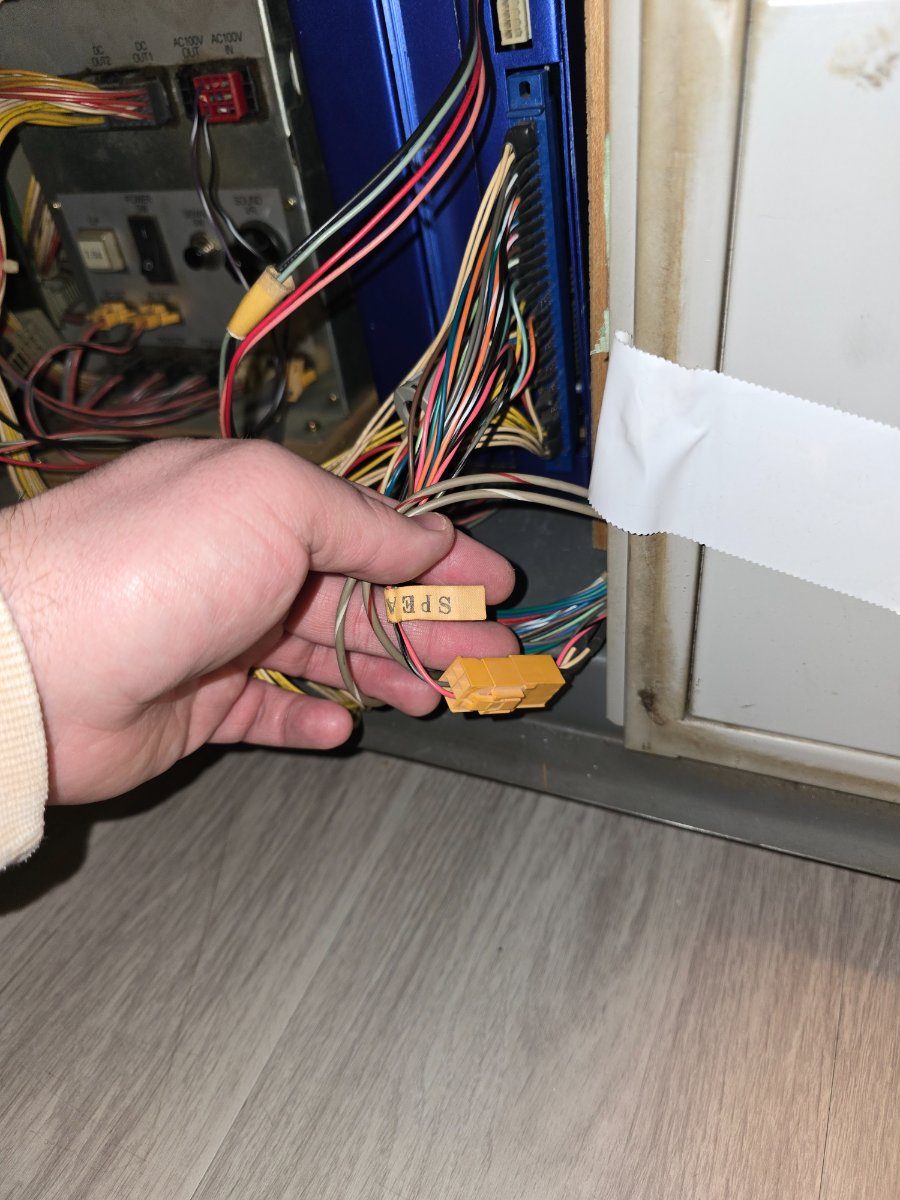

From what I can see the plug you are holding should be disconnected and the rca male plugs to the game board should plug into the right hand side of the plug you just disconnected.

I will get a pic



[nipple]

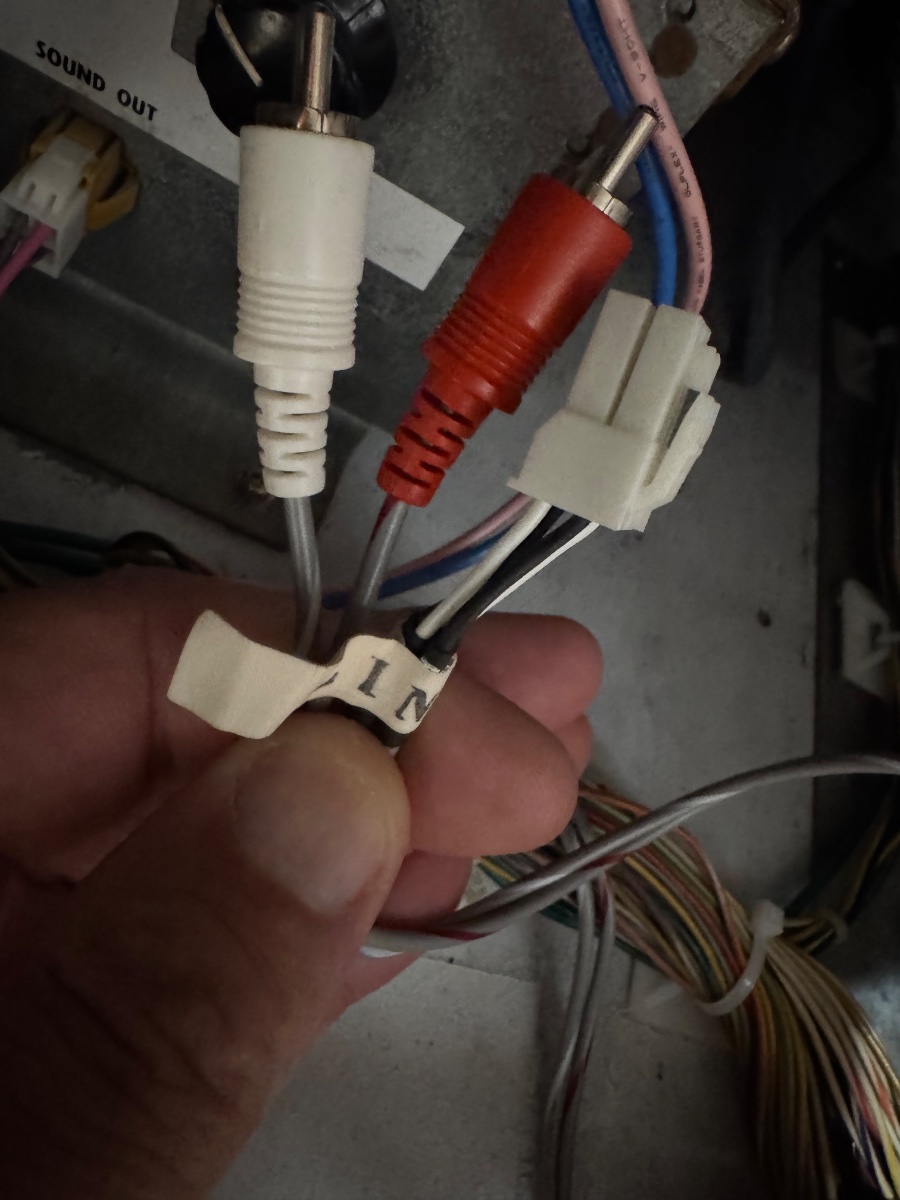

In that harness should be this piece. You unplug the one marked speakers and then plug into this one marked line.

Note the pink and blue wires in the background are not in the plug like it appears.



[Mimiq]

In that harness should be this piece. You unplug the one marked speakers and then plug into this one marked line.

Note the pink and blue wires in the background are not in the plug like it appears.

Thank you!!

Unfortunately it looks like that piece from my harness is missing/was removed from the previous owner.

I would just need an amp up 6 pin, and then putting the right pin-out in to obtain true stereo audio?



[nipple]

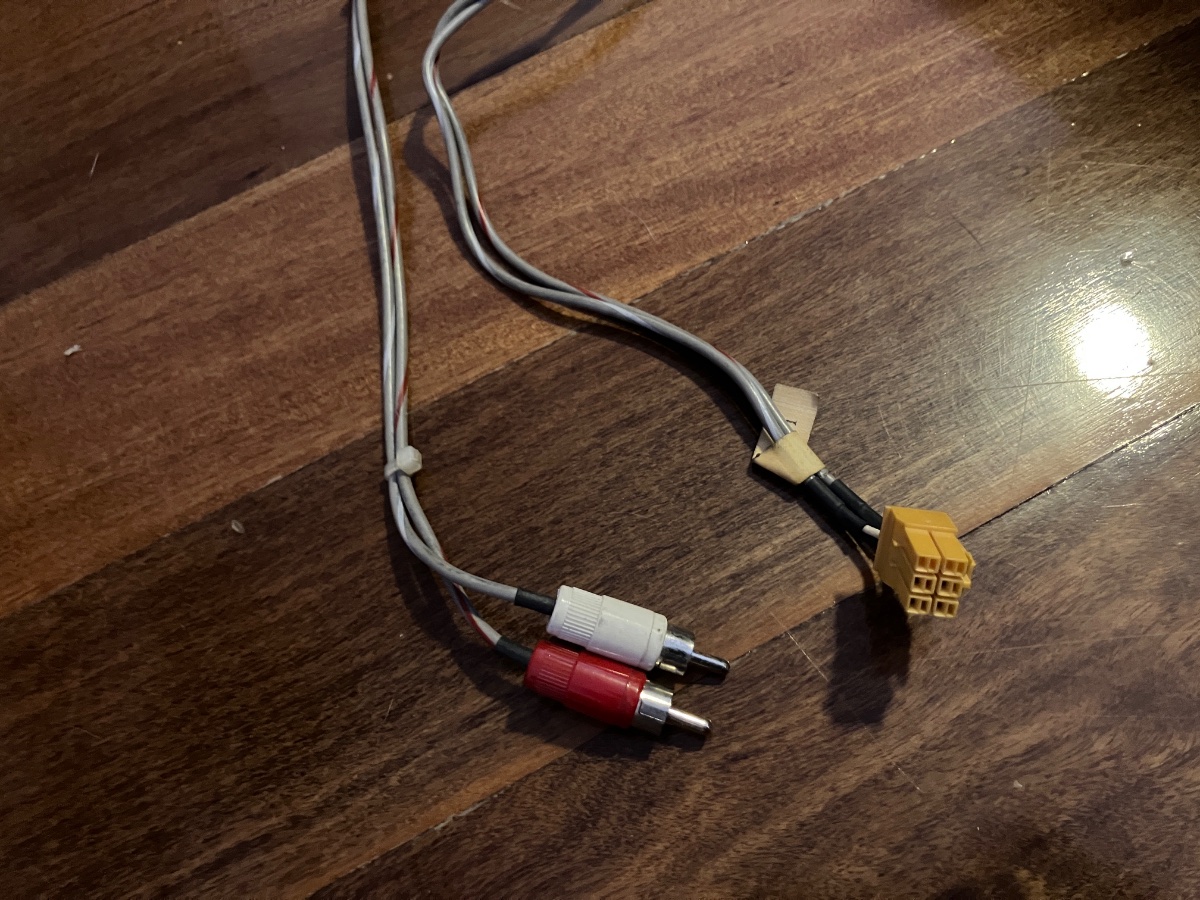

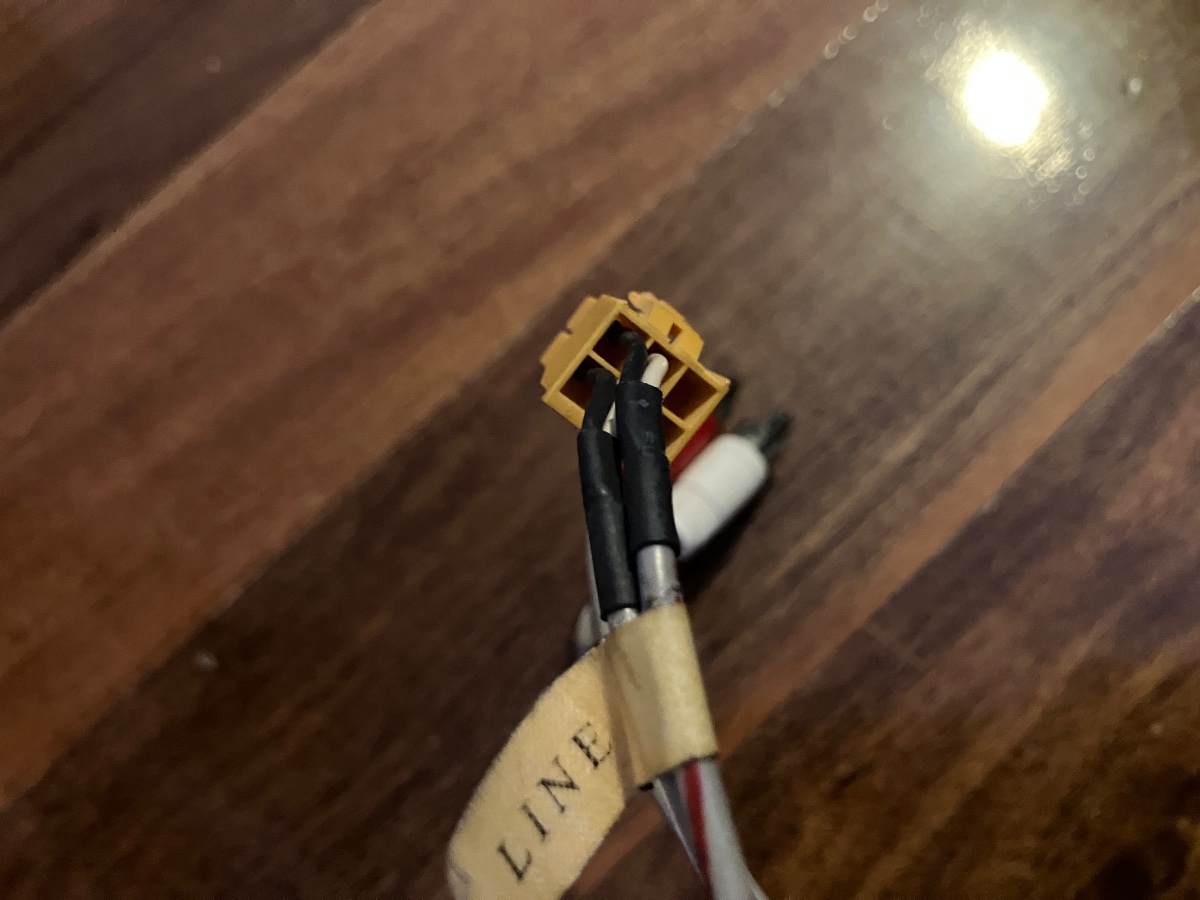

Correct like these pics



[Mimiq]

Correct like these pics

Amazing, thank you so much for the help!
