Interest Check: Vortex 161-in-1 carts BYOC edition (ya gotta have a cart to ship)

Pinballjim said:

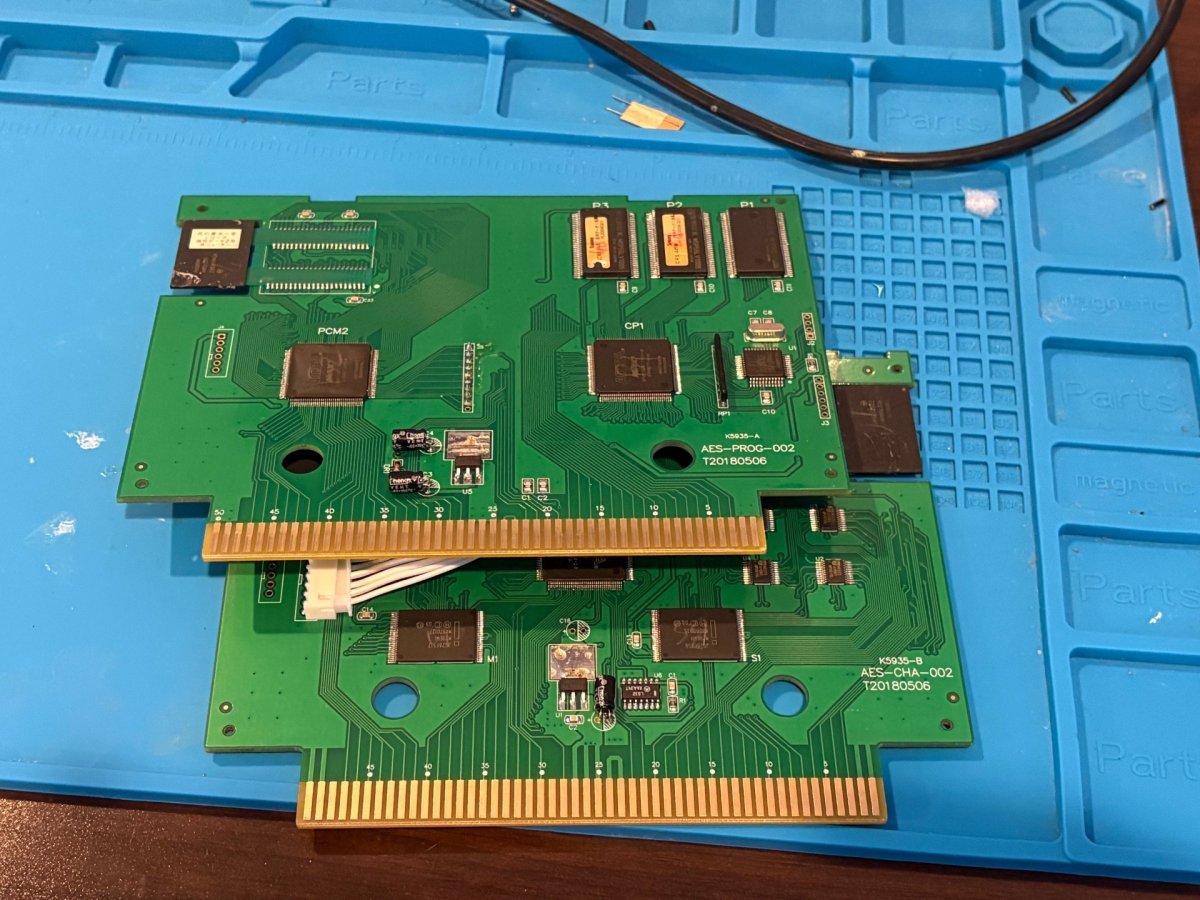

Here's a pic of the PCBs and the graphics glitch.
Click to expand...
Unfortunately there's not enough room in that version to do the mod with the whole library.



These two chips on the CHA board are what you're looking at.

Check to see if any of the pins are bridged, and if not, then you'll have to reflow. Whether it's the chip to the daughterboard or daughterboard to the main PCB, you'll have to figure out.

How much of the library could I cram onto it? There’s a lot of fighting games I’m indifferent to.

You were correct on the chip issue. I haven’t gotten it 100% but a quick reflow from the daughter boards to the main pcb cleaned up some of the games. More skilled hands could probably permanently fix that issue.

neoeli said:
Hi! I have an AES V3 cart here
Click to expand...

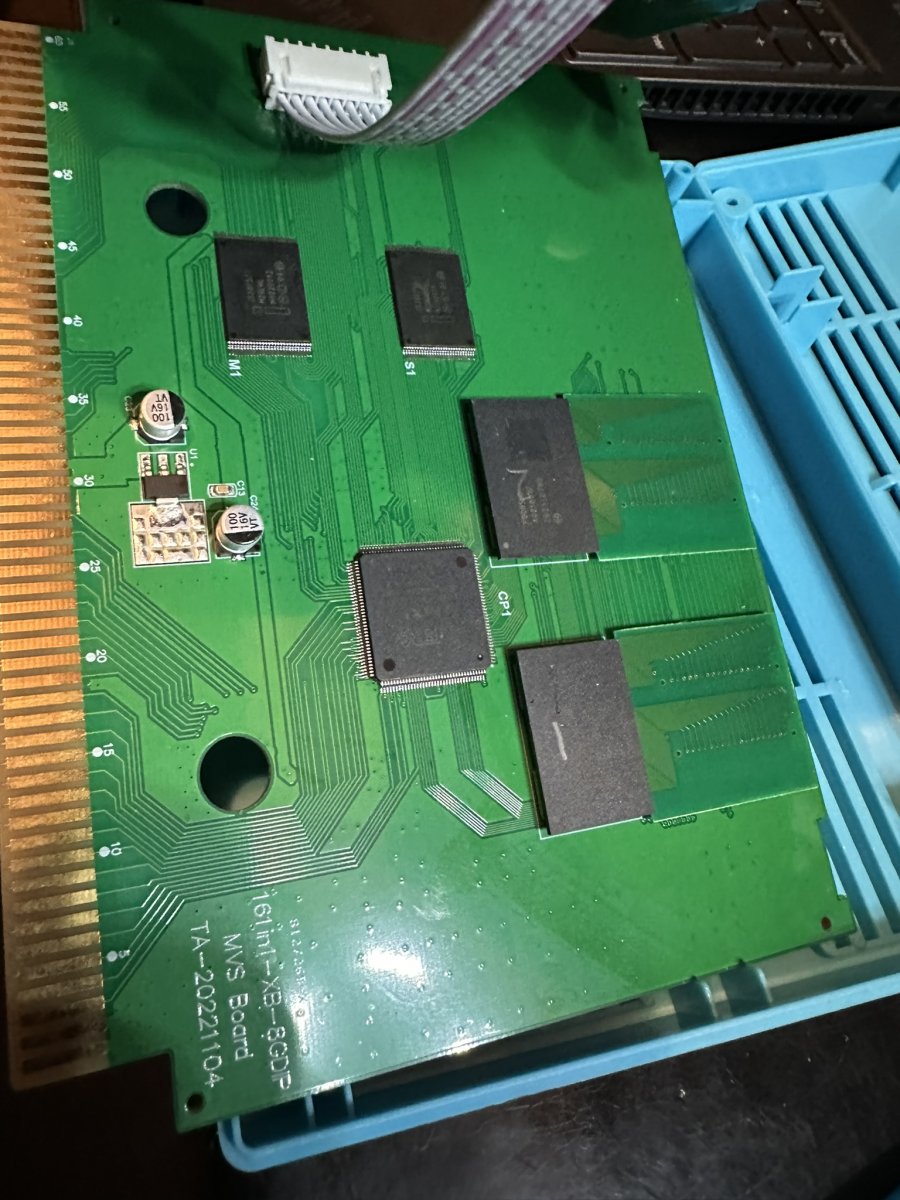

The AES V3's seem to come in two revisions. If you could kindly pop it open for me and make sure it does NOT look like this. You want the bigger chip on the left to be on a daughterboard, not this style.

This bad:


This good:



Let me know if you have the good one, and if so I'll shoot you a message and get the ball rolling :)

rewrite said:
The AES V3's seem to come in two revisions. If you could kindly pop it open for me and make sure it does NOT look like this. You want the bigger chip on the left to be on a daughterboard, not this style.

This bad:


This good:



Let me know if you have the good one, and if so I'll shoot you a message and get the ball rolling :)
Click to expand...
great, i'll take a look, tks

Pinballjim said:
:( Am I off the list?
Click to expand...
Like I said, your cart isn't the right kind to do the whole library. I haven't got any sort of partial library setup going at this time, so there's not much I can do for you.

*Supposedly* this seller has carts available still at a normal price. I haven't ordered any, but a gent over in the RE thread said they have them.

https://m.alibaba.com/x/x8LzqCC?ck=pdp

Ah.. I'm looking for AES, but that's good to know. Can I get you to reflow the solder on my chips? Seems like one game works, two get glitchy every time I touch it. ||

Pinballjim said:
Ah.. I'm looking for AES, but that's good to know. Can I get you to reflow the solder on my chips? Seems like one game works, two get glitchy every time I touch it. ||
Click to expand...
I'm happy to do that.

I'll shoot you a PM with my address. If you don't mind waiting a few weeks, probably into January, I will look into this type of PCB. I ended up with one here on accident and now if there are two of them it's probably worth looking into, but I'd like to finish up this set first. Shoot me back a "must have" and a "don't care about" list of games, and we'll see what fits on two chips and see how much of a pain these ones are, ha.

I know a few of you guys had the STILT carts that just have the two C roms and no room for a third, and I'll be taking a look into those in a few weeks here. @Pinballjim came up with a nice game list that fits basically everything except the KoF series and a few other things that should fit on there. If so I'll be offering BYOC services on those as well for $25 less (one chip fewer to buy, program, and solder, otherwise it's the same amount of work).

rewrite said:
I know a few of you guys had the STILT carts that just have the two C roms and no room for a third, and I'll be taking a look into those in a few weeks here. @Pinballjim came up with a nice game list that fits basically everything except the KoF series and a few other things that should fit on there. If so I'll be offering BYOC services on those as well for $25 less (one chip fewer to buy, program, and solder, otherwise it's the same amount of work).
Click to expand...
Great news! I think I have one of those carts, will definitely take you up on this.

Last edited:
SparkTR said:
Great news! I think I have one of those carts, will definitely take you up on this.
Click to expand...
I should be looking into this weekend after the coming one. If I forget to PM you, REMIND ME.

Interesting, ill have to pull the 161 out of my mvs and take a look at what ver it is. I'd be interested in doing this..

donannis said:
Interesting, ill have to pull the 161 out of my mvs and take a look at what ver it is. I'd be interested in doing this..
Click to expand...
Post a pic here and we'll get you taken care of if possible! Label doesn't mean much so you'll have to pop it on open.

@SparkTR

This is the 2 CROM game list unless anyone has some major complaint about it. Soccer games are gone, same with the quiz games, stakes winners are gone, SamSho 1 and 2 are removed, FF's and KoF's also removed. Otherwise the same as the 3 C rom list (plus shinobi if it ends up working, if not, it's uh, on the menu.)

tstsuite
3countb
sonicwi2
sonicwi3
aodk
alpham2
androdun
aof
aof2
aof3
b2b
bangbead
bstars2
bstars
flipshot
blazstar
bjourney
breakers
breakrev
burningf
pbobblen
pbobbl2n
ctomaday
crsword
crswd2bl
cyberlip
doubledr
eightman
kabukikl
fightfev
galaxyfg
ganryu
garoub
gpilots
ghostlop
gururin
froman2b
ironclad
karnovr
kotm
kotm2
kizuna
lresort
lbowling
legendos
magdrop2
magdrop3
maglord
maglordh
mahretsu
moshougi
matrimb
mslug
mslug2
mslug2t
mslug3b
mslug4b
mslug5b
mslugx
minasan
miexchng
mutnat
nam1975
neobombe
neodrift
neomrdo
turfmast
neocup98
neotrisb2
nitd
ncombat
ncommand
ninjamas
overtop
panicbom
pgoal
pnyaa
popbounc
pspikes2
preisle2
pulstar
puzzledp
puzzldpr
joyjoy
rotd
ragnagrd
rchase
ridhero
roboarmy
samsho3
samsho4
samsho5
savagere
sengoku
sengoku2
sengoku3
shinobi
shocktro
shcktroa
shocktr2
svcb
spinmast
stakwin
stakwin2
strhoop
s1945p
2020bb
sdodgeb
teot
irrmaze
lastbld2
superspy
trally
tophuntr
tpgolf
twinspri
viewpoin
gowcaizr
wakuwak7
wjammers
wh1
wh2
wh2j
whp
xenocrisis
zedblade
zintrckb
zupapa
