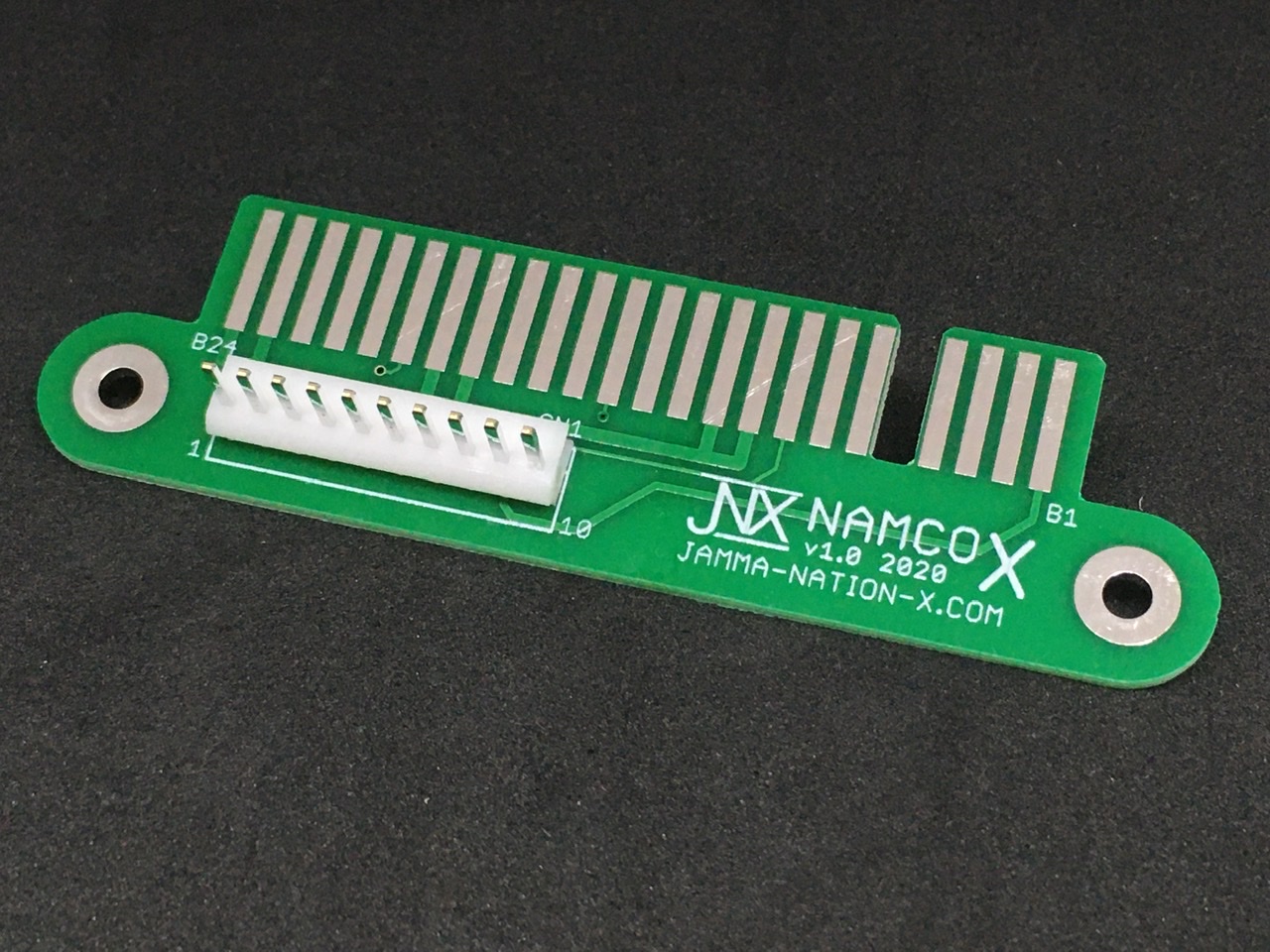

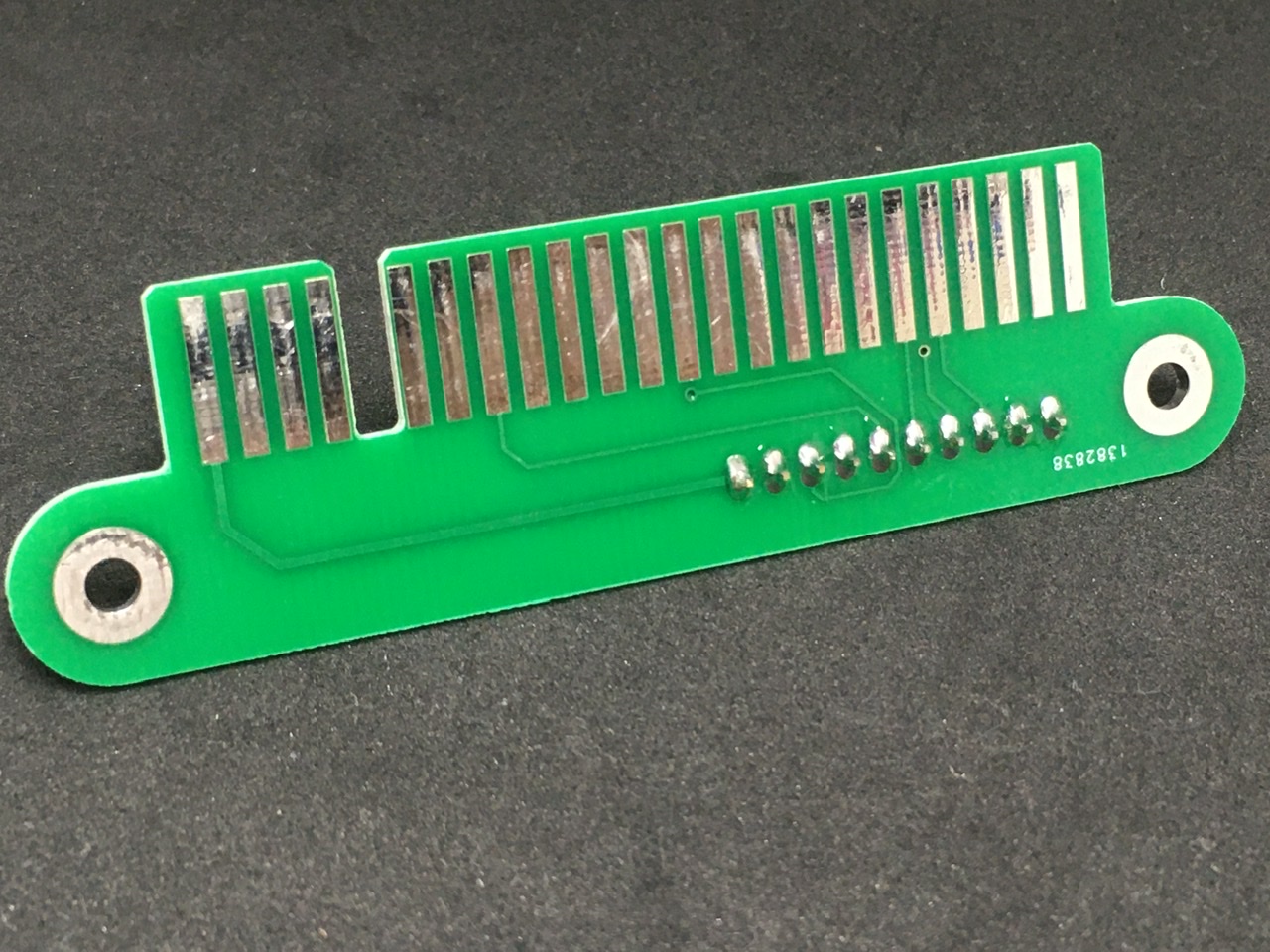

This is the Namco X, it is made for people running dedicated Namco System 11 & 12 game cabinets and want to play other non-Namco fighting games. The Namco X plugs into the stock Namco 48 pin kick harness (Looks like a mini Jamma harness).

The adapter supports 6 button fighters as well as the Stereo Right audio channel (Special loom required).

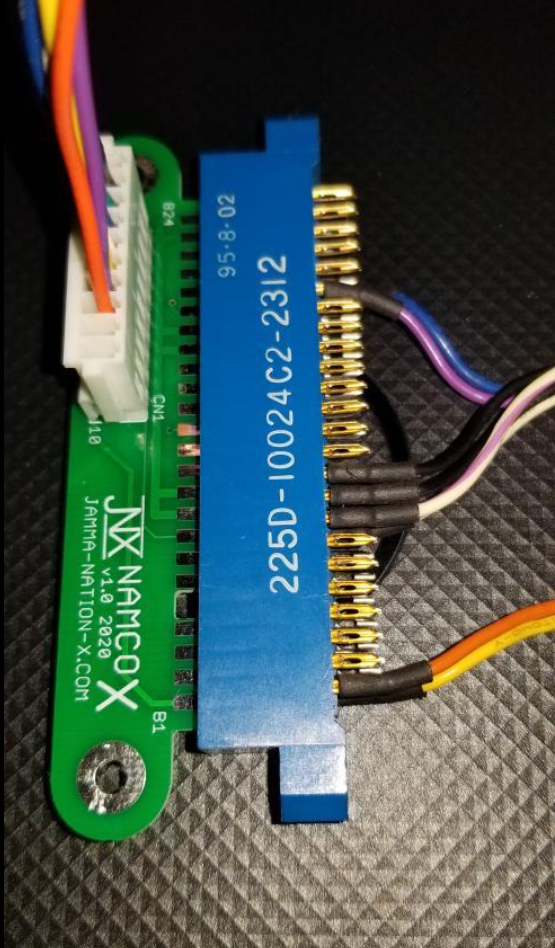

Each adapter comes with a 2ft loom to plug into the 10p JST connector to terminate to the kick harness you prefer like CPS1, CPS2, Midway H1, STV, F3, etc.

Pricing:
Namco X w/loom of choice - $14
Additional looms - $5


Attachments

  • 54B52C8A-5F30-4502-9968-E2E5C2B39BCF.jpeg
    390.7 KB · Views: 291
  • 0BDA257C-330A-4BDB-AC3D-037BC1338B5B.jpeg
    384.3 KB · Views: 246
  • 5E8BE8A2-77BD-423C-8835-B3FC37079814.jpeg
    481 KB · Views: 312
