kinooshi823
Professional
Yeah I asked him to shoot me pics so hopefully I get em sooncall him and ask him to send you pictures of his cabinet: the wiring, the IO, everything... post 'em here!
- Thread starter kinooshi823
- Start date
Yeah, I'm really interested in what the power supply configuration looks like because the original NNC PSU is NOT compatible with the Lindbergh but Sega did make Kits to replace the PSU and wiring to make it compatible.
Also I grabbed the Virtua Tennis 3 manual, and it does claim that it supports 31Khz resolution and installation into a NNC (so long as the PSU has been upgraded).
Also I grabbed the Virtua Tennis 3 manual, and it does claim that it supports 31Khz resolution and installation into a NNC (so long as the PSU has been upgraded).
kinooshi823
Professional

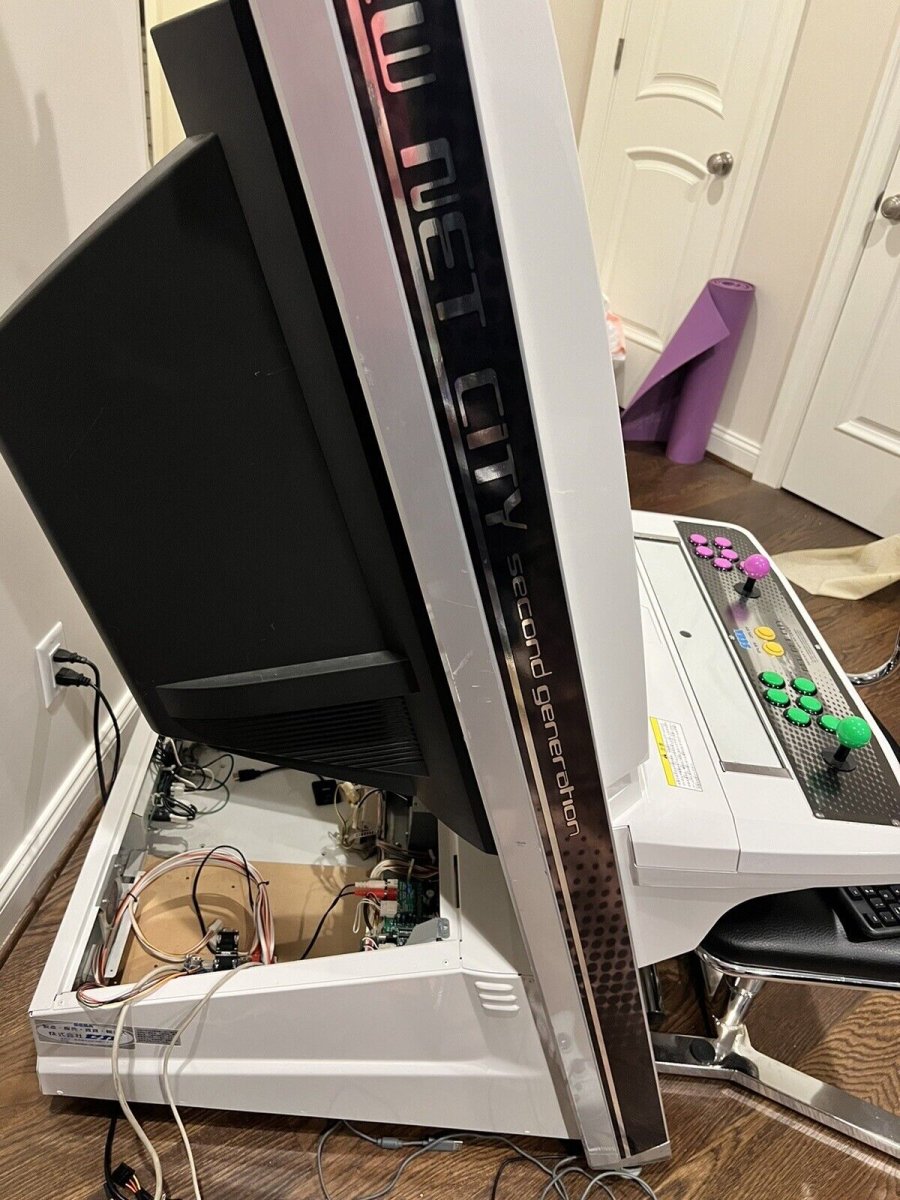

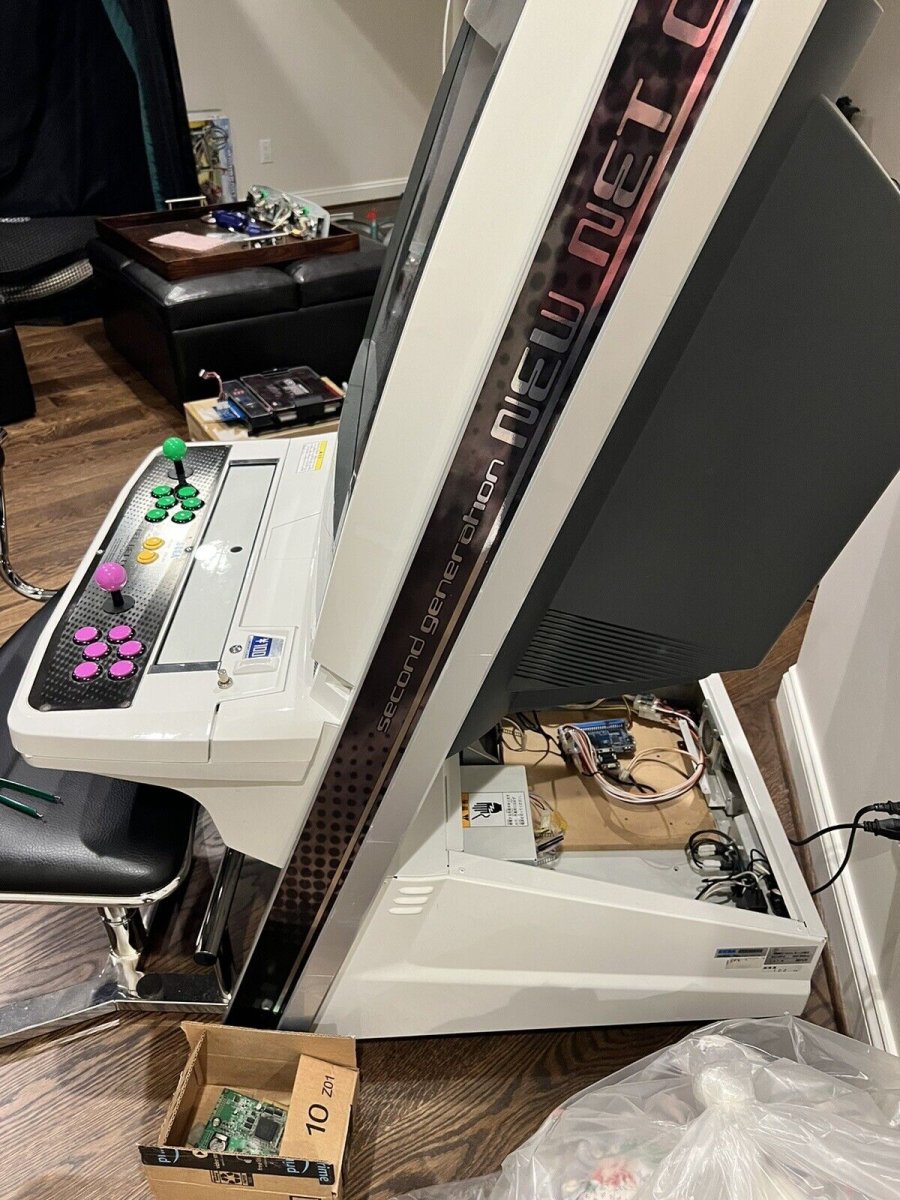

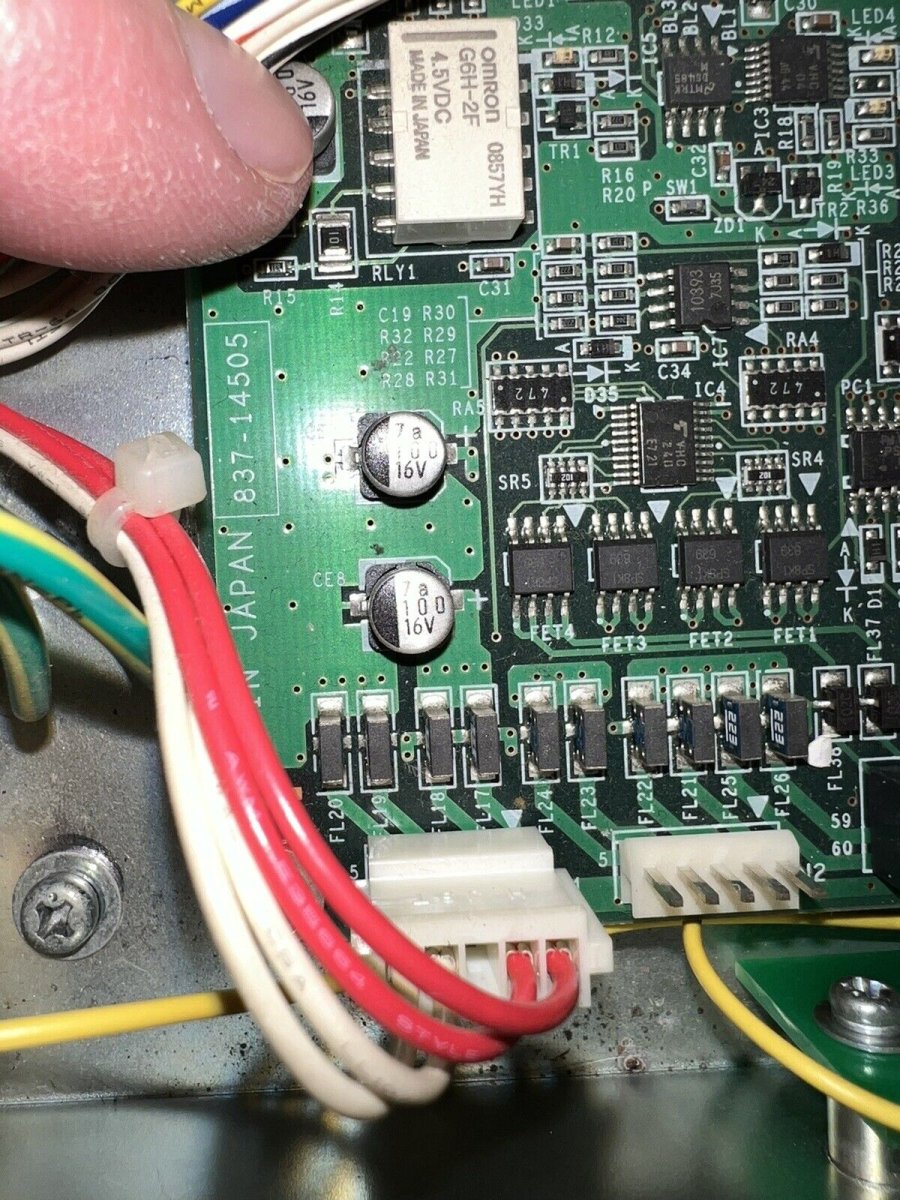

So he's running I/O board 837-14505 which I assume is a later rev it seems. He is using the same style PSU although the one I have is 700watts. He also says he has an RE2 multi which works fine. Wouldn't the ringedge 2 work better on a new net city since the majority of games were 2D right? I read somewhere where dip 5 pushes 480 res to work on a crt. Now, if the lindbergh needs dip settings to work on a crt to those that support it, then can it be what notsonic said and the I/O he has is causing the possible errors? That would mean upon boot that the multi runs a check and somehow there is a miscommunication between the multi's program and I/O which would cause the errors to show in the earlier pictures?
Don't know if anyone remembers but when I got the my first jamma I/O for this, it didn't work although I didn't get the errors he was getting but it took for me to buy a different rev board and it worked. So in trying to isolate the issue, to me its the cab and possibly the I/O board he has to cause the issue. What do you guys think?
EDIT: I looked up the model of the I/O and its a Noami/Triforce/Chihiro Type 1
Also, I noticed I did not see a vga port so that tells me that its getting video by other means right?
@Mrhide
@twistedsymphony
@notsonic
Don't know if anyone remembers but when I got the my first jamma I/O for this, it didn't work although I didn't get the errors he was getting but it took for me to buy a different rev board and it worked. So in trying to isolate the issue, to me its the cab and possibly the I/O board he has to cause the issue. What do you guys think?
EDIT: I looked up the model of the I/O and its a Noami/Triforce/Chihiro Type 1
Also, I noticed I did not see a vga port so that tells me that its getting video by other means right?
@Mrhide
@twistedsymphony
@notsonic
Attachments
Mrhide
Enlightened
So i see:
a jvs to jamma
a vga to hdmi
and the jvs card with an additional thing plugged it in (the blue connector)? What is that? Is that the jvs to jamma? I dont own these so not certain. Can he go in test mode and run the jvs input test? Does it work?
The rest is pretty standard, like my american naomi universal, which can run the lindbergh fine here :
a jvs to jamma
a vga to hdmi
and the jvs card with an additional thing plugged it in (the blue connector)? What is that? Is that the jvs to jamma? I dont own these so not certain. Can he go in test mode and run the jvs input test? Does it work?
The rest is pretty standard, like my american naomi universal, which can run the lindbergh fine here :
kinooshi823
Professional

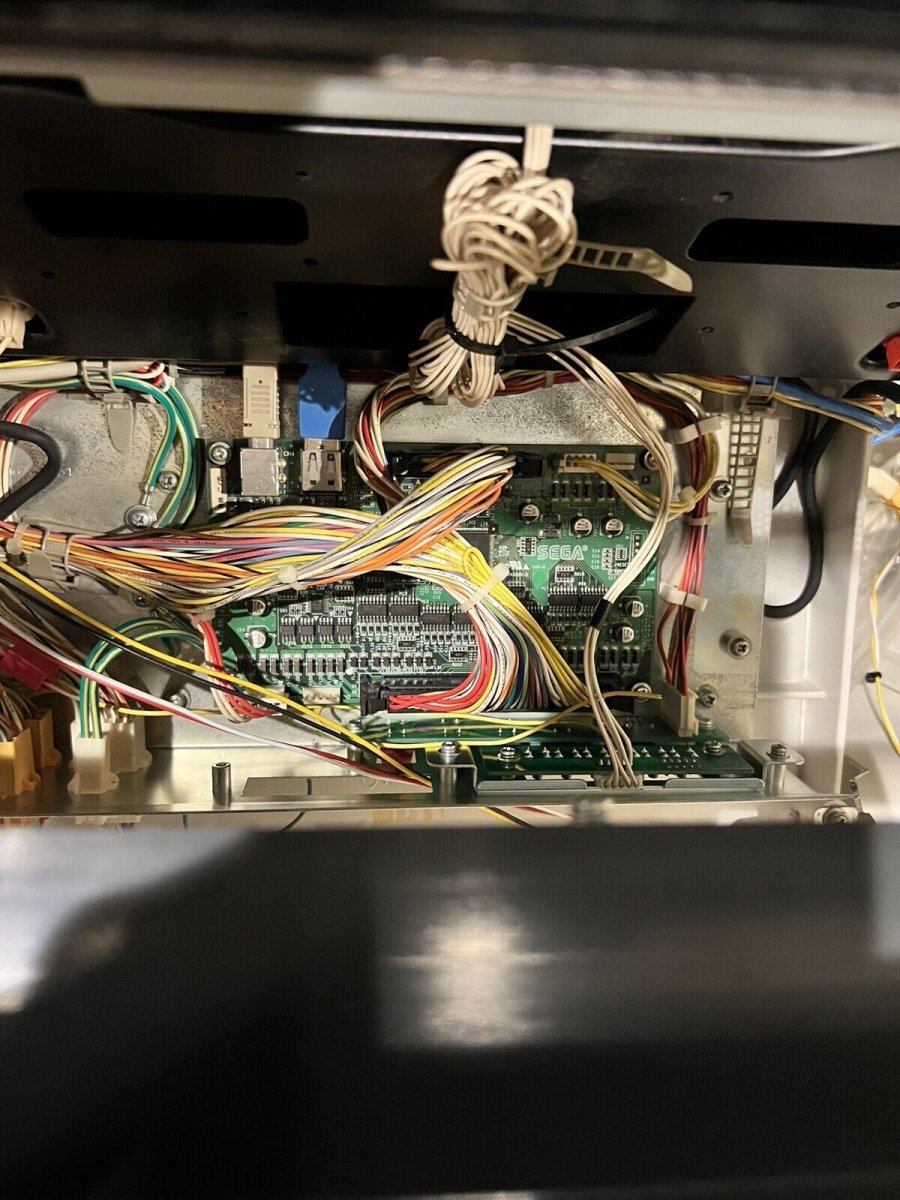

I messaged him to see if he can send me more pics of that area.So i see:
a jvs to jamma
a vga to hdmi
and the jvs card with an additional thing plugged it in (the blue connector)? What is that? Is that the jvs to jamma? I dont own these so not certain. Can he go in test mode and run the jvs input test? Does it work?
The rest is pretty standard, like my american naomi universal, which can run the lindbergh fine here :
I am thinking more of an I/O issue not being compatible even if his cab can run ringedge 2 fine, it has to be the I/O but looking up the rev of that board, that I/O can be found in Let's Go Jungle for the lindbergh, unless somehow, the multi itself has incompatibility issues with the multi. I remember recently I had to buy 2 JAMMA Sega I/O's just to navigate the menus and successfully play lindbergh on my supergun since the first JAMMA I/O I got didn't work. This is frustrating, lol
That IO that he's running is a Sega Type 1.5, which is indeed a Lindbergh IO.
However he's got the JVS output on the IO populated (The blue cable that MrHide pointed out), so does he have a Versus link board in this cab? Secondary links in the JVS chain could cause an issue I'd recommend unplugging that.

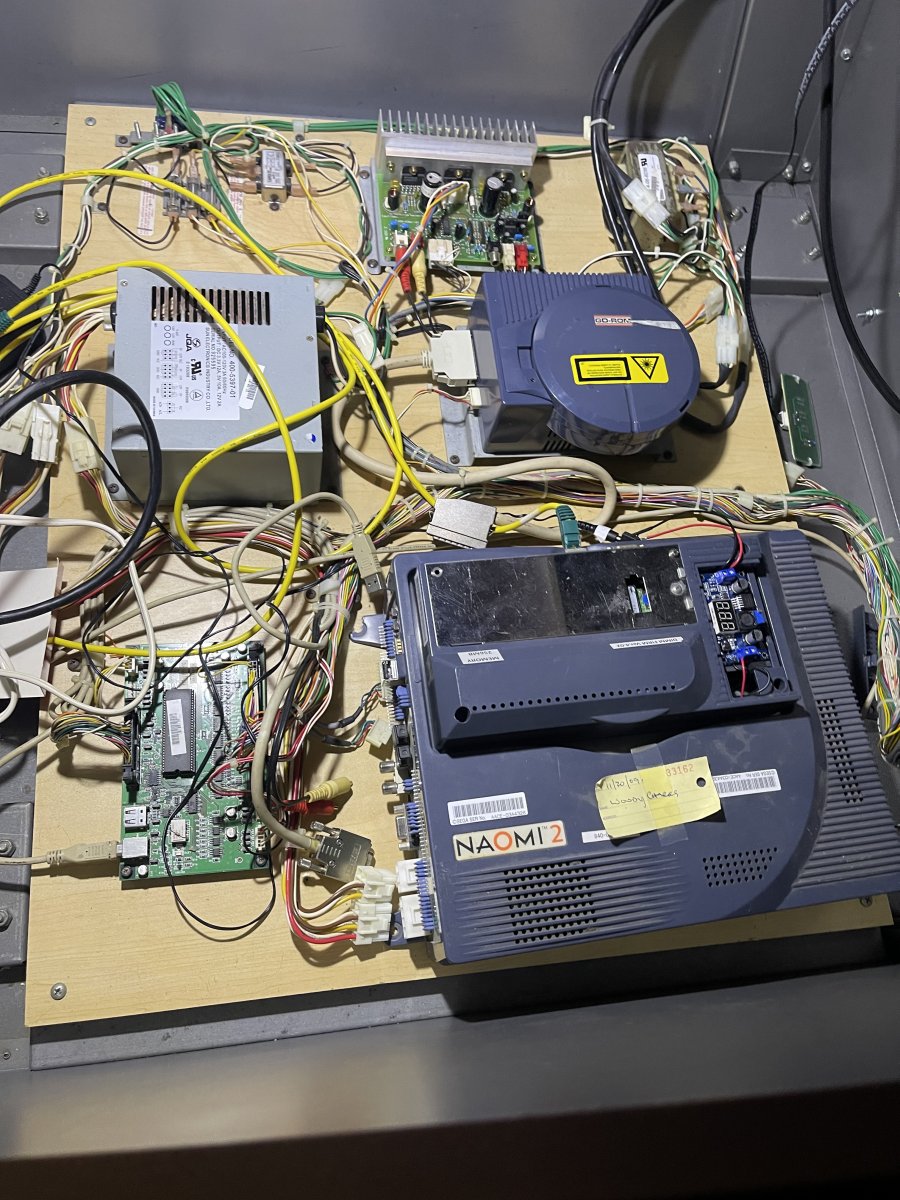

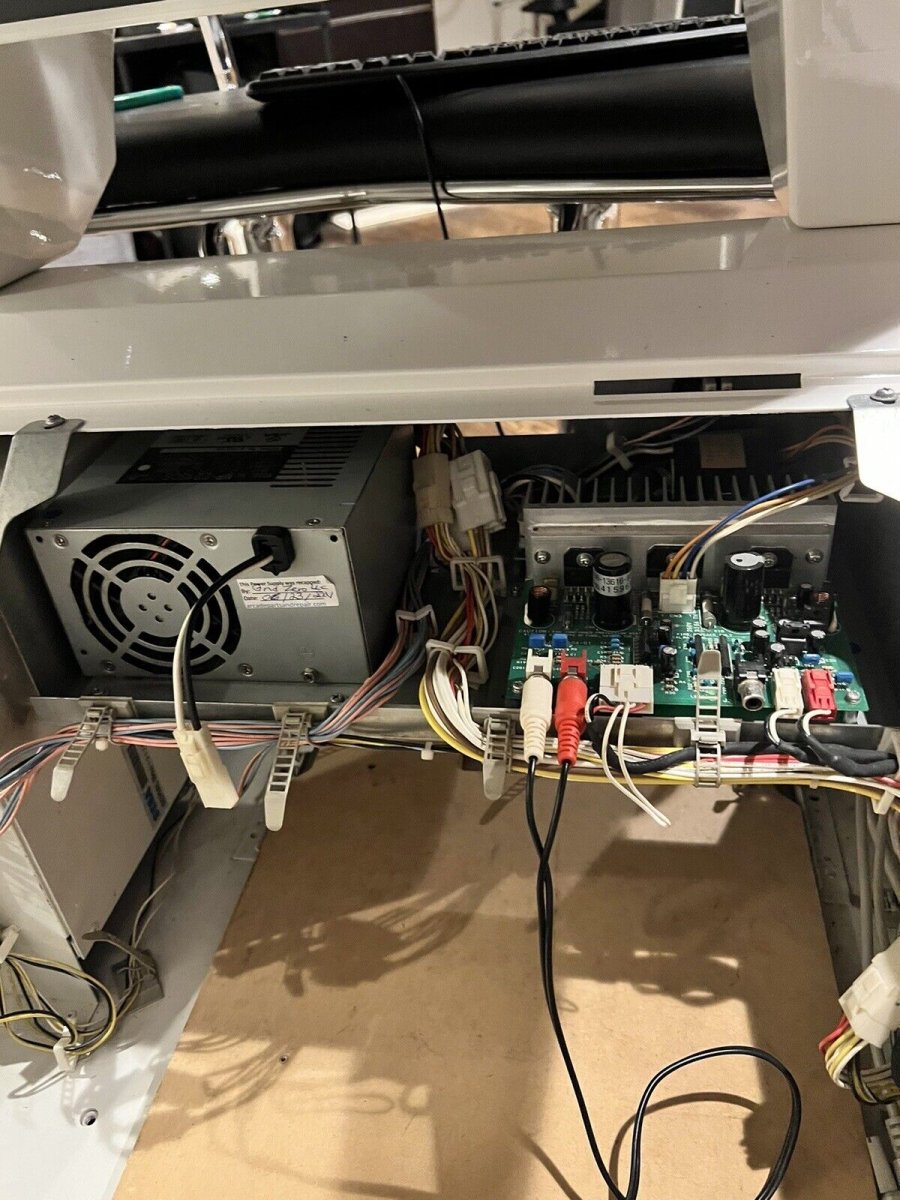

I also have no idea how he's powering the Lindbergh from that NAOMI PSU, none of the pictures show that connection and it shouldn't be compatible.
However he's got the JVS output on the IO populated (The blue cable that MrHide pointed out), so does he have a Versus link board in this cab? Secondary links in the JVS chain could cause an issue I'd recommend unplugging that.
I also have no idea how he's powering the Lindbergh from that NAOMI PSU, none of the pictures show that connection and it shouldn't be compatible.
kinooshi823
Professional
He said the blue cable is not connected to anything. For video he is using a male vga from the lindbergh to usb connection.

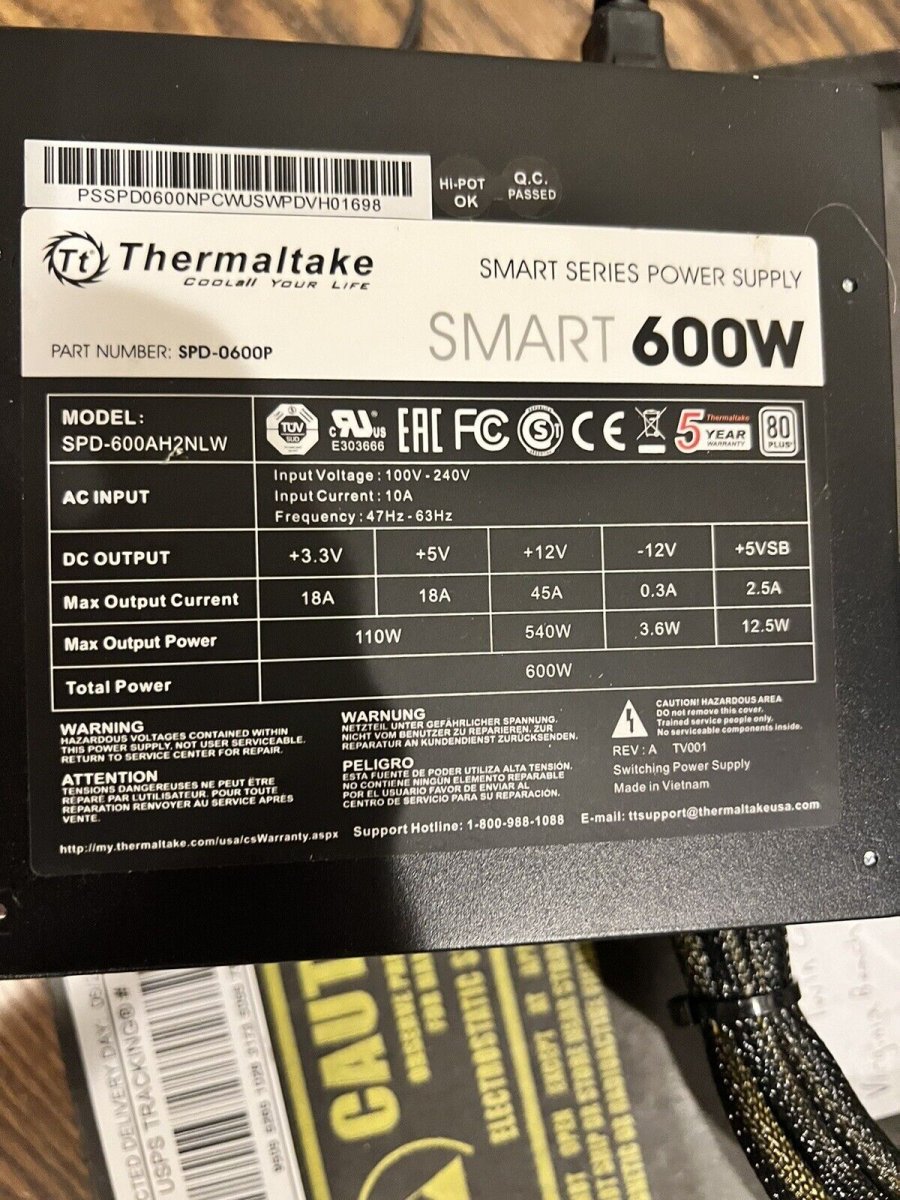

He isnt powering the lindbergh with the naomi psu. He has a PC PSU outside the cab that connects to the lindbergh.
He also says he uses the blue cable that gets connected to a dynamic golf control panel for trackball support but it was not connected at the time he had the issues.
@Mrhide he is using an Irken Jammafier when he decides to use JAMMA boards
Mrhide
Enlightened
ah! the lucky dog
that is really the only valid thing to put there. Good.vga to usb? uh?
kinooshi823
Professional
I looked up the manual for the net city and for video is dsub to dsub am I right? so that would mean if he's using a vga to usb there has to be some kind of device connected that isn't part of the net city in order to get picture right?ah! the lucky dog
vga to usb? uh?
kinooshi823
Professional
Mrhide
Enlightened
kinooshi823
Professional
he replaced the JVS card before sending it out to me and said he got the same issue lol. All I can do is redo everything from my end and retest and send it back. Although it was working fine. I can't do anything if I don't have his cab in my possession
Mrhide
Enlightened
I like the way you think.
kinooshi823
Professional
So I redid everything like I said and then, I remembered I have a vga to bnc connector and I used that to hook the lindbergh to my pvm. Although there is a sync issue with a double screen effect. I could still see it boot to the menu. And what do you know? no strings errors, no nothing. So that means it has to be an I/O issues on his part but its certainly something in his cab that is causing the issue. I did what I could and managing to get a picture here on my crt and see no errors pretty much sums it up.
