Yes, the 9 pin version requires components in the SCART cable. The 8 pin version doesn't.
+1 for the goats answer.
8 pin is standard XRGB pinout
(straight through, no resistors or caps in the cable required, sync and r, g, b are already attenuated on the Minigun.)
9 pin is standard Megadrive 2 pinout
red , green and blue are NOT attenuated on the Minigun, will need to be attenuated with resistor and capacitor in the scart shell. ensure the sync jumper is set to 75 ohm on the Minigun itself


SVM

Enthusiast
Joined
Aug 30, 2016
Messages
145
Reaction score
122
So this means 220uF and 75 ohms for R, G and B and 220uF for sync, right?

Oh, and 180 ohms for SCART pin 16 of course.


hatmoose

Champion
Joined
Mar 25, 2021
Messages
705
Reaction score
1,438
Location
Auckland
  • Like
Reactions: SVM

Alekxkdash

Beginner
Joined
May 13, 2022
Messages
6
Reaction score
4
Location
Usa
Hi, I am having problems outputting video to through my Din-9 on the Minigun. It used to work fine with all the cables I have to several boards but now I get no signal. is there a way to check for shorts on the din-9 and what is the pinout?

Last thing that I know that could have damaged it was that I mixed around, by accident, the +5v and ground going to the minigun. But it didn't even turn on and no sparks or any burning seems present.

Everything else works fine except for the video. I haven't tested audio, so will check that once I get back home.


SVM

Enthusiast
Joined
Aug 30, 2016
Messages
145
Reaction score
122

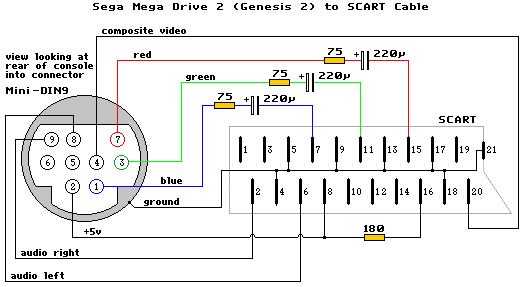

The pinout corresponds to the Genesis 2 pinout, but C-Sync and Composite (pin 4 and 5) are interconnected and mono (pin 6) isn't connected.


Attachments

  • mega2.png
    3.5 KB · Views: 23

Alekxkdash

Beginner
Joined
May 13, 2022
Messages
6
Reaction score
4
Location
Usa
Where can I get the ths7374 chip from? Seen some listings on eBay but not sure if those are the same.


SVM

Enthusiast
Joined
Aug 30, 2016
Messages
145
Reaction score
122
Today I've tested the Miniun Supergun (v2.5 miniDIN9-Version) of a friend of mine with my LCD TV. I've used an unmodified Neo Geo MV1-FZ.

With a direct connection between MVS, Supergun and TV (via SCART) I get a picture but with the OSSC interconnected I get no picuture and the OSSC says "no sync", no matter if I set the sync jumper to 75 ohms or to TTL.

The scart lead has a 470 ohms resistor and a 220uF capacitor in the sync line and the OSSC has the standard settings.

So how can I get a picture via OSSC?


EDIT: I've solved the problem! According to the Wiki page I had to set Hsync Tolerance to 8.30us and H-PLL Post-Coast to 2 lines in the Sync OPT. of the OSSC.

Now everything works. :thumbup:

Last edited:

tDRG

Enthusiast
Joined
Jul 20, 2020
Messages
206
Reaction score
160
Location
US - East Coast
I just got an Atomiswave, and I get a video signal with my Minigun on a PVM, but I'm not getting inputs with my USB2DB15 adapters. The LEDs on the USB2DB15 don't even come on. I've tried it with all dips on and off. The voltage has been as high as 5.08 when I first turn it on. Cleaning the JAMMA pins didn't help, and I've tested a different board in between Atomiswave attempts and the USB2DB15s still worked fine with it.


Raph_friend

Grand Master
Joined
May 28, 2017
Messages
724
Reaction score
610
Location
Amazonia, Japan
I just got an Atomiswave, and I get a video signal with my Minigun on a PVM, but I'm not getting inputs with my USB2DB15 adapters. The LEDs on the USB2DB15 don't even come on. I've tried it with all dips on and off. The voltage has been as high as 5.08 when I first turn it on. Cleaning the JAMMA pins didn't help, and I've tested a different board in between Atomiswave attempts and the USB2DB15s still worked fine with it.
I didn't understand well where the issue comes from, PCB, minigun or USB2DB15. Try to do isolated tests for each one and see what happens.


tDRG

Enthusiast
Joined
Jul 20, 2020
Messages
206
Reaction score
160
Location
US - East Coast
I didn't understand well where the issue comes from, PCB, minigun or USB2DB15. Try to do isolated tests for each one and see what happens.
That's the plan, thanks. Just wanted to make sure there weren't any known compatibility issues before I did, but I'll do some more debugging.


Fgto79

Beginner
Joined
Apr 22, 2020
Messages
24
Reaction score
11
Location
France
Today I've tested the Miniun Supergun (v2.5 miniDIN9-Version) of a friend of mine with my LCD TV. I've used an unmodified Neo Geo MV1-FZ.

With a direct connection between MVS, Supergun and TV (via SCART) I get a picture but with the OSSC interconnected I get no picuture and the OSSC says "no sync", no matter if I set the sync jumper to 75 ohms or to TTL.

The scart lead has a 470 ohms resistor and a 220uF capacitor in the sync line and the OSSC has the standard settings.

So how can I get a picture via OSSC?


EDIT: I've solved the problem! According to the Wiki page I had to set Hsync Tolerance to 8.30us and H-PLL Post-Coast to 2 lines in the Sync OPT. of the OSSC.

Now everything works. :thumbup:
Hello,

I just acquired an OSSC. With my Neogeo AES I have no issue at all. With my MVS (consolized), I have No SYNC like you. However after applying the same settings as mentioned in Wiki (8,30us and 2 lines for Post Coast), I still have the same issue.

I'm wondering if the OSSC will work on ALL MVS models...

Best regards.


Barth0lin0

Enthusiast
Joined
Jul 21, 2019
Messages
182
Reaction score
52
Location
Montréal
hey ! i own 2 minigun supergun and i have the same issue on both : I only get 1.6V between U D L R and ground when powered on. All other buttons do get proper 5V .
Having only 1.6V is causing issues for certain pcbs (strikers 1945, atomiswave) : U D L R are detected as always on.

is there something i can do about it ? is it normal?

U D L R do get 5V on my candy Cab and i dont have issues with those PCBS

thx !


tDRG

Enthusiast
Joined
Jul 20, 2020
Messages
206
Reaction score
160
Location
US - East Coast
I didn't understand well where the issue comes from, PCB, minigun or USB2DB15. Try to do isolated tests for each one and see what happens.
The Atomiswave and Minigun work fine with a Neo Geo CD DB15 pad. It's just the USB2DB15 adapters that I can't get to work with the AW. I've tried several different arcade sticks (Qanba Drones, Brook Retro Board). The USB2DB15s still work with other games like CPS2. I've heard about ZD7 on the AW blowing and affecting inputs, but mine looks fine from what I can tell, and inputs work with the Neo Geo pad.
