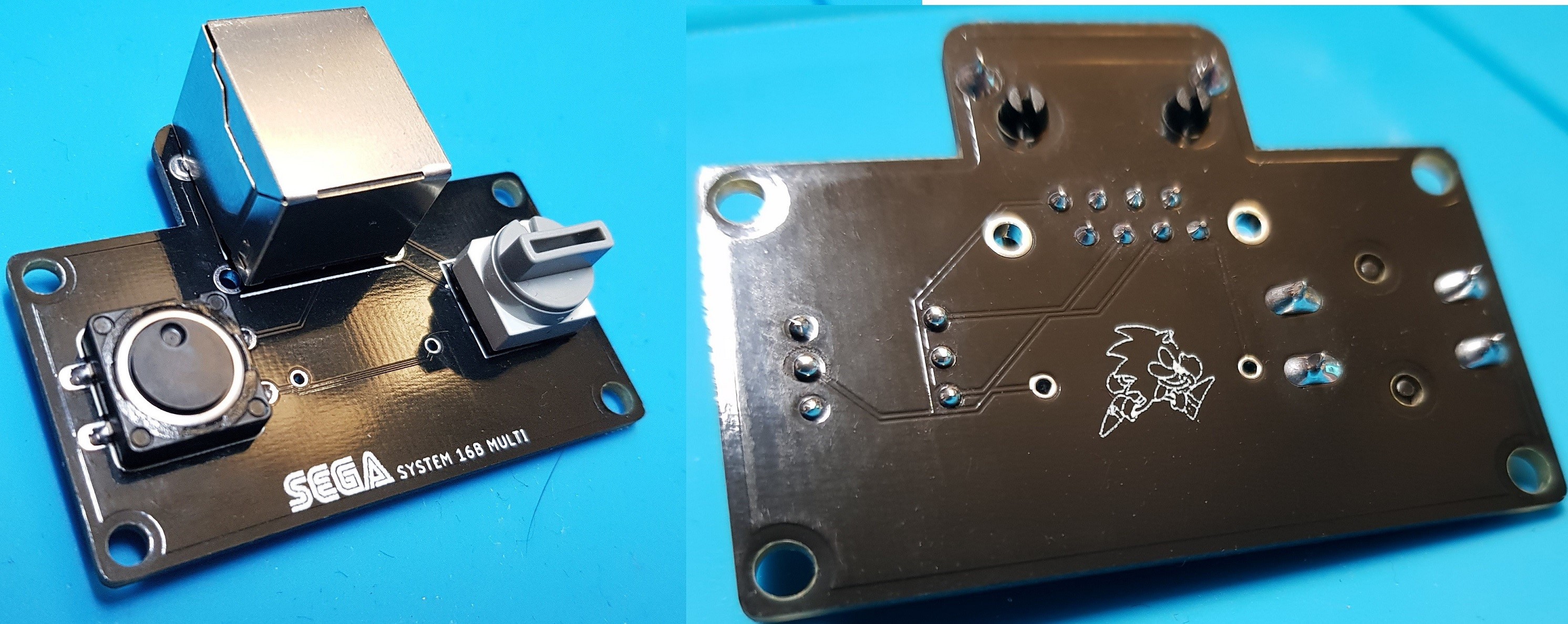

SYSTEM 16B C2 & IREM M72 MULTI GAME SELECTORS




  • Uses standard Ethernet to connect remote and adapter
  • 16 position rotary.
  • Reset button.
  • 16B uses a SPST latching push button to change between two sets of 16 games.





To connect the reset line, only one wire is needed to be soldered for S16B and two wires for M72/C2.

-M72 reset instructions
-C2 reset instructions








So you want to build your own? OK no problem! Here's what you'll need :)

-RJ45 Jack (PCB is deigned to work with this specific jack)
-2x4 Pin female Pin Header (M72/C2 only)
-JST XH 2.54 2 Pin right angle kit (M72 only)
-JST XH 2.54 2 Pin straight kit
-Alps SKHCBFA010 Tactile Switch
-Hartmann PT65503 Rotary Dip
-2x5 Pin right angle Pin Header (16B only)
-Flashlight Tactile Switch (16B only)
-Right angle Header Pins (16B only)
-Dupont Jumper Cable for reset line (16B only)
-Adhesive PCB mounts
-2 Conductor Cable for reset line

Reset Cable for M72 should be around 34CM/13.4" and C2 should be 14CM/5.5"





Everything linked is from Aliexpress except for the Rotary Switch and 2x4 Pin headers which are from Tayda. Stay away from the Aliexpress 2x4 Pin Headers as I've found the metal used in them to be hard to solder to, the Tayda headers are of very high quality.

Also check Tayda's Facebook page for a 15% off code as they do them all the time.

Feel free to hit me up with any questions or queries.


















Attachments

  • 16B REMOTE_2020-02-08.zip
    219 KB · Views: 226
  • 16BDIP_2020-02-08.zip
    34.3 KB · Views: 214
Last edited:

djsheep

Multi Boyz Overlord
Legendary
Multi Boyz
Joined
May 20, 2016
Messages
4,988
Reaction score
6,316
Location
Brisbane, Australia
Love your work mate! You already know I'm down for this one too!


oneleaf86

Grand Master
Joined
Nov 14, 2016
Messages
605
Reaction score
943
Location
Melbourne, Australia
Thanks guys :) . I've ordered all the necessary parts but it may be a while before I have everything I need to test it out.

Will make a proper [FS] thread once everything is ready to go.


Frank_fjs

Multi Boyz 4 Lyfe
Legendary
Multi Boyz
Joined
Mar 3, 2018
Messages
3,431
Reaction score
5,806
Location
Australia - Adelaide
I reckon I have the same switches, was going to try them out in one of my projects.

What other parts do you need?


oneleaf86

Grand Master
Joined
Nov 14, 2016
Messages
605
Reaction score
943
Location
Melbourne, Australia
I have a giant bag of really nice Alps switches (same as OSSC) so I went with them for the reset switch. Have some more rotary switches and the latching switches on the way.

Will order the PCBs now but due to Chinese New Year I won't have them for around 3 weeks.


glstar

Professional
Joined
Dec 4, 2015
Messages
505
Reaction score
185
Location
Italy
Wonderful project.
I will need one or two for sure….


Psyko-M1

Champion
Joined
Jun 10, 2018
Messages
1,133
Reaction score
1,698
Location
Chicago
Considering I've bought my ticket to the 16B train, toss me in your wait list.
This is fantastic!


opt2not

Multi Boyz Pixeler
Enlightened
Multi Boyz
Joined
Nov 10, 2015
Messages
1,832
Reaction score
2,666
Location
California
I just don't think it's a good idea to have people posting in this thread, their interest as if they're "getting in-line" for a wait list. When the official wait list happens, there can be confusion on the order of the wait list if it's split between multiple threads. I can see people saying things like "well I expressed my interest on xx/xx/xx date, in that other thread...". It can get a bit unmanageable.

Comment away, showing your support is great! Don't stop doing that. Just don't treat this thread as the official wait list is all.


ekorz

Multi Boyz 4 Pi
Legendary
Multi Boyz
Joined
Aug 21, 2016
Messages
3,891
Reaction score
4,235
Location
Boston, MA
To answer the question, there are icons in the top right of the page like this



Click the one on the left. That’s where you can manage subscription and notification settings. If the leftmost icon is solid, you’re already subscribing.


aaronjmill

Student
Joined
Apr 13, 2017
Messages
46
Reaction score
18
Location
IN USA
Awesome, thank you! This forum is impressive from a technical standpoint. By far the best forum software I've seen.
