Just recent had to time to play the game. And when booted it's not showing no sprites on screen. Not sure if it's a chip or something else. Could use the help


Attachments

  • 20220113_171517.jpg
    134.5 KB · Views: 29

ic3b4ll

Professional
Joined
Sep 19, 2016
Messages
251
Reaction score
295
Location
Porto, Portugal
Very bad solder joints on these things... Place the board on a flat non-conductive surface. Turn it on. Apply pressure to the 55555 and the other chip like it and see if glitches appear. Alternatively, gently (gently!) touch the pins of the chips. With dry hands of course.
If glitches appear, reflowing the offending chip may fix the issue.


ic3b4ll

Professional
Joined
Sep 19, 2016
Messages
251
Reaction score
295
Location
Porto, Portugal
Oh, another thing. If either chip is *hot* it's shorted and therefore dead.
Maybe we should start taking temperature measurements of normal functioning chips for reference. What do you think @Hammy ?


Hammy

Enlightened
Joined
Feb 3, 2018
Messages
1,457
Reaction score
3,045
Location
U.K
I don't think they die of heat, more like fujitsu poisoning inside the chip or dry joints / crap on the joints causing latch up / cooked state.


cruzlink2

Student
Joined
Oct 12, 2015
Messages
108
Reaction score
52
Location
Brooklyn, New York
I'll try reflowing the chips, as far as heat none is burning hot to the touch. Thanks for all the suggestions guys.


ic3b4ll

Professional
Joined
Sep 19, 2016
Messages
251
Reaction score
295
Location
Porto, Portugal
I don't think they die of heat, more like fujitsu poisoning inside the chip or dry joints / crap on the joints causing latch up / cooked state.
Maybe my wording wasn't the clearest. I was suggesting getting the normal running temperature range of good ones to compare with suspected bad ones. It would help with basic troubleshooting I think.


cruzlink2

Student
Joined
Oct 12, 2015
Messages
108
Reaction score
52
Location
Brooklyn, New York
So I found the guilty party, it's the sprite generator 055673 I pressed down on it while supporting it from the bottom and got some foreground sprites coming back. I went and head and fully reflowed the chip but it made no differenct, I am thinking it's bad or maybe some of the vias around it or traces are bad.


stj

Grand Master
Joined
May 4, 2017
Messages
1,721
Reaction score
871
Location
England
lift it,
clean the traces and check for damage,
re-tin the legs on the chip and re-fit it
i'v had that type of issue with a midnight resistance


ic3b4ll

Professional
Joined
Sep 19, 2016
Messages
251
Reaction score
295
Location
Porto, Portugal
So I found the guilty party, it's the sprite generator 055673 I pressed down on it while supporting it from the bottom and got some foreground sprites coming back. I went and head and fully reflowed the chip but it made no differenct, I am thinking it's bad or maybe some of the vias around it or traces are bad.
It's not bad if the sprites came back. There's probably a bad via or pad connection underneath the chip itself. Proceed as @stj described and check if the vias connected to the pads have continuity before resoldering the chip.


TheDeath

Professional
Joined
Jul 2, 2017
Messages
430
Reaction score
389
Location
Italy
I had 3 of these and none of them had the whole maskrom set working, there was even some that were all FF in the hex.
try also the test, it might help


stj

Grand Master
Joined
May 4, 2017
Messages
1,721
Reaction score
871
Location
England
there seems to be a big problem with konami 16bit mask roms in general when looking through online repair logs!!
if i had a bad konami board with 16bit roms - it would be the first thing to check.

J

jassin000

Early Konami 16bit seems stable in my experience, TMNT, Sunset, Crime Fight.
Its the later stuff, Simpsons, Mystics, Cowboys, TMNT2, Martial Champ that seem to develop various sprite layer issues.


opt2not

Multi Boyz Pixeler
Legendary
Multi Boyz
Joined
Nov 10, 2015
Messages
2,412
Reaction score
4,425
Location
California
Early Konami 16bit seems stable in my experience, TMNT, Sunset, Crime Fight.
Its the later stuff, Simpsons, Mystics, Cowboys, TMNT2, Martial Champ that seem to develop various sprite layer issues.
Unfortunately I’ve see early 16bit boards have the same issues.

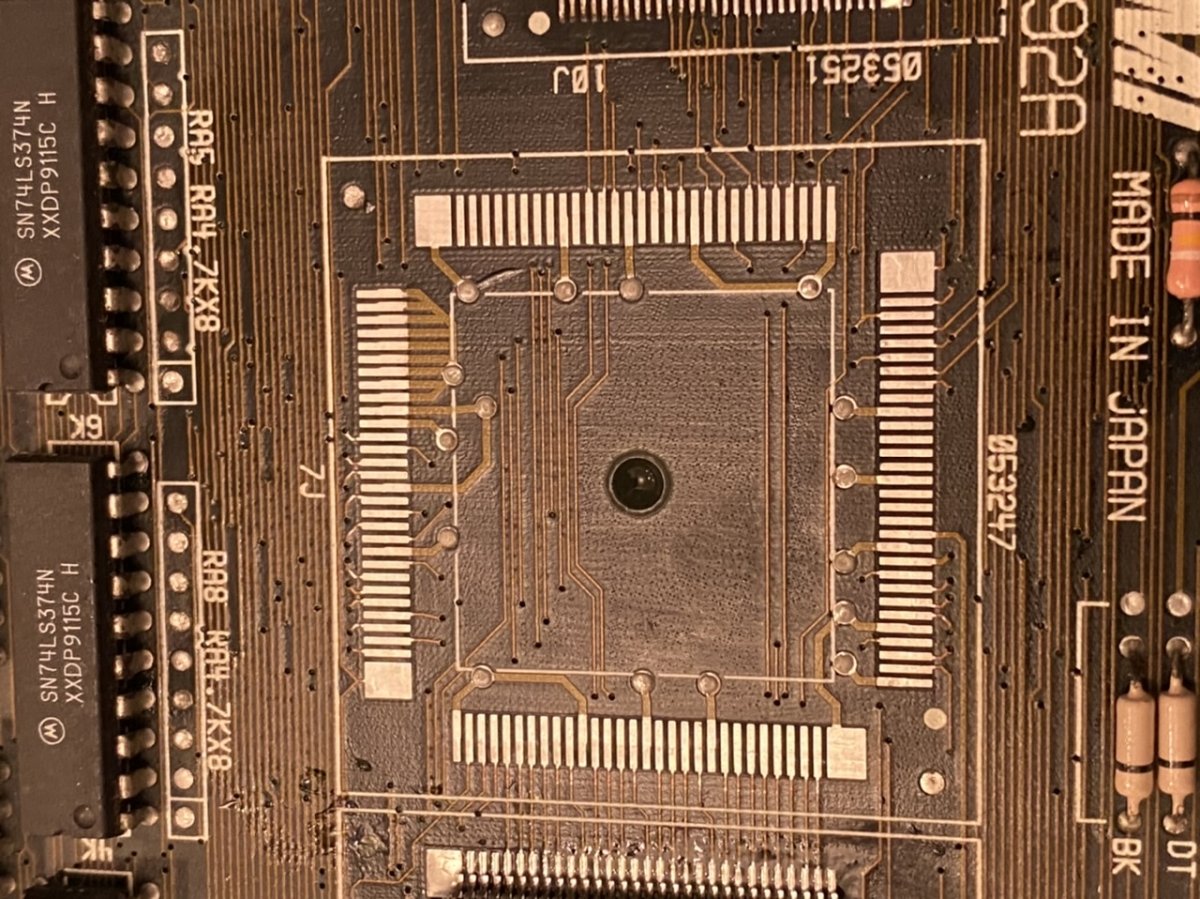

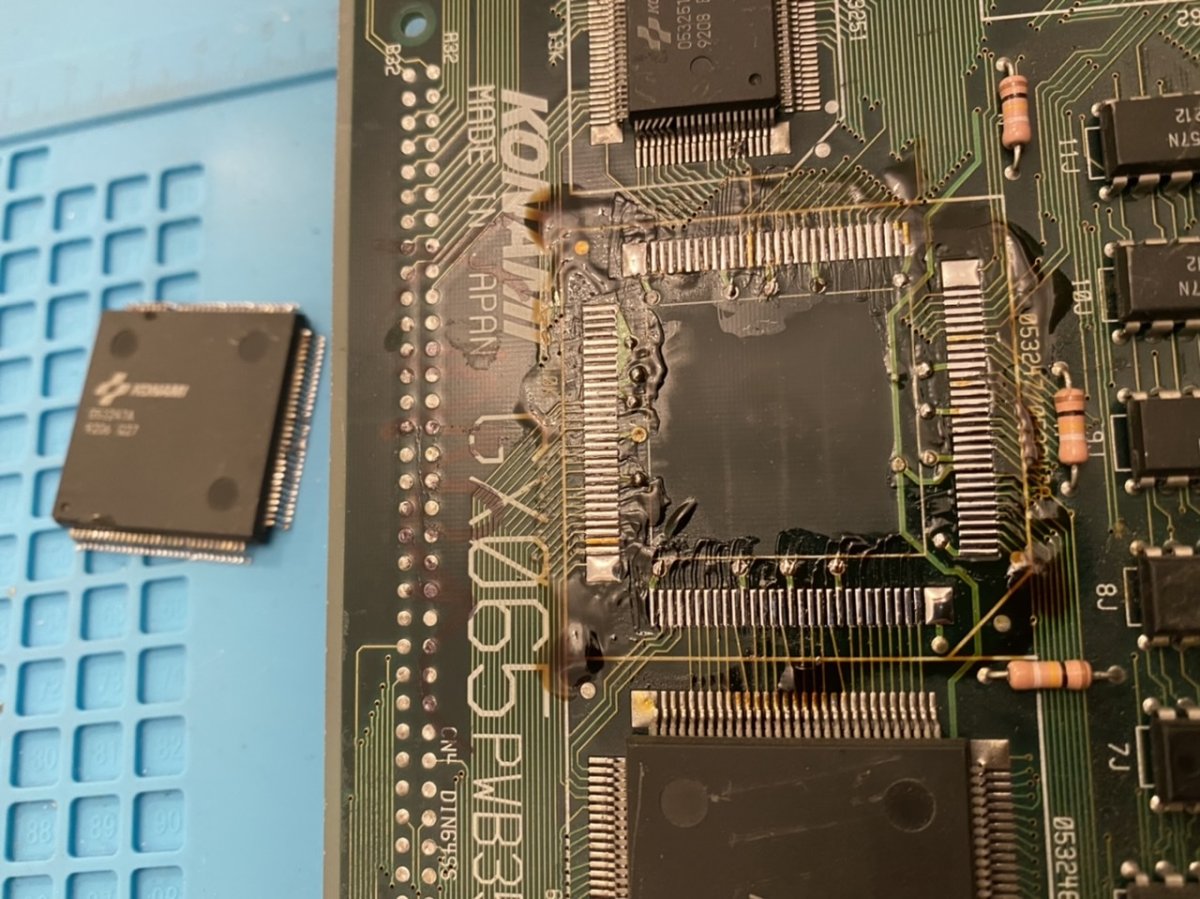

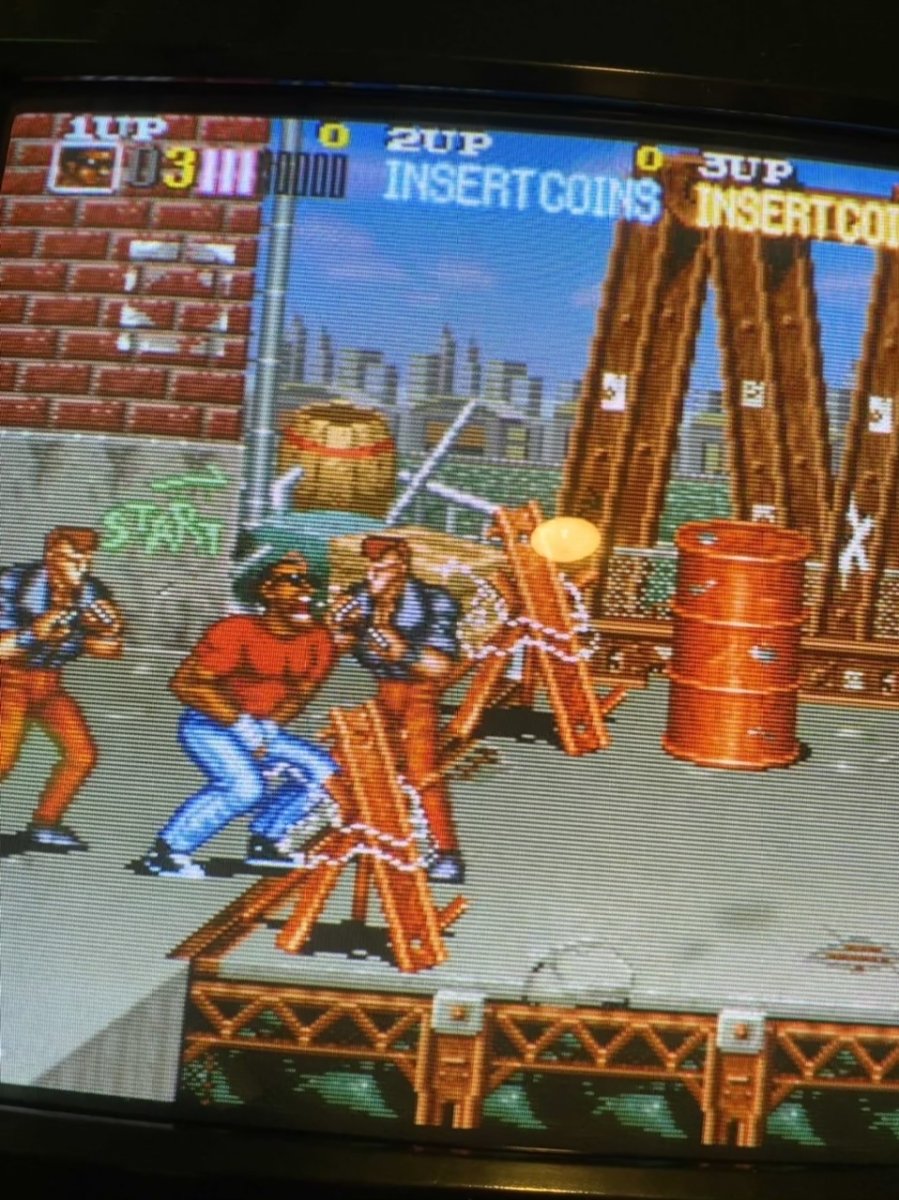

TMNT and Vendetta being my examples. I did a custom swap on a Vendetta just last year from a donor board.


Attachments

  • 841A26AB-D6FB-404D-8C77-A93DBA398C30.jpeg
    209.8 KB · Views: 18
  • 5DAC57FD-8D72-41AC-9435-1062195BC407.jpeg
    224.8 KB · Views: 16
  • 072D1AAE-36BB-4E6D-8886-2FF8745A4A9C.jpeg
    277.8 KB · Views: 17
  • E0CF22BF-07FE-44F8-805B-DAA41C5FF3EE.jpeg
    230.2 KB · Views: 17

channelmaniac

Enthusiast
Joined
Mar 19, 2021
Messages
115
Reaction score
212
Location
Dallas, TX, Metromess
Reflow the chips around the one you pressed on. You flexed the board when pressing.


cruzlink2

Student
Joined
Oct 12, 2015
Messages
108
Reaction score
52
Location
Brooklyn, New York
Reflow the chips around the one you pressed on. You flexed the board when pressing.

It's not bad if the sprites came back. There's probably a bad via or pad connection underneath the chip itself. Proceed as @stj described and check if the vias connected to the pads have continuity before resoldering the chip.
Sprites would show but gliteched out, forgot to mention that.
