Namco Noir Red - Powers on but the marquee light and the jvs controls are not getting enough power

[GamerDad85]

Hello everyone, I have this Noir Red that was working fine before but suddenly it is not sending the power correctly to the Marquee light and the JVS controls (output usb type b cable).

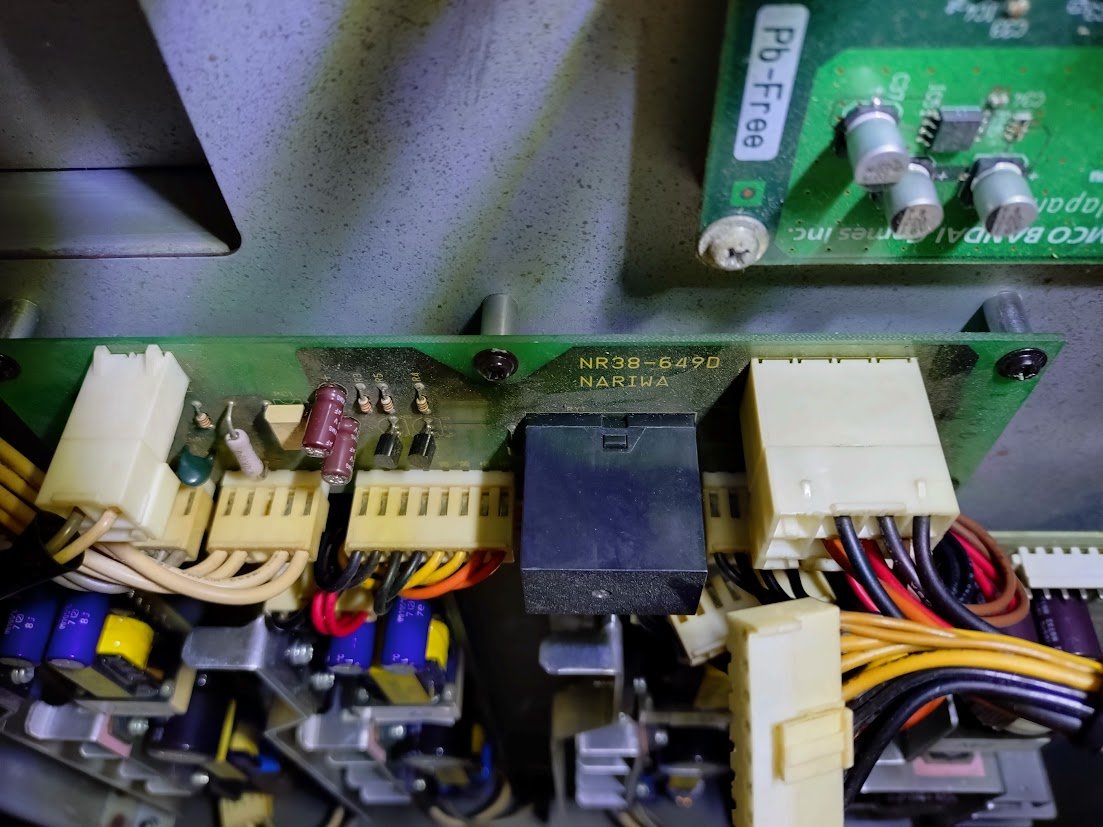

I have checked the power distribution small board NR38-6490 and there was a bad capacitor that was replaced but maybe the Relay is the problem? I hear like a clicking sound when the machine powers on, everything else works fine like sound and picture so I am not sure.

Anyone have any suggestions? Thanks in advance.



[nem]

You should measure what the PSUs are outputting.



[GamerDad85]

I might have to get a multimeter for that. Where do you check the power output? On the PSU itself or on the other boards?



[nem]

Any cheap $20 digital multimeter will do.

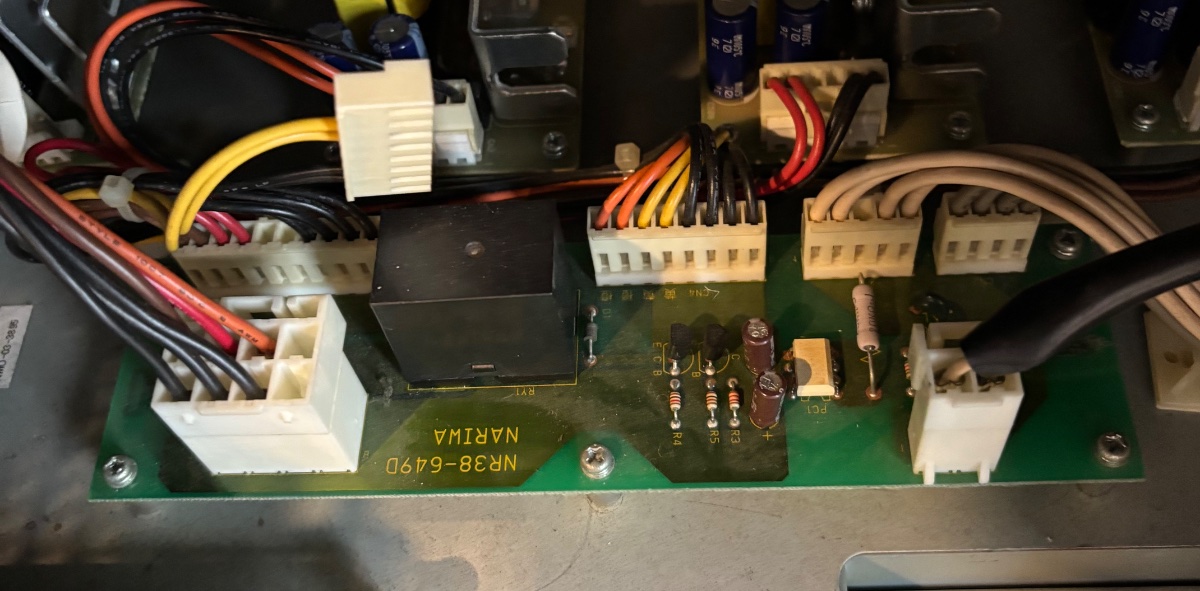

You first check the outputs on the PSUs, and then the break out board (the one with the relay).



[Chihiro]

What does the unplugged connector do? I see 2 unplugged on mine but can't find out anything about them.



[GamerDad85]

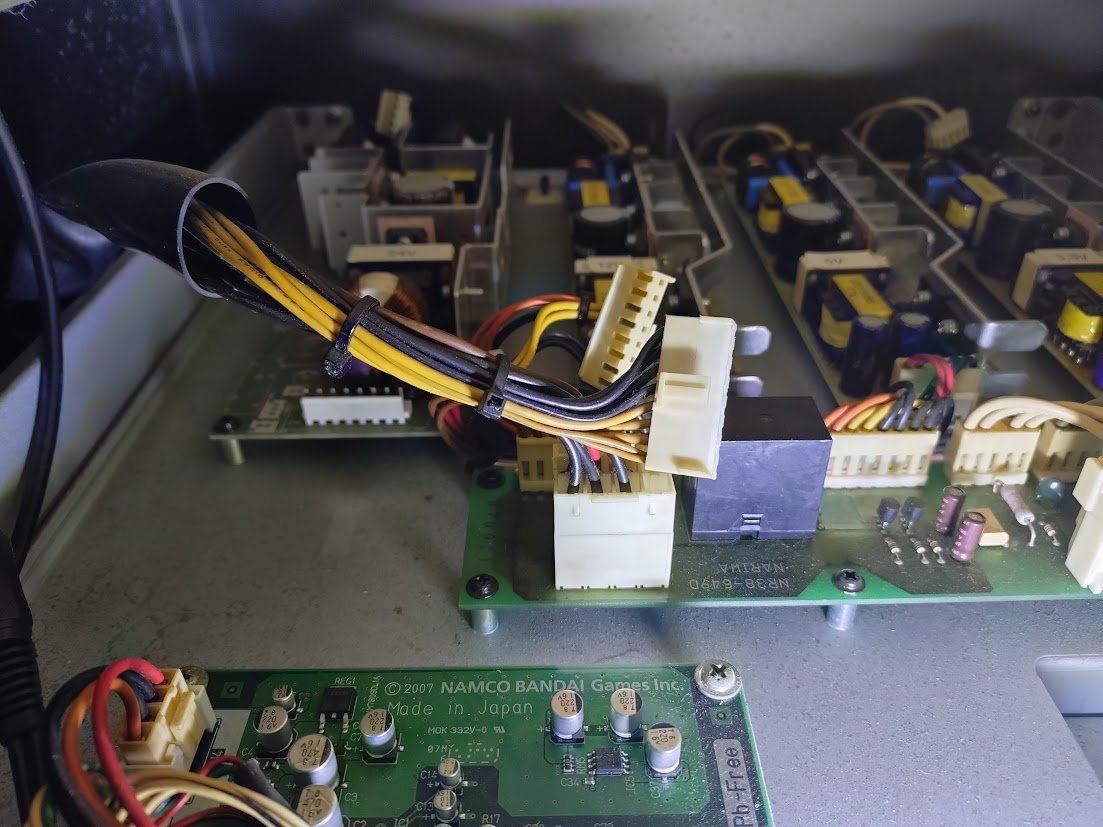

There are some unplugged connectors coming out of the harness from mine as well. Isn’t one of them powering the Banapassport card reader? No idea about the other one, I was even thinking that it might be to power on the system 246/256. For the unplugged ones from the picture I have no idea.



[Chihiro]

Yeah that's the one I meant the yellow/black wires one.

@nem will know.



[nem]

Yeah that's the one I meant the yellow/black wires one.

Isn't that for the 24V PSU on the right? If you have replaced the monitor there's no need for it.



[Chihiro]

There is 2 one for the monitor & another unknown one.

So much neater on the Grigio 1 PSU does everything the same unit as the P Ras has progress I guess.
