Does anyone know what the original PCB feet or PCB mounts are supposed to look like for the Namco System 1?

I've had 3 of these boards pass through my hands and none of them have ever had any sort of PCB feet attached.

Looking at the way the board is designed they'd have to be super tall and I'm debating designing a 3D printed solution. But I can't find any pictures that shows what the original PCB mounting solution looked like and I'm curious what it was.


mathewbeall

Grand Master
Joined
Nov 6, 2017
Messages
868
Reaction score
436
Location
Mission Viejo, CA, USA
I have the same question - I don't like the chips just sitting on the cabinet floor - I like to have space around so air can flow.


mathewbeall

Grand Master
Joined
Nov 6, 2017
Messages
868
Reaction score
436
Location
Mission Viejo, CA, USA

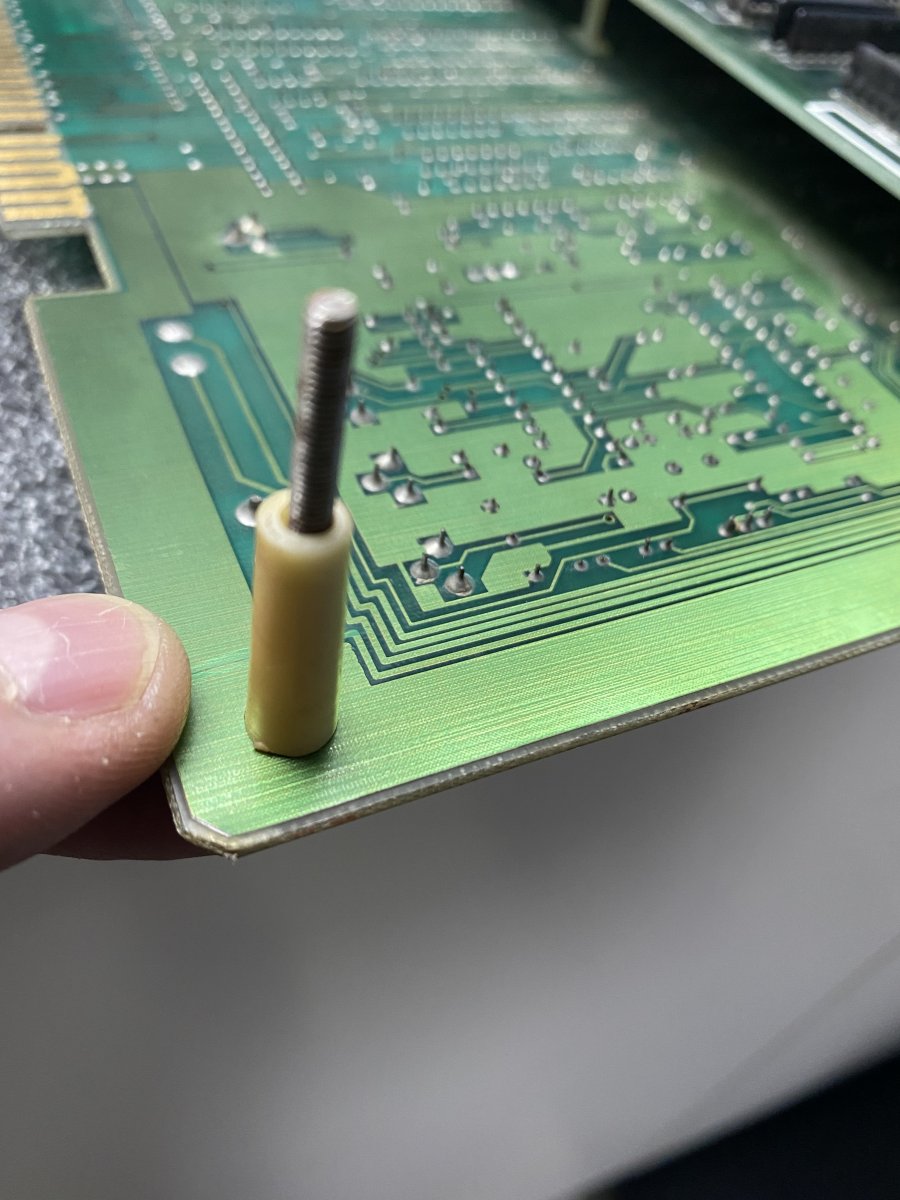

Hi @twistedsymphony - I got a PacMania board tthat unfortunately might have been damanaged in shipping - but it did come with what I think are the original mounts. the middle part you can see is somewhat tapered - not sure why, as it doesn't fit into the leg.
