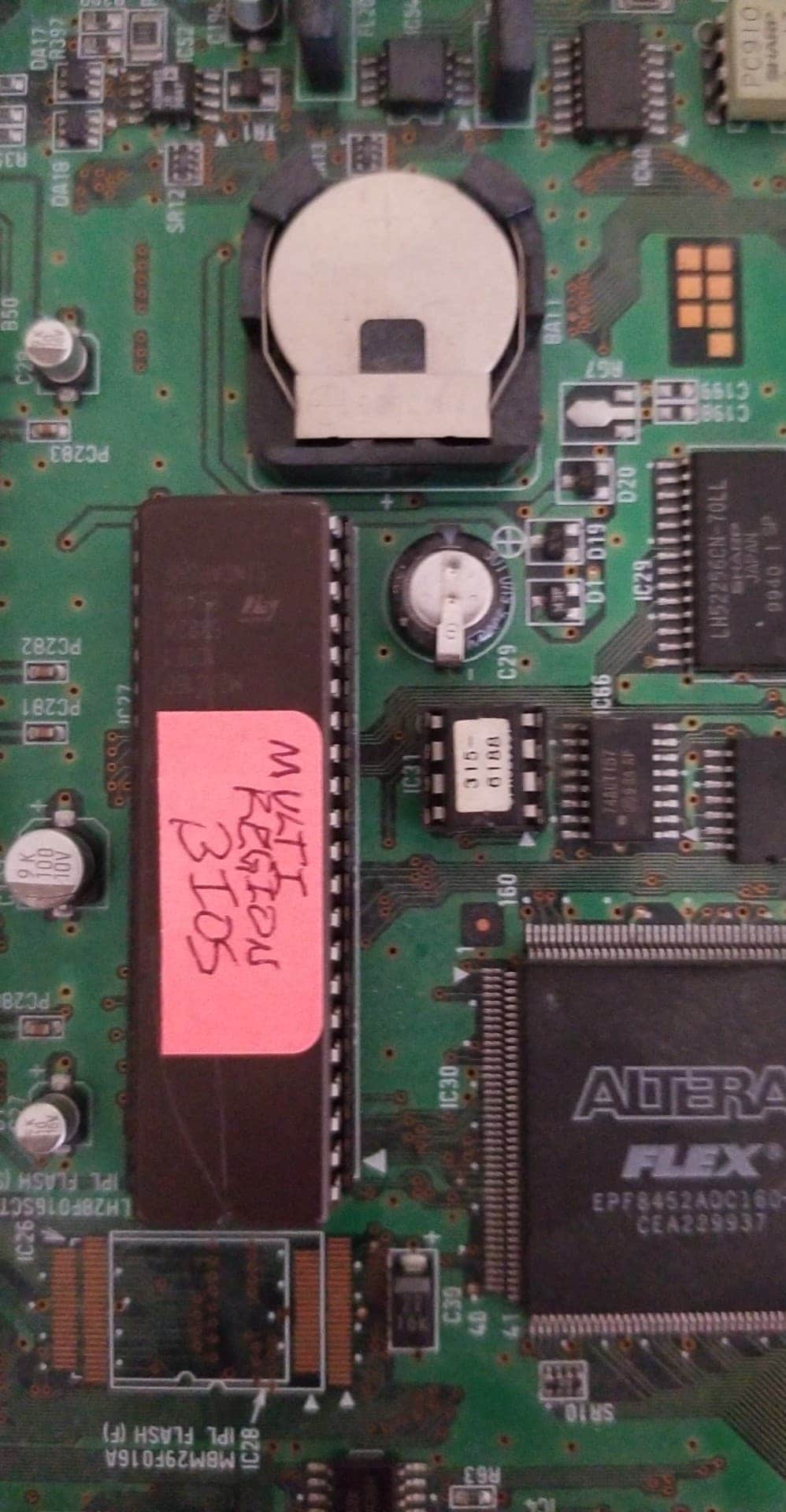

Just bought a Sega Naomi setup with a Capcom IO for my Supergun. Plugged in all of the needed components and plugged the harness into the IO. The Naomi turns on and sounds like a jet engine, which means it's getting power, but no signal comes in. In some cases, it attempts to make a signal, but the TV acts as if there is nothing. I've flicked between the dip switch settings for 15K and 31K and used my VGA monitor but no results. I have a multi-region bios, but currently no cartridge (Akatsuki Blitzkampf, but it's on loan). Am I doing something wrong or is it messed up?


Attachments

  • 20200722_131921_compress73.jpg
    566.3 KB · Views: 61
  • 20200722_140120_compress22.jpg
    545.6 KB · Views: 368
  • received_303981614137713.jpeg
    140.4 KB · Views: 68
  • received_382462776071723.jpeg
    138.7 KB · Views: 69

waali

Enthusiast
Joined
Feb 14, 2019
Messages
118
Reaction score
86
Location
MEL AU
Your TV may not be able to display the output signal. Try a PC monitor to check.


jassin000

Multi Boyz Sheriff
Legendary
Multi Boyz
Joined
Jul 21, 2015
Messages
7,537
Reaction score
6,021
Location
Nashua, NH
In the pictures I can't see where you have connected a VGA cable directly to the Naomi.
Make sure the Naomi is directly connected to the VGA monitor and set the dip to 31khz.

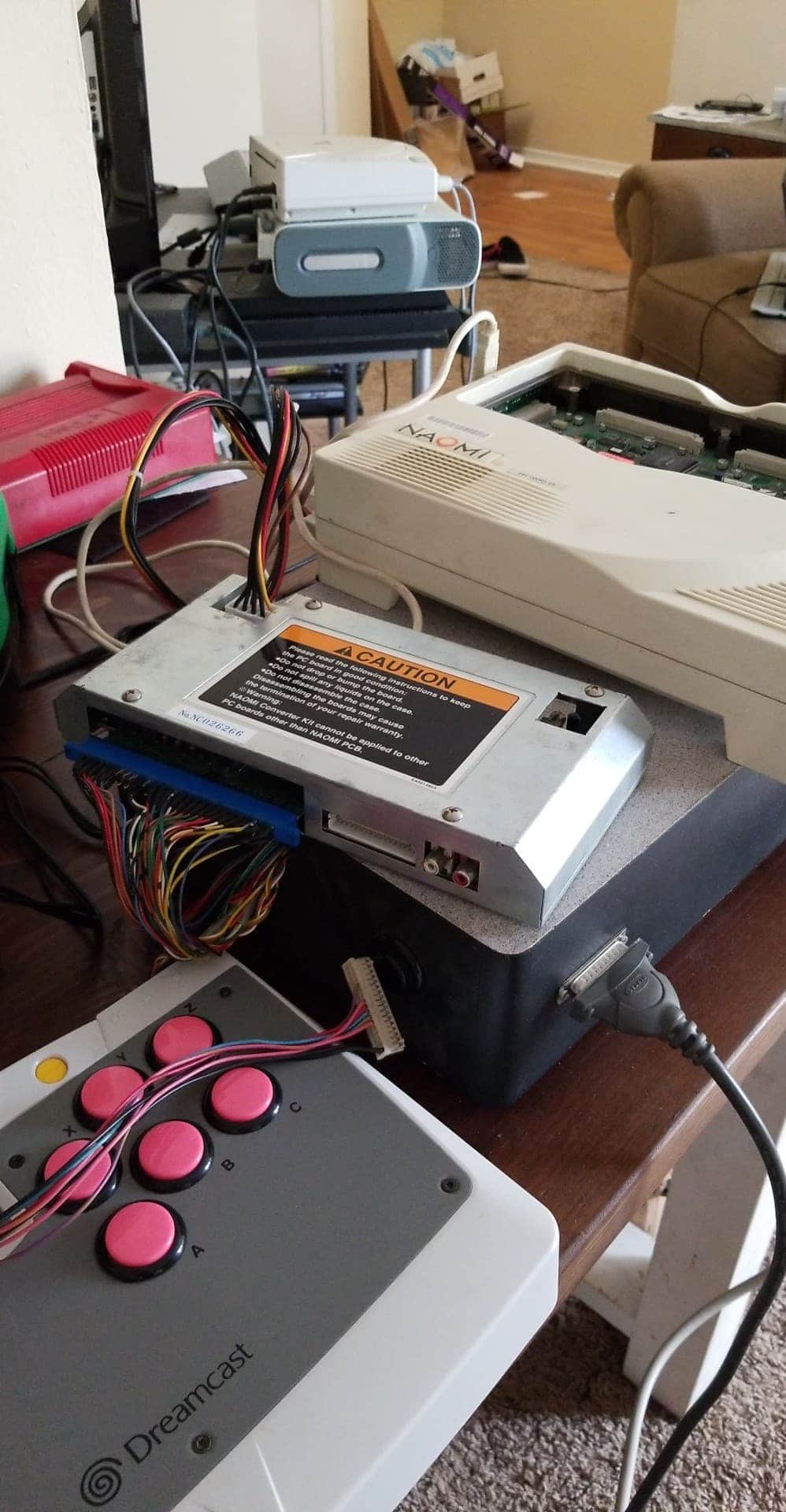

Why do I see no VGA cable whatsoever in this shot?

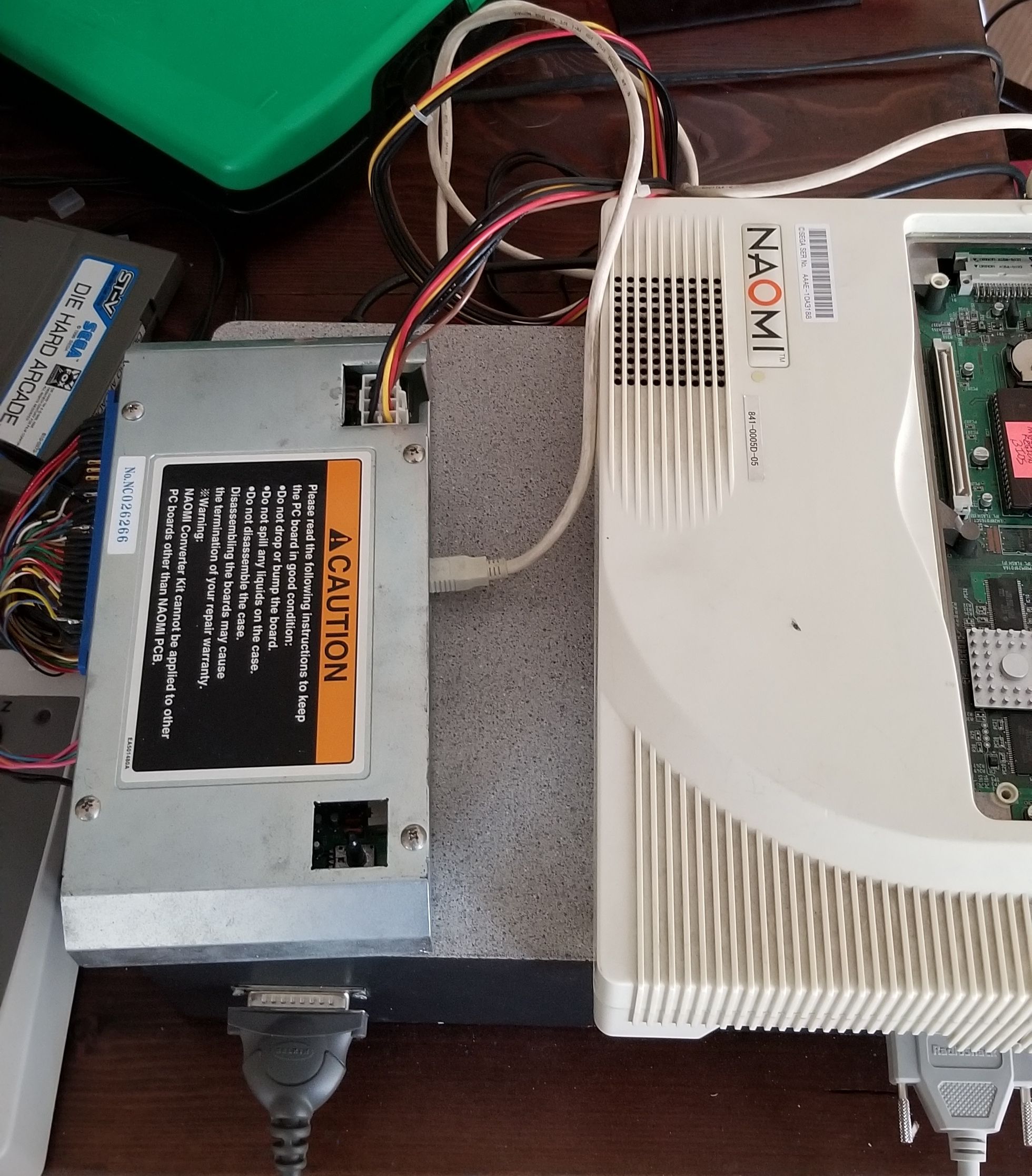

How did you expect this to produce an image, no cable is connecting Naomi's video to the Capcom IO.
Again I see no VGA cable period, not connecting the Naomi directly to a VGA monitor and not connecting the Naomi to the Capcom IO.
So yea... No video bro, think you are doing it wrong.

You are aware Naomi ONLY sends a video signal out of that one VGA port on system right?
No matter what position you have the dip set, video only flows from that port.
