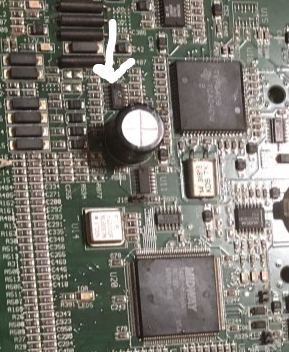

If memory serves... it's just up and to the left of the coils, like within an inch of them. It might be an Analog Devices part with a different part number. Post a pic.

Joined
Nov 25, 2021
Messages
106
Reaction score
20
Location
Mi
Pic


Attachments

  • C60857DB-3A28-448E-915F-AA2A15DB5B65.jpeg
    342 KB · Views: 5

channelmaniac

Professional
Joined
Mar 19, 2021
Messages
151
Reaction score
273
Location
Dallas, TX, Metromess
Google "JAMMA pinout" and you'll have the connector pin numbers.

As for putting it right on a pin on U52 you'd need to put it on the right pin and it might not beep because of the 33 ohm resistor in the circuit. It depends on your multimeter and what resistance it stops beeping at.

Joined
Nov 25, 2021
Messages
106
Reaction score
20
Location
Mi
Google "JAMMA pinout" and you'll have the connector pin numbers.

As for putting it right on a pin on U52 you'd need to put it on the right pin and it might not beep because of the 33 ohm resistor in the circuit. It depends on your multimeter and what resistance it stops beeping at.
Ok ya i see where the red blue etc edge connectors are the numbers..i might not be puttn the probes on the u52 right then

Joined
Nov 25, 2021
Messages
106
Reaction score
20
Location
Mi
This is where you go to www.datasheetarchive.com and look up the data sheet for the chip at U52 so you can see which pins are output pins.
Man i must be stupid im lookn on the site theres so many things that say u52 on there im still learning noob as hell at this..i fixed a ki2 missing chips before the lil smd chips were missing and the sound didnt work but bought some and sodderd it on and got volume back.. ok on the site theres so many part numbers names? Idk where the one i need is


nem

Legendary
Joined
May 29, 2016
Messages
5,647
Reaction score
5,734
Location
Finland
U52 is just a reference designator for the part on that particular board. You need to look up the datasheet for the chip model. The model will be written on the chip itself.
