Hi,
I am currently working on a 4 player adapter to allow connection of CPS2, CPS1 and CPS1.5, Konami, Taito and Midway 4 player boards breaking out into 2 DB15 connectors to allow Neo Geo compatible controllers to be used. Alternatively the board will also work as an adapter between these boards
I have included an external power connection using a JST VH 2 pin connector (same as on a Neo Geo 4/6 slot board) to allow for powered controllers to be used for boards that do not pass through power from the harness (CPS2 has 12V connected)

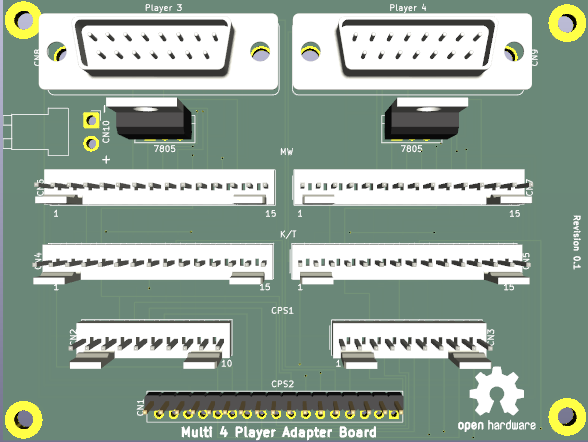

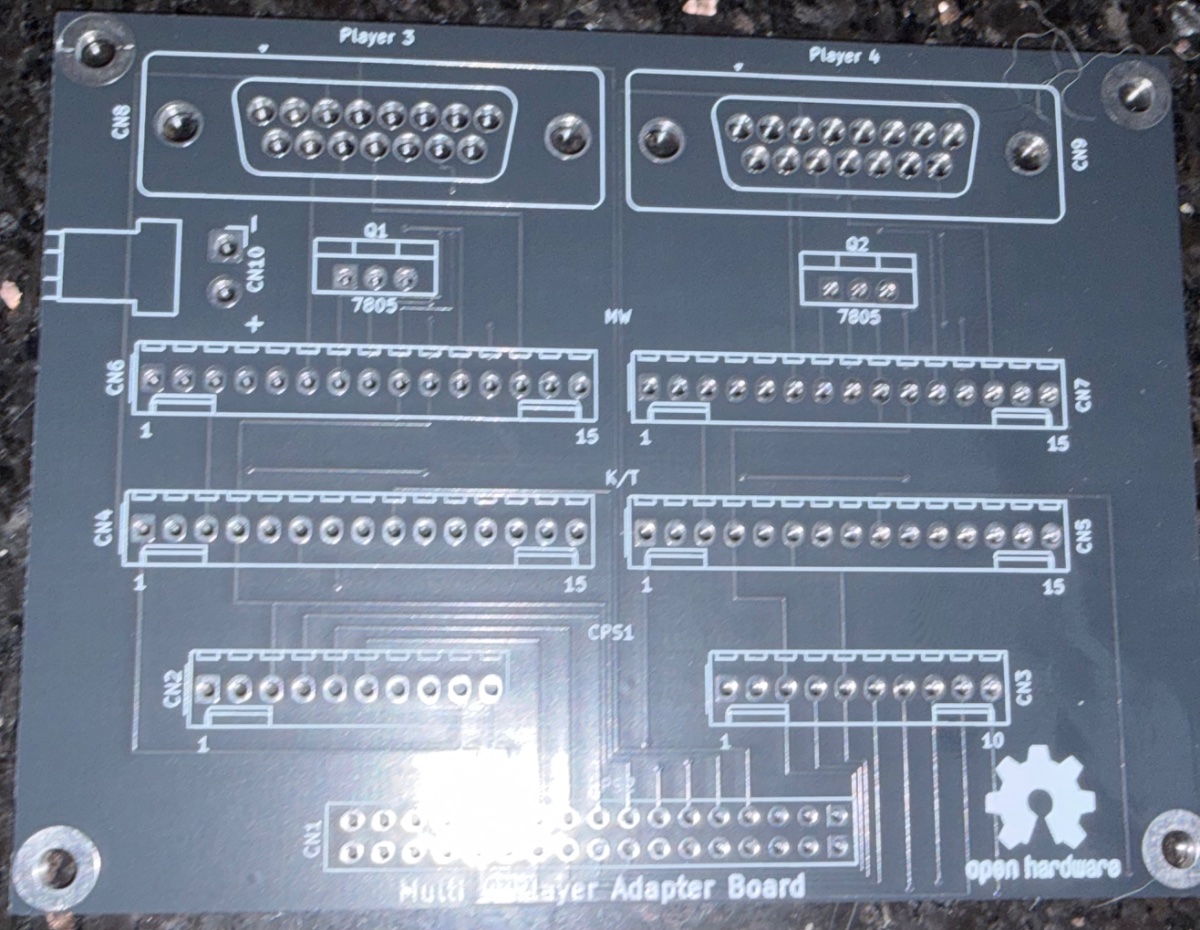

I have ordered prototype boards but these have not yet arrived, but I do have a 3D render. Please ignore the incorrect connectors, they are just the renders included in KICAD
Once the prototypes have arrived and I can test and confirm everything is working as expected, this will be released as a completely open source design for people to be able to create their own or modify as they need for their own setups
