WTB Psikyo 57.27mhz crystal

[hrvat9]

Does anyone have one spare they’d sell? Or know where to buy them? Got a board with one missing



[ShootTheCore]

DigiKey can program a crystal to oscillate at whatever clock speed you want.

This part should fit your board and when you order it, you can specify the clock rate you want it programmed at.

https://www.digikey.com/en/products/detail/ecs-inc/ECS-P85-B/502310



[hrvat9]

DigiKey can program a crystal to oscillate at whatever clock speed you want.

This part should fit your board and when you order it, you can specify the clock rate you want it programmed at.

https://www.digikey.com/en/products/detail/ecs-inc/ECS-P85-B/502310

Thanks!



[hrvat9]

DigiKey can program a crystal to oscillate at whatever clock speed you want.

This part should fit your board and when you order it, you can specify the clock rate you want it programmed at.

https://www.digikey.com/en/products/detail/ecs-inc/ECS-P85-B/502310

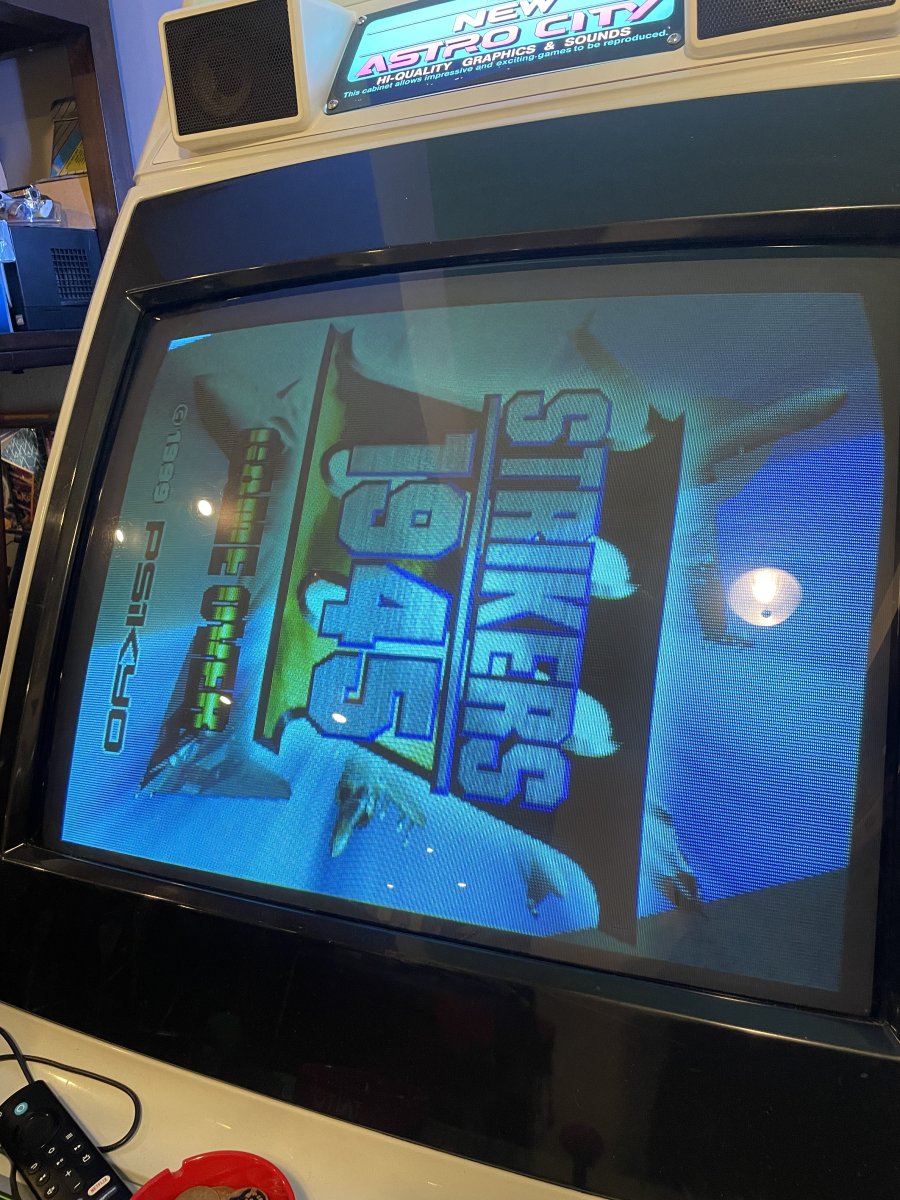

Woo hoooo! Just installed . Time to figure out where the red went



[ShootTheCore]

Give the JAMMA connector a good cleaning with some cotton swabs and isopropyl alcohol - if you’re lucky, it’s just a tarnished connection.



[hrvat9]

Give the JAMMA connector a good cleaning with some cotton swabs and isopropyl alcohol - if you’re lucky, it’s just a tarnished connection.

Broken trace under the board! Already found and patched don’t have 1p left though
