Made my harness yesterday. So I have neo to db25 and I wired 2 connectors for the other things I’m not using yet and seeing all this stuff makes me want to tidy it all up. So I ordered a small atx case so I can put the power supply, helper board and jvs board in there and I’ll mount ports for neo and figure out some other ports for the other things. I think having the case horizontal with the Naomi on top won’t be too obnoxious. Definitely better than PCBs and cables all over the place.


Geddon

Professional
Joined
Jun 1, 2018
Messages
684
Reaction score
324
Location
USA

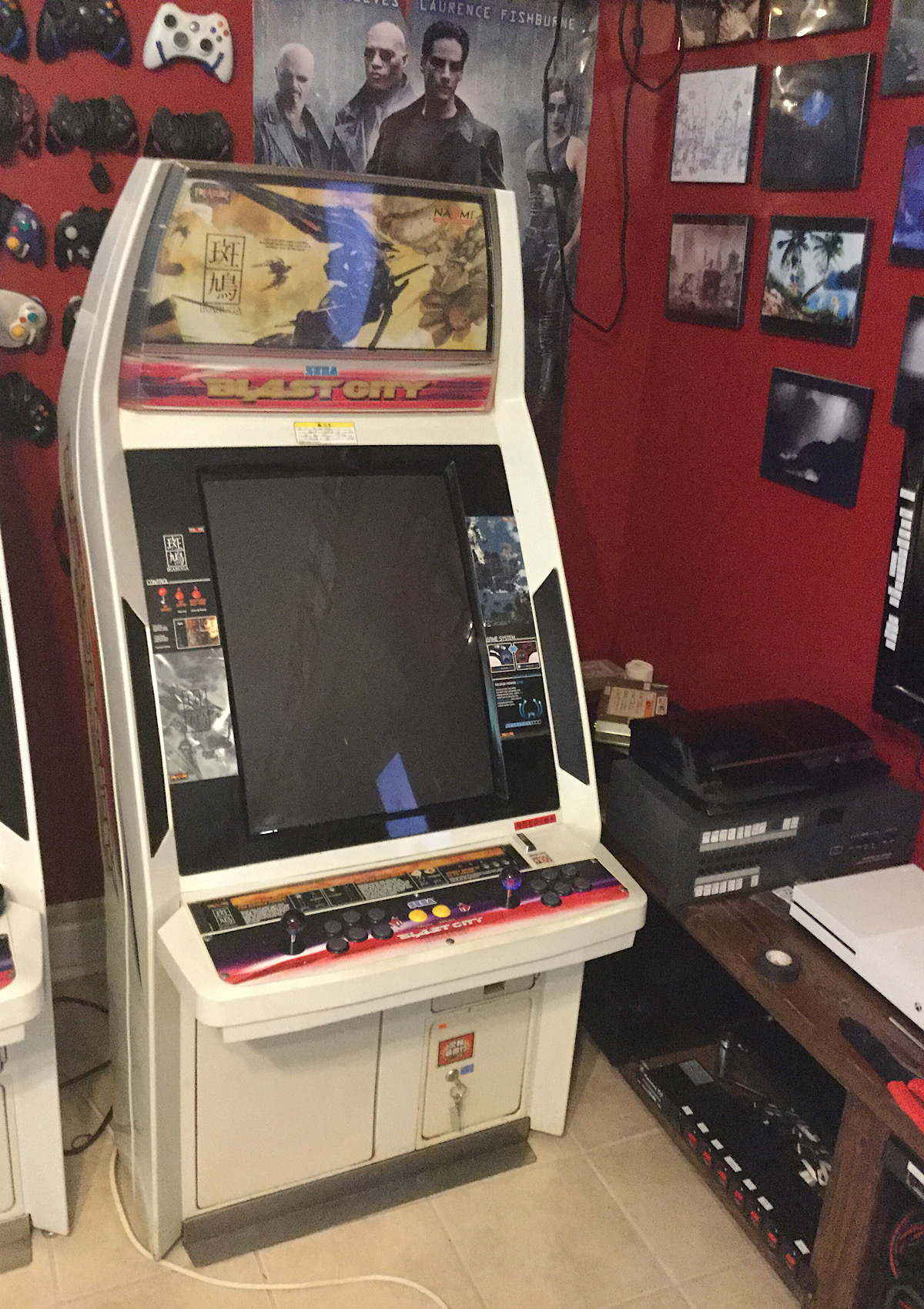

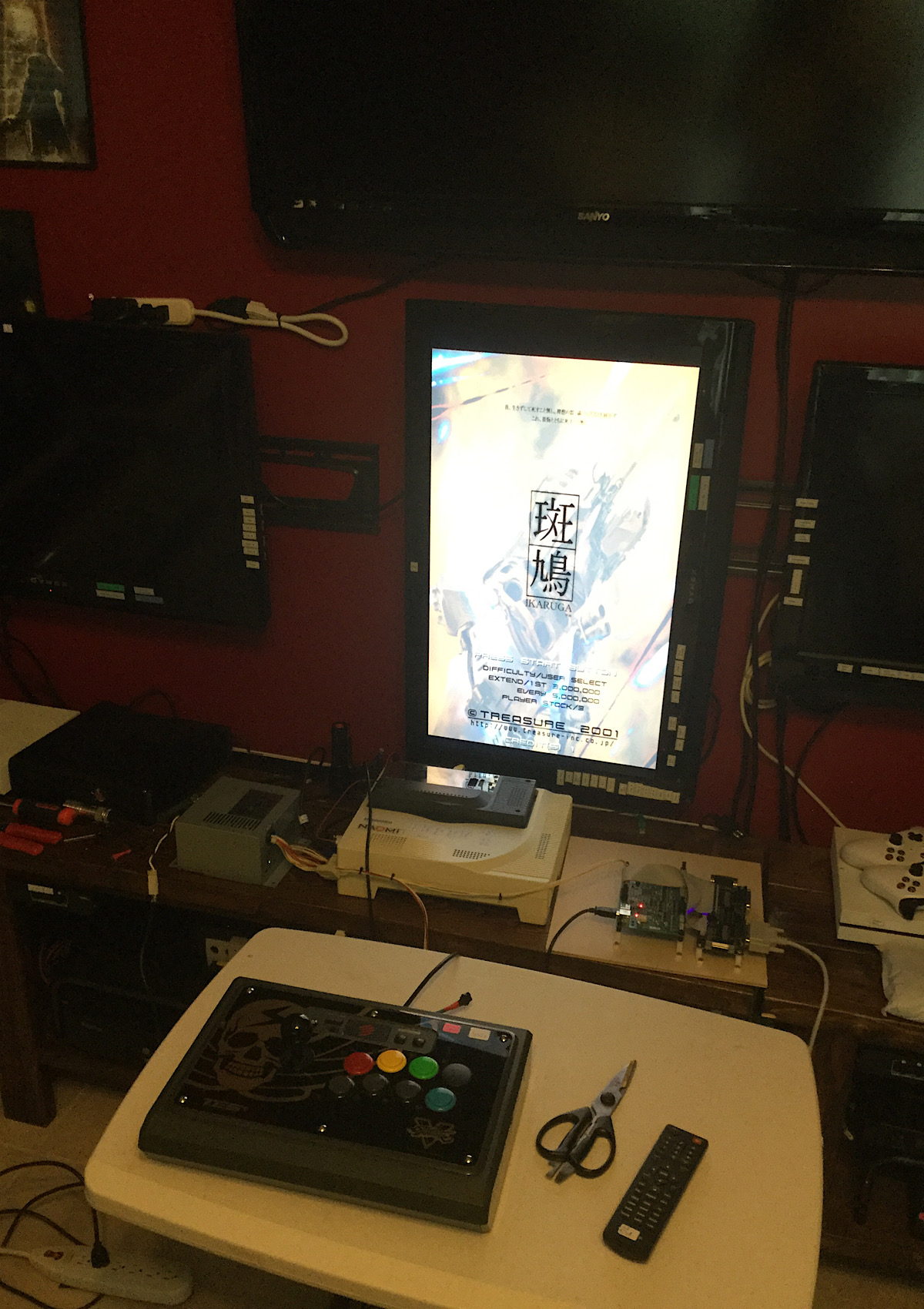

Wired up my prototype utility box, works great! I used cat5e for this. Just tested service and test buttons so far, I’m not sure what game uses button 7, but I figure can’t hurt to have it available along with the aux buttons in case I need them. Currently running Naomi net boot with the pi force web. My grail game on Naomi is ikargua so I rotated a tv, eventually it will go into a blast city cab. In the meantime I’ll play the shit out of this because it is all working.

thanks to everyone on this forum for helping me and making all this awesome stuff. I’ve learned a ton and had lots of fun working on this.


Attachments

  • BCAEC0AF-45D4-44BD-A242-D6E56927AA25.jpeg
    748.2 KB · Views: 109
  • FAAE7A6C-5A20-4F8F-90B7-05FEFF86028F.jpeg
    510 KB · Views: 95
  • A331E4DA-C429-4262-B6E6-26CE8D368967.jpeg
    553.6 KB · Views: 96

Geddon

Professional
Joined
Jun 1, 2018
Messages
684
Reaction score
324
Location
USA

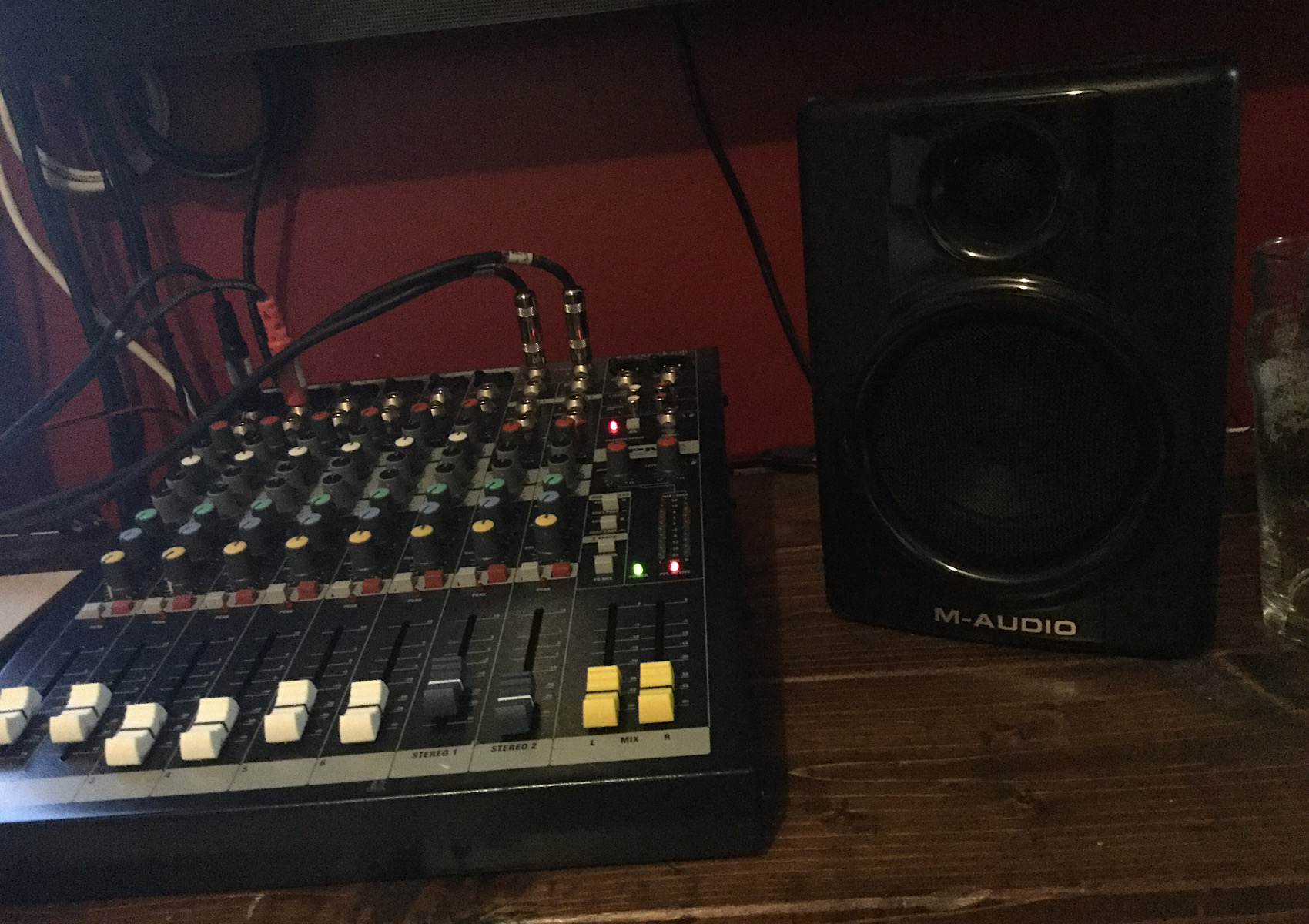

So now my issue is sound. Connected a little soundcraft mixer and some m-audio monitors and it definitely helps over the dynex tv speakers. The Naomi pushes audio hard, I had to dial gain way back. This soundcraft unit gives me 3 eq knobs, gain, and left/right balance. Fiddled with it a bit and huge improvement. I kind of want a sub though. In my music room I have an 18” monster sub and a very nice mixer, Allen and heath qu32, might try hooking this stuff up there for fun.


Attachments

  • 7FFB3D40-59E1-442C-AAA8-98339523FB1B.jpeg
    594.6 KB · Views: 92
  • A5AD5254-2A24-4499-A18B-10E950361F92.jpeg
    554.4 KB · Views: 86

Urabutbl

Student
Joined
Jul 21, 2015
Messages
61
Reaction score
21
Location
Stockholm
Possibly a really dumb question, but I've held off on one of these since I've been looking for some "real" guns on ebay for a while now, and not found any X/Y ones. However, these Aliexpress ones that seem to be for a PC running an emulator seem to fit the bill... Would these work with the S-JIHP?

It would be beyond awesome if I could build a gun setup that would work on my current cabs.


Logan McCloud

Student
Joined
Jul 26, 2015
Messages
102
Reaction score
38
Location
Barcelona, Spain
Yes and not, I have the Aliens Guns and they have an usb controller board which allow them to be connected to a regular PC.

But, nothing stops you from connect some wires from the pots to the JVS Helper, and you are ready to go.

Best regards.


skusuma

Student
Joined
Apr 23, 2020
Messages
86
Reaction score
22
Location
Orange County, CA
Here is my pinout:

Mitsurugi-w,
How do I map your db25 standard pinout to jvs io revision 1 60 pinout and revision 2 40 and 34 pinout? For revision 1, am I correct to base on Arcade Otaku at https://wiki.arcadeotaku.com/w/JVS
I'm not sure how to map to revision 2 jvs io.
I'm currently testing out your S-JIHP pcb with a dreamcast wheel controller on Initial D3 and 18 wheeler sega naomi games.


Mitsurugi-w

Arcade Admini-Moderator
Staff member
Legendary
Joined
Jun 12, 2015
Messages
6,674
Reaction score
6,238
Location
New Bern, NC USA
If you have a 40 pin ribbon cable you can plug it in to both the S-JIHP and Rev 2 I/O. Just like you would use the 60 pin cable for Rev 1 and 3.

Then the pinout in the image will work correctly.


skusuma

Student
Joined
Apr 23, 2020
Messages
86
Reaction score
22
Location
Orange County, CA
Would it be possible to use revision 1 i/o with S-JIHP for revision 2 game for example 18 wheeler game?


Mitsurugi-w

Arcade Admini-Moderator
Staff member
Legendary
Joined
Jun 12, 2015
Messages
6,674
Reaction score
6,238
Location
New Bern, NC USA
it depends how many outputs the game is expecting. In most cases a revision 3 would work fine.


skusuma

Student
Joined
Apr 23, 2020
Messages
86
Reaction score
22
Location
Orange County, CA
Good to know revision 3 can work for revision 2.

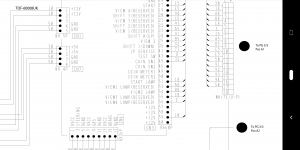

For revision 1 io how to map reserve buttons in Initial D3 to your db25 pinout? (I attached Initial D3 pinout screenshot) Do I map Initial D3 pin 19-23, 53, 55 (View1, Shift 3, View3, Shift 2 and etc) to your db25 Button 1-7?

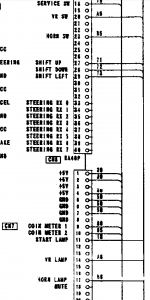

For revision 2 io for 18 wheeler game, do I map Shift Up, Down and Left to db25 Up, Down and Left and map View Horn, Start Lamp, View Lamp and Horn Lamp to db25 button1-4? (I attached 18 wheeler pinout screenshot. Top is 40 pins and bottom is 34 pins)

Sorry for so much details.


Attachments

  • Screenshot_20200803-144525.png
    313.5 KB · Views: 70
  • Screenshot_20200803-144730.png
    39.8 KB · Views: 71

Mitsurugi-w

Arcade Admini-Moderator
Staff member
Legendary
Joined
Jun 12, 2015
Messages
6,674
Reaction score
6,238
Location
New Bern, NC USA
You can look at the standard pinout of the Type 1 I/O to see which buttons they represent. Here are some examples:

19 = 1p right
20 = 2p right
21 = 1p left
22 = 2p left
23 = 1p up

51 and 53 are lamps. Lamps are controlled Outputs. The S-JIHP does NOT handle outputs at all. The outputs are in most cases just activating lighted buttons. It does handle the actual pressing of the button, but not the handling of the light inside of it.

If you look at the pinout of the Type 2 it shows that pin 27 = 2p right, pin 28 = 2p left, and pin 29 = 2p up. Looks like view is on pin 20 which is 1p left and horn is on pin 23 which is 1p button 1.

Again the S-JIHP will not handle the lamps.


Robjab

New User
Joined
Jan 16, 2021
Messages
4
Reaction score
1
Location
United Kingdom

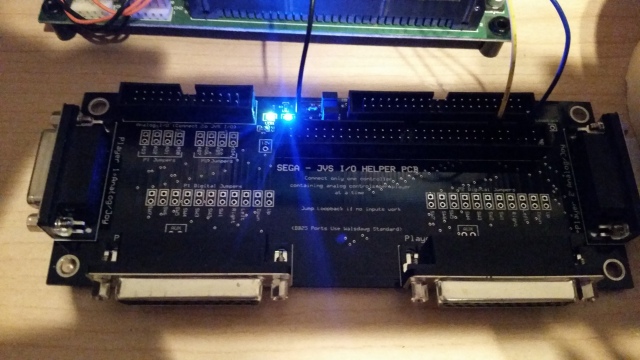

This item was developed by myself to assist with controls when playing arcade games that require a Sega JVS I/O. It allows you to remap buttons and controls with a simple interface. It will also allow you to use a modded PC joystick for flight games and a PC racing wheel to play racing games. Now you can standardize your controls among many different platforms.

This is great for Naomi, Chihiro, Lindbergh, Triforce, Namco 246/256/357/359, etc. You can even use this to add analog controls when using a Capcom I/O!!!

Price is $75 plus shipping.

I include a 26-pin ribbon cable for analog controls and a 40 or 60 pin interconnect cable of your choice depending on which I/O you will be using. I also include one DB25 solder cup connector to get you started.

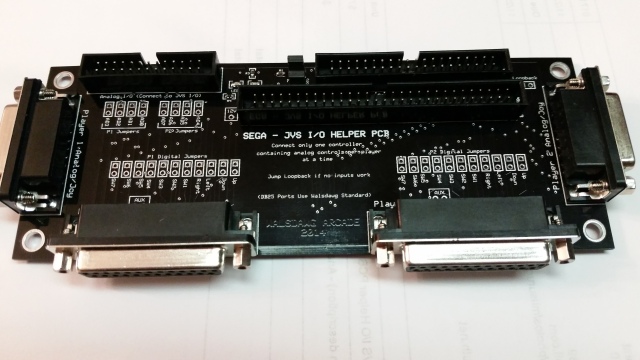

Here is what they look like:





The color of the LEDs may vary depending on what I have on hand.

BTW. If you want to buy extra connectors from me here is the price:

DB25--- $5
DB15--- $4

Here are some videos:

Part 1:




Part 2:





I can also sell this particular gun adapter fully asssembled for $25.

Hi, I'd like to buy one of these. How do i go about it? Tried to message you direct. Many thanks. Rob


ron1n

New User
Joined
Aug 30, 2019
Messages
2
Reaction score
0
Location
Africa, Toto
Hey guys stupid question. Can I just slap a DB15 gender changer on this bad boy and use stock Neo Geo controllers/sticks/adapters or is it more complicated than that? Thanks!


skate323k137

Grand Master
Joined
Jul 23, 2015
Messages
1,320
Reaction score
886
Location
Michigan
Hey guys stupid question. Can I just slap a DB15 gender changer on this bad boy and use stock Neo Geo controllers/sticks/adapters or is it more complicated than that? Thanks!


You need to wire digital controls like a neo stick to the db25. I made my own db15 to walsdawg db25 adapters with parts from Winford engineering. It's just wire and a pinout conversion, nothing too hard.

The pinout info is on page 2 or 3 of this very thread.


ron1n

New User
Joined
Aug 30, 2019
Messages
2
Reaction score
0
Location
Africa, Toto
You need to wire digital controls like a neo stick to the db25. I made my own db15 to walsdawg db25 adapters with parts from Winford engineering. It's just wire and a pinout conversion, nothing too hard.

The pinout info is on page 2 or 3 of this very thread.
Perfect thanks!


Mitsurugi-w

Arcade Admini-Moderator
Staff member
Legendary
Joined
Jun 12, 2015
Messages
6,674
Reaction score
6,238
Location
New Bern, NC USA
Yeah the DB15 isn't Neo/Supergun pinout. Its IBM joystick/game pad pinout.
