SEGA Ghost Squad LED Dimensions

CN1 is on the fuse board (fuse bd ctf).
After io board, it should go to the motherboard (sega chihiro) via usb B/A cable.

Last edited:

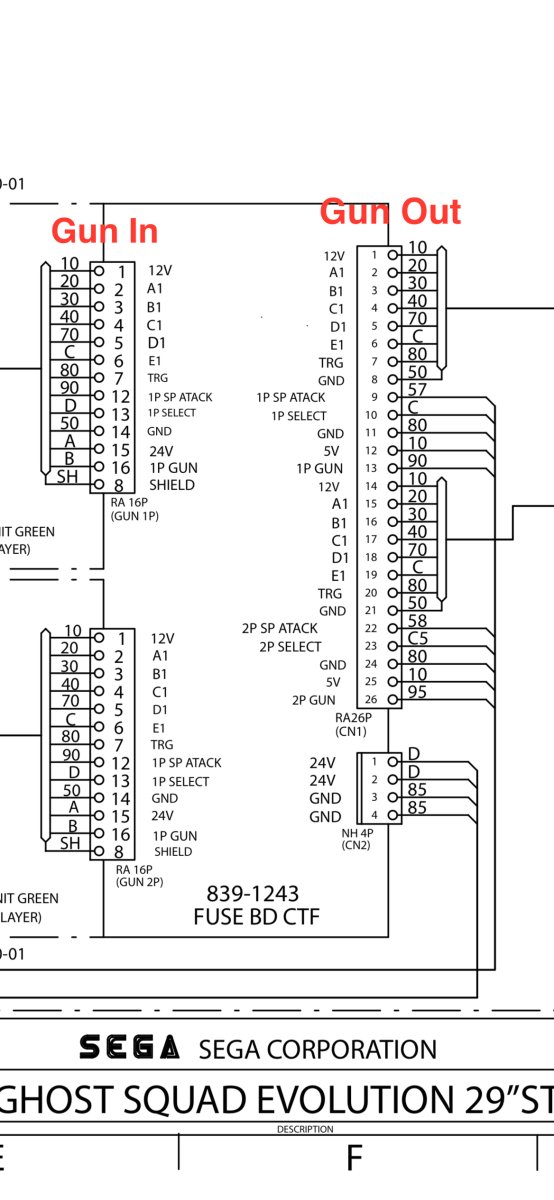

The guns plug into the fuse board, not the LEDs. See diagram attached. The leds plug into the gun sense board XH 6P (LED). I think if you trace the leds surrounding your monitor you will see that cable plugs into the gun sense board

tangodownNZ said:
The guns plug into the fuse board, not the LEDs. See diagram attached. The leds plug into the gun sense board XH 6P (LED). I think if you trace the leds surrounding your monitor you will see that cable plugs into the gun sense board
Click to expand...
Yes, that's correct based on the diagram. It's hard for me to trace without untying cables tied together with the led cable.

Last edited:
I will start a new thread because this is a dead end. I really appreciate your help with this skusuma. I think the problem is the raw signal from the leds because its not designed for a windows pc. Its arcade machine boards and leds designed for an arcade machine. I am trying to use it for something it is not designed for. I am looking at software and calibration tools that may help. And tips like this “When it comes to calibration the ideal solution is to calibrate the actual sensor rather then applying some transforms to the output of the sensor if possible.” If I can get the gun to aim properly this is a really cool project. Thanks again

skusuma said:
Can check if your gun io board sw1 set to off and sw2 set to On?
Click to expand...
I was wondering about dip switches and dials on the board. I will check. Thank you.
P.S I have seen this zebra characters videos. Actually it was him that inspired me to do this. But he does not respond to messages

It's kind of weird mine the sw1 set to Off (50 inches monitor). If I set it to On (29 inches monitor), my gun cursor will move to reverse direction. The sw2, I think Off setting is for 12 led boards (Lost World Jurassic Park game because it uses 12 led boards).
