Also the Megalo410 video on youtube with the BenQ MW632ST, the build thread for that is here

arcadeitalia.net/viewtopic.php?f=65&t=22833Let

you'll need to signup to see the images
This is the route I've gone. Just need to fabricate a mount at this point. It looks /super/ promising held up with books and boxes, haha.
I already registered and read his post 10 times already and he is using the MW621ST not the MW632ST. but it does matter at this point one of the two will work. I have a lead for a MW632ST which works but has a strached lens then I will replace the whole lens with a new one. hopefully I will not pay 800$.
right now I'm trying to undestand the way the cab was originally wired. I still dont understant how the trapeze mirror is mounted in the cab. do you guys know??? because the italian guys setup is. projector send image to the trapeze mirror and from the trapeze it goes to the screen.


tiff_lee

Professional
Joined
May 21, 2017
Messages
584
Reaction score
307
Location
Western Australia
Yeap that's my mistake I was planning to use MW632ST but its neither here nor there, the MW621ST went out of production nearly 7 years ago, the 632 replaced it and is still the current model hence better availability.

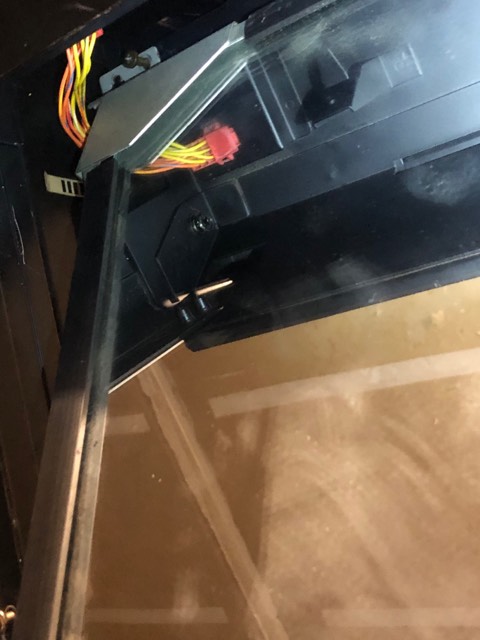

The mirror bolts to the frame, rotate it so the mirror is facing the front of the cab and the brackets on each corner line up with holes in the frame. The italian guys setup is nothing unique as such, that's the exact principle on how the original worked, he just removed all the tubes/chassis etc from the bottom and put a modern projector in there with a longer throw.


kazanova225

Student
Joined
Nov 13, 2018
Messages
102
Reaction score
26
Location
MARINA
Yeap that's my mistake I was planning to use MW632ST but its neither here nor there, the MW621ST went out of production nearly 7 years ago, the 632 replaced it and is still the current model hence better availability.

The mirror bolts to the frame, rotate it so the mirror is facing the front of the cab and the brackets on each corner line up with holes in the frame. The italian guys setup is nothing unique as such, that's the exact principle on how the original worked, he just removed all the tubes/chassis etc from the bottom and put a modern projector in there with a longer throw.

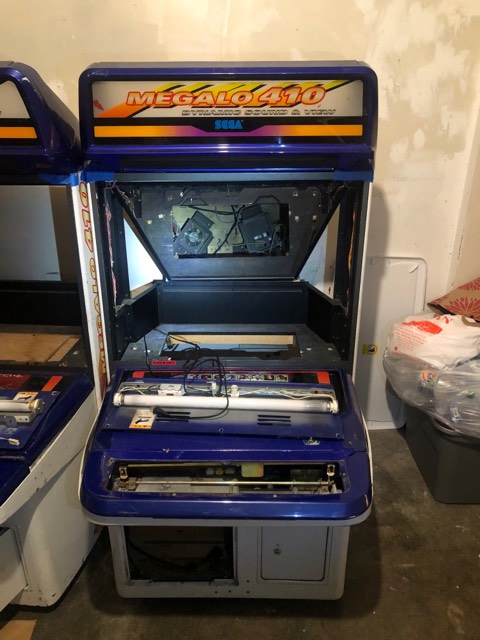

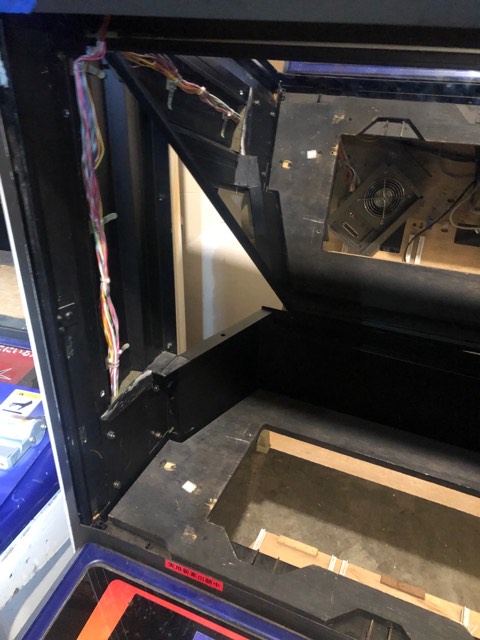

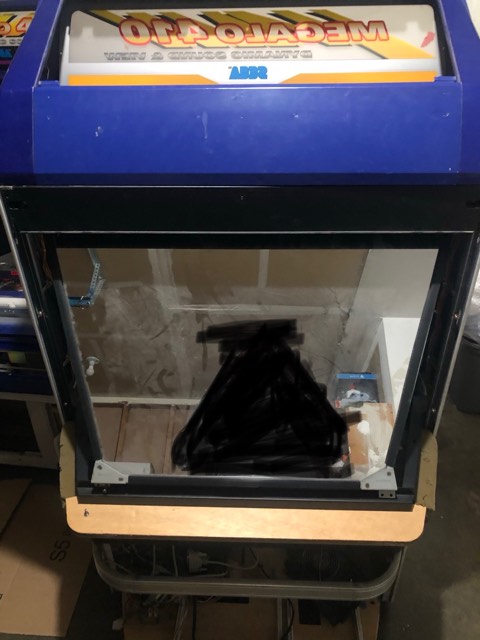

I did it, I did it, with your help and some other friends online I was able the figure out the position of this damn mirror.
I also found the rgb to vga video converter so little I'm starting to figure out this mess.
aaahhh done for the day going to sleep.


Attachments

  • 82702591_483378302318872_1360732977532764160_n.jpg
    69.6 KB · Views: 126
  • 82704439_464389470904323_8213539283269582848_n.jpg
    52.5 KB · Views: 124
  • 82726470_2556829754560147_738481087805652992_n.jpg
    52.6 KB · Views: 118
  • 83102217_2949991658378160_3728434652659056640_n.jpg
    64.1 KB · Views: 126
  • 83106883_483378352318867_495774822370902016_n.jpg
    383.2 KB · Views: 130
  • 83328467_1063711417308129_8294362781004595200_n.jpg
    46.7 KB · Views: 119

OsirusANZ

Beginner
Joined
Oct 8, 2018
Messages
12
Reaction score
17
Location
BRISBANE
Paging @OsirusANZ who recently pimped one of these out.
Haha yeah we spoke over Facebook when they picked them up. The 36in monitor I have in mine has seemed to disappear lucky I bought it when I did.
Any pics?
I’ve actually sold that cab now I’ll upload a pic later today. But the monitor that fit inside was a Phillips 356M6QJAB. Left around 5-10mm gap either side of the screen. Filled that 41” hole pretty good though.


kazanova225

Student
Joined
Nov 13, 2018
Messages
102
Reaction score
26
Location
MARINA
Paging @OsirusANZ who recently pimped one of these out.
Haha yeah we spoke over Facebook when they picked them up. The 36in monitor I have in mine has seemed to disappear lucky I bought it when I did.
Any pics?
I’ve actually sold that cab now I’ll upload a pic later today. But the monitor that fit inside was a Phillips 356M6QJAB. Left around 5-10mm gap either side of the screen. Filled that 41” hole pretty good though.
nice cant wait to see that


tiff_lee

Professional
Joined
May 21, 2017
Messages
584
Reaction score
307
Location
Western Australia
Not wanting to derail this thread but seeing that it is about the mighty Megalo 410 I just noticed both of mine have the VS kit installed, was that a standard feature?

Also have some weird aluminium overlay. On one cab its on the inlay panel, on the other its on the control panel.




The cabs themselves




hoagtech

Champion
Joined
Mar 28, 2019
Messages
1,112
Reaction score
1,129
Location
Bellingham WA
Yeap that's my mistake I was planning to use MW632ST but its neither here nor there, the MW621ST went out of production nearly 7 years ago, the 632 replaced it and is still the current model hence better availability.

The mirror bolts to the frame, rotate it so the mirror is facing the front of the cab and the brackets on each corner line up with holes in the frame. The italian guys setup is nothing unique as such, that's the exact principle on how the original worked, he just removed all the tubes/chassis etc from the bottom and put a modern projector in there with a longer throw.
I did it, I did it, with your help and some other friends online I was able the figure out the position of this damn mirror.I also found the rgb to vga video converter so little I'm starting to figure out this mess.
aaahhh done for the day going to sleep.
Which RGB to hv converter did you decide on.

There are a couple lag free options and line doubling may be necessary if your going with a replacement projector.


kazanova225

Student
Joined
Nov 13, 2018
Messages
102
Reaction score
26
Location
MARINA
Yeap that's my mistake I was planning to use MW632ST but its neither here nor there, the MW621ST went out of production nearly 7 years ago, the 632 replaced it and is still the current model hence better availability.

The mirror bolts to the frame, rotate it so the mirror is facing the front of the cab and the brackets on each corner line up with holes in the frame. The italian guys setup is nothing unique as such, that's the exact principle on how the original worked, he just removed all the tubes/chassis etc from the bottom and put a modern projector in there with a longer throw.
I did it, I did it, with your help and some other friends online I was able the figure out the position of this damn mirror.I also found the rgb to vga video converter so little I'm starting to figure out this mess.aaahhh done for the day going to sleep.
Which RGB to hv converter did you decide on.
There are a couple lag free options and line doubling may be necessary if your going with a replacement projector.
rgb to HV??? since I dont know what it is I probably haven't thought about it. I saw a scanline generator somewhere but I havent had the time to look into that.


kazanova225

Student
Joined
Nov 13, 2018
Messages
102
Reaction score
26
Location
MARINA
Not wanting to derail this thread but seeing that it is about the mighty Megalo 410 I just noticed both of mine have the VS kit installed, was that a standard feature?

Also have some weird aluminium overlay. On one cab its on the inlay panel, on the other its on the control panel.

The cabs themselves
yes I have those stickers on both of mine too. I think the RGB amplifier came standart because an other megalo owner I talked to has one in his megalo. mine were gutted so I dont have them. Can you please send me a picture and references of the speakers and the way they are wired? or measurment? anything that can help me find replacement? also do you still have the original rear projection crt in both cab?


hoagtech

Champion
Joined
Mar 28, 2019
Messages
1,112
Reaction score
1,129
Location
Bellingham WA
Yeap that's my mistake I was planning to use MW632ST but its neither here nor there, the MW621ST went out of production nearly 7 years ago, the 632 replaced it and is still the current model hence better availability.

The mirror bolts to the frame, rotate it so the mirror is facing the front of the cab and the brackets on each corner line up with holes in the frame. The italian guys setup is nothing unique as such, that's the exact principle on how the original worked, he just removed all the tubes/chassis etc from the bottom and put a modern projector in there with a longer throw.
I did it, I did it, with your help and some other friends online I was able the figure out the position of this damn mirror.I also found the rgb to vga video converter so little I'm starting to figure out this mess.aaahhh done for the day going to sleep.
Which RGB to hv converter did you decide on.There are a couple lag free options and line doubling may be necessary if your going with a replacement projector.
rgb to HV??? since I dont know what it is I probably haven't thought about it. I saw a scanline generator somewhere but I havent had the time to look into that.
Your “VGA” your converting rgbs to rgbhv.

I was wondering what model you chose for this.

Also wondering if you decided on a projector and whether the projector would properly scale 240p or if you would need to add scan lines to a line doubled image.

Good luck. I’m rooting for you. Those megalos are a beautiful breed


kazanova225

Student
Joined
Nov 13, 2018
Messages
102
Reaction score
26
Location
MARINA
Your “VGA” your converting rgbs to rgbhv.
I was wondering what model you chose for this.

Also wondering if you decided on a projector and whether the projector would properly scale 240p or if you would need to add scan lines to a line doubled image.

Good luck. I’m rooting for you. Those megalos are a beautiful breed

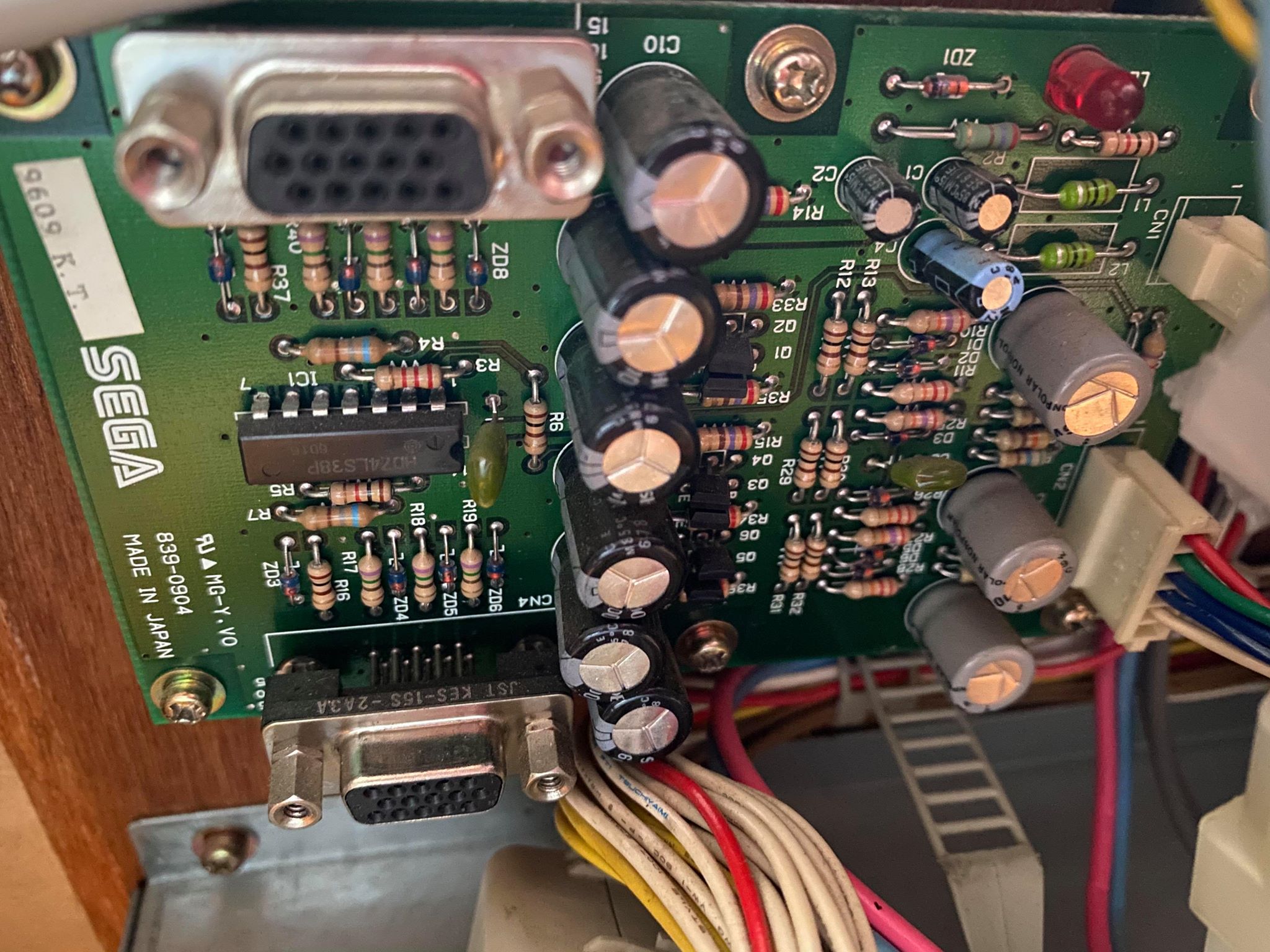

I haven't decided yet, I'm looking for the original rgb to vga that came with the megalo picture below., no luck so far. any suggestion for RGB to VGA? I decided to go with a projector on one and an 37 lcd on the other one (mainly to see the difference between the too, also to lessen the coast of restoration and also I have only one trapeze mirror so I can setup only one projector) I don't know if I will need to add scan lines or not. one will be wired jamma and the other one (lcd) JVS. I decided to use the BenQ MW623ST, I saw one on ebay working however the lens has a scratche on it so you have a big blurry patch in the middle of the display but I checked out how to replace the lense and I think I can do it. sooo for around 300 I can get it or I can try to bargain with the guy who gave them to me he has one (MW623ST) available.



kazanova225

Student
Joined
Nov 13, 2018
Messages
102
Reaction score
26
Location
MARINA
right now I'm trying to undestand the way the cab was originally wired.
Where are you confused on this? Mine is fully in tact aside from the actual tubes.
I dont have the speaker and look in the speaker compartment on both side left and right I can see JST plugs, so I'm wondering how was the speaker plugged?
also I dont have a jamma or jvs harness in mine so I trying to figured out how the harness interface with the rest of the wiring in the cab?
some pictures also might help.


rewrite

Multi Boyz Litigator
Legendary
Multi Boyz
Joined
Nov 9, 2015
Messages
6,537
Reaction score
4,359
Location
SoCal
That's how the cab is wired. Everything goes into that board and that board goes out to the JAMMA harness you can see laying on the floor in the first Pic.
