I just remove the metal shield of the female db15 :)


pacoarcade

Professional
Joined
Oct 16, 2018
Messages
481
Reaction score
408
Location
Spain
Could you recommend a seller for the Saturn female connectors? the ones I bought did not fit well and I bent the pins :S


RealMFnG

Legendary
Joined
Mar 27, 2016
Messages
4,390
Reaction score
3,306
Location
Northern California
Could you recommend a seller for the Saturn female connectors? the ones I bought did not fit well and I bent the pins :S
I bought mine off eBay long ago. I'll look for that in auction history and will let you know.


Raph_friend

Professional
Joined
May 28, 2017
Messages
583
Reaction score
412
Location
Brazil
There's another project here based upon the Atmega328. Not tried it myself but may be worth a look.

https://github.com/Arthrimus/Saturn_Controller_Demux
Be careful with that code, I wouldn't use it in that form, since it doesn't configure the outputs as open drain, this means that when buttons aren't pressed, it outputs high - you don't want to accidentally touch the GND with those pins :)
Also, this may be just me, but if possible, I prefer to set the microcontroller's outputs all at once, not each time for every output.
Sorry for the old quote, but the UD decode uses that method too.

I know this because I'm making an adapter for PSX to Jamma and the simplest method outputs HIGH (5V), and I had to research something safer.

So I measured several adapters I own, including UD.

At first I thought I was crazy, because in my mind this method would blow the I/Os (just how NEO-C1 blow on some MVS), but apparently, no, haha.


RGB

Champion
Joined
Jul 21, 2015
Messages
802
Reaction score
1,739
Location
Europe
I don't believe the UD works as you say, there are most likely pull-up resistors on the outputs, that's why you see +5V.


Raph_friend

Professional
Joined
May 28, 2017
Messages
583
Reaction score
412
Location
Brazil
I don't believe the UD works as you say, there are most likely pull-up resistors on the outputs, that's why you see +5V.
It still output ~5V into the I/O, you can measure it yourself, maybe my multimeter is crazy haha


RealMFnG

Legendary
Joined
Mar 27, 2016
Messages
4,390
Reaction score
3,306
Location
Northern California

RealMFnG

Legendary
Joined
Mar 27, 2016
Messages
4,390
Reaction score
3,306
Location
Northern California
@Frank_fjs, do you use shield ground on either the Sat2Neo or the Minigun? If so, I am going to have to get screws to hold this together to connect ground.

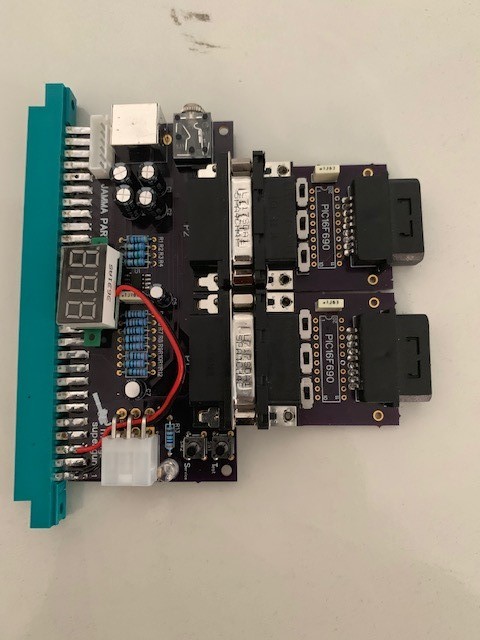

Just waiting on the screws to hold down the lid PCB and dip sockets and this will be done. Honestly, the lid probably isn't going to be needed. This fits so well. If anything, it adds to the aesthetic. Here it is with the Minigun v1.1:



Frank_fjs

Multi Boyz 4 Lyfe
Legendary
Multi Boyz
Joined
Mar 3, 2018
Messages
3,431
Reaction score
5,805
Location
Australia - Adelaide
On the Minigun the db15 shields are grounded as well as one of the db15 pins. The ground on the shield isn't necessary at all for connectivity / functional purposes, it's just there for a bit of shielding and general flow of the ground plane on the pcb.

Saturn adapters require the shield of the db15s to be removed so there's no point of grounding those.


kingofapoc

New User
Joined
May 29, 2019
Messages
1
Reaction score
0
Location
New Jersey
Hi, I'm new here. Just wanted to drop a question. Are these converters (Saturn -> Neo Geo) for sale already assembled? Or is this strictly DIY or is still a work in progress? Thanks!


gamemaster14

Enthusiast
Joined
Feb 23, 2016
Messages
291
Reaction score
55
Location
The Game Nexus (USA)
I use an adapter to use my Neo Geo CD Controller on my arcade boards. (Basically an extension cable with spliced wires connected to alligator clips)

Just wondering, could an adapter such as this possibly be used to connected Sega Saturn Twin Sticks to be used on a Sega Model 2 with Virtual on or a Sega Model 3 with Virtual On OOT?

I know the Saturn Twin Sticks are 100% digital and do not use analog like some sticks, I would figure an adapter like this would eliminate the need to modify the twin sticks making them still able to connect to a Saturn Console or a Dreamcast console with TC3 adapter.


SS4Rob

Beginner
Joined
Sep 17, 2019
Messages
18
Reaction score
9
Location
Kentucky
Hello. I just received a 1.6 Saturn to Neo converter. My old school Saturn pads work perfectly, but I picked up a couple of Retro Bit Saturn pads and they don't work properly. Here is a link to the exact pads:
https://smile.amazon.com/gp/product...title_o03_s00?ie=UTF8&tag=nearmintcon-20&th=1

Medium punch seems to be hit rapidly, and coin / start don't seem to work until I hold the actual Start button... it's very odd. Why would these pads not work like the classic controllers? Is it possible to upgrade firmware on these devices? In the meantime, I'll continue to use my classic pads. Thanks for any help.


Frank_fjs

Multi Boyz 4 Lyfe
Legendary
Multi Boyz
Joined
Mar 3, 2018
Messages
3,431
Reaction score
5,805
Location
Australia - Adelaide
Third party pads probably handle the multiplexing differently.

The code was designed around official pads, not sure if there's a workaround...


dr_myslihiiri

Student
Joined
Aug 5, 2017
Messages
73
Reaction score
60
Location
Helsinki, Finland
It's the same with my adapters, I wrote my code around the official controllers. I'll grab one of those retrobit controllers when I'm less busy and see what's going on there.
Please consider grabbing a wireless 2.4GHz Retro-Bit controller once they're available. I'd be willing to chip in a little towards getting you one for testing, although I'd wager to guess that the multiplexing logic will be identical between the wired and wireless models.


pacoarcade

Professional
Joined
Oct 16, 2018
Messages
481
Reaction score
408
Location
Spain
Hello. I just received a 1.6 Saturn to Neo converter. My old school Saturn pads work perfectly, but I picked up a couple of Retro Bit Saturn pads and they don't work properly. Here is a link to the exact pads:
https://smile.amazon.com/gp/product...title_o03_s00?ie=UTF8&tag=nearmintcon-20&th=1

Medium punch seems to be hit rapidly, and coin / start don't seem to work until I hold the actual Start button... it's very odd. Why would these pads not work like the classic controllers? Is it possible to upgrade firmware on these devices? In the meantime, I'll continue to use my classic pads. Thanks for any help.
How good are these controllers compared to the real deal?


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,103
Reaction score
9,489
Location
NH, USA
Medium punch seems to be hit rapidly, and coin / start don't seem to work until I hold the actual Start button... it's very odd. Why would these pads not work like the classic controllers?
Hypothesis #1:
I wonder if it's a timing issue with how fast the adapter is changing states.

I programmed my code to simply switch read banks as fast as possible to reduce any potential lag, but the real Saturn consoles might switch at a specific rate that the Retro-Bit controllers as designed to run at.

I would suggest 2 things.
1. open up that Reto Bit controller and get a picture of the IC clear enough to read the model number. so we know what we're dealing with.

2. someone with a o-scope and a Saturn see if you can determine the rate at which it switches read banks

from there we can determine if the adapters are switching banks too fast or too slow and work out a solution.

Hypothesis #2:
perhaps the Retro-Bit controllers are actually using the Analog controller protocol, it's possible they designed communication around that so that they could use the same logic with the digital controllers and some future analog offering. knowing what they're using for an IC in those controllers might provide a clue.


SS4Rob

Beginner
Joined
Sep 17, 2019
Messages
18
Reaction score
9
Location
Kentucky
I was hoping my second post in this forum would contribute to the community, but it doesn't look like it will. :-/
@rsignal, They feel really close to the Japanese pads, I would recommend them... just not for this.

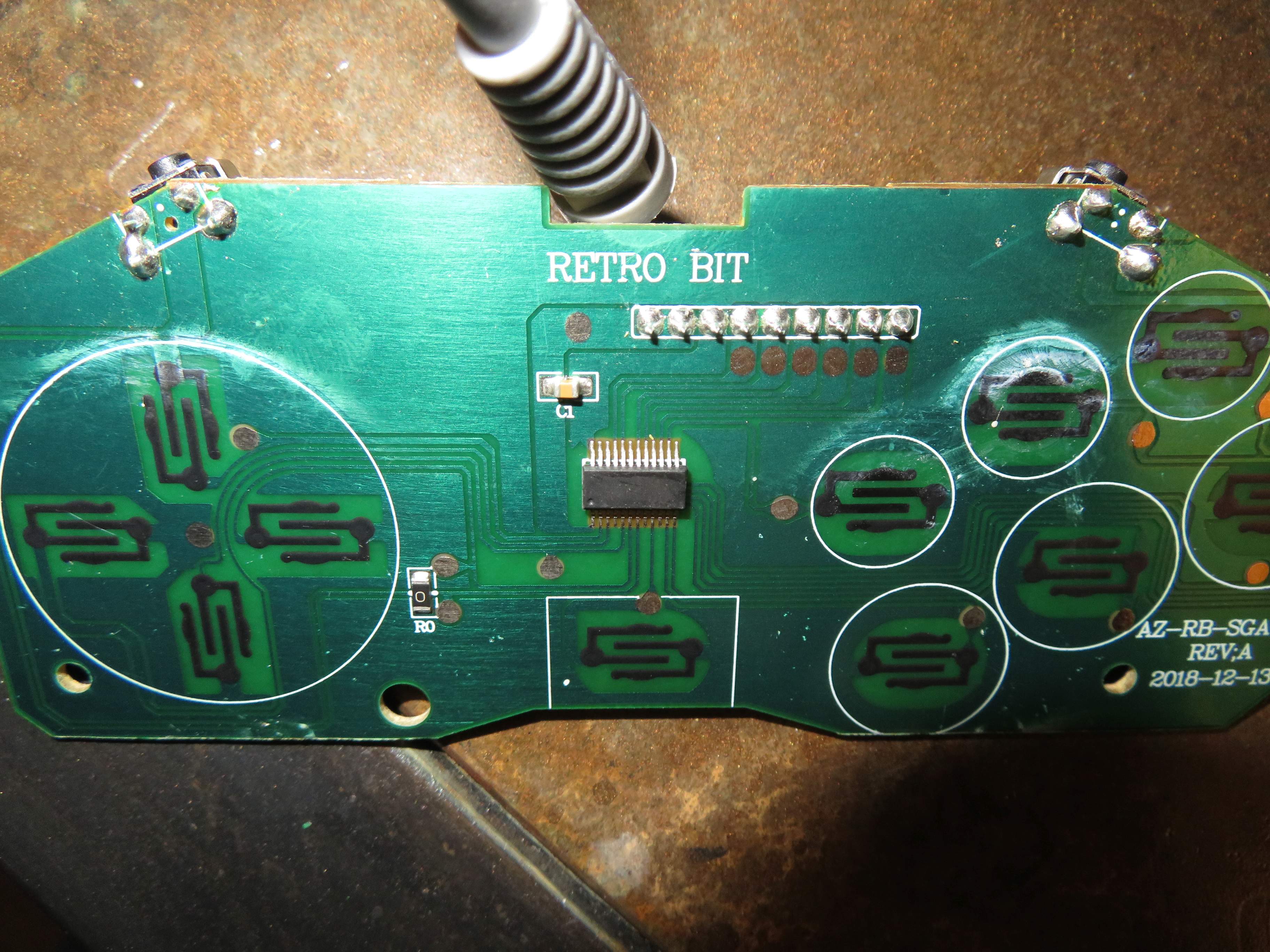

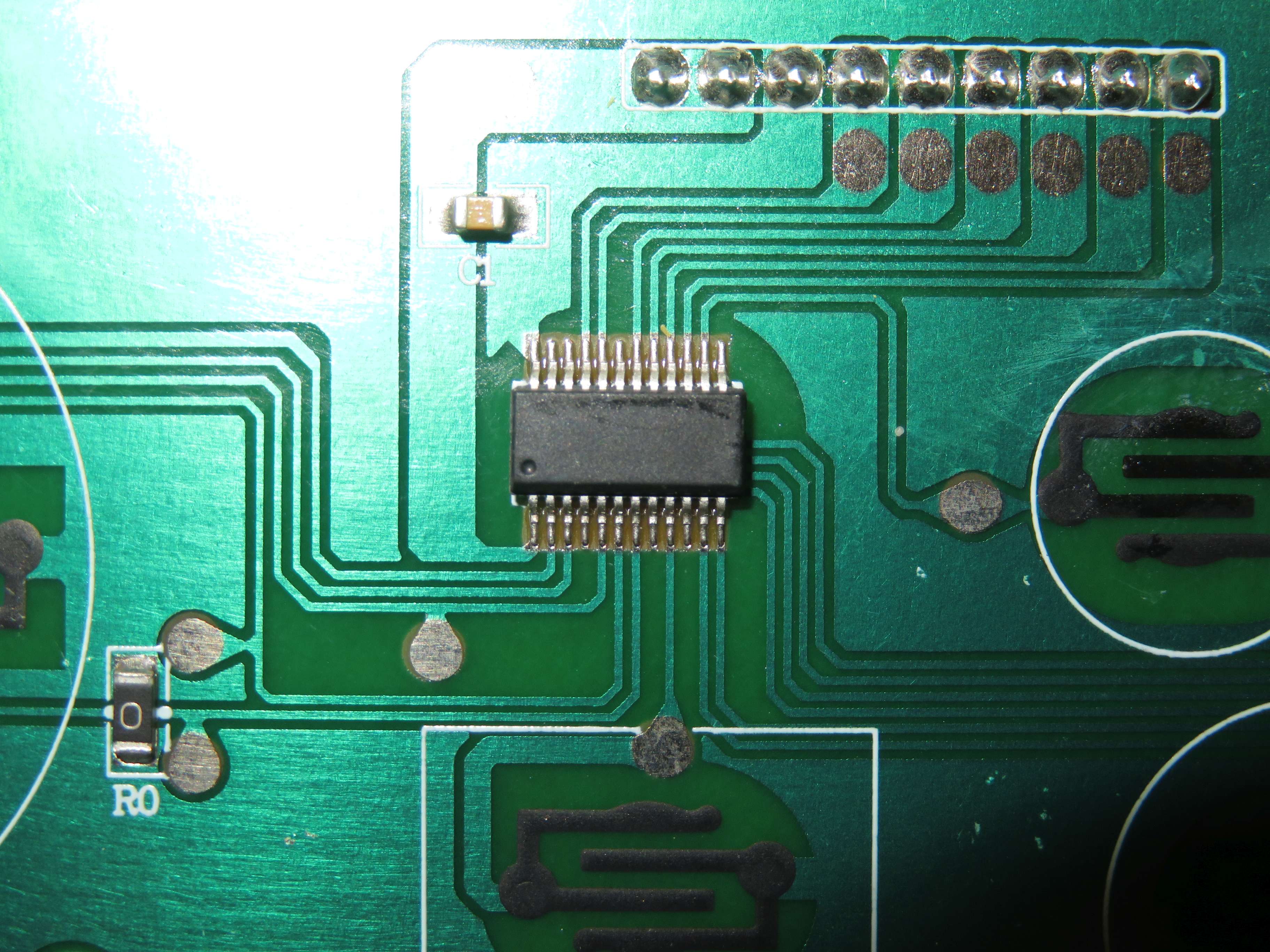

I've attached close up pics of the IC on these pads (the slate black was ~almost~ transparent enough, heh) but I don't see any markings at all. These are supposed to be officially licensed Sega pads, so I was theorizing they would be identical to the real things - I guess not. I hope this shots help though - thanks for looking.


Attachments

  • IC_Saturn_Controller.jpg
    965.9 KB · Views: 185
  • Board_Saturn_Controller.jpg
    967.6 KB · Views: 158
