Hi all,
I have the rail chase board and I’ve noticed that capacitor C8 suffered some stress and was pushed down from its position. As a result, the traces below are now damaged. I flipped the board and could not find the traces rout to try to correct it.
Does anyone have a clue of where to each leg is going? I want to fix the issue.

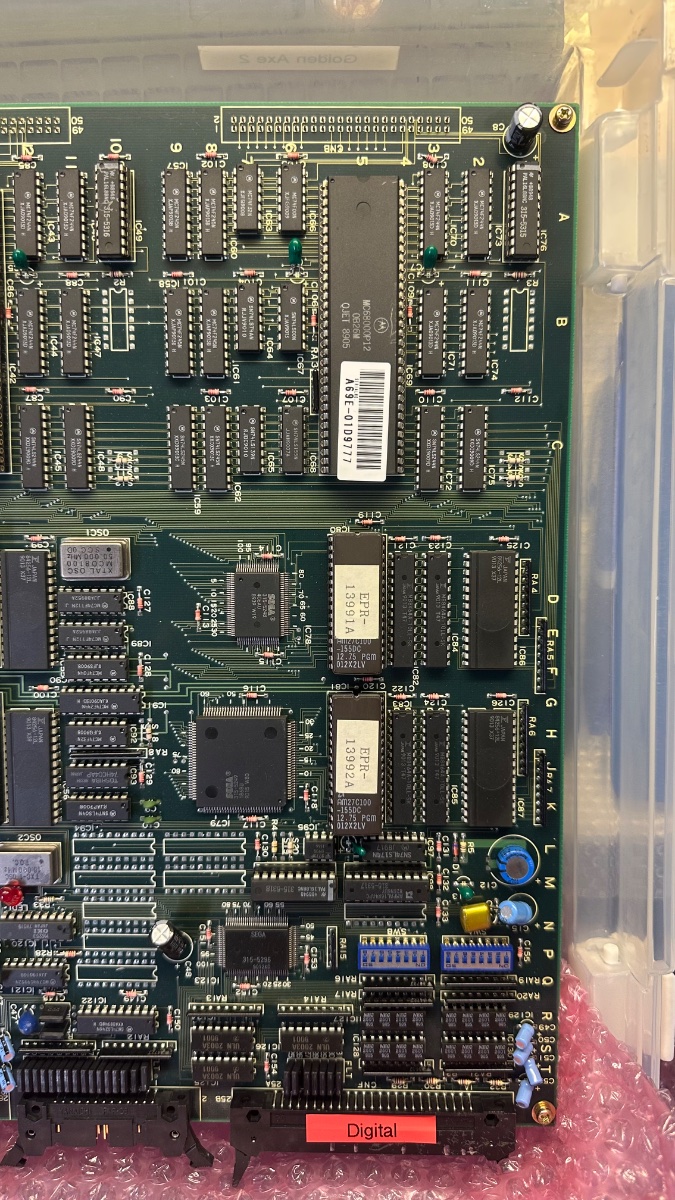

I’ve attached a picture of the board, top view. C8 is at the top right position. Btw, I’ve googled some schematics but did not come with something that I can use.
Many thanks
