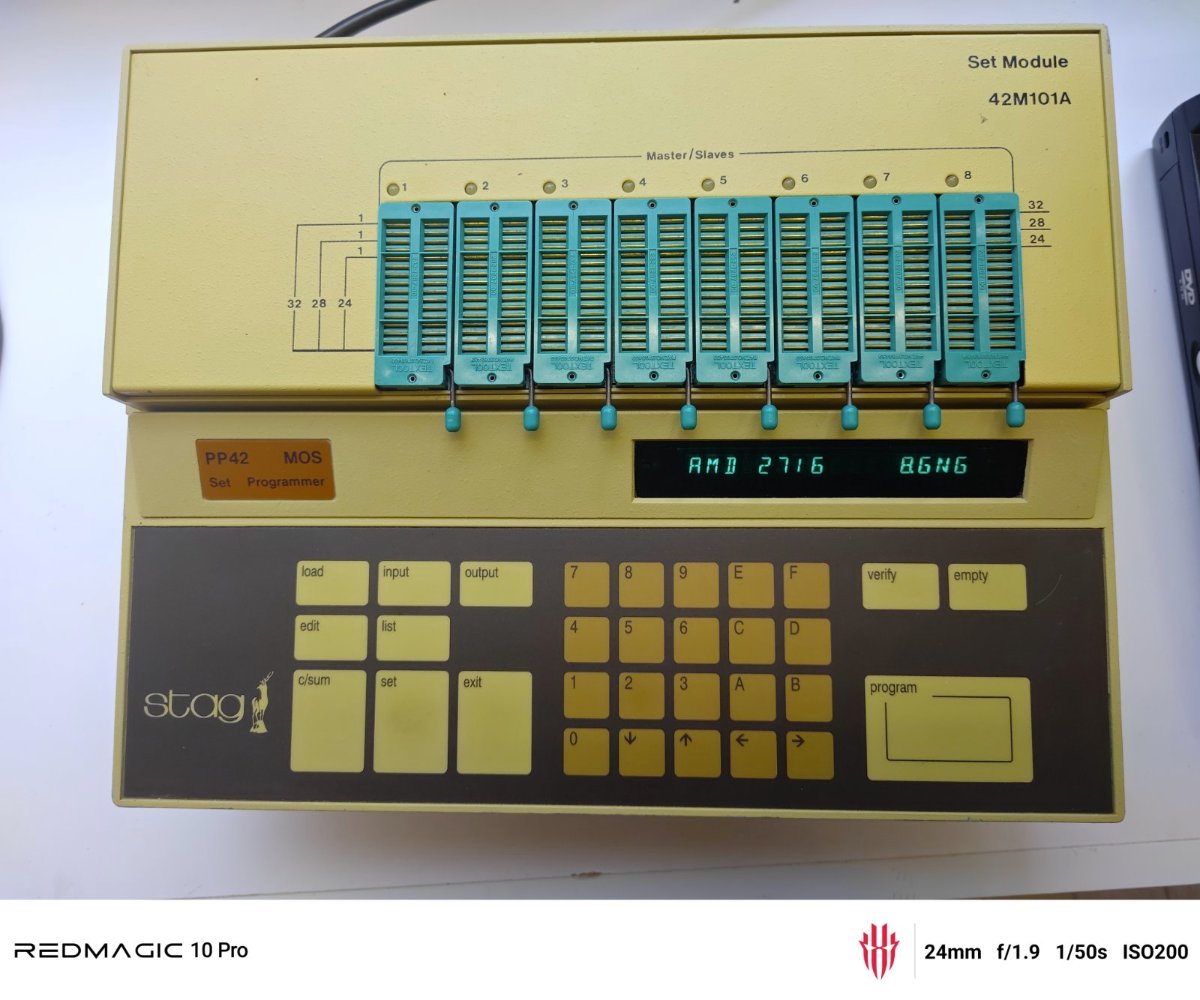

STAG PP42 Professional Gang EPROM Programmer with 42M101A Module
For sale is a vintage STAG PP42 professional gang programmer fitted with the original 42M101A EPROM/EEPROM programming module.
The unit is in very good cosmetic condition and has been carefully tested.
Included:
- STAG PP42 mainframe
- Original STAG 42M101A eight-socket gang programming module
- StagView 1.8.5 software
Tested functions:
- Mainframe self-test passes successfully
- PP42 firmware: ISS 03-01
- 42M101A module correctly detected
- Module firmware: ISS 19-01
- Display and keyboard fully operational
- All eight Textool ZIF sockets and indicators are in very good physical condition
- Two-way RS-232 communication tested successfully
- Successfully connected to StagView under Windows 2000
- Remote control functions tested
The 42M101A module is intended for supported MOS EPROM, EEPROM and related devices in 24-, 28- and 32-pin packages.
Important:
This module does not support bipolar fuse PROM devices such as 82S129, 82S137, 63S441 and similar arcade bipolar PROMs.
This is a genuine professional British-made programmer, suitable for collectors, vintage computer restoration, industrial electronics servicing and gang programming of supported EPROM/EEPROM devices.
Due to the age and specialised nature of the equipment, it is sold as vintage professional equipment. The functions listed above have been tested, but every individual device type and programming algorithm has not been tested.
The programmer will be packed carefully for shipping.
Price 200 eu + shipping
