On all of my Taito PCBs there's an "issue" (probably by design) where the brightness, a.k.a the black level is way too high compared to other PCBs and game consoles with normal NTSC standard black levels.

This issue is present in (but not limited to)
Nastar Warrior (Rastan Saga 2)
Puzzle Bobble (B-system verson)
Space Invaders DX
Cameltry

To help explain what's going on, when I put these games on a HAS supergun and display on a PVM, I have to turn the brightness settings WAY down. It's not a contrast issue, just the darkest black is way too bright by default.

If anyone else here has one of these PCBs feel free to try running on a supergun to see what I'm talking about.

Is there any way to reduce the brightness of the video before it goes to a monitor? I don't think simple resistors would work because that would reduce contrast or the entire signal strength. It's almost like there's some sort of DC offset in the video that's making it brighter than it needs to be.


twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,131
Reaction score
9,527
Location
NH, USA
I don't have one of these PCB in front of me to determine if the Video ground is isolated, but I don't recall any of my F2 hardware having brightness issues when running on a cab (certainly other hardware is guilty of this such as SSV).

Does your Super Gun utilize the Video Ground pin or does it ignore it and just use the common ground?


RGB

Champion
Joined
Jul 21, 2015
Messages
802
Reaction score
1,739
Location
Europe
The HAS uses common ground. Which HAS version do you have? I'll be honest, I haven't encountered such issue yet.

"Is there any way to reduce the brightness of the video before it goes to a monitor? I don't think simple resistors would work because that would reduce contrast or the entire signal strength. It's almost like there's some sort of DC offset in the video that's making it brighter than it needs to be."

You could try terminating R,G,B lines with 75R resistors to ground to see if that makes any difference.


andynumbers

Student
Joined
Jan 3, 2017
Messages
69
Reaction score
53
Location
Atlanta, GA
I've uploaded a video capture of Puzzle Bobble to demonstrate the issue:


Captured using PCB->HAS->Extron SW4 VGA (to process sync)->Extron RGB 109xi (to separate sync)->USB3HDCAP (default settings)

In this video you'll notice the elevated brightness levels at first. However after exiting the system configuration page in game, you'll notice that the brightness levels magically fix themselves at this point. I will go back into the monitor test to demonstrate the correct black levels. Once I exit the test mode, the black levels once again return to their elevated levels.

This leads me to believe this is a software issue, or intentional on Taito's part. I just wish there was some way to patch these games to fix this brightness issue.

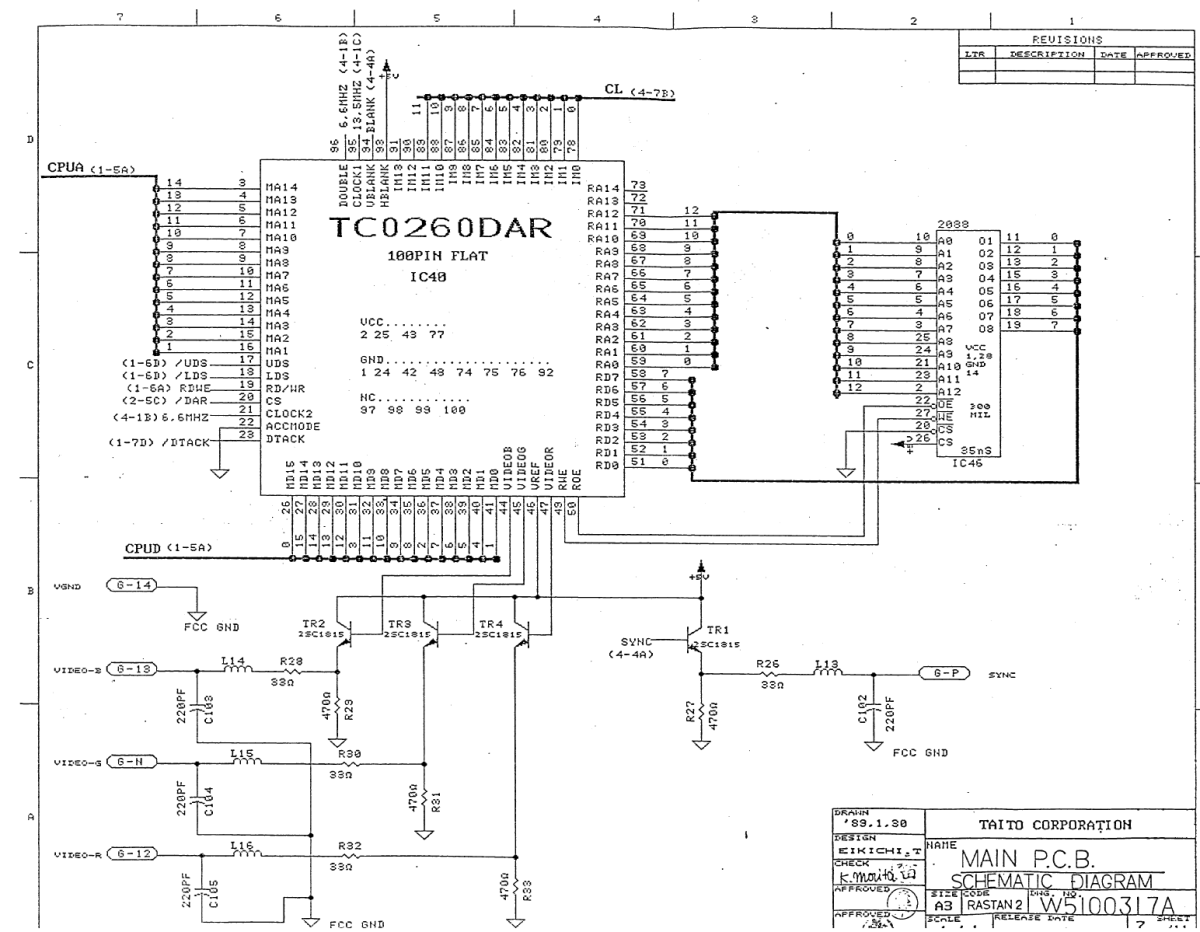

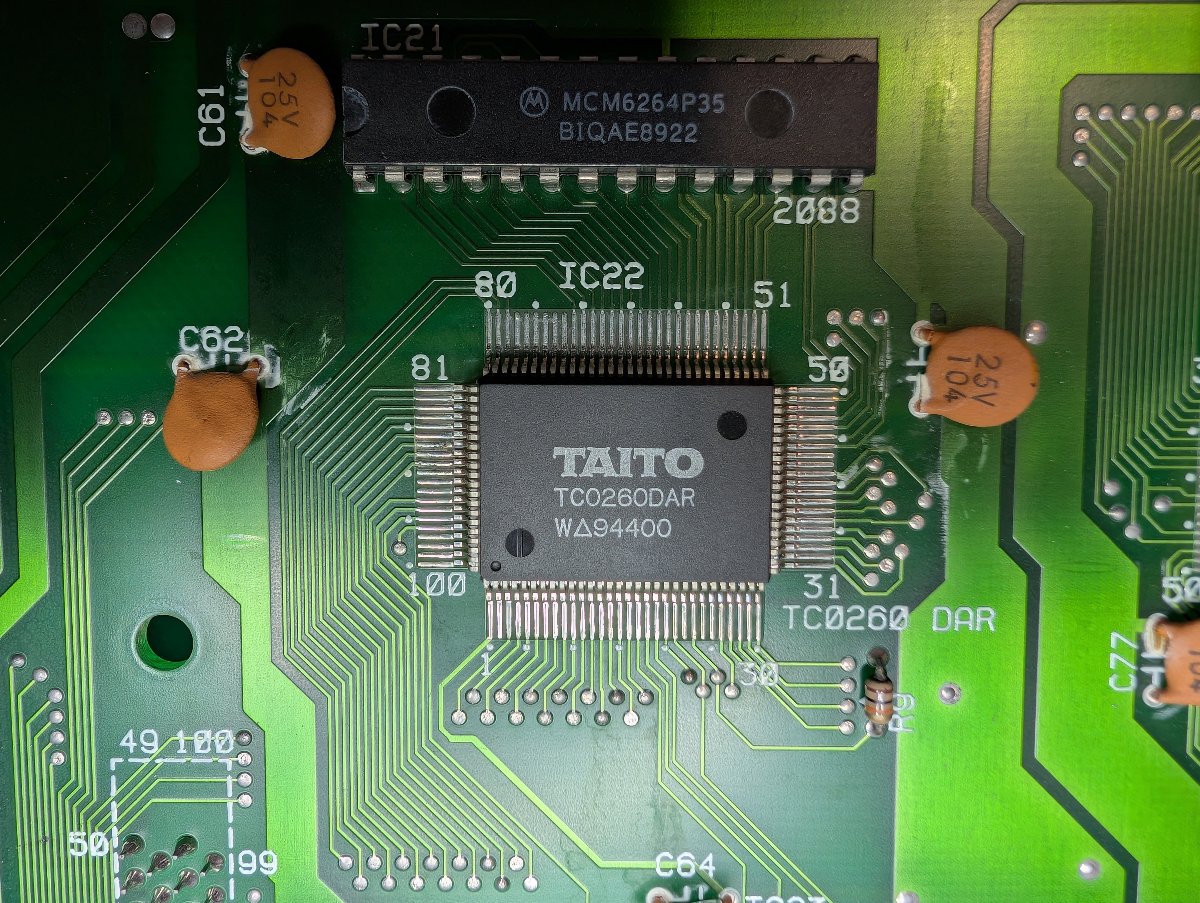

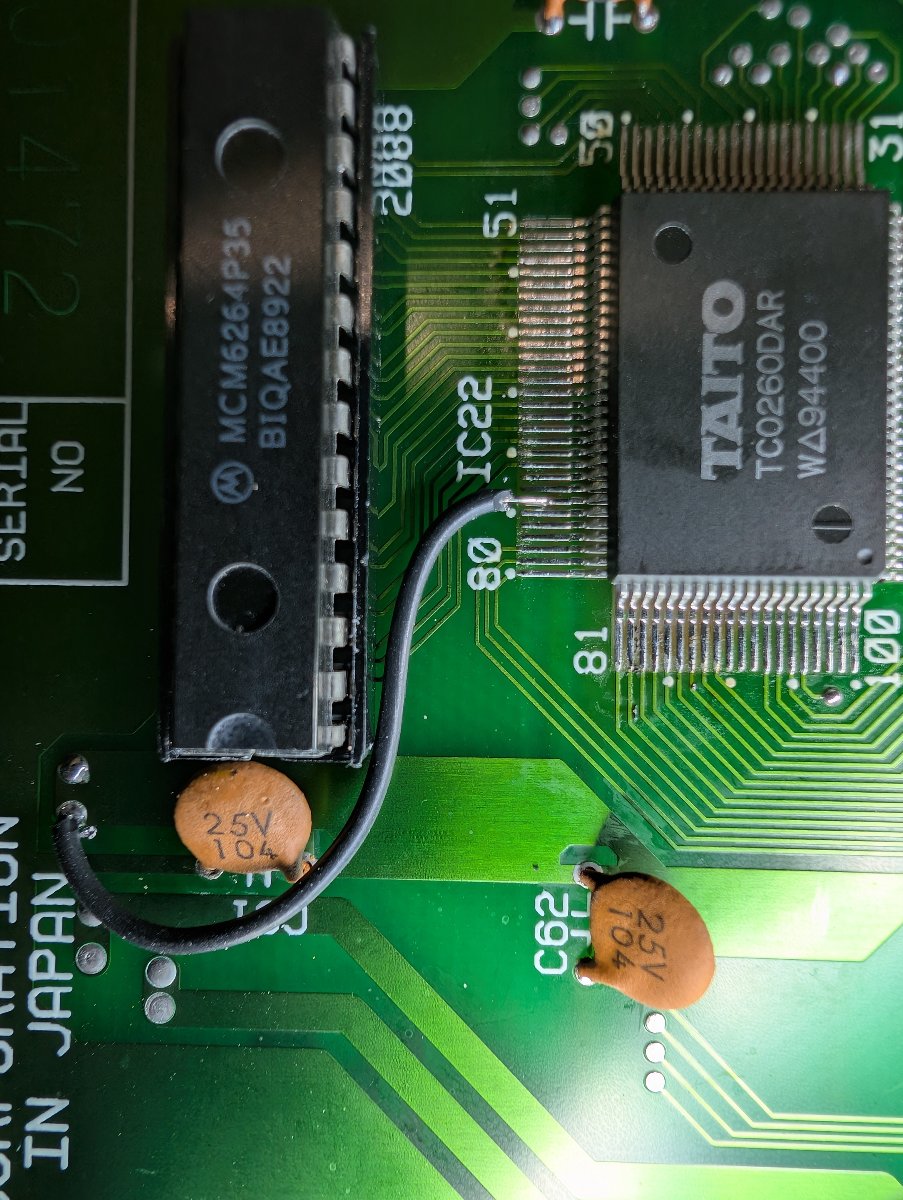

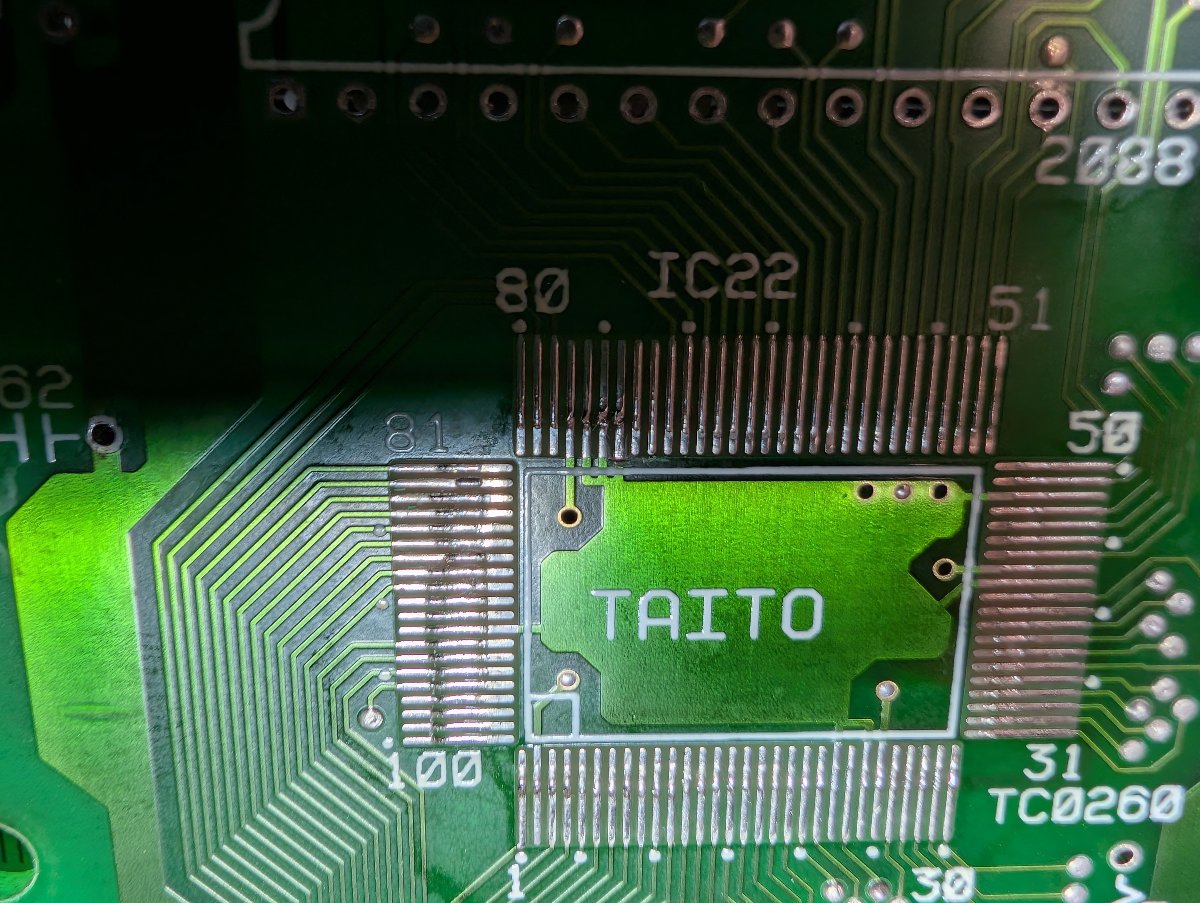

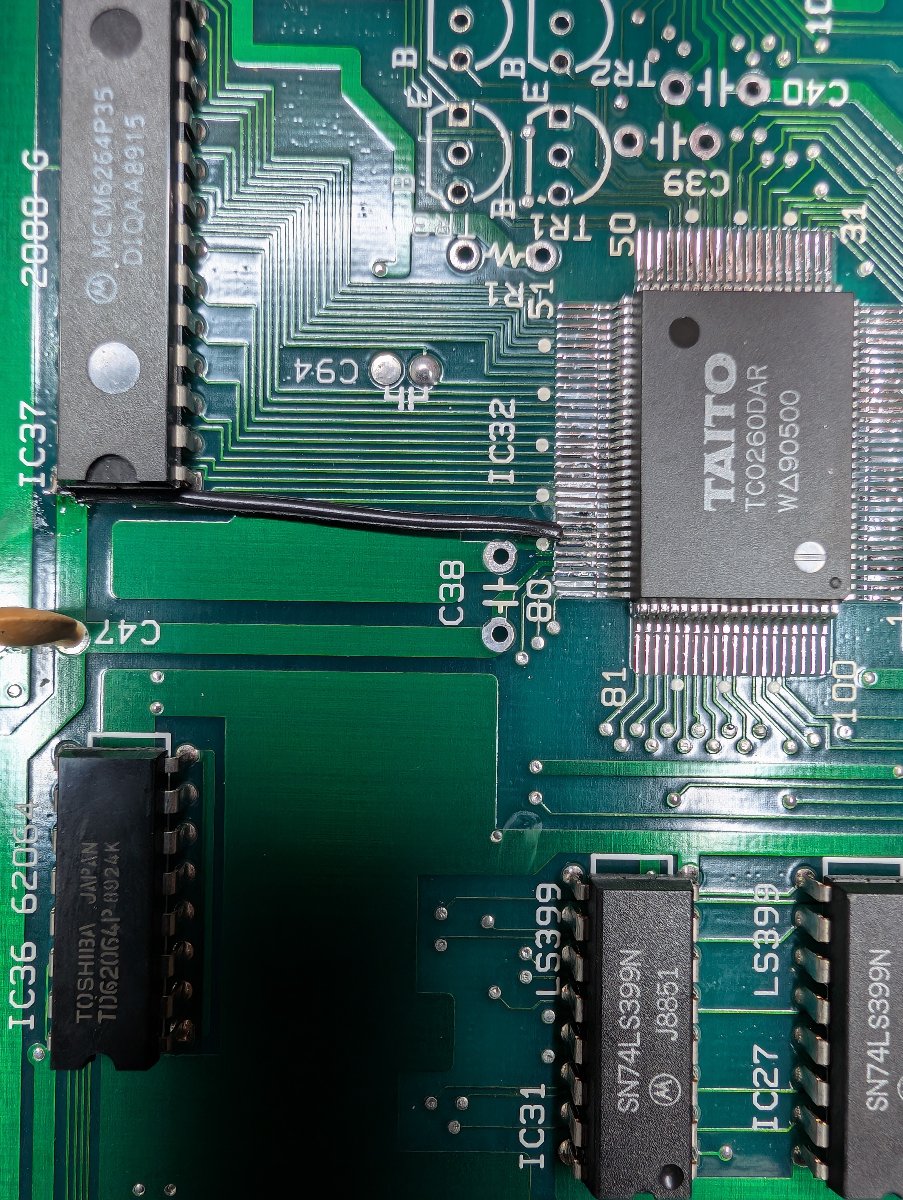

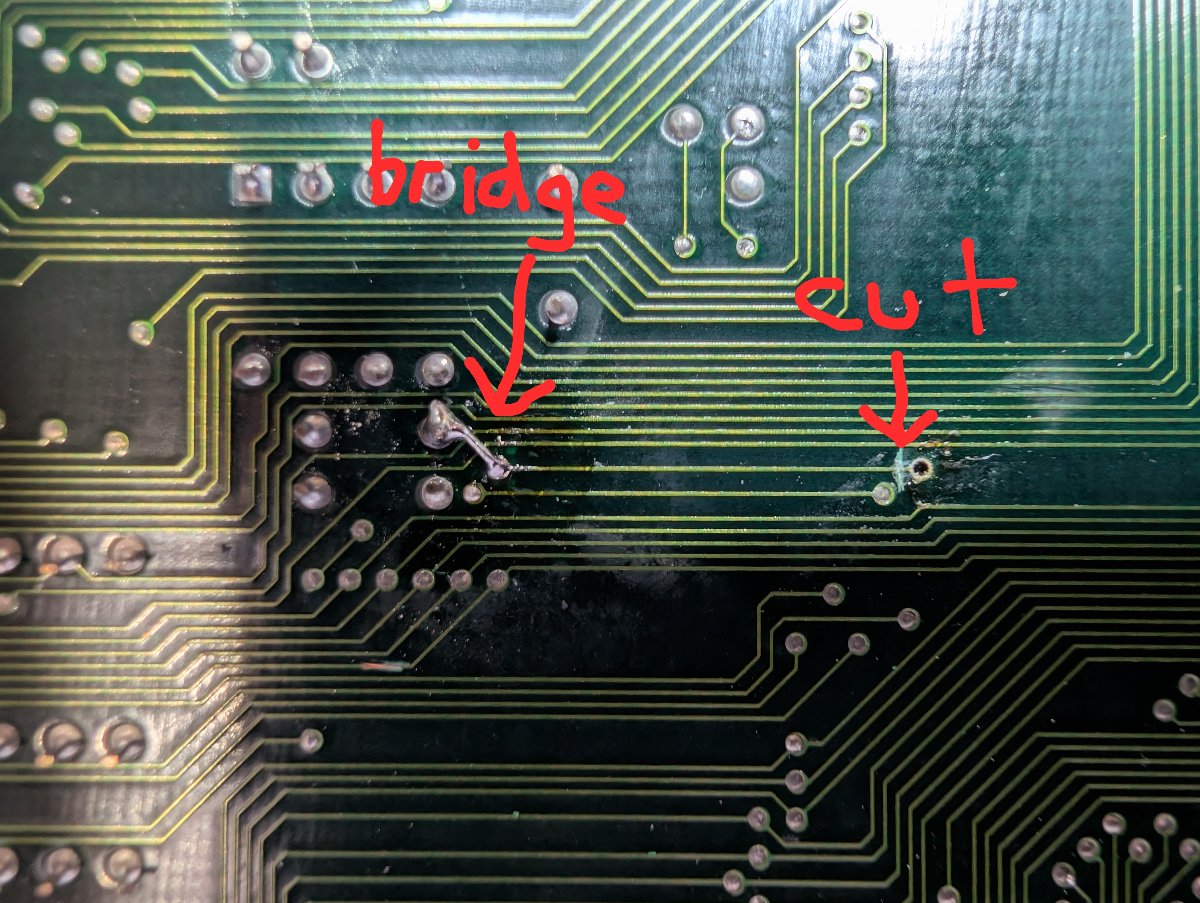

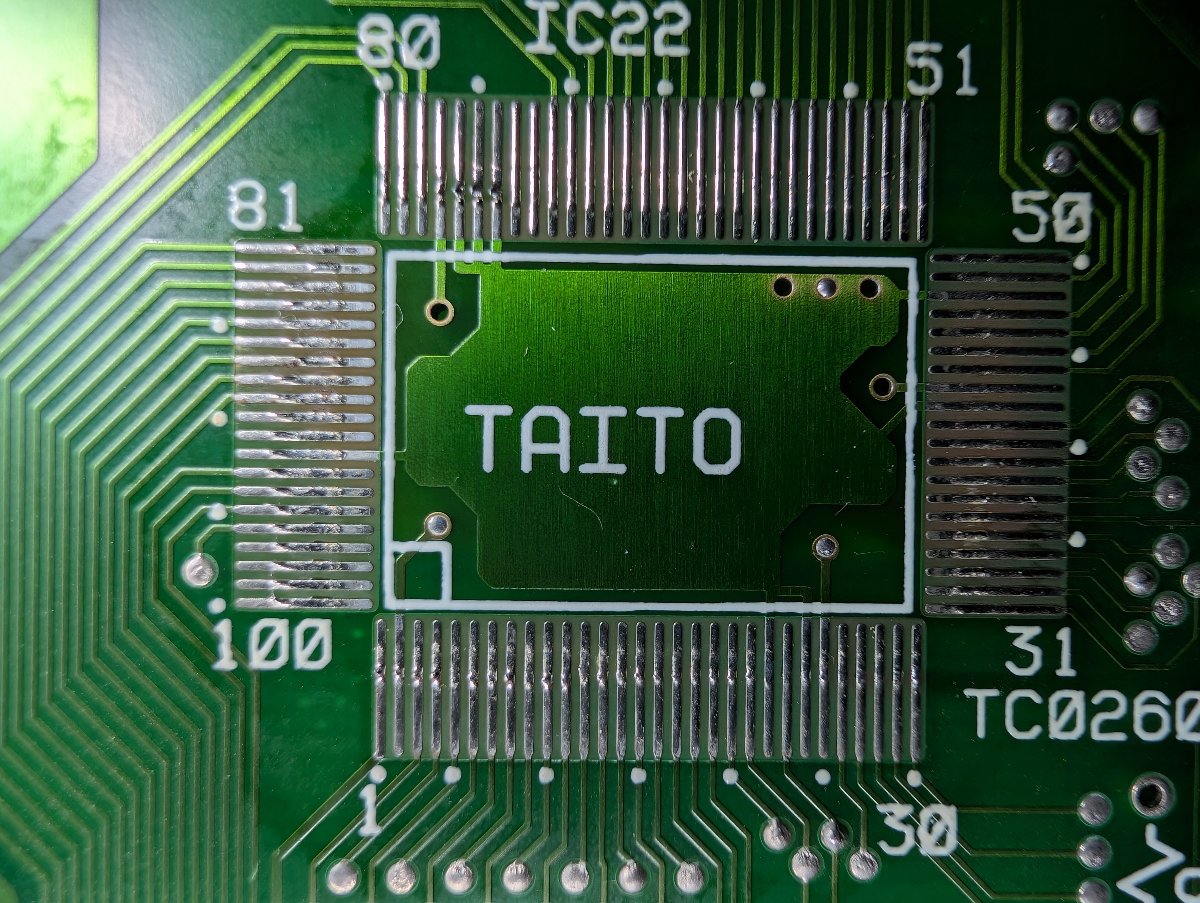

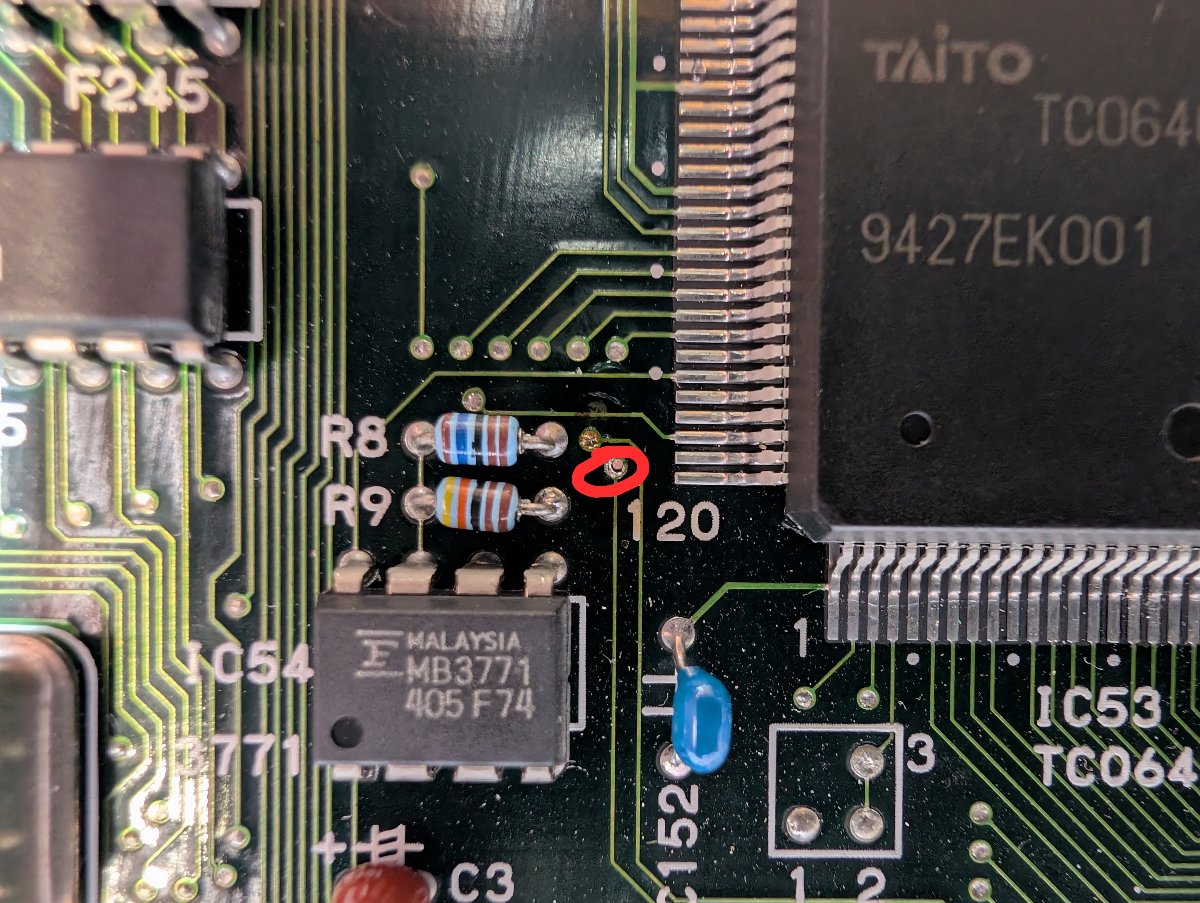

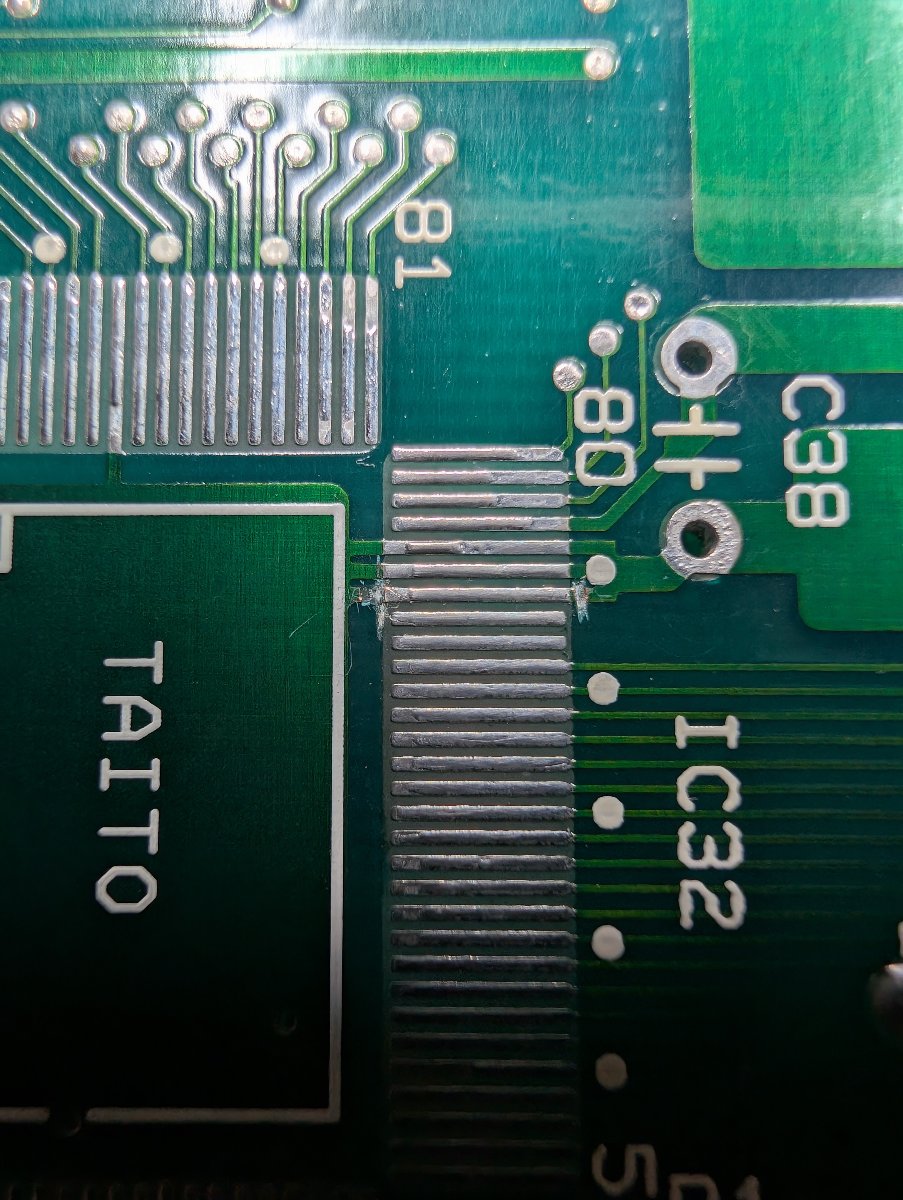

FWIW, this phenomenon does not exist in MAME. So that would lead me to believe that the game software is controlling something in the DAC or analog video circuitry on board that cranks up the brightness levels. Looking at the Nastar schematics, it seems that all of these boards use the TC0260DAR for RGB output. @twistedsymphony you recently did that amazing F2 conversion of Gun Frontier. I wonder if you can poke around in the MAME debug for Puzzle Bobble to see what's going on when you exit the test menu. What gets sent down the line to magically fix the black levels?

Last edited:

twistedsymphony

Enlightened
Staff member
Immortal
Joined
Jul 21, 2015
Messages
10,131
Reaction score
9,527
Location
NH, USA
The game doesn't exhibit this behavior in MAME which would make it difficult to troubleshoot

have you verified if the PCB itself uses a common ground or an isolated video ground? That's the first place I'd start. it's entirely possible that Taito is doing this intentionally but it's only being displayed this way on your setup because you're using a Supergun with a common video ground.
