FS Taito G-Net Backup Board Project

[advans14]

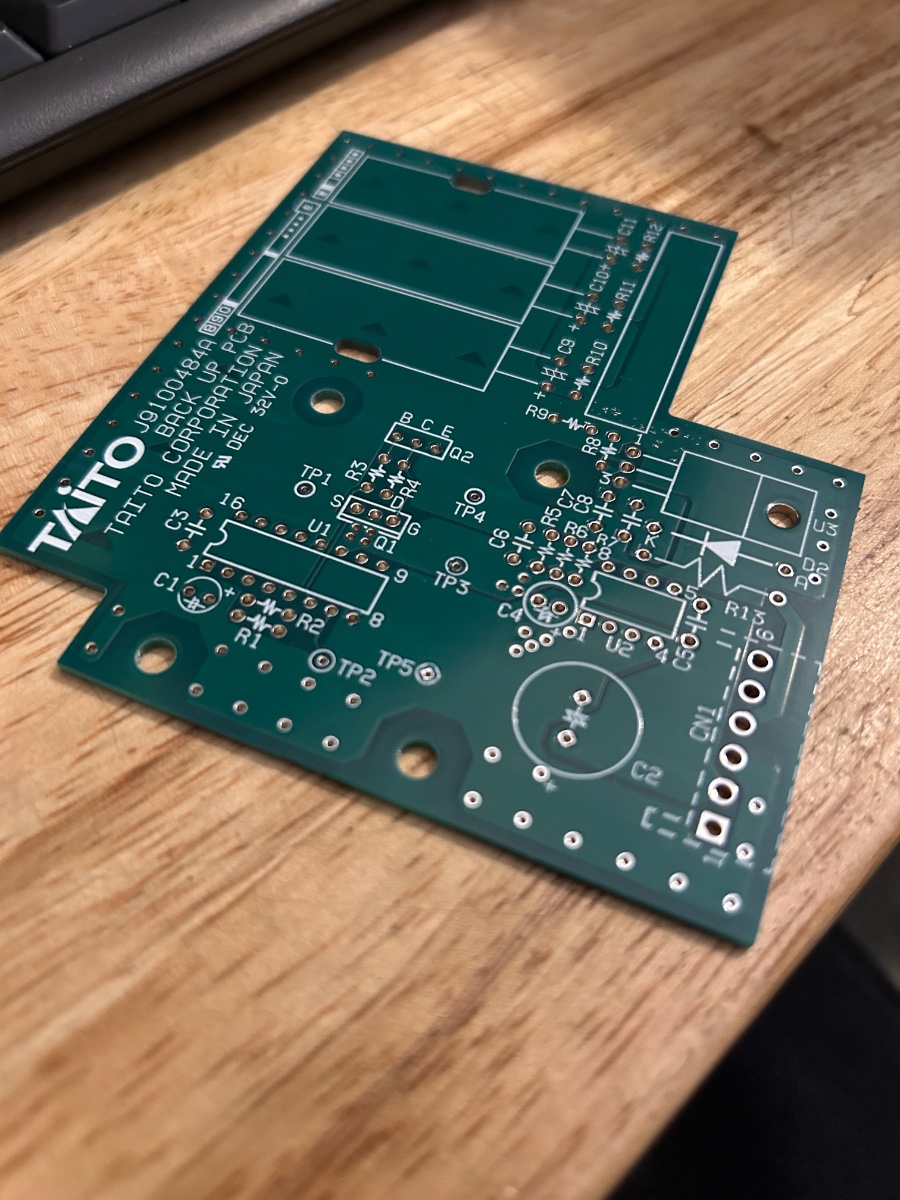

Recently finished designing and ordering parts for about 25 of these. They are near 1:1 with intentional small differences.

Main notable change is the supercaps. Panasonic no longer makes these and they are all old stock at any remainder vendors. Ive subbed these with new Nichicon evercaps that are slightly smaller physically but are same specs with a little voltage overhead.

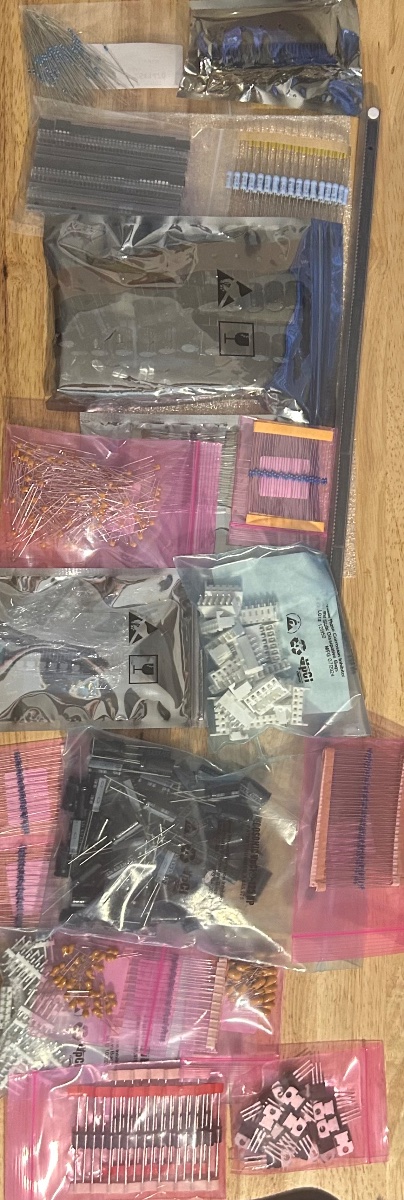

Ive sourced every part x25 and will include along with the pcb’s (except for the standoffs). Looking to sell the whole project to someone that has more time than me to make.

Thanks
Brandon



[djsheep]

Nice one!

Maybe I missed the memo, but was it ever determined the exact use for this is?



[Hammy]

Trace out what it actually "keeps alive" is on my todo list, but GNET has flash, so it should not need it. really..?



[twistedsymphony]

why not redesign it for NV ram without any caps required at all?



[advans14]

I love doing 1:1 designs. Thats about the only reason.



[waiwainl]

So it is more like "In case yours is defect, here is the replacement" ?



[ShootTheCore]

So it is more like "In case yours is defect, here is the replacement" ?

Not all G-NET boards have the backup board too, so having the option of adding one is nice.



[advans14]

Total price is 250$ for all. I will include the gerber file to the buyer as well.



[advans14]

Dropping down to 199 plus shipping. Trying to declutter and no time for this project.



[advans14]

Forgot to include the BOM
