Two Namco System 11 motherboards with different problem.

chacal231077

chacal231077

Grand Master
Joined
Dec 21, 2017
Messages
861
Reaction score
359
Location
France
Hi! :)

I just found 2 complete Tekken 1 motherboards in a box :)

The first card has the following problem, it goes into the Setup menu automatically, even with the 2 dipswitches in the other position, and with the block command on High, it scrolls in a loop ?(.

View: https://www.youtube.com/watch?v=E9MG-nPKmI0


And on the 2nd motherboard I have a black screen, no power boot X/

Question for the first motherboard, can it come from a 74hc253D :?:

Thank you :thumbup:

But do you think he would be guilty ?


Hi! :)

I ordered the 74HC253D :thumbup:

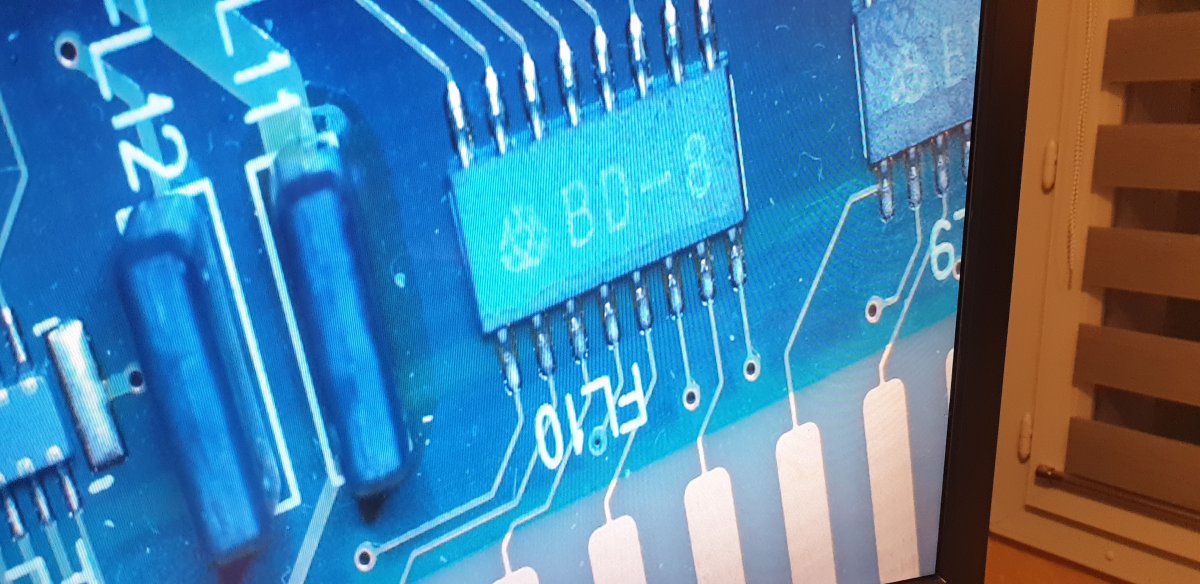

Question the component from TDK is an Emi filter ?

Can it come from that ?

Thanks :thumbup:


one probe on ground, then check each input/output to see if there is a shortcircuit.
meter set to resistance setting
then repeat with 5v instead of ground.

Hi! :)

A first motherboard repair, with the problem of direct bios access and automatic scrolling in the menu.

:thumbup:

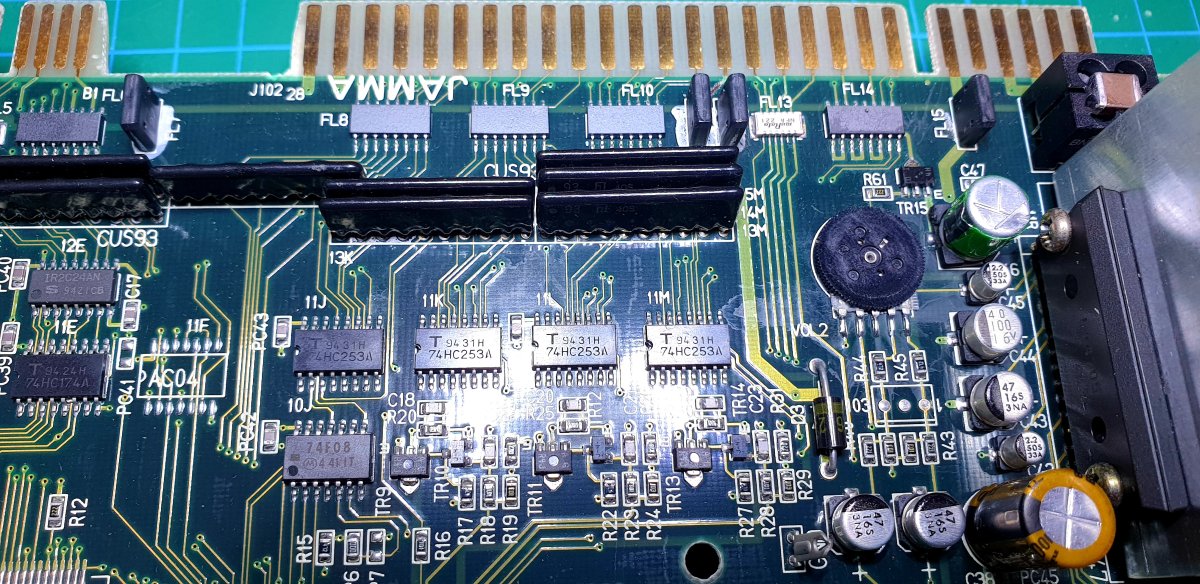

I found the culprit circle in red :D
I gradually desoldered the four ,74HC253 and the last one was the bad guy lol.

I don't have to solder the components in the same order :P



On the other hand the pakage and type D and really too small circle in blue, really limited, because the pins do not touch the pads.
The package is type A, I can't find it on the net or on Aliexpress ;(


Last edited:
it's the japanese, their soic packages are wider than standard.
i have had this problem but usually if you take the bend out of the legs with small pliers you get just enough extra length to reach the pads.

Hi! :)

I managed to repair the second motherboard :thumbsup:

I first changed the 74HC253 to locate 11M the card to boot but to block at the start-up color bands of the bios =O


After I changed the 11L
the game and switch to bios mode instantly with a crazy scroll like the other :S
After I changed 11K the game started but with a loud thump of noise like the sound of snow on old TVs, and no command control either 8|

then change of 11J and everything is ok :thumbup:

  • Like
Reactions: stj
If you just want to replace the multiplexer i could do it for you if you provide parts. I wont have the time to diagnose it though if its not that at fault. Just pay for postage. Too many stuff on my todo list that i need ticking off but cant help responding to a call for help.

Monstermug said:
If you just want to replace the multiplexer i could do it for you if you provide parts. I wont have the time to diagnose it though if its not that at fault. Just pay for postage. Too many stuff on my todo list that i need ticking off but cant help responding to a call for help.
Click to expand...
Thank you, I don't have the parts for the moment but will try to get them and I will reach out to you when I have all that is needed ok?
