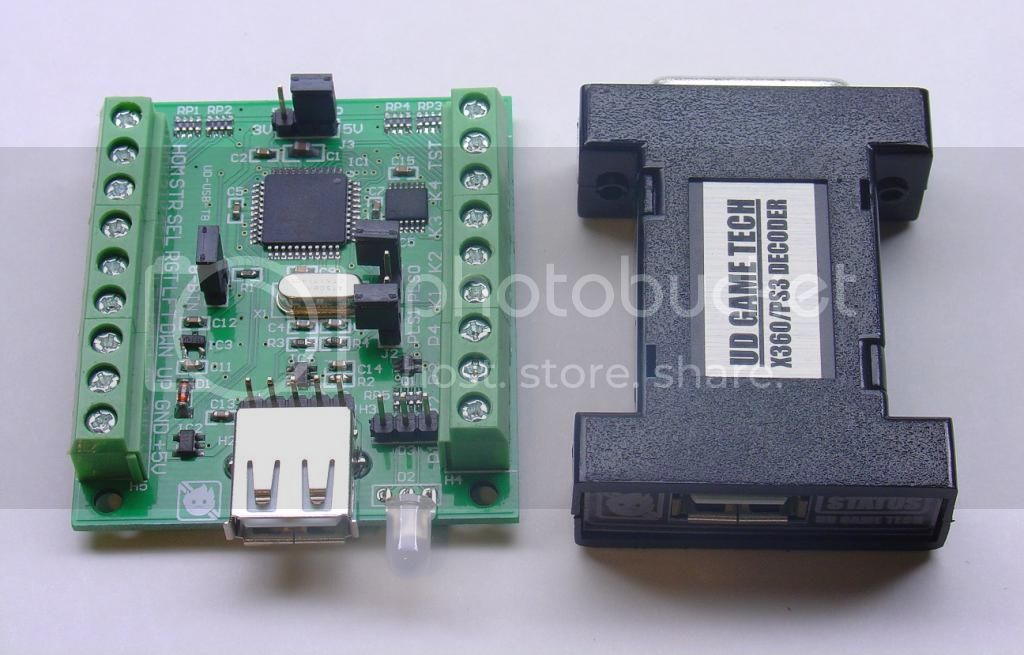

Decodes PS3/PS4 (and now X360/XBONE with latest firmware update) controllers and outputs the separate button/direction signals for you to hook up to your gaming stuff (JAMMA, padhacks, etc.). There are Terminal Strip and 15 Pin D-Sub connector styles. These have been used in fighting game tournaments worldwide since 2013.

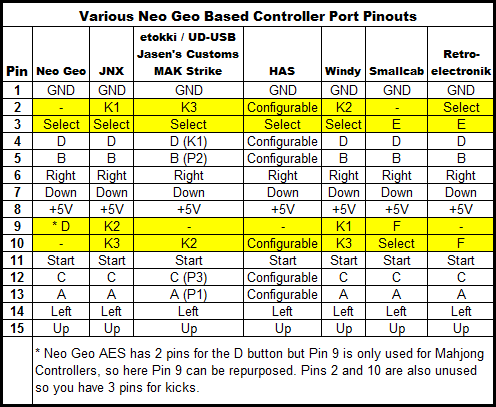

NOTE: There are many 15 Pin D-sub connector pinouts floating around. Here is a chart showing the disparity:


Attachments

  • 6cX1SDE.png
    19.8 KB · Views: 1,019
Last edited:

plasia

Grand Master
Joined
May 5, 2016
Messages
821
Reaction score
552
Location
Melbourne, Australia
I have 4 of these, 2 for both of my superguns.

They are really really cool :)


Brettster

Enthusiast
Joined
Nov 20, 2016
Messages
191
Reaction score
132
Location
Leeds, UK
are these any different to PS360+
I currently use 2 PS360+ devices in my Vewlix and sometimes it swaps p1 and p2 and I ended up having to reboot to get them in the right order again
do these have a way to say this is pad 1 and pad 2?


ShootTheCore

Champion
Joined
Jan 20, 2016
Messages
1,591
Reaction score
2,239
Location
Logan UT
Love my UD-USB! Stoked to have the PS4 support update now as well-that was my only complaint with it. :thumbsup:


undamned

Multi Baez
Champion
Multi Boyz
Joined
Jul 22, 2015
Messages
1,082
Reaction score
1,990
Location
AZ, USA
are these any different to PS360+
I currently use 2 PS360+ devices in my Vewlix and sometimes it swaps p1 and p2 and I ended up having to reboot to get them in the right order again
do these have a way to say this is pad 1 and pad 2?
These are basically the hardware opposite of the PS360+. PS360+ turns button signals into USB. This interprets the USB and outputs button signals.
-ud


SNK-NEO-GEO

Enlightened
Joined
Jul 21, 2015
Messages
3,134
Reaction score
1,741
Location
Virginia
I would love to see a UD-JVS to 15 dim pin device.. Would be cool for JVS arcade systems i.e.. Vewlix JVS + OSSC + HAS + UD-HVSto15dim:)


skate323k137

Grand Master
Joined
Jul 23, 2015
Messages
1,298
Reaction score
864
Location
Michigan
Hey UD, still looking to grab a couple more of these if you have any on hand. Cheers.


undamned

Multi Baez
Champion
Multi Boyz
Joined
Jul 22, 2015
Messages
1,082
Reaction score
1,990
Location
AZ, USA
I would love to see a UD-JVS to 15 dim pin device.. Would be cool for JVS arcade systems i.e.. Vewlix JVS + OSSC + HAS + UD-HVSto15dim:)
I heard there was some great open source JVS stuff out there, so that would be great to already have the protocol all sorted. I haven't put any thought into features, but I've actually had JVS in the back of my mind for a while. Perhaps sometime next year after I get the DIY UD-CPS2 stuff off my plate :D
-ud


Mugicha

Enthusiast
Joined
Jun 20, 2015
Messages
278
Reaction score
104
Location
Raleigh, NC
I'm also hoping to get a couple of the 15 Pin D-Sub connectors if you have any available.


deibit

Champion
Joined
Aug 14, 2015
Messages
1,688
Reaction score
1,718
Location
Germany
are they going to be produced again any time soon? I would like to get 4 of the db15 adapters.


undamned

Multi Baez
Champion
Multi Boyz
Joined
Jul 22, 2015
Messages
1,082
Reaction score
1,990
Location
AZ, USA
A batch of screw terminal version is being assembled this weekend and then hopefully in a couple weeks the 15 pin ones. Will be up on Paradise Arcade website when they are done. I'll keep some in hand for international orders, as I'm told the shipping cost from Paradise to other countries is pretty brutal.
-ud


RealMFnG

Legendary
Joined
Mar 27, 2016
Messages
4,256
Reaction score
3,065
Location
Northern California
Interesting product brutha. I don't have an application I can use it for. But I can definitely see that it solves a particular niche situation..............like everyone has been complaining for years that @Mitsurugi-w demo videos have an obnoxious clicking sound when he is navigating around game menus. Send him one and perhaps he can retire that ancient MAS stick for a silent DS4 pad; instant cross-product placement!


deibit

Champion
Joined
Aug 14, 2015
Messages
1,688
Reaction score
1,718
Location
Germany
A batch of screw terminal version is being assembled this weekend and then hopefully in a couple weeks the 15 pin ones. Will be up on Paradise Arcade website when they are done. I'll keep some in hand for international orders, as I'm told the shipping cost from Paradise to other countries is pretty brutal.
-ud
Count me in for one internacional order of 4xDB15! :)

Last edited:

edwin128

Student
Joined
Jul 28, 2016
Messages
214
Reaction score
16
Location
Leiden, The Netherlands
A batch of screw terminal version is being assembled this weekend and then hopefully in a couple weeks the 15 pin ones. Will be up on Paradise Arcade website when they are done. I'll keep some in hand for international orders, as I'm told the shipping cost from Paradise to other countries is pretty brutal.
-ud
Yes. Quite expensive, they only use FEDEX and don't consider cheaper options.
