Id Also settle for a pdf link. Only one I can find is the dated Tekken 6 one.


jimmyjames

Professional
Joined
Aug 30, 2018
Messages
226
Reaction score
221
Location
Kendall NY
Which year/color noir is version c?
Ver.c
2016 red Tekken 7 version
3 power supply variant, early ones have 4
they made it in Blue also but didnt have Tekken 7
if you wanted a red Tekken 7 11k yellow was 16k yen
no real difference between those 2016-2020 models just price


zetsurin

Student
Joined
Nov 29, 2018
Messages
56
Reaction score
57
Location
Melbourne, Australia
I have this manual. Have been meaning to scan it in, but don't have a flatbed scanner at the moment. In the meantime if there is anything specific you need I can take some pics and translate for you.


Attachments

  • IMG_0248.jpg
    161.2 KB · Views: 15

Frequensie

Student
Joined
Jun 24, 2021
Messages
23
Reaction score
20
Location
San Francisco, CA
I have this manual. Have been meaning to scan it in, but don't have a flatbed scanner at the moment. In the meantime if there is anything specific you need I can take some pics and translate for you.
Could I get some photos (of a similar size as this one) of the main pages regarding assembly/teardown if it has anything like that? I can also translate so if it saves time I wouldn't mind just having the photo.


thegreathopper

Student
Joined
Sep 25, 2016
Messages
229
Reaction score
78
Location
London England
When you have done it once it’s simple, but hard to explain and I bet that manual has a nice drawing of how’s it done.


jimmyjames

Professional
Joined
Aug 30, 2018
Messages
226
Reaction score
221
Location
Kendall NY
We could. Use scans for sure I’ll PayPal $10 over if you can find a place to do it.


jermz1

Professional
Joined
Dec 2, 2017
Messages
252
Reaction score
280
Location
South Korea
How do you get clean scans like that? I have a few manuals I'd like to upload as well.


nem

Legendary
Joined
May 29, 2016
Messages
4,432
Reaction score
3,746
Location
Finland
It's from the Japanese Bandai-Namco website. They have all the manuals online, the problem is you have to be a licensed op to download them.


jermz1

Professional
Joined
Dec 2, 2017
Messages
252
Reaction score
280
Location
South Korea
It's from the Japanese Bandai-Namco website. They have all the manuals online, the problem is you have to be a licensed op to download them.
Ah I see, that's neat


zetsurin

Student
Joined
Nov 29, 2018
Messages
56
Reaction score
57
Location
Melbourne, Australia

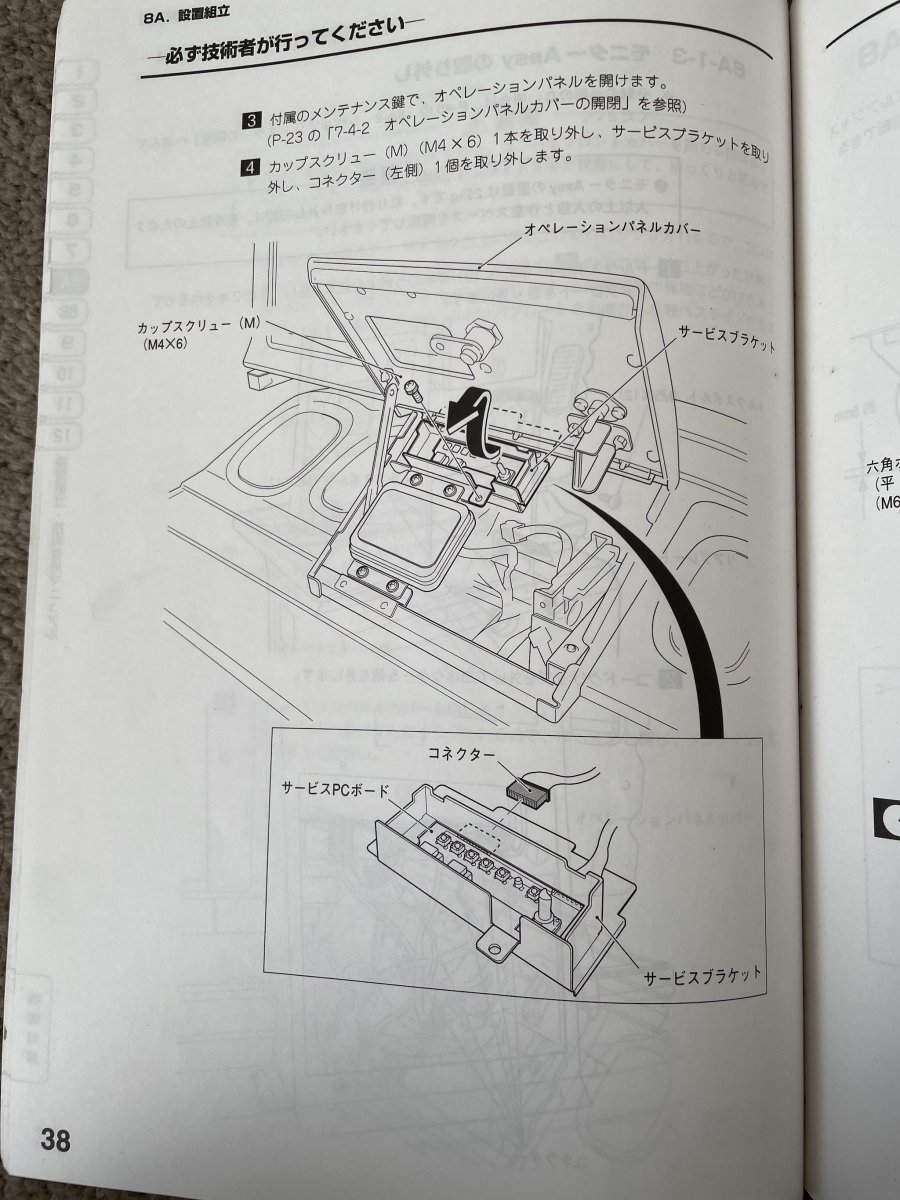

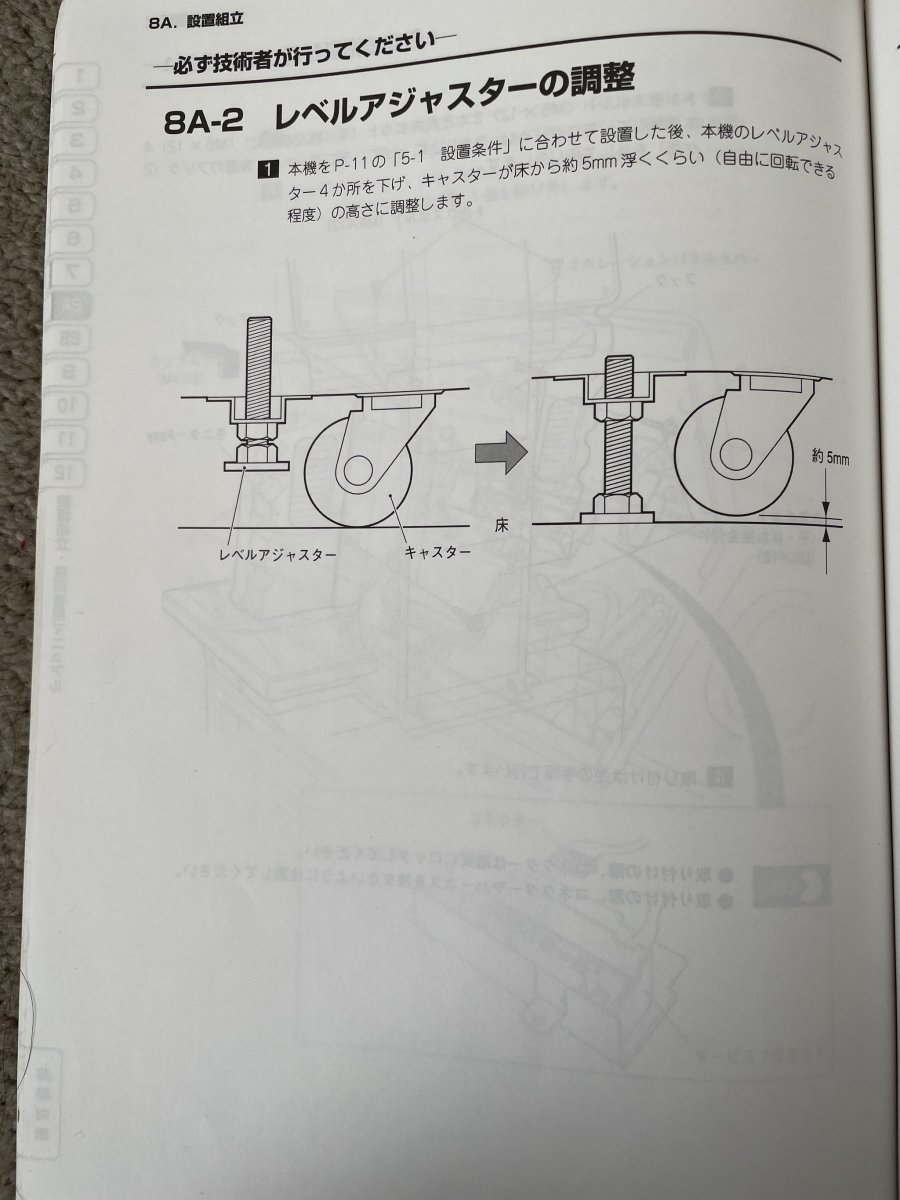

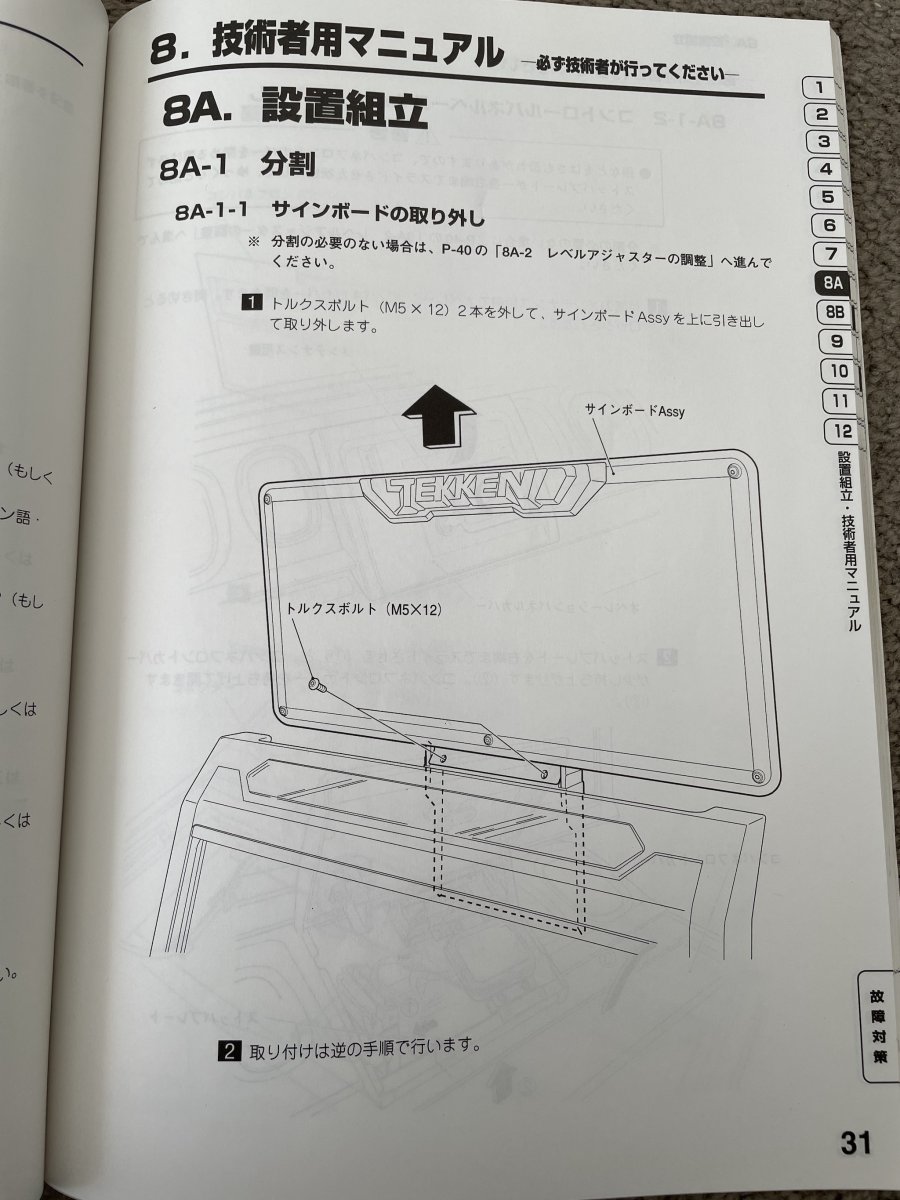

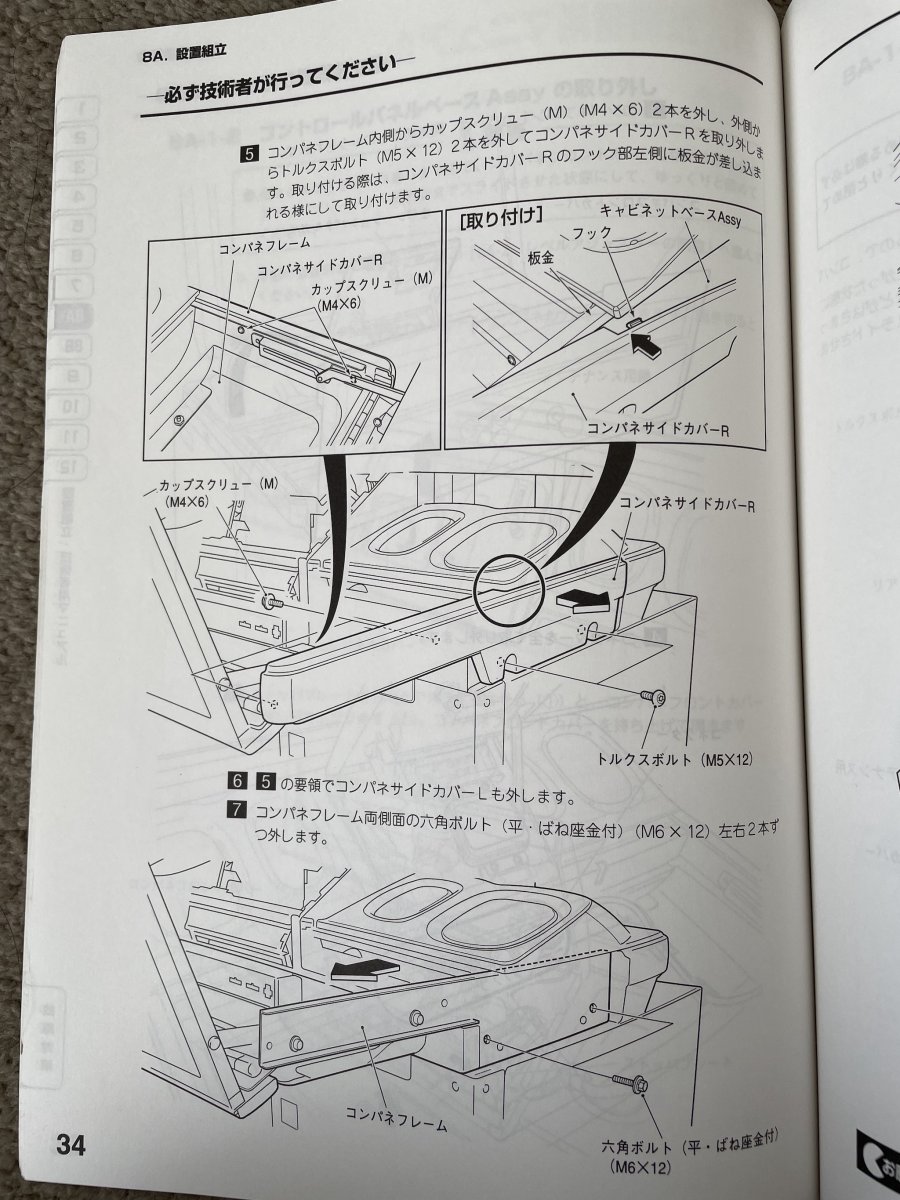

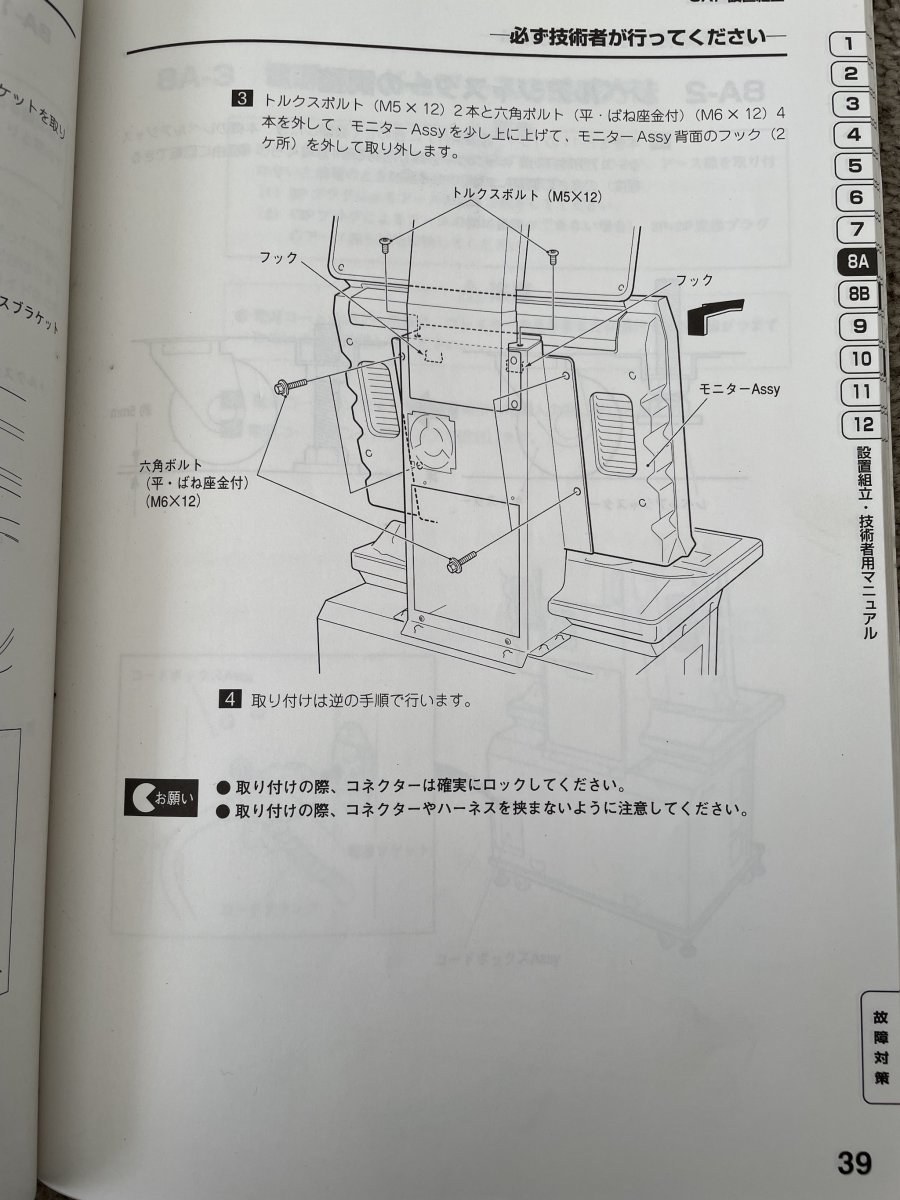

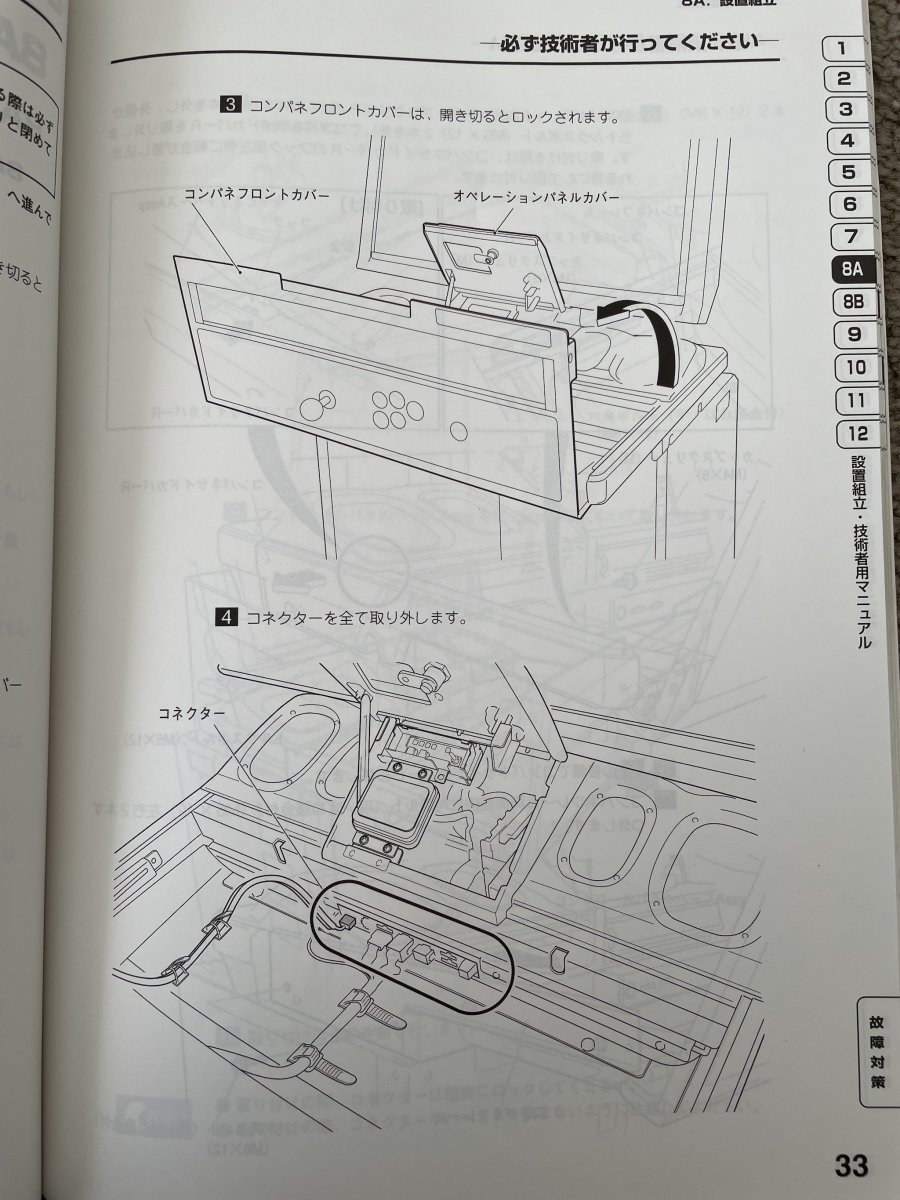

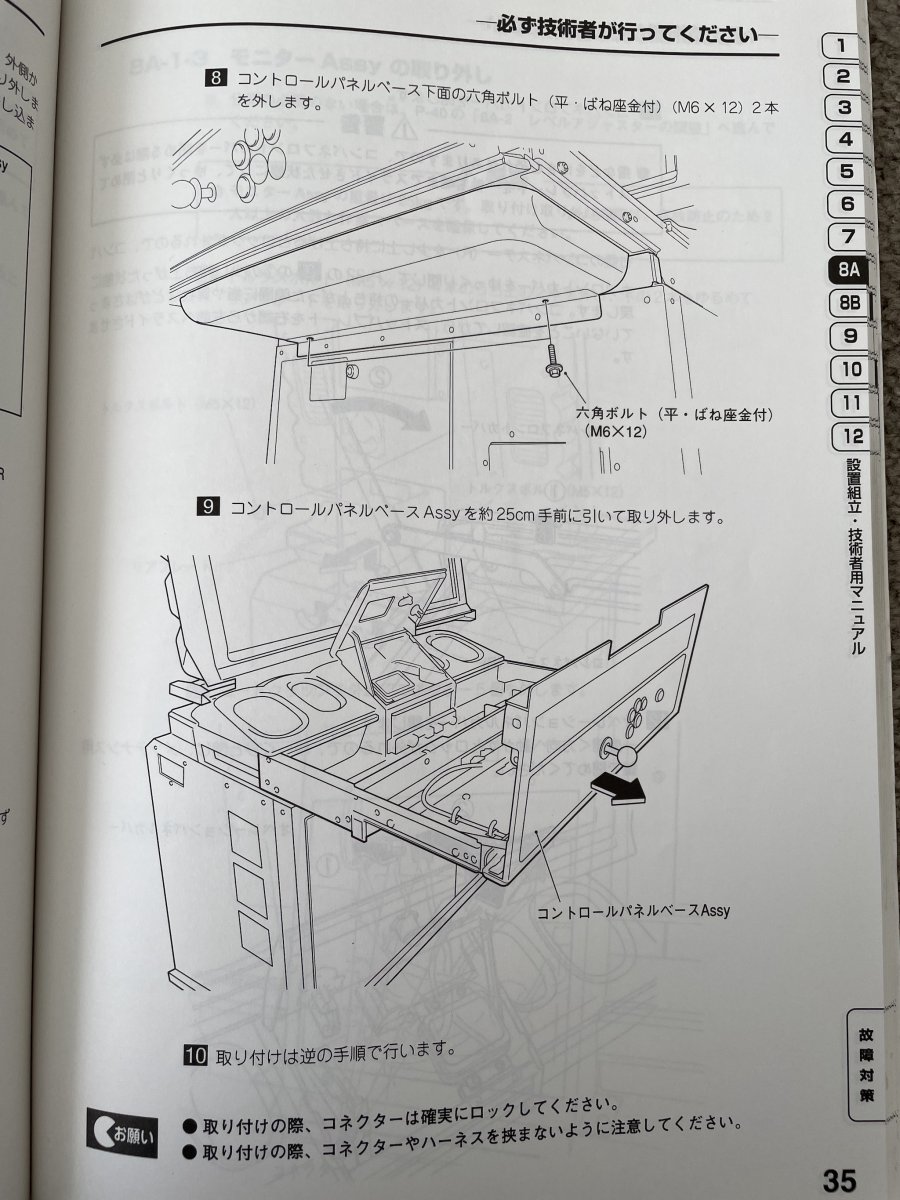

Here's the main disassembly info from my manual, covering control panel and how to get the monitor housing off.


Attachments

  • p31.jpg
    150 KB · Views: 19
  • p32.jpg
    181.3 KB · Views: 17
  • p33.jpg
    178.9 KB · Views: 17
  • p34.jpg
    210.2 KB · Views: 19
  • p35.jpg
    184.7 KB · Views: 18
  • p36.jpg
    175.8 KB · Views: 17
  • p37.jpg
    184.2 KB · Views: 16
  • p38.jpg
    176.1 KB · Views: 15
  • p39.jpg
    145.7 KB · Views: 13
  • p40.jpg
    119.3 KB · Views: 19

Frequensie

Student
Joined
Jun 24, 2021
Messages
23
Reaction score
20
Location
San Francisco, CA
On this same sort of subject, I've been trying to swap the control panel on a 2007 Red Noir (Ver. A?) I have here for quite a while but can't seem to figure it out despite unscrewing about 15 screws in the vicinity of the panel and it's not clear to me what's actually holding the control panel (i.e. just the flat panel itself) in place. Would anyone happen to have a good guide for that?

Edit: I figured it out; there's just 6 nuts on the back of the panel. It's obvious in hindsight but after so many philips head screws I hadn't even thought of nuts.
