Well you know what you have to try now
Take J103 and disconnect a wire one by one then power on. I would make a small interface cable to avoid thrashing the original cable.
I would probably start with testing GND
- Thread starter Darksoft
- Start date
Take J103 and disconnect a wire one by one then power on. I would make a small interface cable to avoid thrashing the original cable.
I would probably start with testing GND
No, you need one specific for Chihiro/Naomi/Triforce like this one: Naomi CF Kit and DIMM Conversion Services
Wait, what? With Chihiro and Triforce you can just use a regular IDE CF adapter?
Naomi is different.
Yeah, that's for Naomi. With Chihiro and Triforce you can use the internal IDE connector. You just need an adapter for power, like this
Chihiro/Triforce SSD Kit Power Harness
Chihiro/Triforce SSD Kit Power Harness
Mrhide
Enlightened
J103 is RX, TX and GNDWell you know what you have to try now
Take J103 and disconnect a wire one by one then power on. I would make a small interface cable to avoid thrashing the original cable.
I would probably start with testing GND
if I leave RX and GND connected, no error
if I unplug RX, connect TX and GND: Error 26
just GND= no error
only TX = Error.

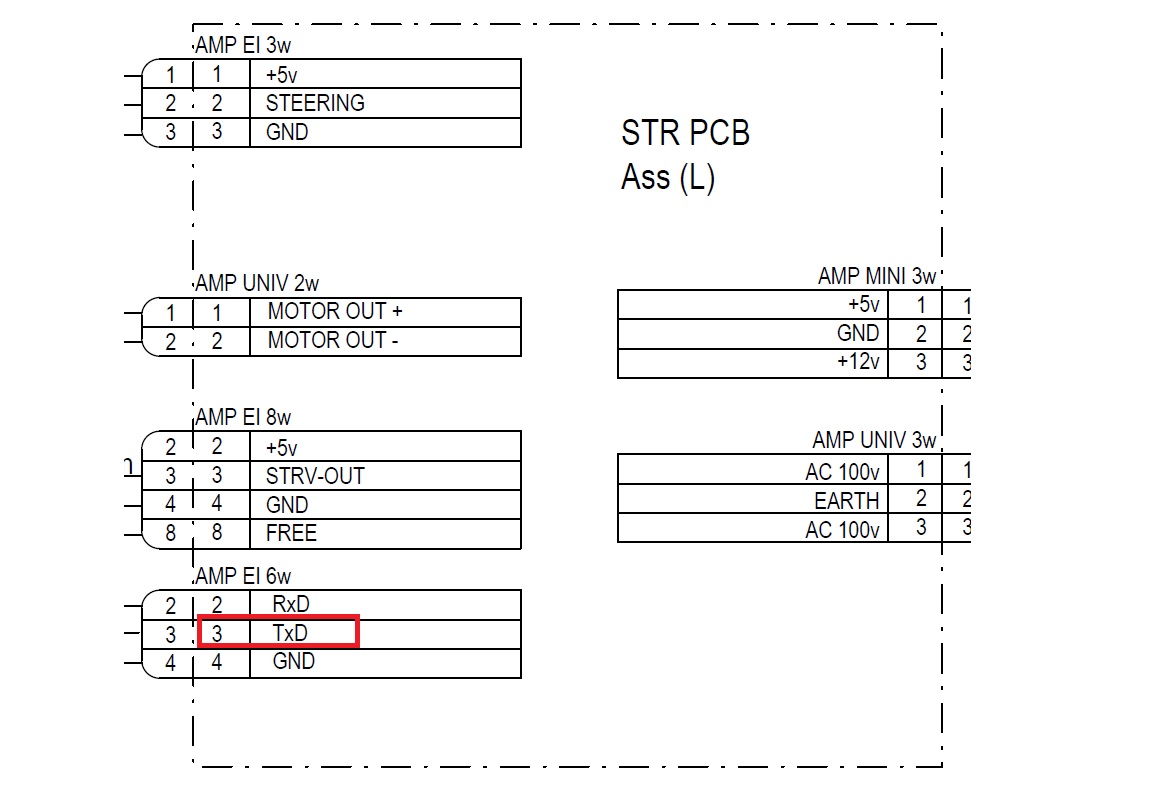

So the error is on pin3 of J103, the Tx:
which in turn goes to CN5 pin 1 ...
now what
winteriscoming
Champion
How are you powering everything? The mt3 cab would not have had a JVS psu, so what is powering the Chihiro and does it have stable 5v? Does anything happen to 5v at the Chihiro when that connector is plugged in? The TX would be the wire that the ffb board uses to send data to the port on the Chihiro. Is it locked on to some out of spec voltage, causing a fault in the Chihiro, or is RX on the Chihiro somehow shorted to ground?
Nice troubleshooting @Mrhide!
Measure the voltage on the TX from the STR but also the same pin on your Chihiro.
Then do what @winteriscoming suggests check the power layout thoroughly.
Measure the voltage on the TX from the STR but also the same pin on your Chihiro.
Then do what @winteriscoming suggests check the power layout thoroughly.
Mrhide
Enlightened
Good question:
The n2 computer being gone, there is the old power plug that went in its power supply that is free: i plugged in a 400-5330 right in it, which then output the proper power/connectors to the chihiro. It is pretty stable 5v, that PS has been recapped and it was running my naomi setup.
there is 3.6 volt at CN5 pin 1
The tx wire outputs 5.8 volt, which is rather high no?
the 5 volt at the chihiro power connector does not move shall CN5 be connected or not
thanks for the help guys, much appreciated! Yes, i guess i can say I’m having fun ! Sorta!
Last edited:
winteriscoming
Champion
Does CN5 pin 2 have any odd voltage reading or is it shorted to ground at all when unplugged? TX from the FFB should be going there.
The serial standard is RS232, though there's a broad range of accepted voltages for the standard, so that information may not help us here. 5.8v may be out of spec, but it's hard to say.
As far as I recall, the FFB board basically takes AC input and has an onboard transformer for its own DC voltages, and rs232 signal goes through a voltage converter. I don't recall what all voltages are used on the board, and I don't think they're adjustable. Did you say you have access to 2 ffb boards?
We're doing a deep dive here on subjects largely off topic for this thread. It may be worth breaking out into a new troubleshooting thread since we're beyond the firmware installation.
i think i see a problem with the str board situation:
wmmt 1 str 315 str2
wmmt 2 str 315 str2
wmmt 3 str 320 str2
wmmt 3dx+ str320/str332 (from dead heat) str2/str3
i went through this nightmare a while back with a friend that had a v315 in a wmmt 3. it is a pain it the ass. will randomly pass/fail handle check. i would suspect you would have problems running a v320 with mt 1 or 2
wmmt 1 str 315 str2
wmmt 2 str 315 str2
wmmt 3 str 320 str2
wmmt 3dx+ str320/str332 (from dead heat) str2/str3
i went through this nightmare a while back with a friend that had a v315 in a wmmt 3. it is a pain it the ass. will randomly pass/fail handle check. i would suspect you would have problems running a v320 with mt 1 or 2
Last edited:
Mrhide
Enlightened
Salut,

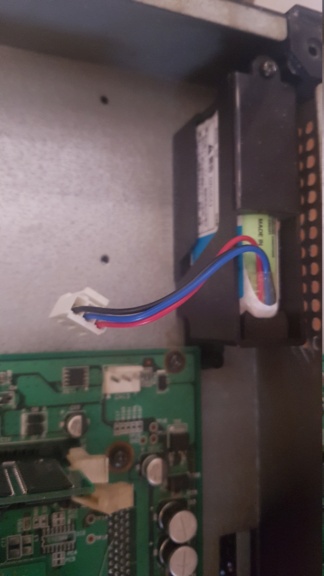

- Tu peux mettre une photo de ta batterie et le connecteur sur lequel tu la branches et de quel façon/polarité svp?
- Est-ce que tu as le logo Chihiro au début ou bien pas du tout?
- Qu'est-ce qui se passe du côté des 2 LEDS sur le chihiro?

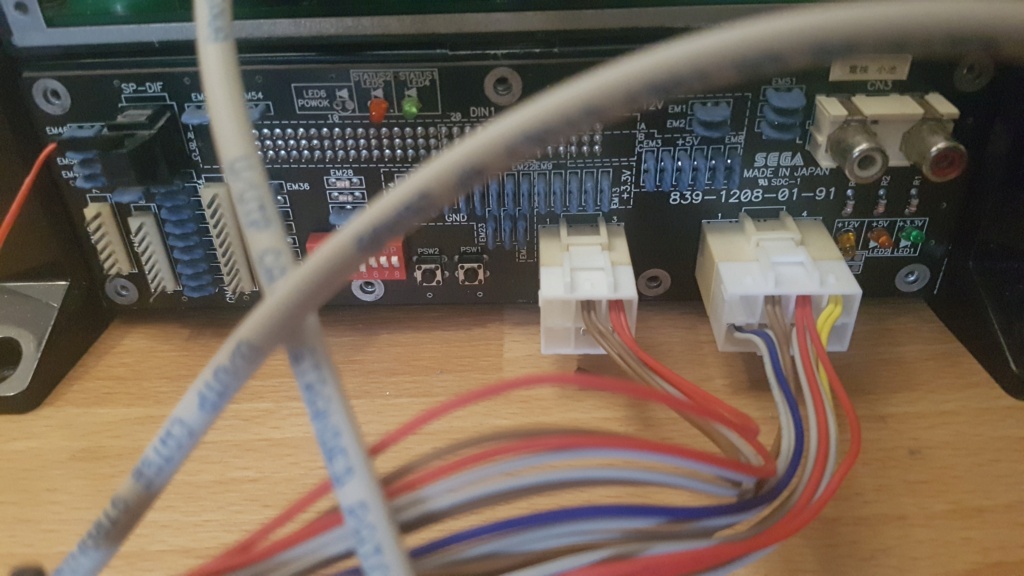

-lorsque tu dis "powerboard" tu parles de quel carte / module exactement? des photos svp!
Merci!
Merci
Mrhide
Enlightened
C'est bizare ton problème. (on va se faire dire qu'on est pas dans le bon thread bientot, tu va voir)
mais
1- Des fois il est nécessaire d'avoir un bon ground. met lui au moins une visse pour le tenir?
2- Tu peux t'assurer que tes dip switches sont bien fonctionnelles? Avec un multimètre, on = beep. test tes 2 powerboard
3- tu as bien la batterie Sega, elle sort bien du 7.2V? tu peux la remplacer par un petit board DC to DC que tu branches en passant pour garder la mémoire indéfiniment.
4- Ton board fonctionne sans la batterie? il boot bien, tu peux jouer?
mais
1- Des fois il est nécessaire d'avoir un bon ground. met lui au moins une visse pour le tenir?
2- Tu peux t'assurer que tes dip switches sont bien fonctionnelles? Avec un multimètre, on = beep. test tes 2 powerboard
3- tu as bien la batterie Sega, elle sort bien du 7.2V? tu peux la remplacer par un petit board DC to DC que tu branches en passant pour garder la mémoire indéfiniment.
4- Ton board fonctionne sans la batterie? il boot bien, tu peux jouer?
