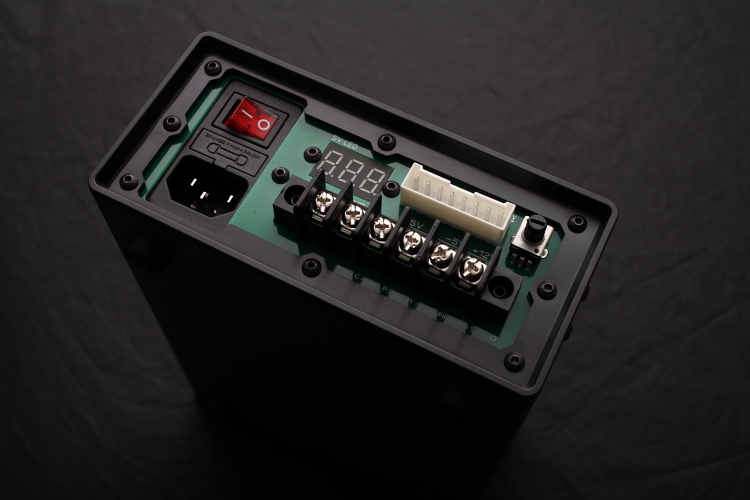

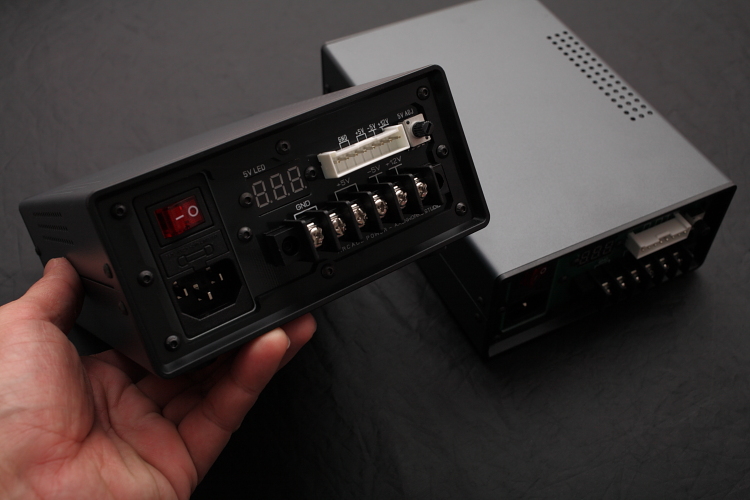

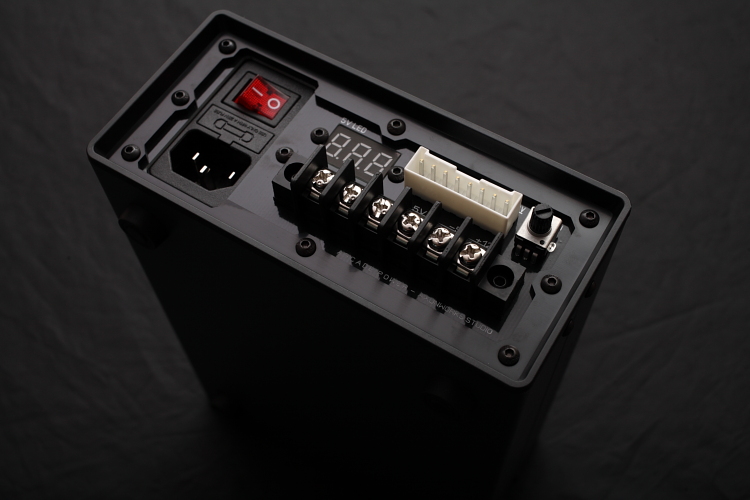

Axun Workshop - Arcade PSU (Power Supply Unit)

PRICE:
$80.00

SHOP: http://www.axunworks.com/product-p669351.html

FEATURES:
- AC input voltage is universal, with switch and fuse
- DC output +12V 3.5A, +5V 8A, -5V 0.5A
- 5V is adjustable can be fine-tuned

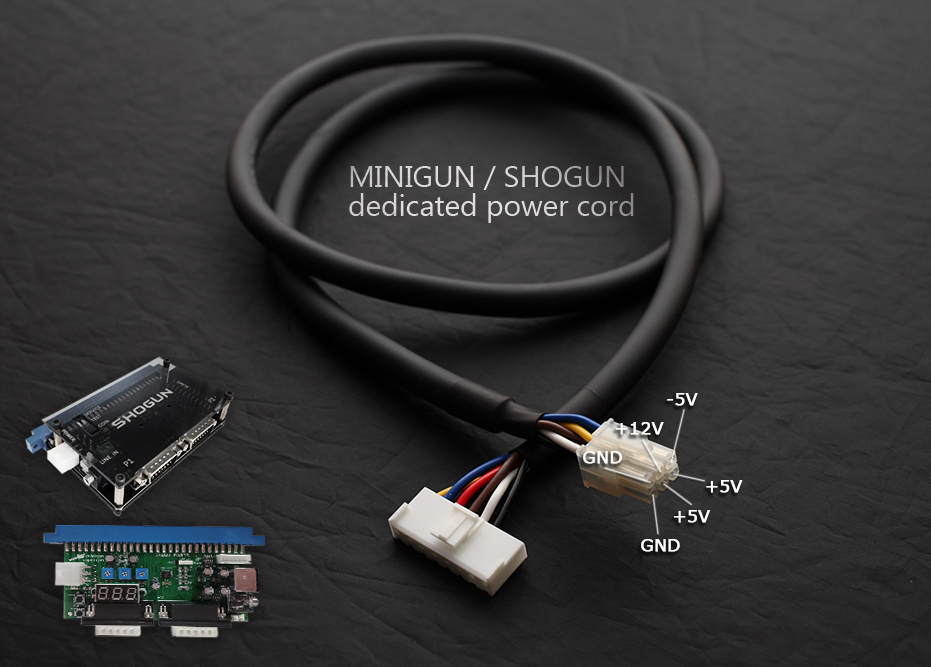

- dedicated quick connect cables for the HAS, MiniGun, SHOGUN, and NAMCO 256 (SOLD SEPARATELY)

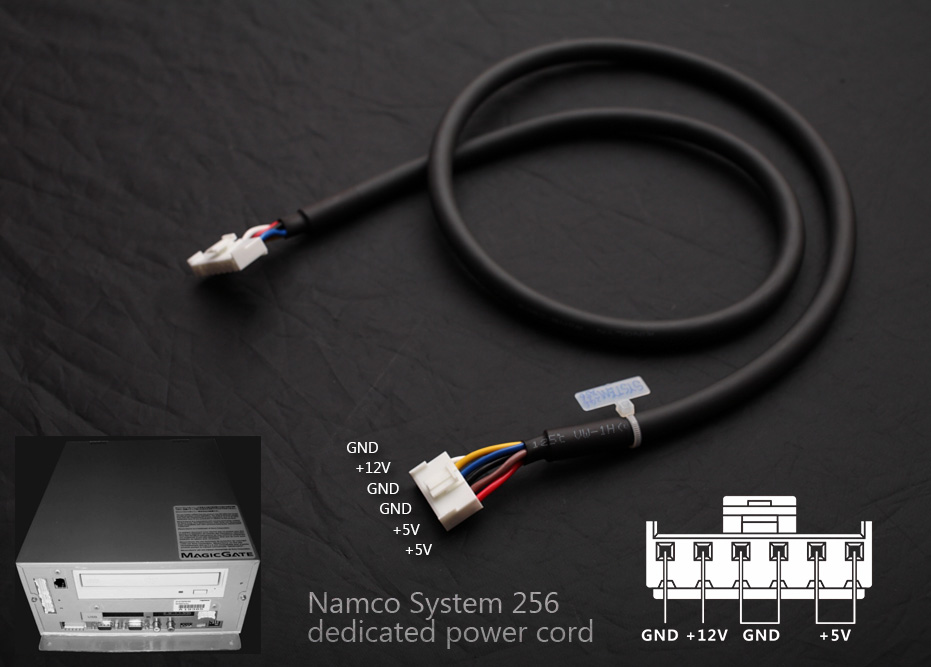

White Plug Interface reserved for later support such as Namco System 256 cable


Attachments

  • WeChat Image_20210407195731.jpg
    WeChat Image_20210407195731.jpg
    169.4 KB · Views: 77
  • WeChat Image_20210407195722.jpg
    WeChat Image_20210407195722.jpg
    180.3 KB · Views: 76
  • WeChat Image_20210407195713.jpg
    WeChat Image_20210407195713.jpg
    198.4 KB · Views: 79
Last edited:

ekorz

Multi Boyz 4 Pi
Legendary
Multi Boyz
Joined
Aug 21, 2016
Messages
3,891
Reaction score
4,236
Location
Boston, MA
Which psu is inside?


ggallegos1

Beginner
Joined
May 15, 2020
Messages
24
Reaction score
13
Location
Virginia Beach
I'm definitely down to buy these once my PSUs crap out.

Not sure if you mentioned it in another thread, are you discontinuing Supergun orders?


Axun

Student
Joined
Apr 26, 2021
Messages
42
Reaction score
66
Location
China
HI. There is no suspension of Supergun orders, you can buy it at any time if you want. It’s just that there are a lot of orders and it takes some time to make these.
I'm definitely down to buy these once my PSUs crap out.

Not sure if you mentioned it in another thread, are you discontinuing Supergun orders?


ekorz

Multi Boyz 4 Pi
Legendary
Multi Boyz
Joined
Aug 21, 2016
Messages
3,891
Reaction score
4,236
Location
Boston, MA
Would you say which model and manufacturer?


Axun

Student
Joined
Apr 26, 2021
Messages
42
Reaction score
66
Location
China
Outer diameter: 9.9mm , inner core diameter: about 2.3mm (17AWG)

Uses: sensors, power lines, signal lines, PLCs, servo signals, drag chains, tank chains, manipulators, robots, etc.

Features: soft and fold-resistant, anti-ultraviolet, working range of minus 40-105 degrees, oil and acid resistance
@Axun what gauge is the wiring for the power cables?


hyp36rmax

Student
Joined
Oct 6, 2018
Messages
79
Reaction score
74
Location
USA
Outer diameter: 9.9mm , inner core diameter: about 2.3mm (17AWG)

Uses: sensors, power lines, signal lines, PLCs, servo signals, drag chains, tank chains, manipulators, robots, etc.

Features: soft and fold-resistant, anti-ultraviolet, working range of minus 40-105 degrees, oil and acid resistance

DOPE! Thanks for the info. SOLID! <3


hyp36rmax

Student
Joined
Oct 6, 2018
Messages
79
Reaction score
74
Location
USA
Do we have an estimated update with PSU orders? I personally have loose expectations, had some fans reach out for an estimate, figured i'd drop the Q here.


drfunk2k

Grand Master
Joined
Dec 31, 2018
Messages
554
Reaction score
807
Location
Nanjing, China
your order is taken in with payment, you are put in queue with all other Axunworks products, takes about a month to get out for shipping.
One man making all products by himself.
